Marine Sonar to Maximize Your Underwater Visibility

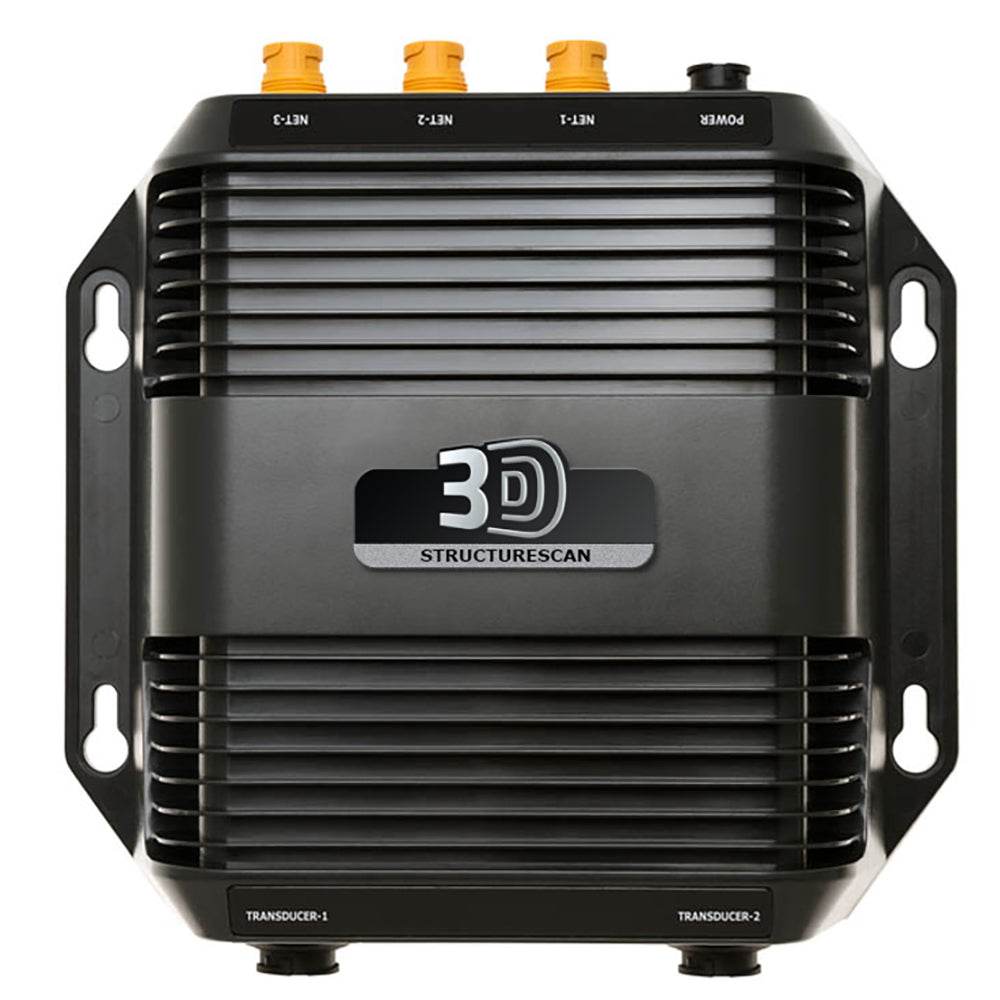

Experience precise underwater imaging with the Navico StructureScan 3D Module (000-12397-001).
Designed for serious anglers, this module produces high-resolution, 180° 3-dimensional views of fish-holding structure, underwater terrain, and vertical drops.
Compatible with Lowrance HDS Gen3, Simrad NSS evo2, and NSO evo2 systems, it’s engineered for effortless installation and reliable marine use.
Key Features
- Multi-beam sonar technology for high-definition 3D imaging
- StructureScan 3D sidescan reveals underwater terrain and fish cover
- ScanTrack™ pan-tilt-rotate control for viewing images from any angle
- Leading Edge™ Scanning Reference provides instant sonar coverage overview
- SelectScan™ automatically highlights fish-holding structure and suspended targets
- Vertical Enhancement emphasizes depth changes and vertical drops
- 3D Waypoint Overlay enables easy revisit of fishing spots or underwater structures
- Supports up to 600 ft range port and starboard with unmatched clarity

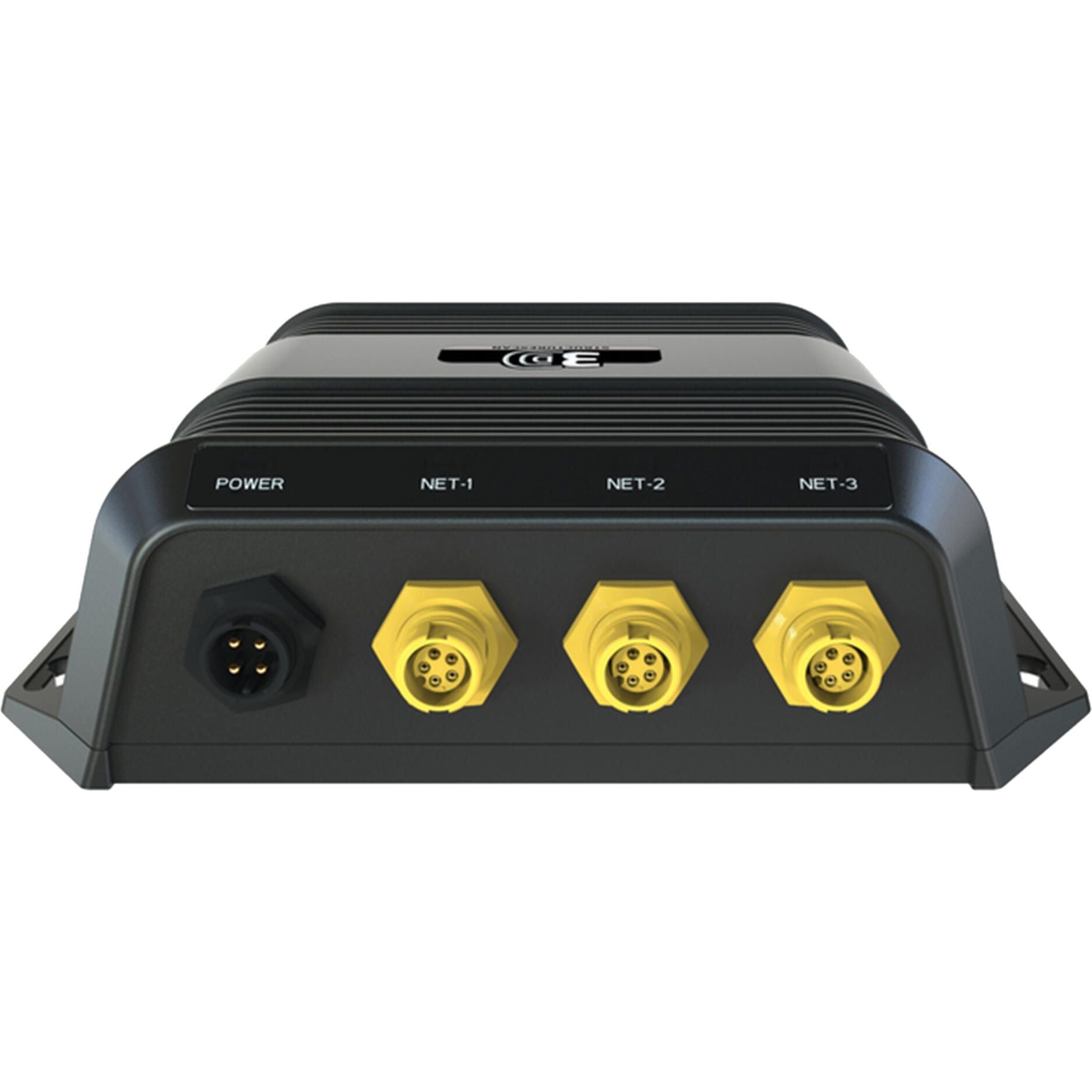

- Ethernet expansion allows network connectivity for up to three devices
Advanced StructureScan 3D Advantages
- Includes multiple views: 2D DownScan Imaging™, StructureScan® HD, and realistic 3D perspectives
- Enhanced transducer design with additional sensors for clearer SideScan imaging
- Complete control over underwater perspectives with customizable angles
- Accurate display of sonar beams and depth contours via Leading Edge™
- Makes fish detection faster and easier with SelectScan™
- Durable construction for long-term marine environments
Technical Specifications
- Compatible with: Lowrance HDS Gen3, Simrad NSS evo2, NSO evo2
- SideScan Range: Up to 600 ft (port and starboard)
- Imaging Type: Multi-beam sonar
- Display: 3D real-time underwater views
- Ethernet Expansion: Up to 3 networked devices
- Target Identification: SelectScan™ for fish and cover
- Water & Marine Rating: True marine-grade design
- Warranty: 3-Year
What’s Included in the Box
- StructureScan 3D Module – No Ducer (000-12397-001)
- Ethernet connectivity cable
- Mounting hardware
- Installation instructions
- Manufacturer 3-year warranty
The Navico StructureScan 3D Module is the ultimate upgrade for anglers and marine explorers who demand clear, detailed underwater visuals.
See fish, cover, and vertical structures like never before, and revisit productive fishing areas with ease using the 3D Waypoint Overlay. Built to withstand the marine environment, this module offers superior reliability and integration with your Lowrance or Simrad fishfinder/chartplotter system.
