Product Description

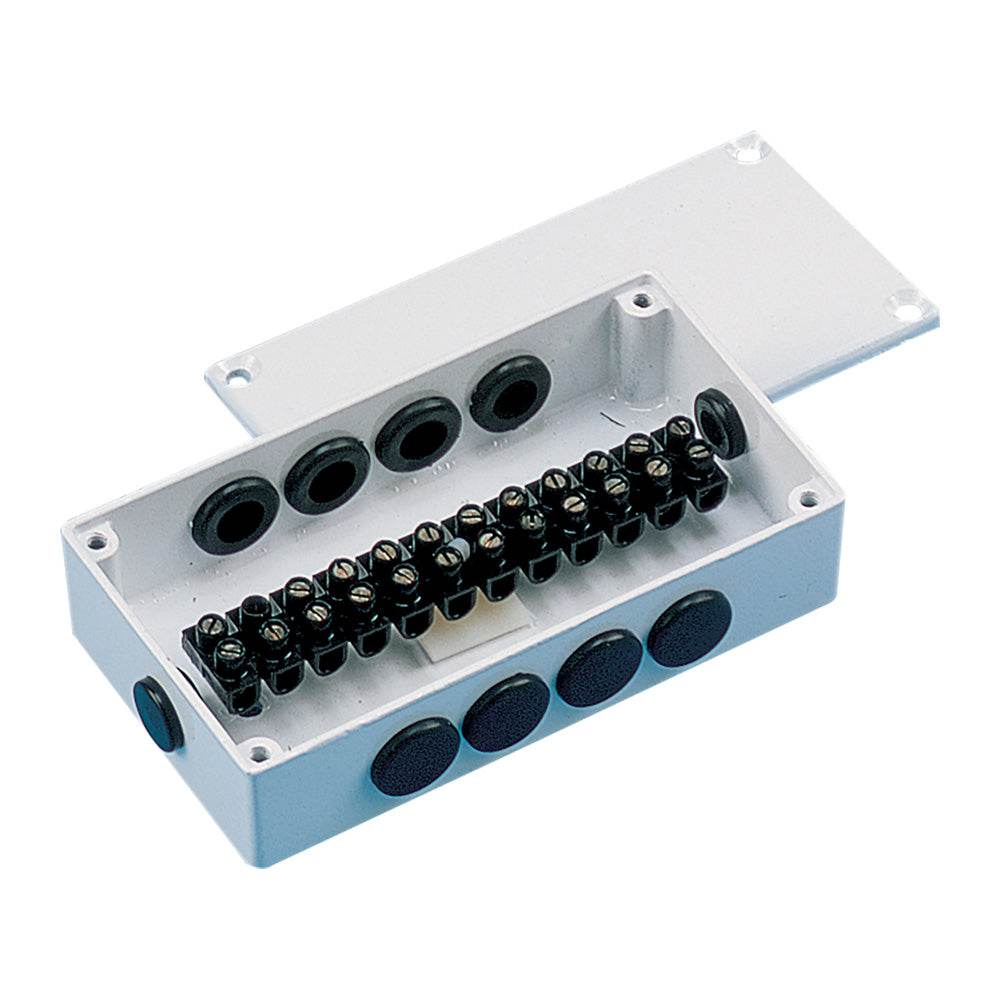

BX-2 Junction Box
This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.
Features:
- IP rating 54 – “Splashproof”
- Rugged cast aluminum box with white enamel finish
- Metal box reduces electrical interference
- Easy wiring access through multiple grommeted cable entries
- Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box
Specifications:
- Number of Connector Strips: 1
- Positions per Strip: 12
- Max Wire Gauge: 16
- Max Amps (per position): 6
- Cable Entries: 8
- Cable Diameter: 0.37 in.
Specifications:
- Type: Junction Box
