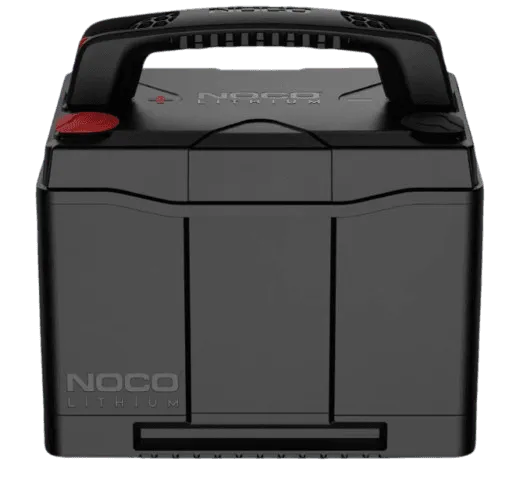

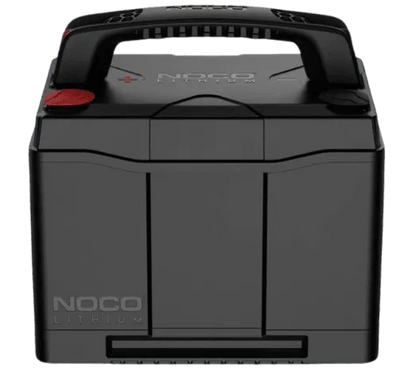

12V 90Ah 12V Lithium Ion LiFePO4 Dual Purpose Battery (NLX24)

*Compatible with button head bolts, SAE terminal posts, and threaded rods for secure mounting and with Group 24 BCI Size.

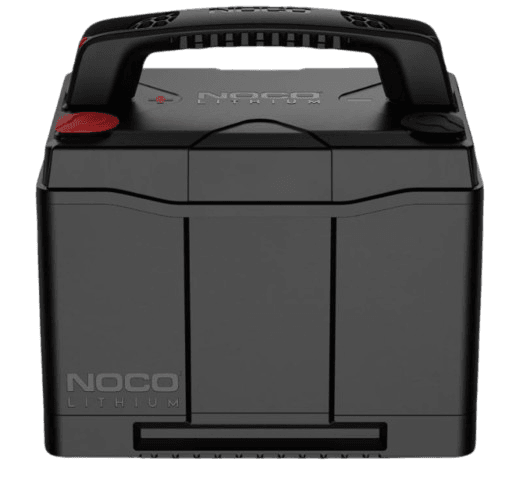

Introducing the NOCO NLX24 12V 90Ah LiFePO4 Dual‑Purpose Battery — a groundbreaking Group 24 lithium-iron-phosphate (LiFePO4) battery engineered to outperform traditional lead-acid in every key metric.

With 90 Ah (1152 Wh) of capacity and a whopping 1200 amps of peak starting power, this battery delivers the power, longevity and flexibility you’ve been looking for.

Key Features & Benefits:

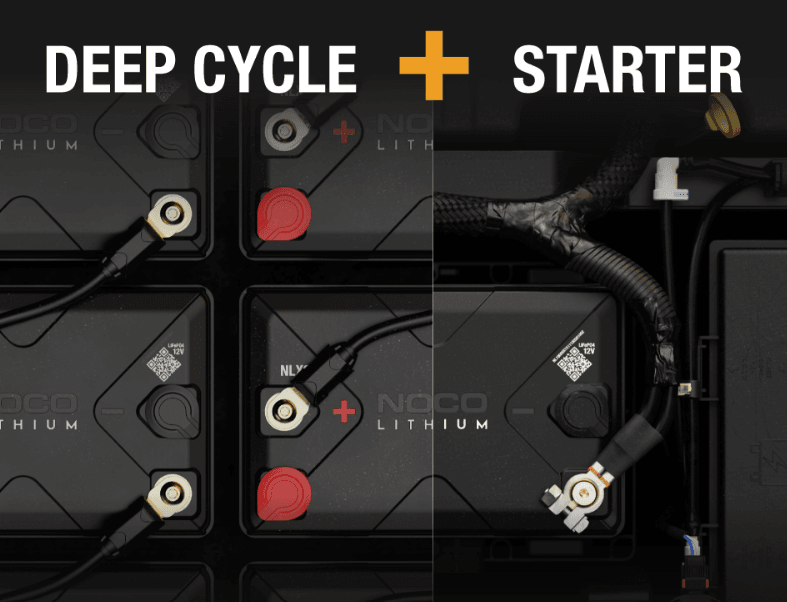

• Dual-purpose design: provides both deep-cycle capacity and starter battery performance — one battery for house loads and engine cranking.

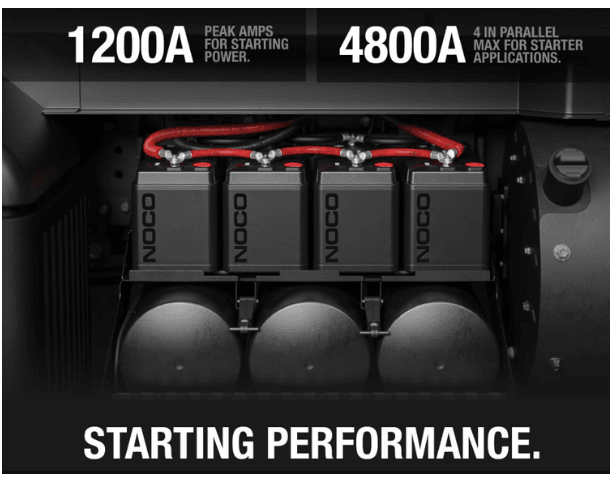

• Exceptional power: 1200 amps peak starting current means reliable engine starts under the most demanding conditions.
• Big capacity: 90 Ah / 1152 Wh ensures extended run time for accessories, trolling motors, electronics — far above typical lead-acid equivalents.
• Ultra-durable chemistry: LiFePO4 technology resists sulfation, holds more usable capacity and lasts dramatically longer than lead-acid.

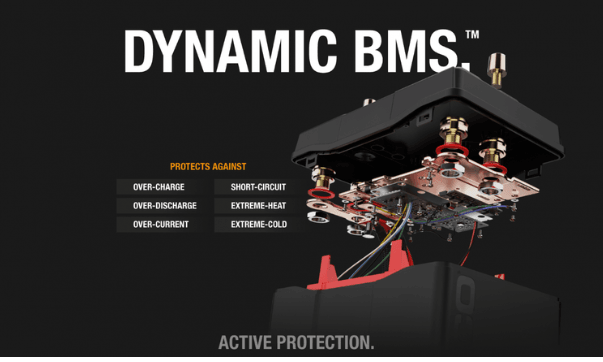

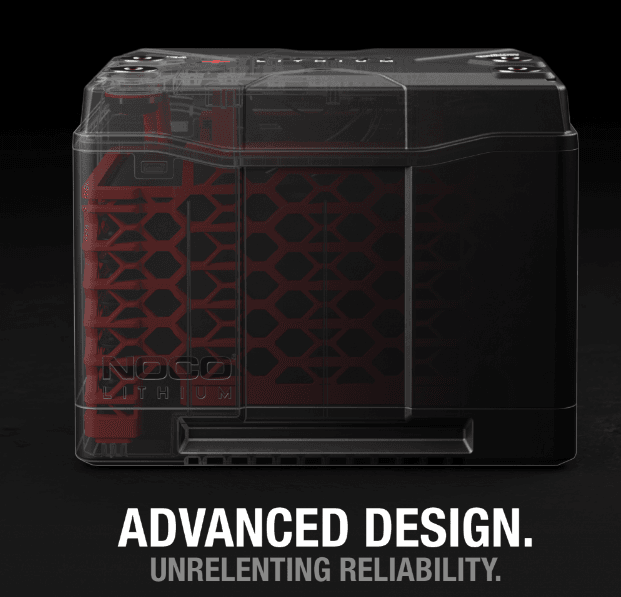

• Built-in advanced BMS (Battery Management System): auto-enabled cell balancing, temperature monitoring, over-charge, over-discharge and short-circuit protection for maximum safety and longevity.
• Lightweight yet rugged: At approximately 24 lbs (10.9 kg), it’s far lighter than equivalent lead-acid models.
• IP66 waterproof rating: sealed against dust and powerful water jets—ideal for marine, RV, off-grid and outdoor applications.

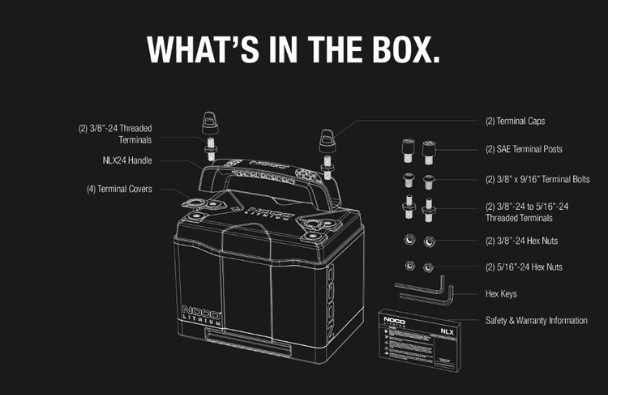

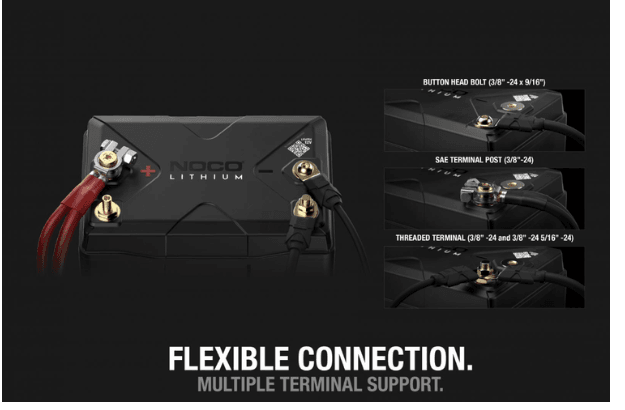

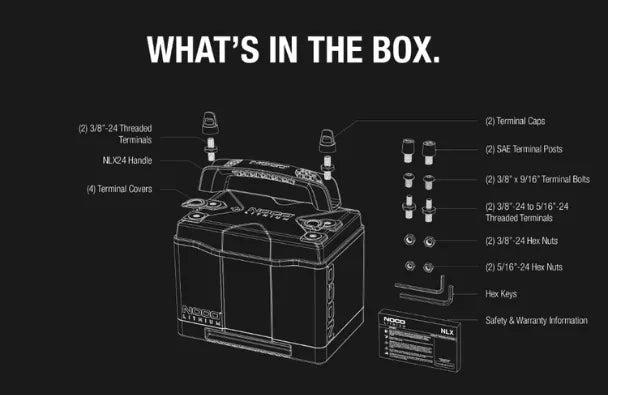

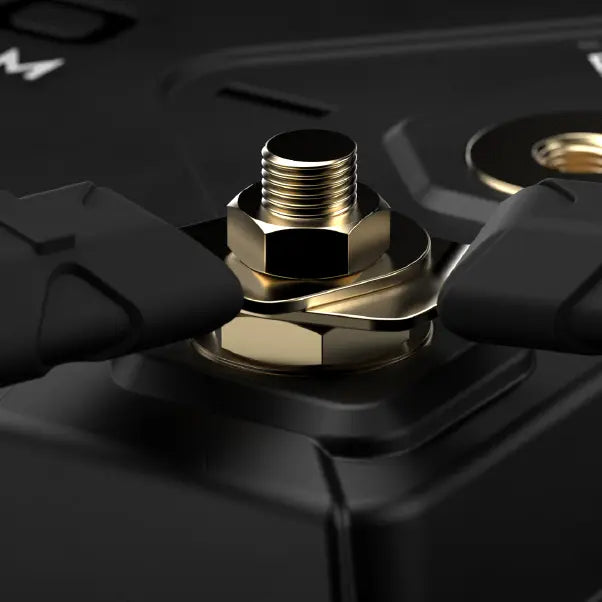

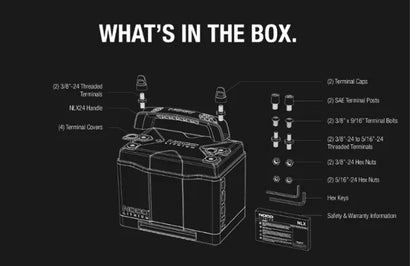

• Flexible terminal and mounting options: Comes with SAE posts, threaded 3/8″-24 and 5/16″-24 rods, bolts and nuts — compatible with many installations, including button head bolts and ring terminals.
• Group 24 (BCI size) fitment: Drop-in replacement for many standard Group 24 lead-acid batteries, making upgrade simple.
• 5-Year limited warranty: Solid peace of mind for your investment.

Technical Specs:

• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Voltage: 12.8 V nominal
• Capacity: 90 Ah / 1152 Wh
• Peak Starting Current: 1200 amps
• Continuous Current: 150 amps
• Weight: ~24 lbs (10.9 kg)
• Dimensions (Height × Width × Depth): ~6.8″ × 10.2″ × 2.76″ (173 mm × 260 mm × 70 mm) as originally listed; note alternate dimension specs listed too.
• IP Rating: IP66 (water & dust resistant)
• Warranty: 5 Years limited

Ideal Applications:

• Marine boats and yachts requiring reliable start and deep-cycle capacity.
• RVs, campers and off-grid systems where weight savings and long life matter.
• Automotive projects, vans, custom builds that need high start-crank power and accessory load support.
• Solar or renewable energy systems where a dual-purpose battery gives flexibility.
• Any situation looking to upgrade from bulky, heavy lead-acid to next-gen lithium performance.

Why upgrade now?

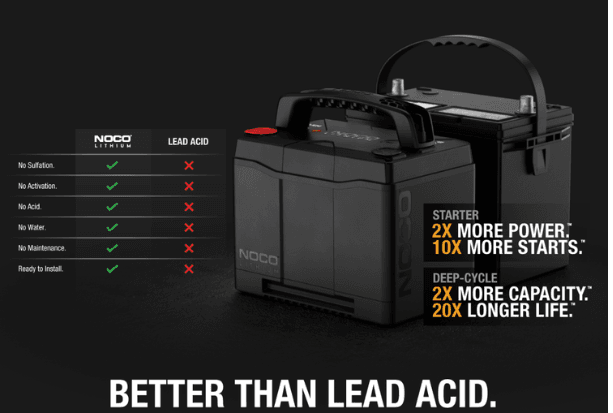

With the NOCO NLX24 you’re getting 2× the power, up to 10× more starts and up to 20× the lifespan compared to conventional lead-acid batteries.

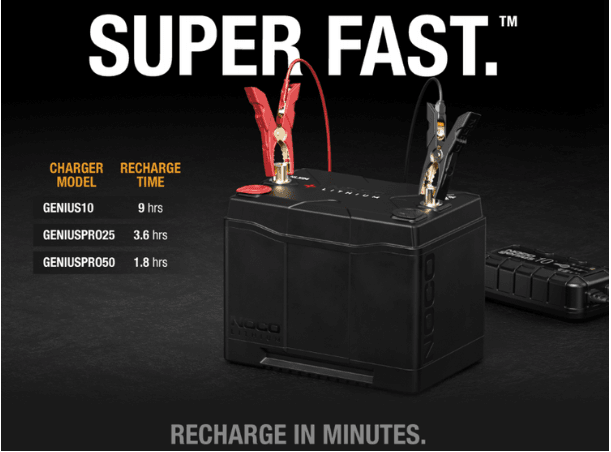

Thanks to its advanced BMS, fast charging compatibility (when paired with a compatible charger) and flexible installation hardware, it’s built for your toughest demands and longest adventures. Make the switch to lithium today and experience fewer maintenance worries, lighter weight, higher reliability and superior performance.

Installation & Mounting Tips:

• Ensure your charging system is compatible with LiFePO4 chemistry. Some chargers designed for lead-acid may not properly charge lithium batteries — refer to manufacturer recommendations.

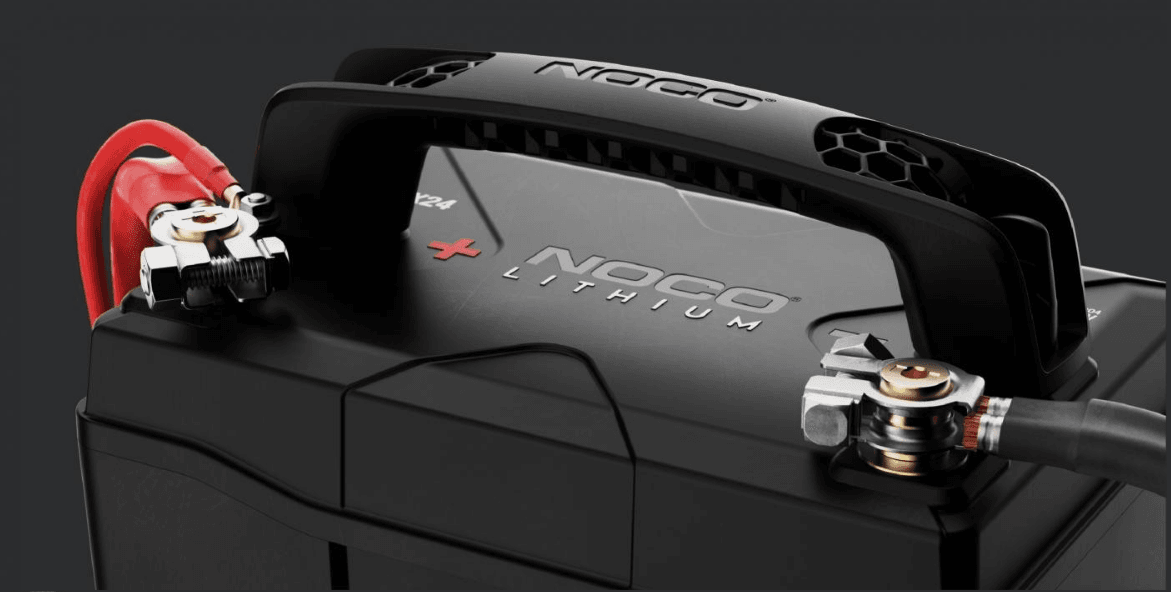

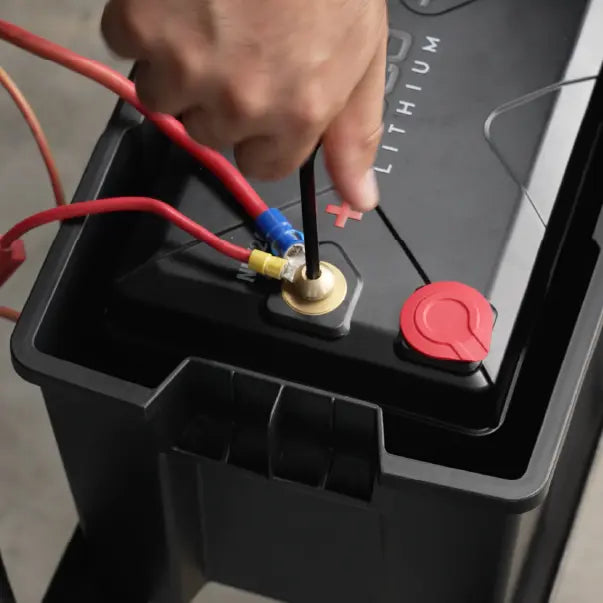

• Use one of the included terminal hardware sets (SAE posts, threaded rods or bolts) to match your application for secure mounting.

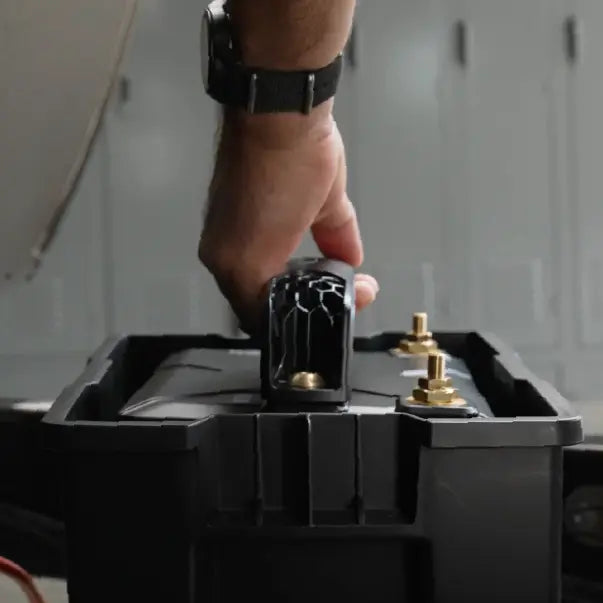

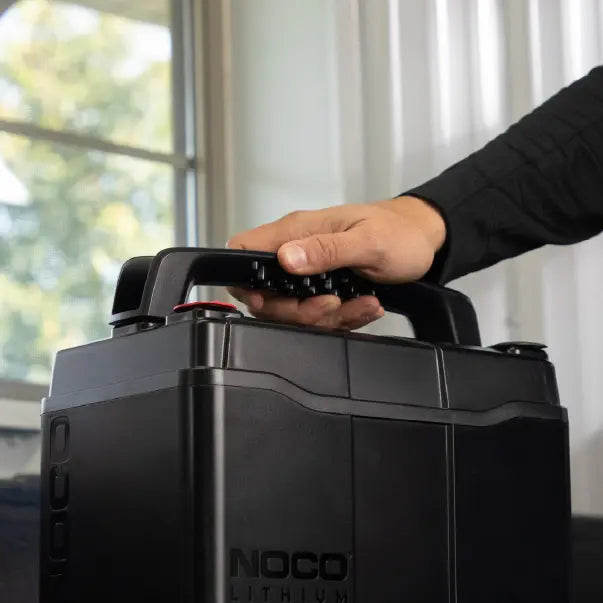

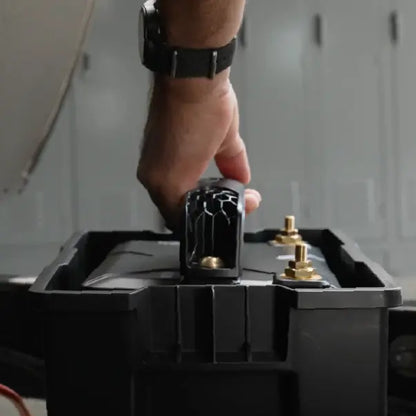

• The carry-handle allows easy placement; remove once installed if needed for clearance.
• If your application uses a Group 24 battery tray, the NLX24 will fit – verify dimensions and clearance before installation.
• Register your product and keep warranty documentation handy in case of service.

Upgrade your power system with the NOCO NLX24 12V 90Ah LiFePO4 Dual-Purpose Battery — where starting strength meets deep-cycle endurance in a lightweight, high-performance package.
