Octopus Autopilot Drives

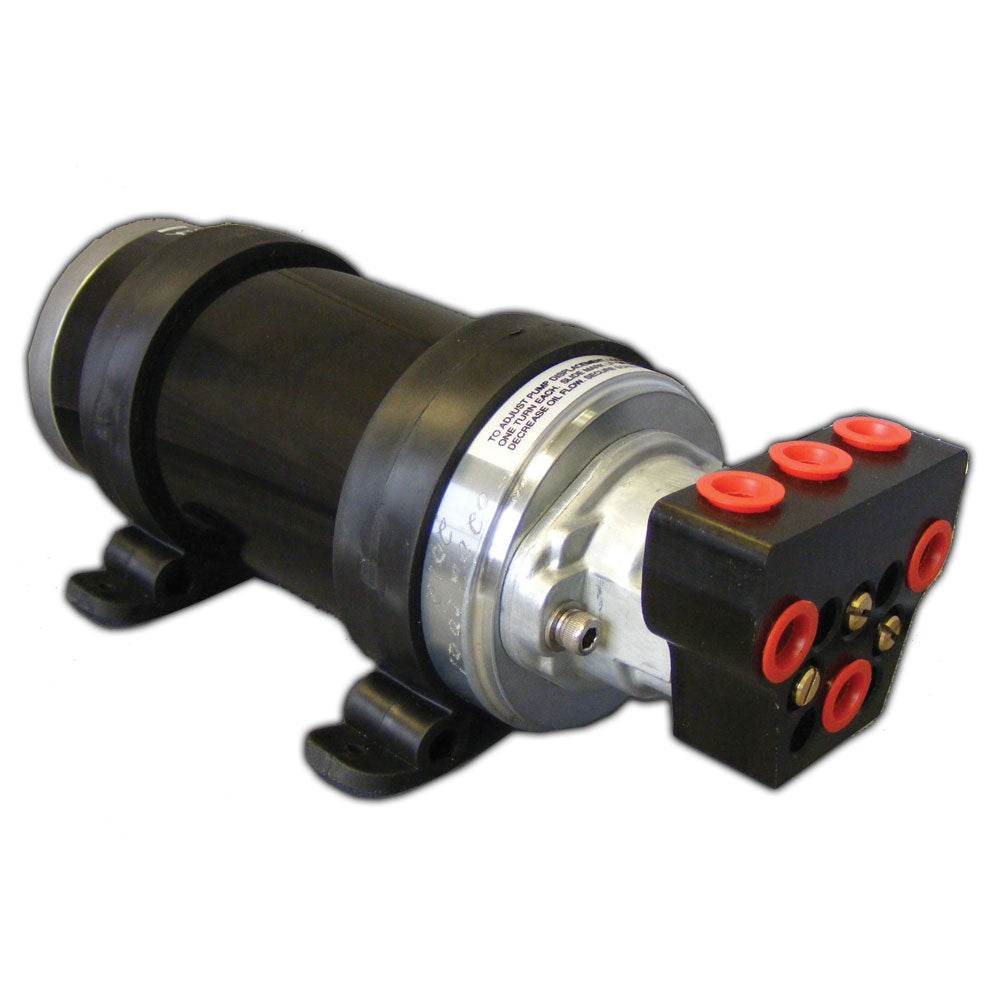

Octopus Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder [OCTAF1212]

Octopus Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder [OCTAF1212]

Regular price $531.99
Regular price $814.44 Sale price $531.99
SALE SOLD OUT

Shipping

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

Delivery Times

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

Returns and Refunds

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

Check Availability

Not sure if this item is in stock?

  • Live Chat with the Owner below.
  • Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.

Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.

View full details

Product Description

Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder

Now with ORB Port Connection manifold

Reversing pumps are used when hydraulic steering is fitted on boats up to 65 feet L.O.A. (depending on rudder torque). The pumps are switched on by the automatic pilot and make a steering correction to left or right determined by the direction of rotation of the pump motor. The motors are of the permanent magnetic type and reversing direction is accomplished by reversing the motor input current.

The pump has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. Output flow is completely adjustable to 50% of rated flow allowing the pump output to be adjusted precisely to the volume of steering cylinder fitted. The pump is exceptionally reliable and delivers more than twice the hydraulic output per watt of input than gear pumps manufactured by competitors.

Motors are heavy duty, a full 85mm in diameter with long brushes and sealed ball bearings for long service life. The molded rubber mounting foot can be rotated to allow the pump to be mounted on any surface.

A useful range of accessories can be used to enhance the pump by incorporating added valves and solid state FET switching. The valves mount directly to the pump body. The FET switch mounts adjacent to the pump. No other autopilot pump made offers such advantages.

Benefits of the Octopus Reversing Pumps
Piston pump technology giving higher efficiency and accuracy Fewer moving parts giving increased reliability Variable flow rate to make sure the pump is matched as accurately as possible to the manual steering system Professional cut off valves for simple servicing.

Features:

  • Average Current 4-6 amps
  • Max Current 19amps
  • 12vDC
  • Cylinder Size: 11-22ci
  • Flow Rate(adjustable): 600cc - 1.2 litre/min

Specifications:

  • Type: Pumps/Drives
