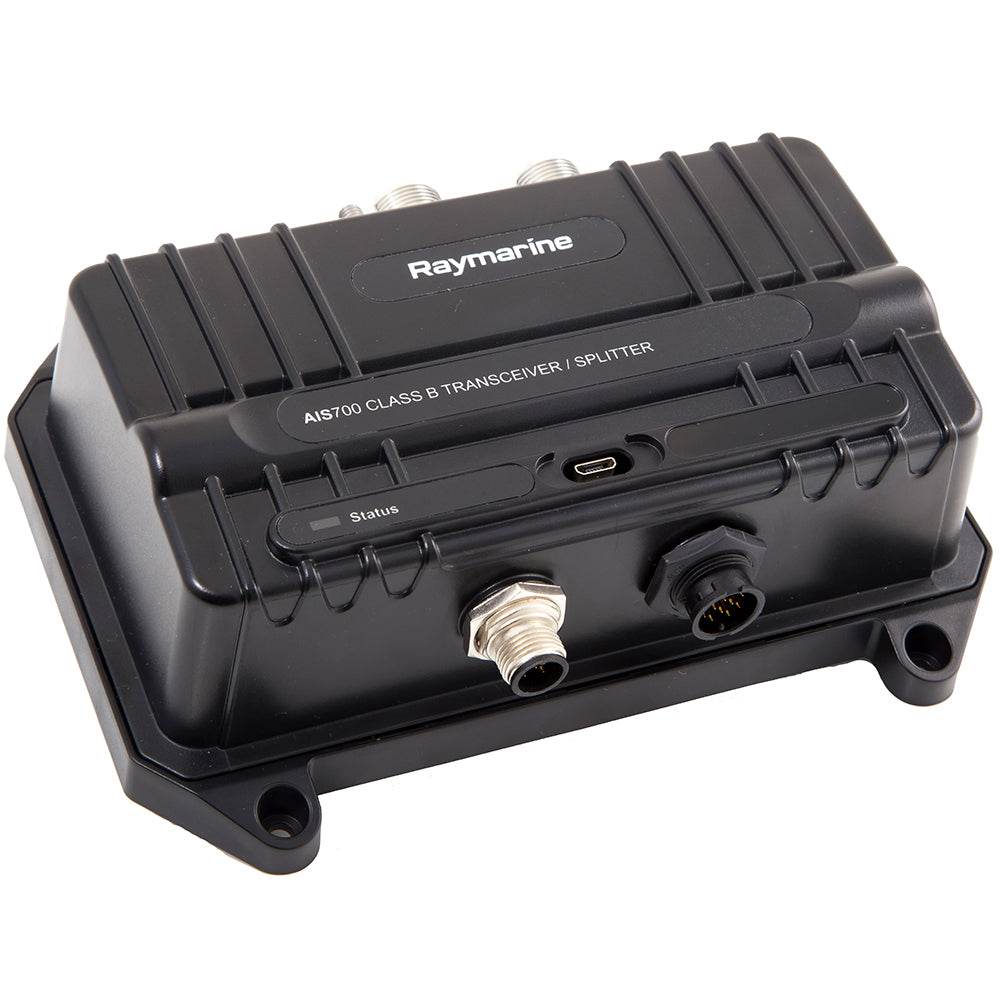

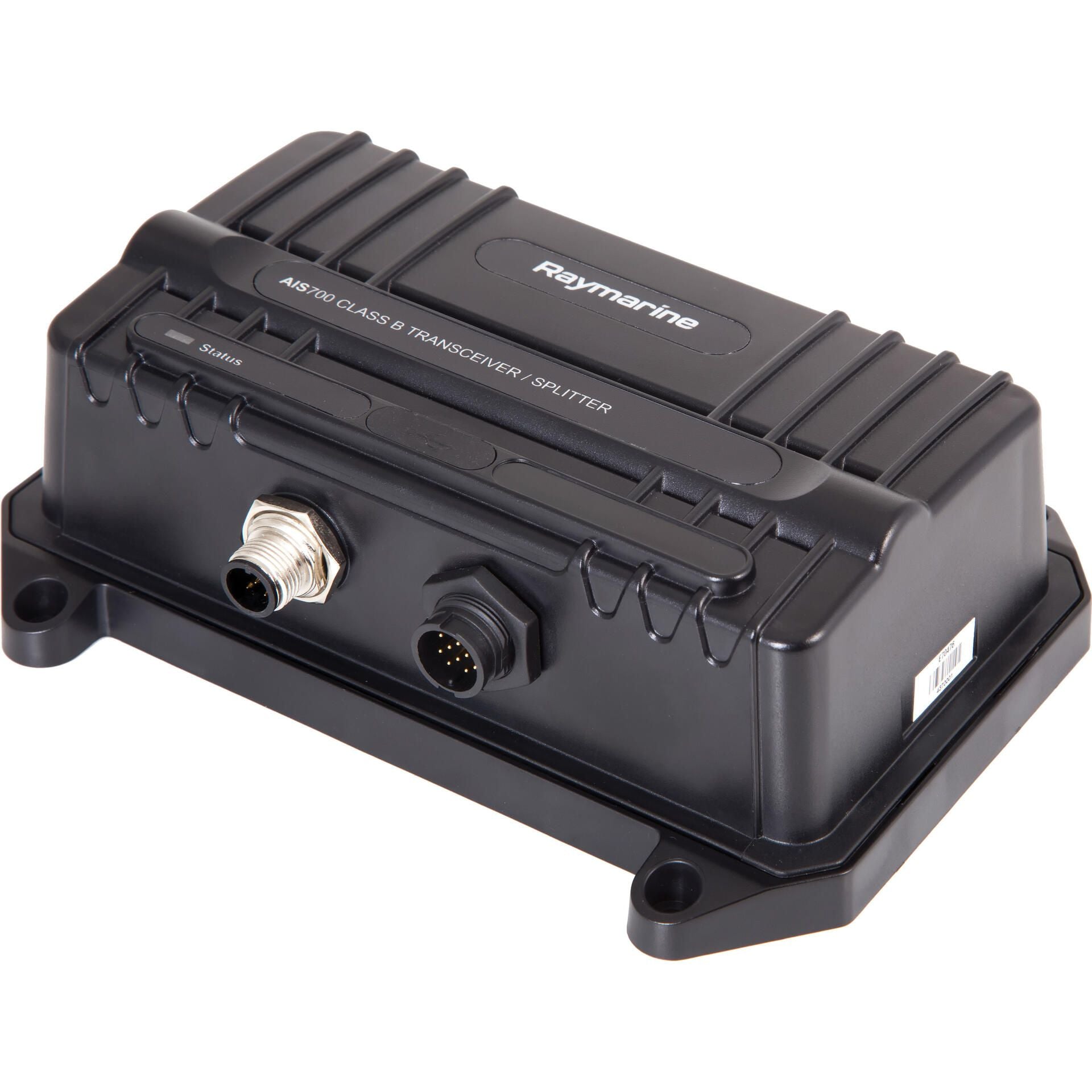

The Raymarine AIS700 Class B AIS Transceiver with Built-In Antenna Splitter (Model E70476) is a 5W SOTDMA full transmit and receive Automatic Identification System designed for seamless integration with Raymarine multifunction displays, chartplotters, radar systems, and NMEA2000 marine networks.
Featuring an internal 72-channel GPS/GLONASS receiver, built-in VHF antenna splitter, IPX6/IPX7 waterproof protection, and NMEA0183/NMEA2000/SeaTalkng compatibility, the AIS700 enhances marine navigation safety by allowing your vessel to transmit and receive real-time AIS data including vessel name, MMSI, course, and speed.
Why Choose the Raymarine AIS700 Class B AIS
The AIS700 is engineered with the latest Self-Organized Time Division Multiple Access (SOTDMA) technology, delivering faster updates and greater transmission range than older CSTDMA-based Class B AIS systems. This ensures your boat is seen sooner and more reliably by surrounding vessels and commercial traffic.
Key advantages:
Full transmit and receive AIS functionality (Class B)
5W SOTDMA output for improved reporting intervals and range

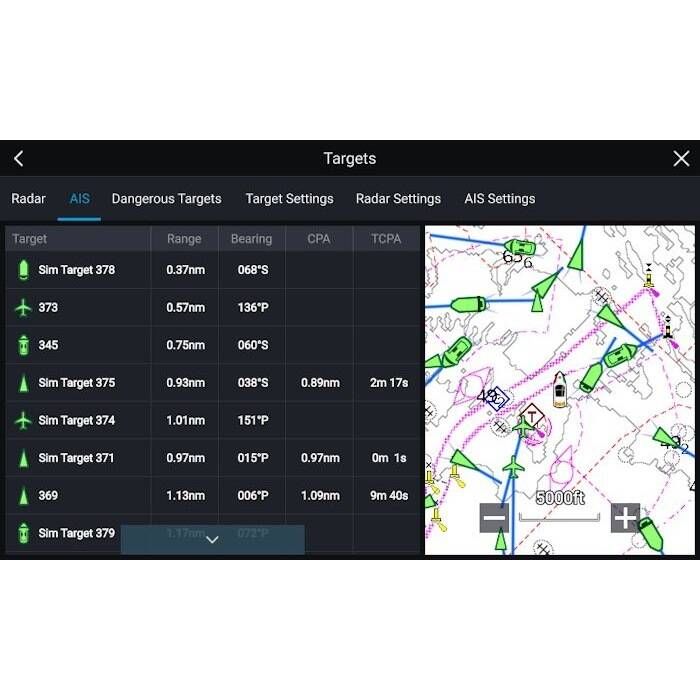

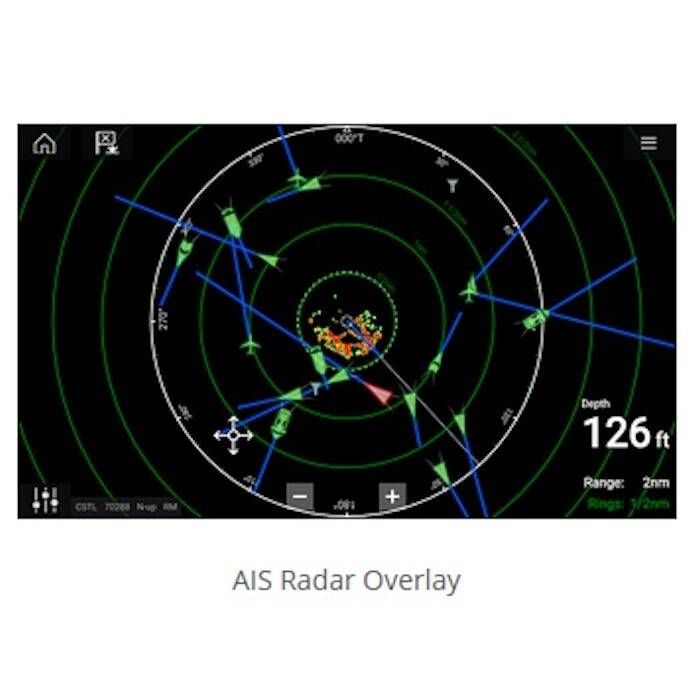

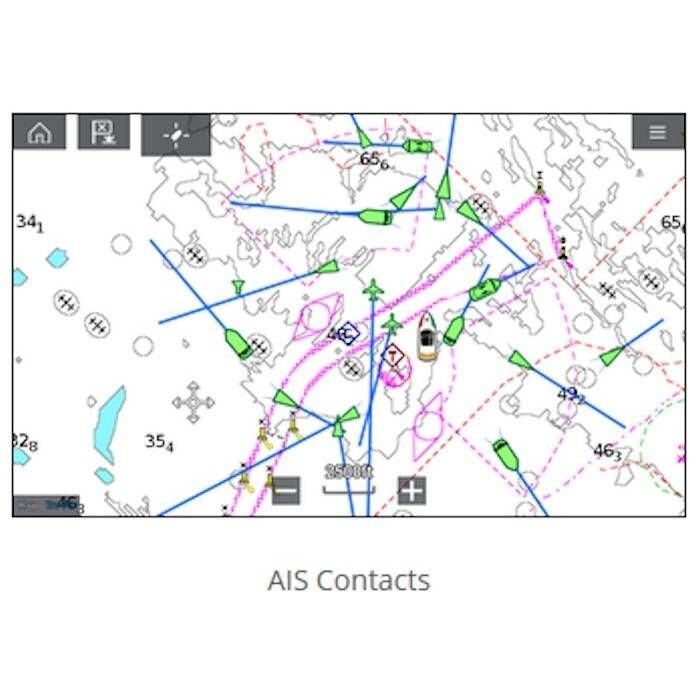

Displays AIS targets directly on compatible Raymarine MFDs, radar, and instruments
Improves collision avoidance and overall situational awareness
Built-In Antenna Splitter for Simplified Installation
The integrated VHF antenna splitter allows the AIS700 to share a single VHF antenna with your existing marine VHF radio, eliminating the need for a second antenna and reducing installation complexity.
SO-239 VHF antenna connector
SO-239 VHF radio connector
Clean helm installation with fewer cables
Ideal for center consoles, sportfishers, cruisers, and sailboats
Integrated 72-Channel GNSS Receiver
The AIS700 includes a dedicated internal u-blox MAX-M8W GNSS receiver with GPS and GLONASS support to meet international AIS standards.
72 GNSS channels
Cold start acquisition: 26 seconds (nominal)
Position source: GPS & GLONASS
External GNSS antenna included
Advanced Networking & Compatibility
The AIS700 connects easily to both modern and legacy marine electronics.
NMEA2000 (DeviceNet male)
SeaTalkng compatible
Dual NMEA0183 ports (IEC 61162-1 compliant, RS422, configurable baud rate)
Built-in NMEA0183 multiplexer

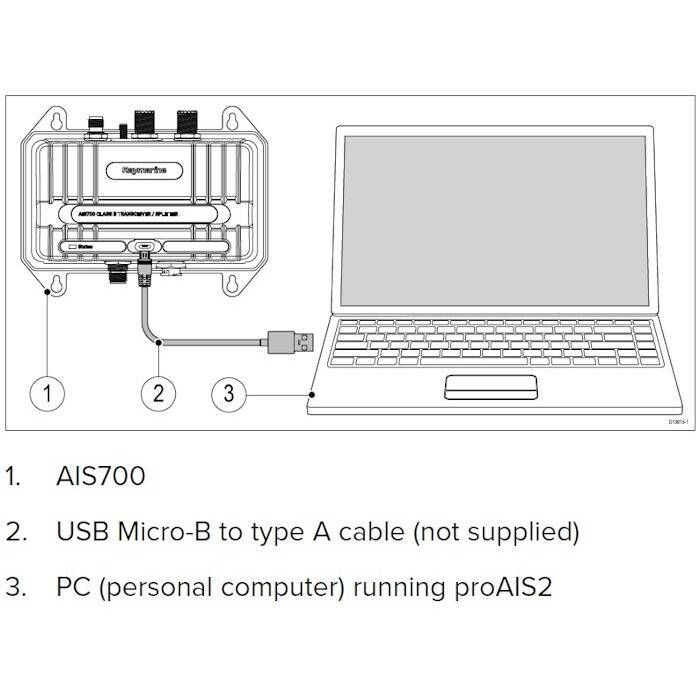

USB Micro-B connection (NMEA 0183 HS compliant, 38.4 kBaud)
Compatible with
Raymarine MFDs, chartplotters, radar displays, and AIS-enabled instruments
Silent Mode for Security & Competitive Use
The AIS700 supports both software-controlled and hardware-switchable Silent Mode.
Temporarily stop transmitting AIS data
Continue receiving surrounding vessel information
Ideal for security-sensitive areas or tournament fishing
Instantly re-enable via MFD controls or physical switch
h2 Waterproof & Marine-Ready Construction
Built for harsh offshore environments.
Water ingress rating: IPX6 and IPX7
Operating temperature: -15°C to +55°C (5°F to 131°F)
Storage temperature: -20°C to +75°C
Humidity tolerance: Up to 93% at 40°C
Designed for helm, locker, or concealed mounting
Technical Specifications
AIS Performance:
AIS Class: B
AIS Performance: 5W SOTDMA
Transmitter frequency: 156.025 MHz to 162.025 MHz
Receiver frequency: 156.025 MHz to 174.0 MHz
Channel spacing: 25 kHz
Meets IEC 62287-2 standards
DSC receiver time-shared TDMA implementation
Power:
Supply voltage: 12V DC / 24V DC nominal
Operating voltage range: 9.6V to 31.2V DC
Power consumption: <3W
Fuse rating: 3A
Load Equivalency Number (LEN): 1
External Connections:
VHF antenna: SO-239 coaxial
VHF radio connector: SO-239 coaxial
GNSS antenna: 50 Ohm TNC coaxial
NMEA2000: 5-way DeviceNet male
Power & NMEA0183: 12-way bare ended wires
Silent mode switch: 2-way bare ended wires
USB: Micro-B
Earth stud: Threaded stud with nut and washer
Display Included: No
GPS Included: Yes
Antenna Included: GNSS antenna included
What’s Included in the Box
AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
GNSS (GPS) antenna
GNSS antenna gasket
GNSS antenna pole mount
GNSS antenna fixings (3 x M3x40 stud and thumb nut)
Power and data cable (2m / 6.56 ft)
VHF radio interconnect cable (1m / 3.28 ft)
DeviceNet to SeaTalkng adaptor cable (1m / 3.28 ft)
Mounting hardware (4 x No.8 x 19 self tapping screws)
M5 grounding nut and washer
Pro-AIS programming software CD
Documentation kit
AIS700 Class B AIS Transceiver with Antenna Splitter
**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**
Click here to download form.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
