Raymarine Axiom+ 12 RV Chartplotter/Fishfinder with RV-100 RealVision 3D Transom Mount Transducer and LightHouse North America Charts (Model E70639-03-102) is a 12-inch touchscreen marine GPS multifunction display (MFD) featuring built-in 4-channel CHIRP sonar, RealVision™ 3D, DownVision™, SideVision™, 600W digital sonar, and a high-brightness IPS display rated up to 1,800 nits.
Powered by a quad-core processor and running LightHouse 3 OS, the Axiom+ 12 RV delivers ultra-fast chart redraw, 10Hz GPS/GNSS positioning, Wi-Fi and Bluetooth connectivity, NMEA 2000 and RayNet networking—making it ideal for offshore fishing, coastal cruising, bass boats, center consoles, and serious anglers demanding professional-grade fishfinding and navigation performance.
Performance-Tuned Marine Navigation & Fishfinding
Designed for speed, responsiveness, and future expansion, the Axiom+ 12 RV features a powerful quad-core processor with expanded onboard storage for charts, routes, and apps. Whether running Navionics, C-MAP, or Raymarine LightHouse charts, this unit delivers fluid redraw and seamless zoom performance.
• Quad-core processor for industry-leading speed and responsiveness
• 16GB internal solid-state storage (14GB usable)
• 10 Hz GPS/GNSS receiver with 4X increased sensitivity
• Supports GPS, GLONASS, BeiDou
• SBAS support: WAAS, EGNOS, MSAS, GAGAN, QZSS
• Chart compatibility: LightHouse Raster & Vector, Navionics, C-MAP
• ClearCruise™ Augmented Reality capable (camera required)
12" High-Brightness IPS Touchscreen Display
The upgraded IPS display delivers twice the resolution of traditional displays with wide viewing angles, vivid color, and up to 25% more brightness—rated up to 1,800 nits for full sun readability.
• 12-inch all-weather touchscreen display
• IPS technology for sharp contrast and wider viewing angles
• Up to 1,800 nits brightness
• HydroTough™ nano-coated, impact-resistant glass
• Repels water, oil, and smudges
• LightHouse 3 color modes: Day, Dusk, Night
• Accurate touch response—even when wet

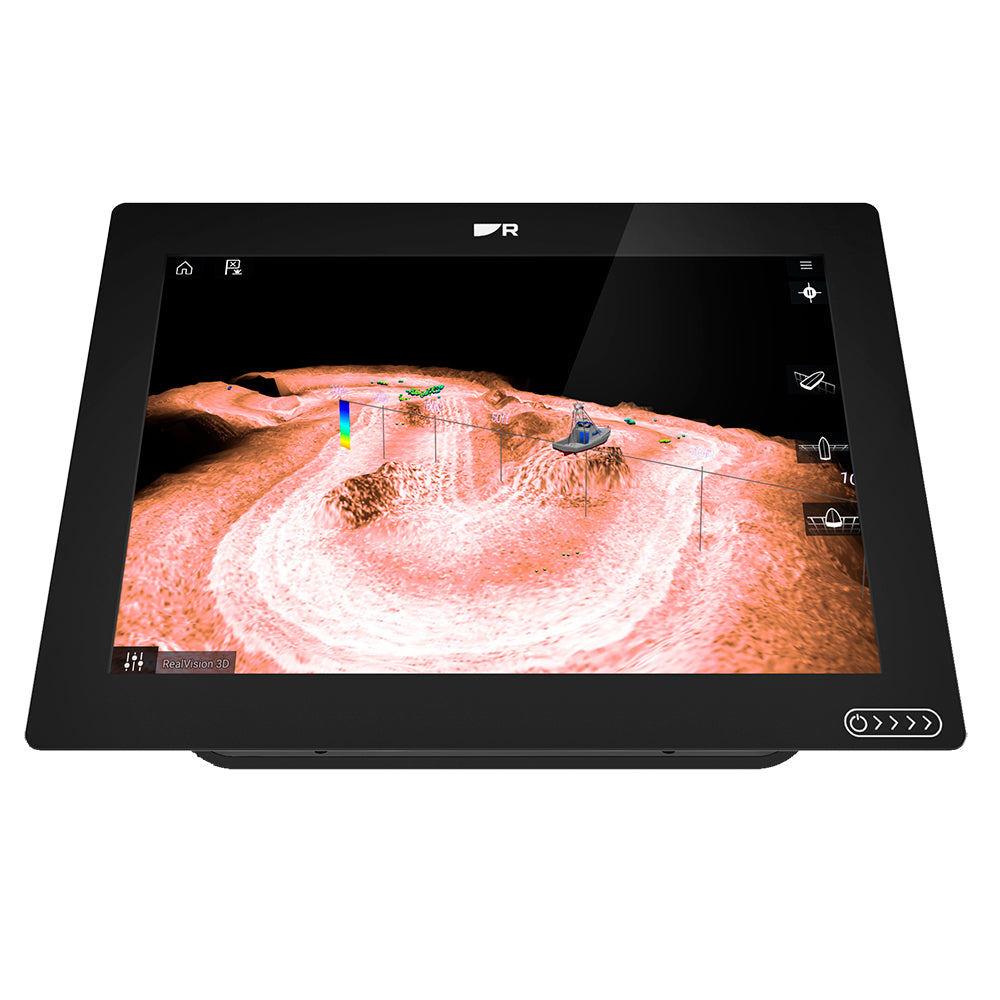

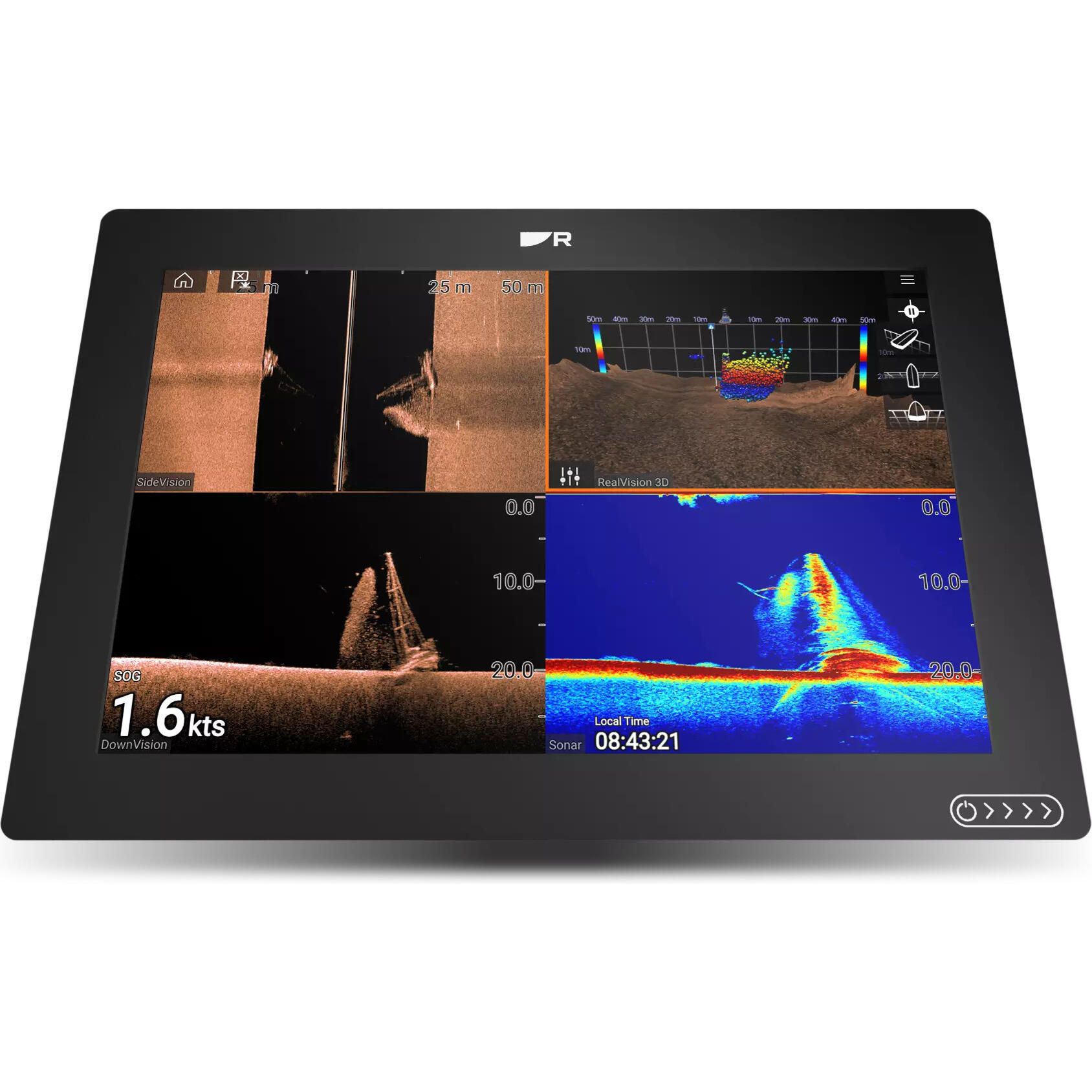

Built-In RealVision™ 3D 4-Channel CHIRP Sonar
Axiom+ 12 RV includes built-in 4-channel sonar and the RV-100 All-In-One RealVision 3D transducer, providing life-like underwater imaging with stabilized sonar returns in waves and rough water.
• RealVision™ 3D sonar (gyro-stabilized, GPS-locked bottom model)
• CHIRP DownVision™ for structure detail
• CHIRP SideVision™ for wide scanning
• High-frequency CHIRP fish targeting
• Built-in 600W digital sonar (50/200 kHz)
• Wide Spectrum CHIRP transmitting across 60 frequencies
Sonar Ranges:
• CHIRP Sonar: 0.6–274 m (2'–900')
• DownVision: 0.6–183 m (2'–600')
• SideVision: 0.6–91 m (2'–300')
• RealVision 3D: 0.6–91 m (2'–300')

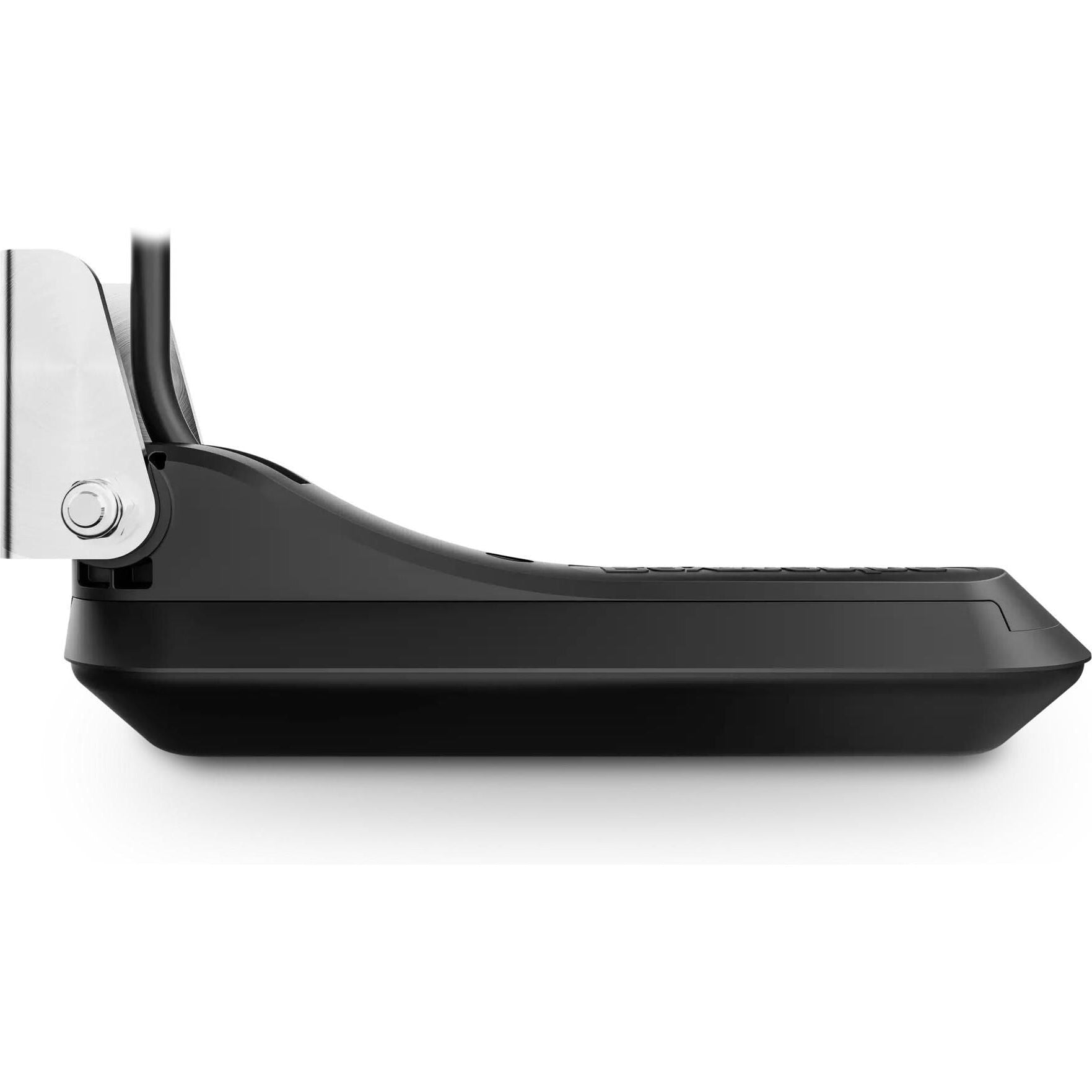

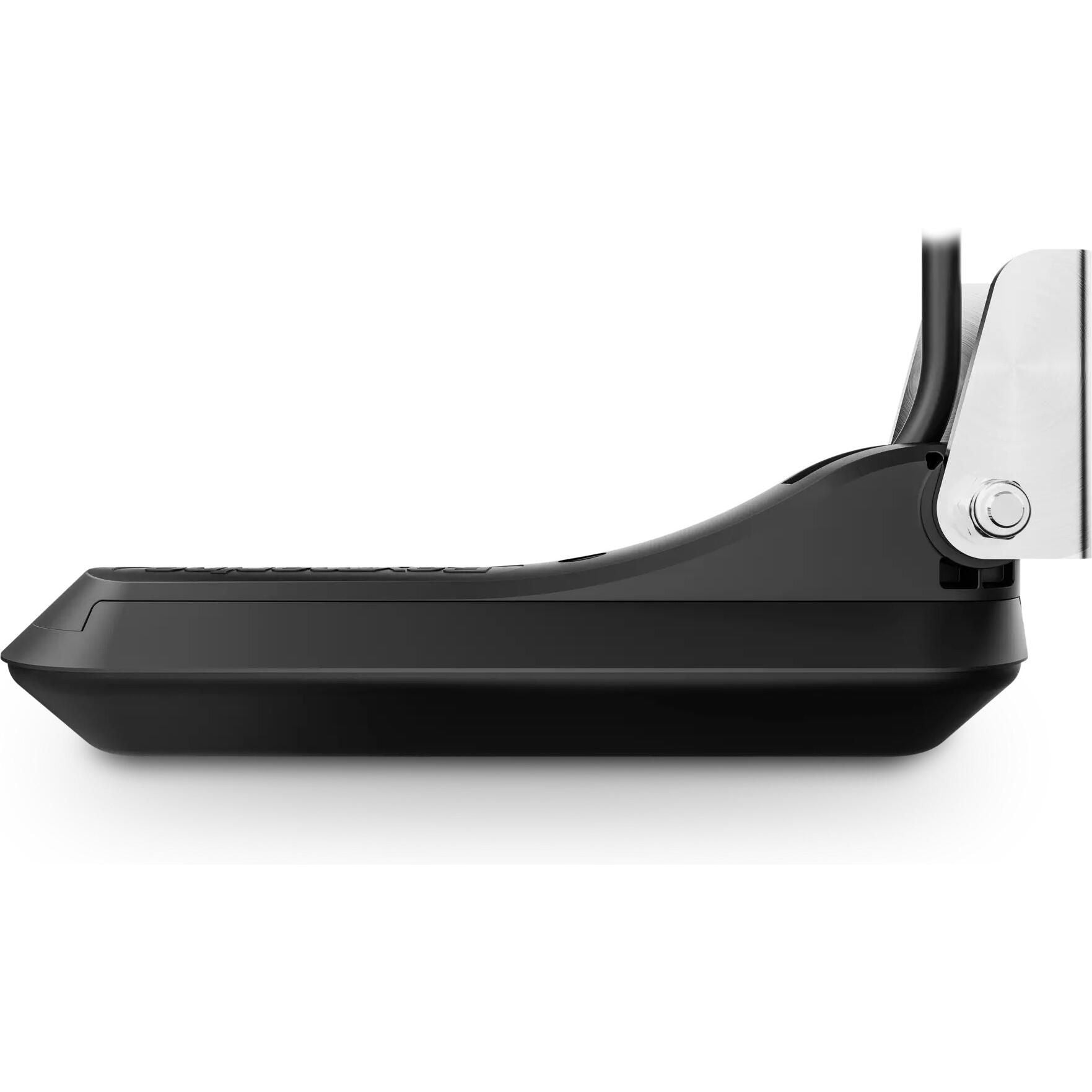

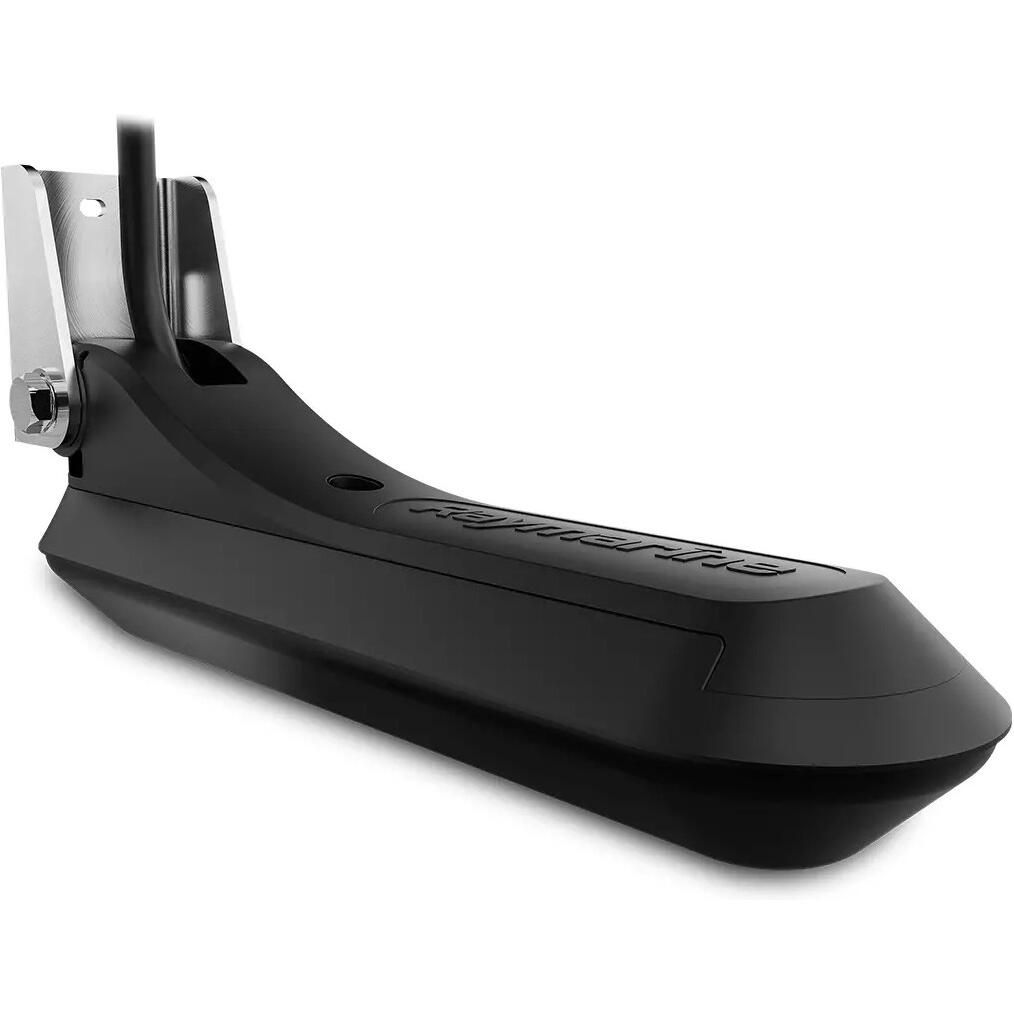

RV-100 RealVision 3D Transom Mount Transducer
The included RV-100 transducer features a built-in Attitude and Heading Reference System (AHRS) for stabilized sonar imagery and an integrated water temperature sensor for fast, accurate readings.
• 4-channel Wide Spectrum CHIRP
• Built-in AHRS motion stabilization
• Fast-response water temperature sensor
• Marine-grade stainless steel transom bracket
• Integrated kick-up protection
• 8-meter (26 ft) cable
• Compatible with optional jack-plate and step-mount brackets
Advanced Networking & Expansion
• RayNet Ethernet (10/100 Mbits/s)
• NMEA 2000 (DeviceNet connector built into power cable)
• Built-in Wi-Fi (802.11 b/g/n)
• Bluetooth 4.0
• Connect multiple Axiom displays
• Quantum CHIRP Radar ready
• Compatible with FLIR M100/M200 thermal cameras
• Marine audio control (NMEA2000 systems like Rockford Fosgate)
• Engine gauges, autopilots, IP cameras & more
Technical Specifications
• Dimensions: 314 mm x 226.72 mm x 178 mm (12.36" x 8.93" x 7.01")
• Operating Voltage: 8V–16V DC
• Nominal Voltage: 12V DC
• Fuse Rating: 7A
• Internal Antenna: Ceramic chip
• Refresh Rate: 10 Hz
• Time to First Fix: < 2 minutes (cold start)
• Transducer Port: 25-pin RealVision connector
• MicroSDXC card slot x1
• USB Micro-B connection
What’s Included in the Box
• Axiom+ 12 RV Multifunction Display
• RV-100 RealVision 3D Transom Mount Transducer (8m cable)
• LightHouse North America Chart
• Trunnion mounting bracket
• Trunnion knobs (2)
• Suncover
• Panel mount gasket
• Threaded studs (M5x58) x4
• Thumb nuts (M5) x4
• Power/NMEA 2000 cable (1.5m power, 0.5m NMEA 2000)
• DeviceNet to SeaTalkng adapter cable
• Mounting hardware
• Installation documentation
