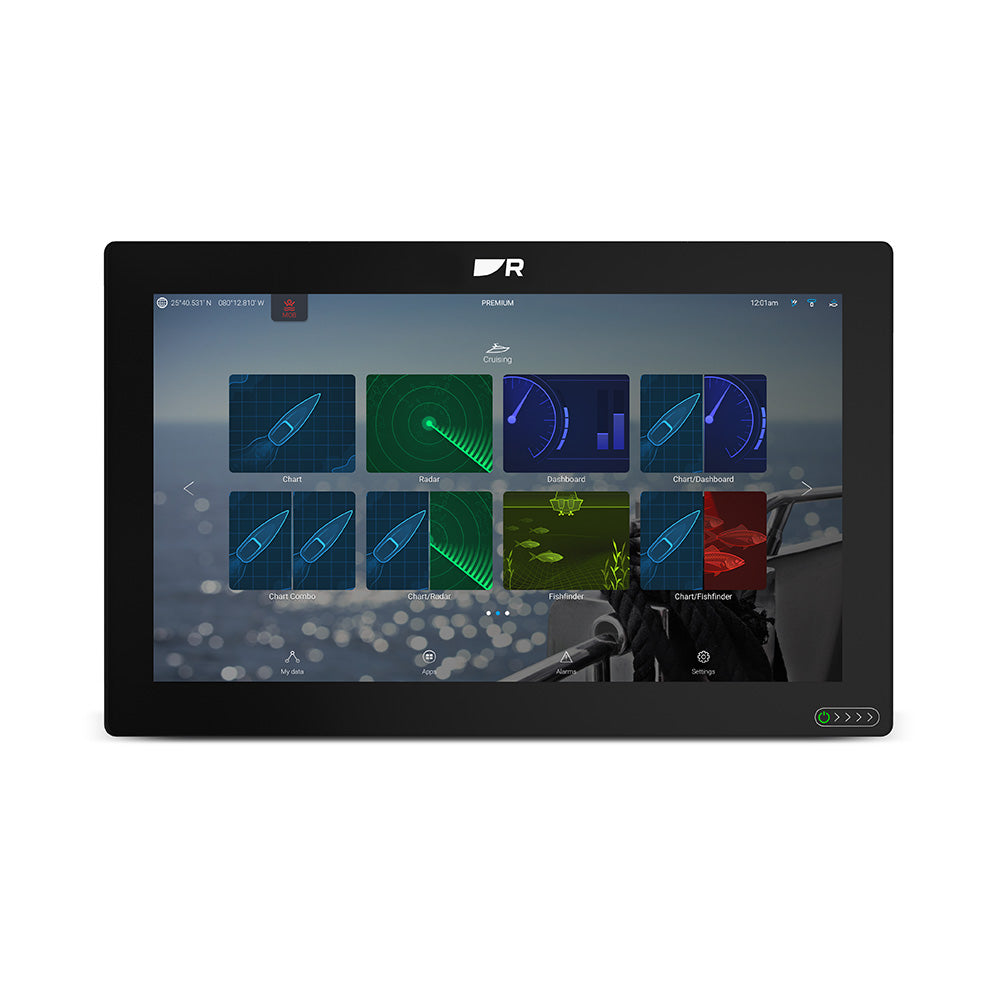

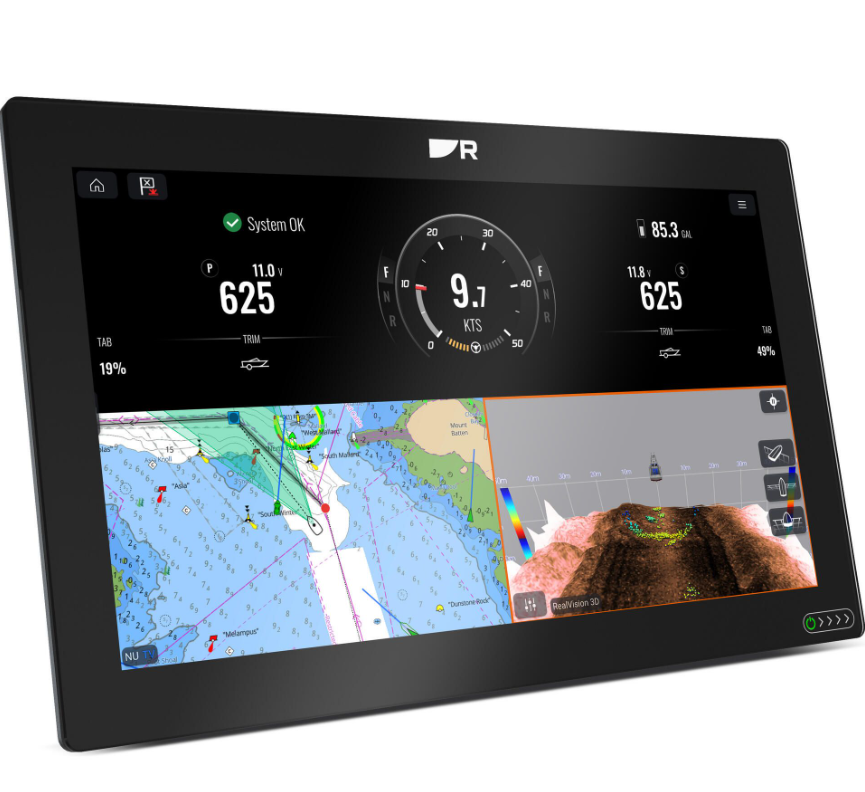

Raymarine Axiom 2 XL 16 - 15.6" Multifunction Display w/RCR-SD Reader, Alarm Cable [T70545]

Axiom 2 XL 16 - 15.6" Multifunction Display with RCR-SD Reader, Alarm & Cable

FREE Shipping

LOWEST PRICES GUARANTEED

The Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.

Features:

• Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality

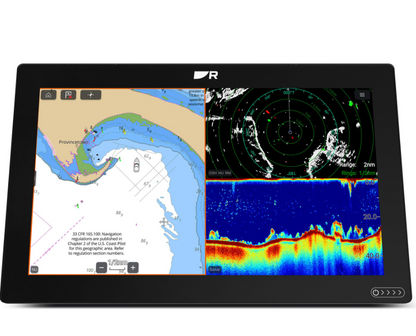

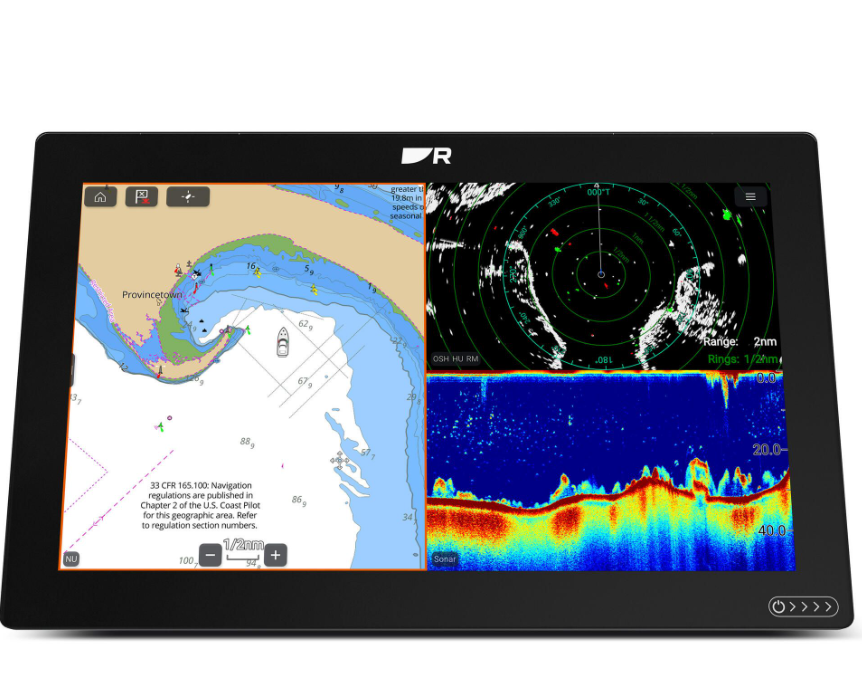

• Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay

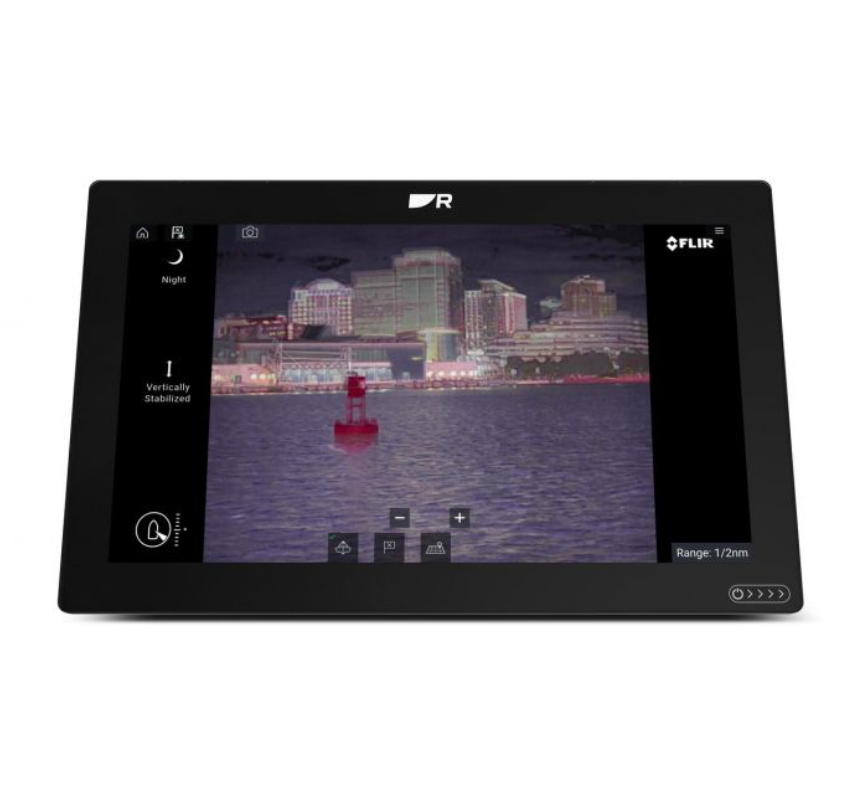

• Turn Night Into Day: FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence

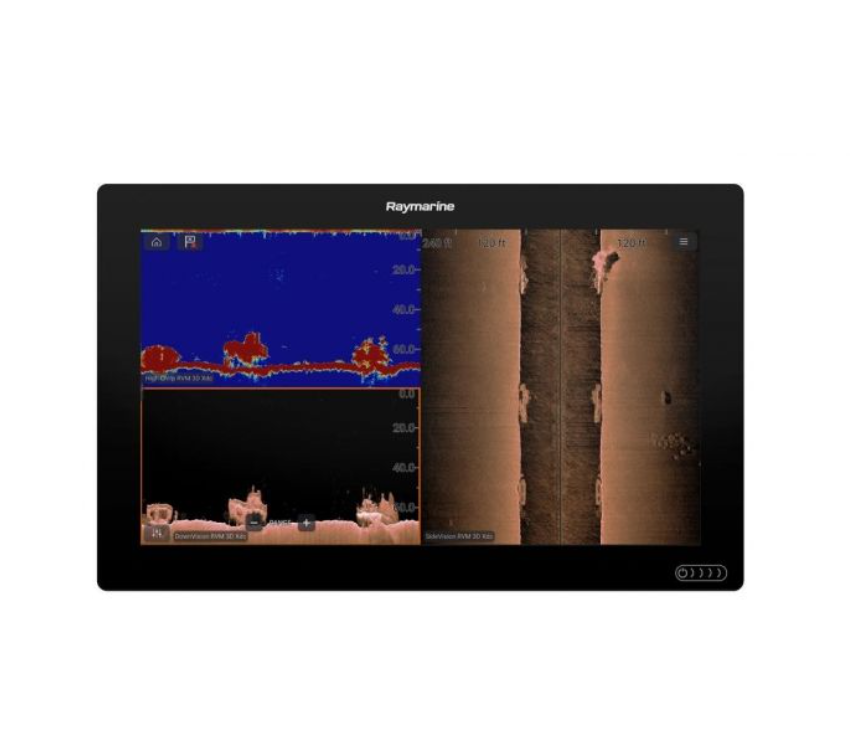

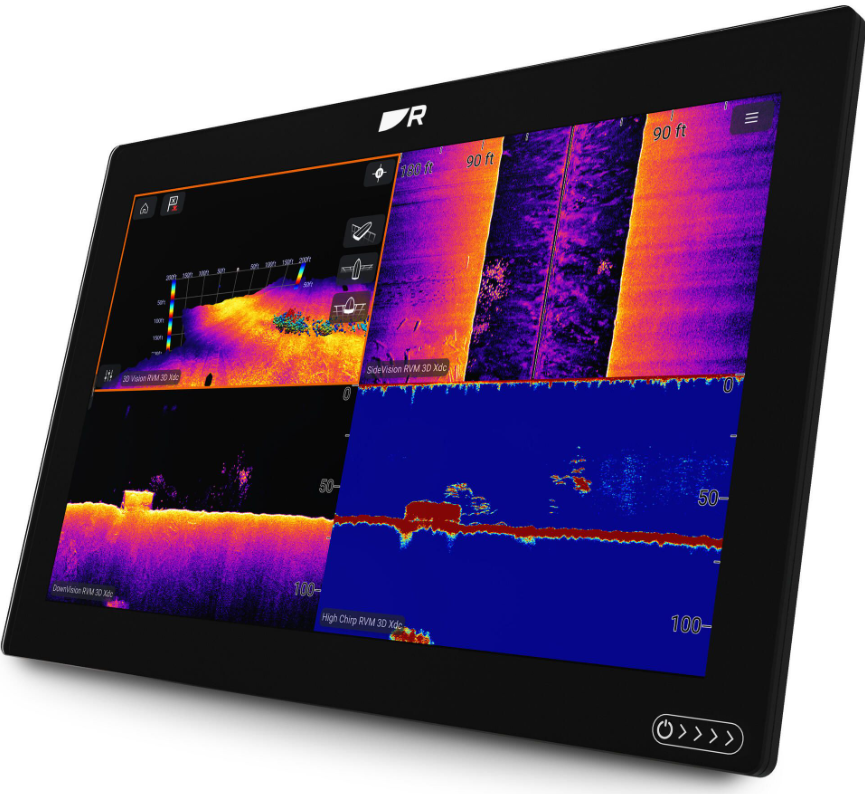

• Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D Fishfinder
• Smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers

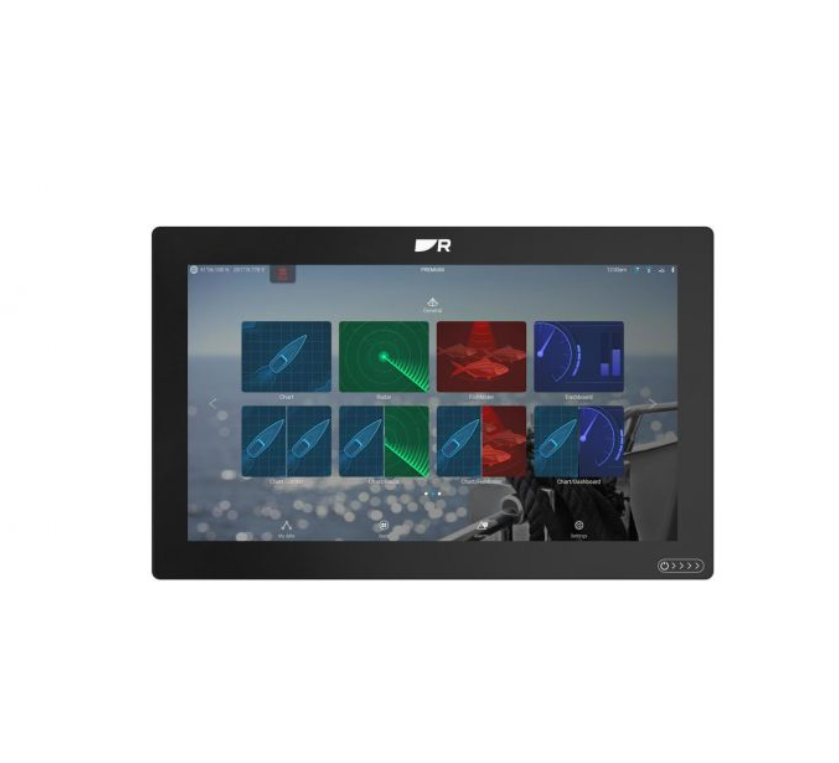

• Intiuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
• Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video

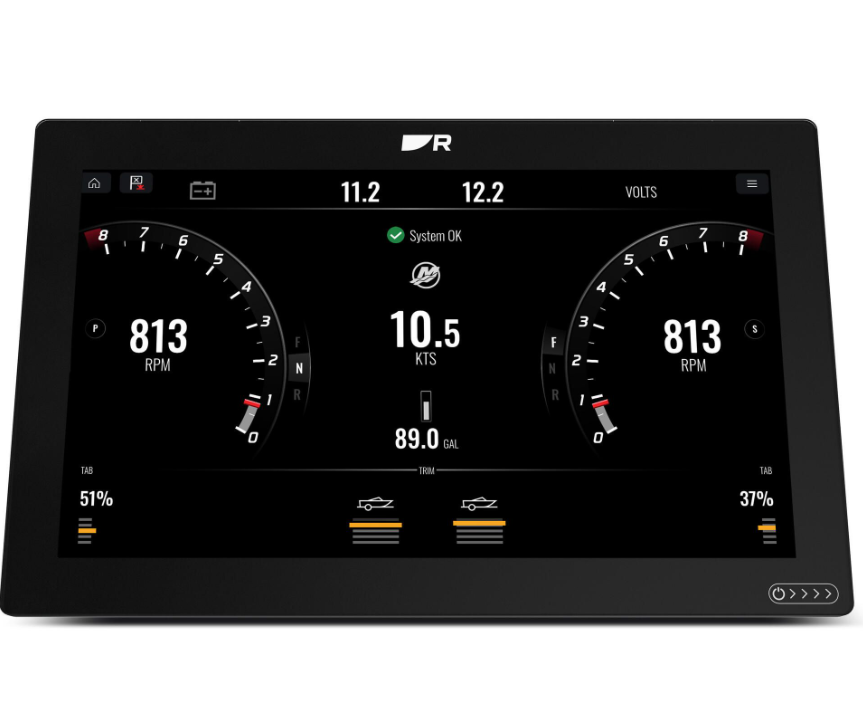

• Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines
• Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 XL on the big screen with HDMI output
• Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App
• Expand the capabilities of our Axiom 2 XL with third-party apps from our marine technology partners
• Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, Fishfinder modules, marine radar, autopilot, thermal, and video cameras

Specifications:

• Dimensions (W x H x D): 9.77 x 15.55 x 6.89" (248.22 x 394.9 x 174.95 mm)
• USB connection: USB-A Touch input, USB-B Touch output
• Accessory connection: USB Micro B
• GPS antenna connection: TNC type connector
• External storage: Remote card reader required
• NMEA 0183 connection: Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate
• Ethernet connection: PoE RayNet (10/100/1,000 Mbits/s) x 3
• HDMI connections: HDMI in, HDMI out
• NMEA 2000 connection: DeviceNet connector
• Analog video connections: Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
• Wireless connections: Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
• External alarm connection: Bare-ended wires x 2
• Internal storage: 64 GB Solid State
• Display Type: IPS (In-Plane Switching)
• Color depth: 24-bit
• Number of simultaneous touches: 2
• Off current @ 12V DC: PoE: 2,250mA (27W), No PoE: 360mA (4.32W)
• Off current @ 24V DC: PoE: 1,150mA (27.6W), No PoE: 240mA (5.76W)
• PoE operating voltage range: 9.5V DC to 32V DC
• Current: 9.5 A
• Operating voltage range: 8V DC to 32V DC
• Fuse rating: 15 A
• Nominal supply voltage: 12V DC/24V DC
• LEN (NMEA 2000 Load Equivalency Number): 1

Included:

• MFD (Chartplotter)
• Mounting gasket tape
• Rear mounting bars x 2
• Mounting bar fixings (M5x20 pozi countersunk) x 4
• Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4
• Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
• Documentation
• DeviceNet to SeaTalkng adaptor cable 1m (3.28')
• RayNet (Female) to RayNet (Female) network cable 2 m (6.56')
• Power/Video/Audio cable 1.5 m (4.92') right-angled
• Kit includes Remote Chart Card Reader (RCR), alarm module, and cable

Installation Instructions (2.27 MB)
