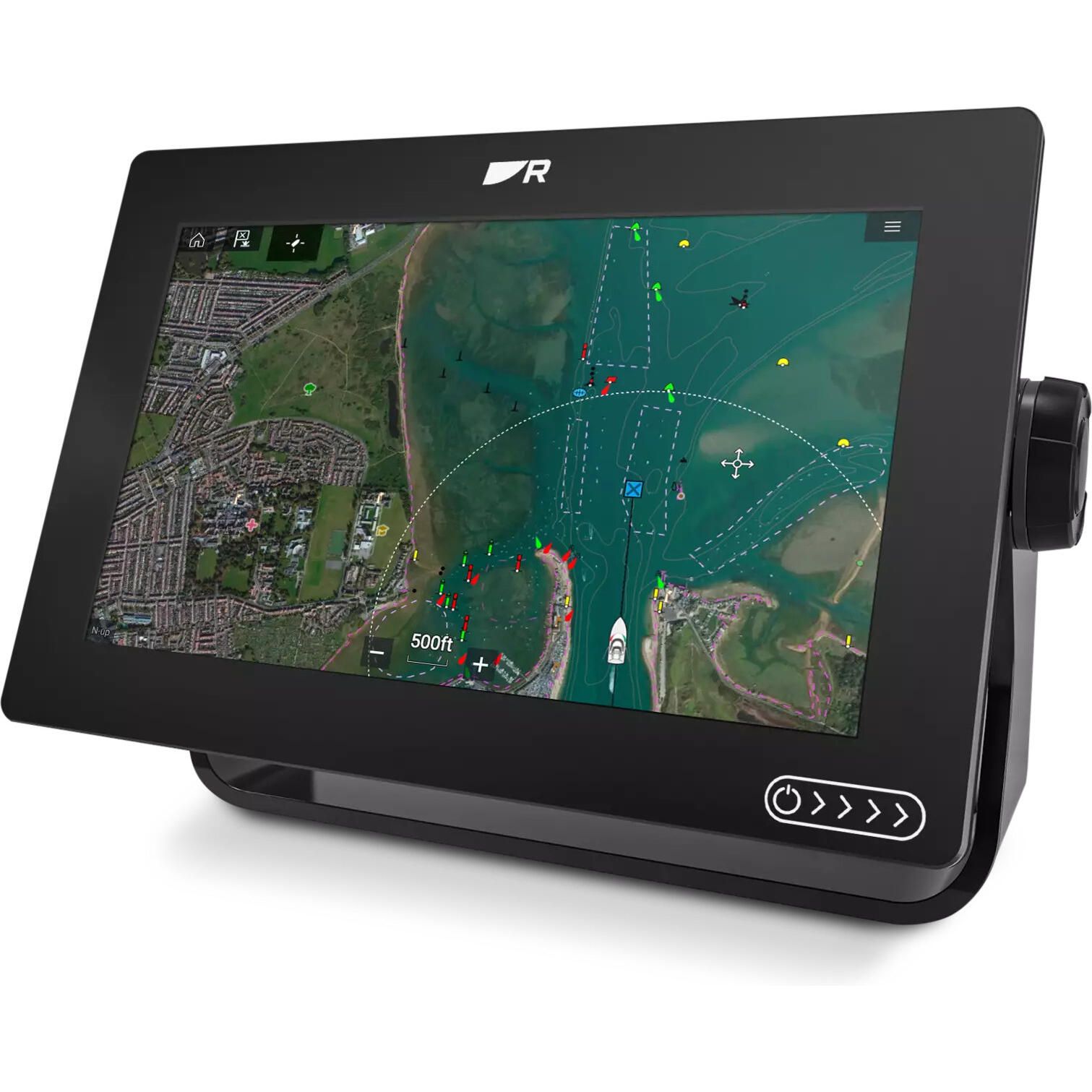

The Raymarine Axiom+ 7 RV Chartplotter/Fishfinder (Model E70635-03-102) with RV-100 RealVision 3D Transom Mount Transducer and LightHouse North America Chart is a high-performance 7-inch GPS multifunction display designed for serious anglers and boaters.
Featuring a 7" high-brightness IPS touchscreen (up to 1,800 nits), built-in 600W CHIRP sonar, RealVision 3D, DownVision, SideVision, and a 10 Hz GPS/GNSS receiver, this all-in-one marine electronics system delivers ultra-fast quad-core processing, advanced fishfinding, and premium chartplotting with Navionics, C-MAP, and LightHouse chart compatibility.
Performance-Tuned Marine Electronics
Engineered for speed, responsiveness, and seamless expansion.
• Powerful quad-core processor with increased onboard storage (16GB SSD, 14GB usable)
• Lightning-fast chart redraw with LightHouse, Navionics, and C-MAP charts
• Built-in 10 Hz GPS/GNSS receiver tracking GPS, GLONASS, and Beidou
• Position accuracy: ≤15m (standard), ≤5m with SBAS (WAAS, EGNOS, MSAS, GAGAN, QZSS)
• Internal ceramic antenna with automatic signal acquisition
• ClearCruise™ Augmented Reality capable (optional camera required)
Brilliant 7" IPS Display – 25% Brighter
• 7" all-weather IPS touchscreen display
• Up to 1,800 nits brightness for full sun readability
• Wider viewing angles and sharp contrast
• HydroTough™ nano-coated impact-resistant glass
• Repels water, oil, and smudges for accurate touch control when wet
• LightHouse 3 OS with Day, Dusk, and Night color modes
Dimensions:
201.1 mm x 133 mm x 218 mm (7.92" x 5.24" x 8.58")

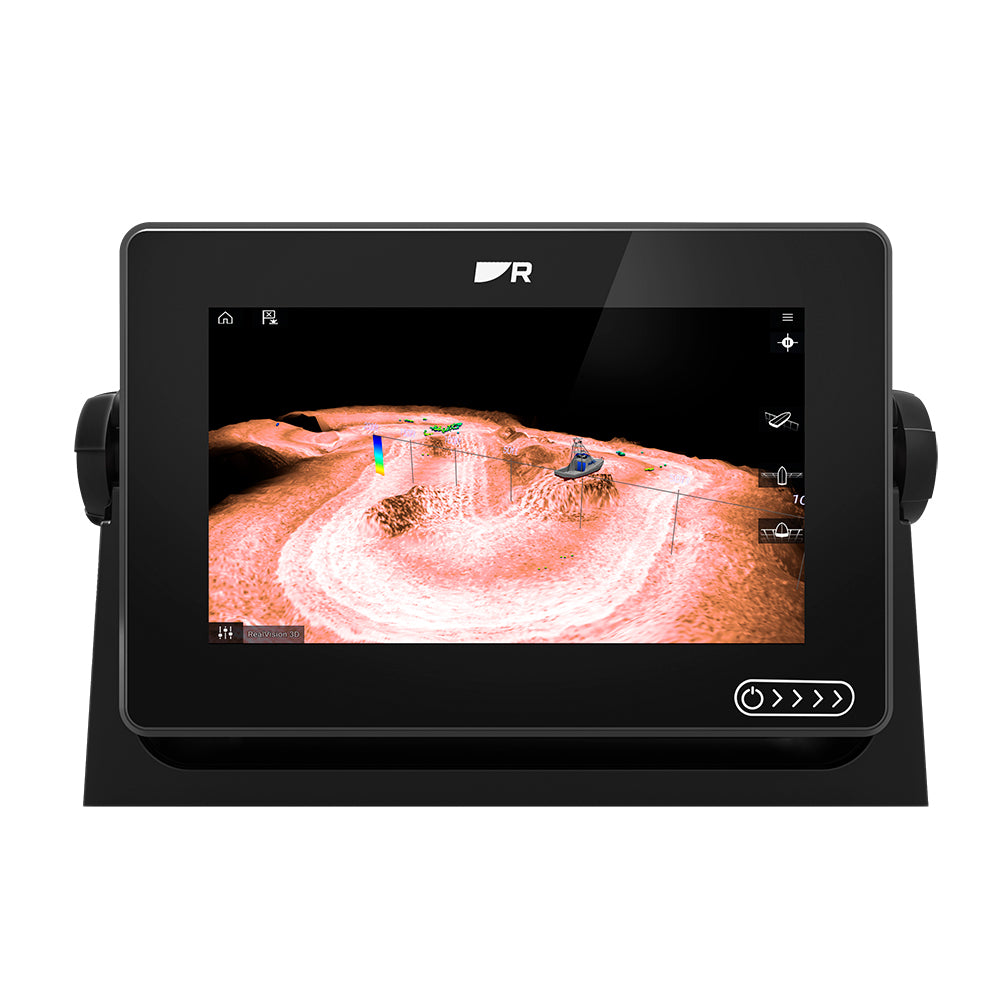

RealVision 3D™ Sonar with RV-100 Transducer
The included RV-100 All-In-One Transom Mount Transducer delivers life-like sonar imagery with four channels of Wide Spectrum CHIRP technology.
Built-In Sonar Capabilities:
• RealVision 3D sonar
• CHIRP DownVision™
• CHIRP SideVision™
• High Frequency CHIRP fish targeting
• Built-in 600W Digital Sonar (50/200 kHz)
• Wide Spectrum CHIRP transmitting across 60 frequencies
Sonar Depth Ranges:
• CHIRP Conical Sonar: 0.6 – 274 m (2' – 900')
• DownVision: 0.6 – 183 m (2' – 600')
• SideVision: 0.6 – 91 m (2' – 300')
• RealVision 3D: 0.6 – 91 m (2' – 300')
RV-100 Transducer Features:
• 4-channel Wide Spectrum CHIRP
• Built-in AHRS for stabilized sonar imagery
• Integrated water temperature sensor
• Stainless steel kick-up mounting bracket
• 8-meter (26 ft) cable included
Advanced Connectivity & Expansion
• RayNet Ethernet (10/100 Mbits/s)
• NMEA 2000 (DeviceNet connector built into power cable)
• USB Micro B
• MicroSDXC card slot
• Built-in Wi-Fi (802.11 b/g/n)
• Bluetooth 4.0
Network with:
• Raymarine Quantum CHIRP Radar
• FLIR thermal cameras (M100/M200 optional)
• Autopilots, engines, instruments, IP cameras
• Rockford Fosgate NMEA2000 marine audio systems
• Multiple Axiom displays
Navigation & GPS Performance
• 10 Hz refresh rate (updates 10 times per second)
• Tracks up to 28 satellites simultaneously
• GNSS compatibility: GPS, GLONASS, Beidou
• WGS-84 datum (selectable alternatives)
• Cold start time: < 2 minutes
• Receiver sensitivity: 165 dBm tracking
Electrical Specifications
• Operating Voltage: 8V – 16V DC
• Nominal Supply: 12V DC
• Fuse Rating: 7A
• Internal Storage: 16GB Solid State
• LEN (NMEA 2000): 1
What’s Included
• Axiom+ 7 RV Multifunction Display
• RV-100 Transom Mount Transducer (A80464)
• 8m (26 ft) transducer cable
• Trunnion bracket
• Trunnion knobs (2)
• Suncover
• Panel mount gasket
• Threaded studs (M5x58) x4
• Thumb nuts (M5) x4
• Power/NMEA 2000 cable (1.5m power lead, 0.5m NMEA 2000 lead)
• DeviceNet to SeaTalkng adaptor cable
• Mounting hardware
• Documentation
• LightHouse Charts North America preloaded
Why This Model Outperforms Competitors
Unlike many standard 7" chartplotters, the Axiom+ 7 RV includes built-in RealVision 3D sonar, 4-channel CHIRP capability, a high-brightness 1,800-nit IPS display, and advanced networking expansion.
It is designed for serious inshore and offshore anglers who demand professional-grade sonar clarity, faster redraw speeds, and seamless integration with radar, thermal cameras, and marine audio systems.
