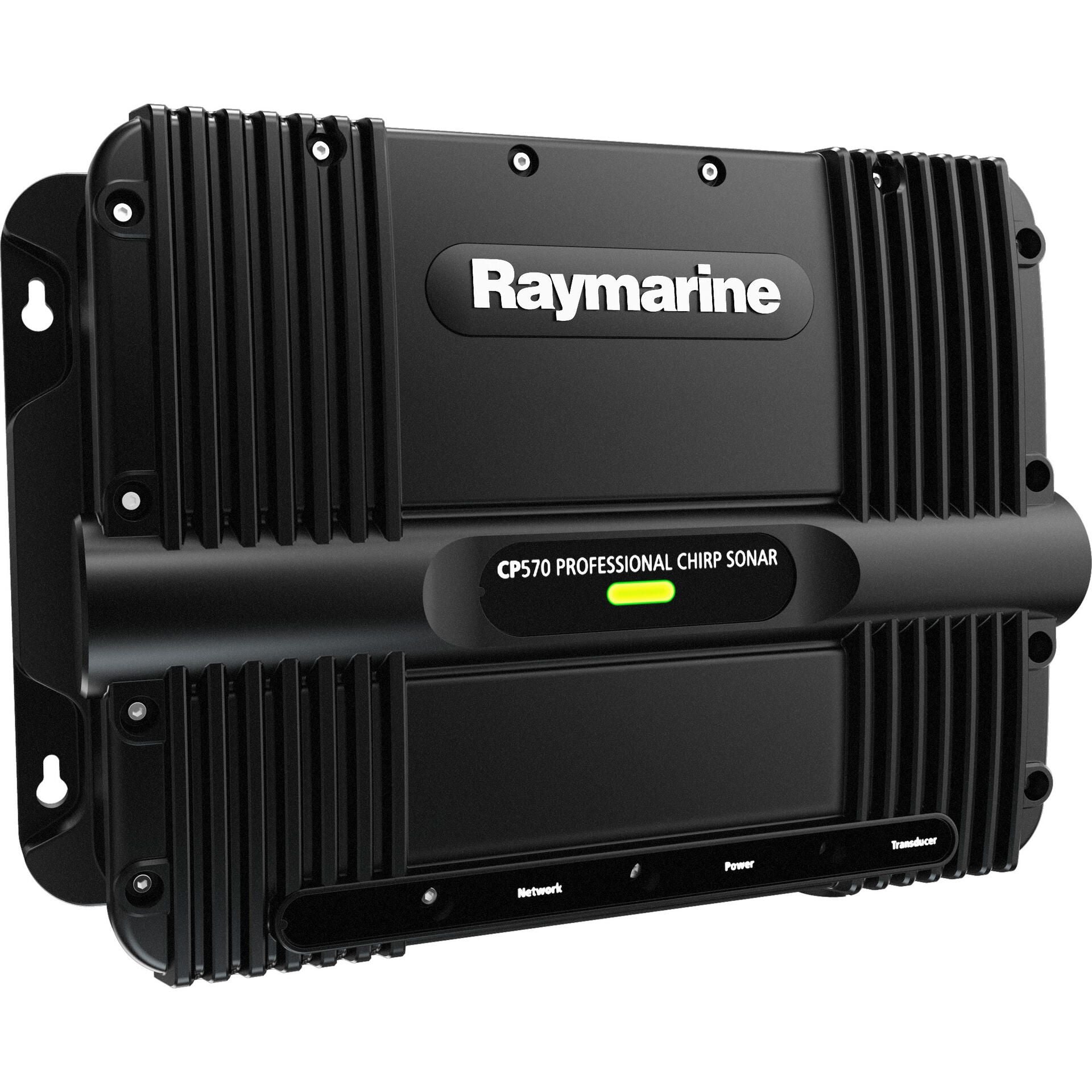

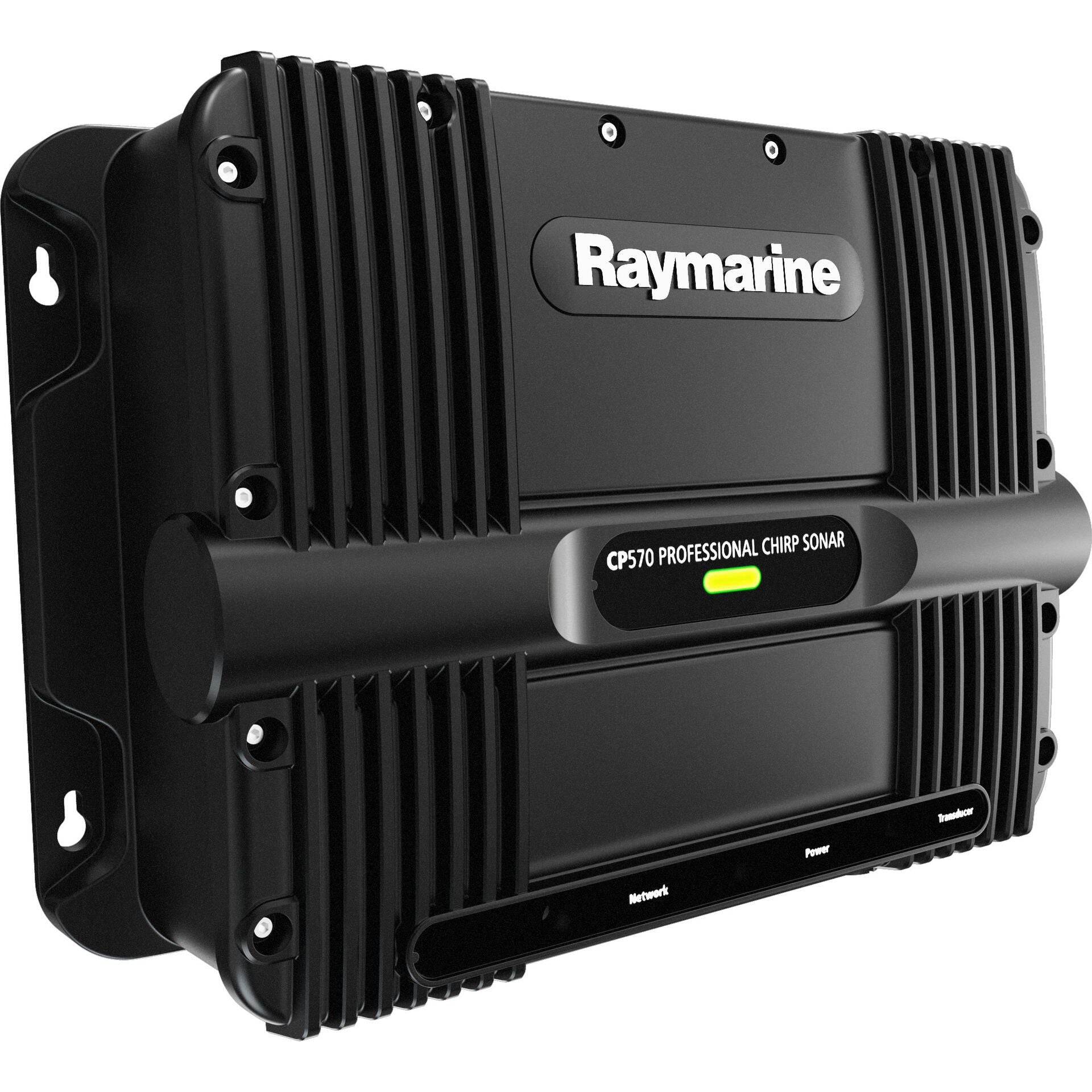

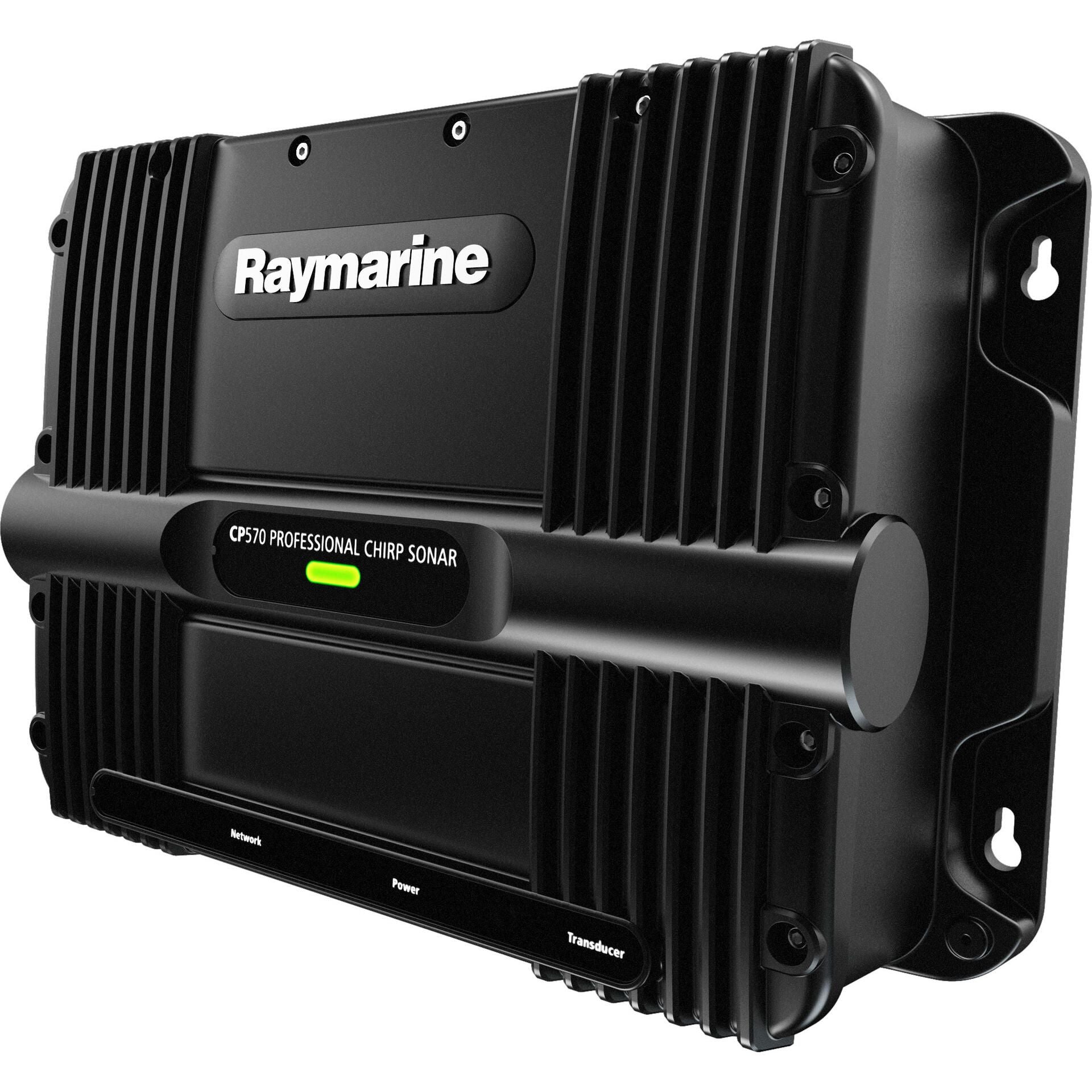

The Raymarine CP570 Professional CHIRP Sonar Module (E70258) is a 4kW dual-channel wide spectrum CHIRP sonar built for serious offshore anglers and tournament fishing.
Compatible with Raymarine aSeries, cSeries, eSeries, and gS Series multifunction displays, the CP570 delivers industry-leading target separation, deep water performance to 10,000 ft (3,000 m), and ultra-clear fish identification.
Featuring dual independent 2kW CHIRP channels (25–250 kHz), TruZoom™ magnification, Airmar Xducer ID automatic transducer recognition, and an IPX6 waterproof aluminum housing, this professional-grade sonar module is engineered for offshore saltwater performance in the toughest conditions.
Professional 4kW Dual-Channel CHIRP Sonar Performance
Built for offshore and deep-water anglers, the CP570 uses Raymarine’s exclusive Wide Spectrum CHIRP technology to deliver up to 4kW of combined output power using two fully independent 2kW sonar channels.
• Dual independent CHIRP channels (25–250 kHz)
• Max 4kW output power
• Track bottom structure down to 10,000 ft (3,000 m)
• Target fish in multiple water column zones simultaneously
• Superior bait, thermocline, and game fish identification
Offshore Target Separation & Resolution
With up to 10 times the resolution of conventional sonar, the CP570 provides sharper fish arches, clearer structure returns, and enhanced sensitivity in deep offshore conditions.
• Ultra-fast ping rate processing for reliable bottom tracking
• Advanced noise filtering for clutter-free sonar imagery
• Clear separation of fish from dense bait schools
• Accurate thermocline detection
TruZoom™ High-Resolution Magnification
Raymarine’s TruZoom™ technology allows magnified sonar views without sacrificing image resolution — unlike traditional digital zoom systems.
• Magnify fish targets and bottom structure
• No loss of detail
• Ideal for deep dropping and offshore precision fishing
Intelligent Transducer Integration & Customization
The CP570 automatically detects connected Airmar CHIRP transducers using built-in Xducer ID technology and adjusts sonar parameters for optimal performance.
• Automatic transducer identification (Airmar Xducer ID)
• Compatible with low, medium, and high CHIRP frequency transducers
• Supports standard and wide-beam CHIRP transducers
• Airmar Wide Beam transducer compatible
Control each CHIRP channel independently and configure full-screen or split-screen sonar views through Raymarine LightHouse II powered multifunction displays.
Built for Offshore Marine Environments
Engineered for harsh saltwater use and rough offshore conditions.
• IPX6 waterproof rating
• Rugged aluminum enclosure
• Designed for offshore vibration and marine exposure
• Reliable performance in tournament and commercial applications
Compatibility
Compatible with Raymarine multifunction display systems:
• aSeries
• cSeries
• eSeries
• gS Series
Network connection via RayNet (10/100 Mb/s)
Technical Specifications
• Sonar Type: Wide Spectrum CHIRP
• Power Output: Max 4kW (2 x 2kW independent channels)
• Frequency Range: 25–250 kHz
• Depth Range: 10,000 ft (3,000 m)
• Input Voltage: 12/24 V DC
• Power Consumption: 30.6 W (Maximum)
• Waterproof Rating: IPX6

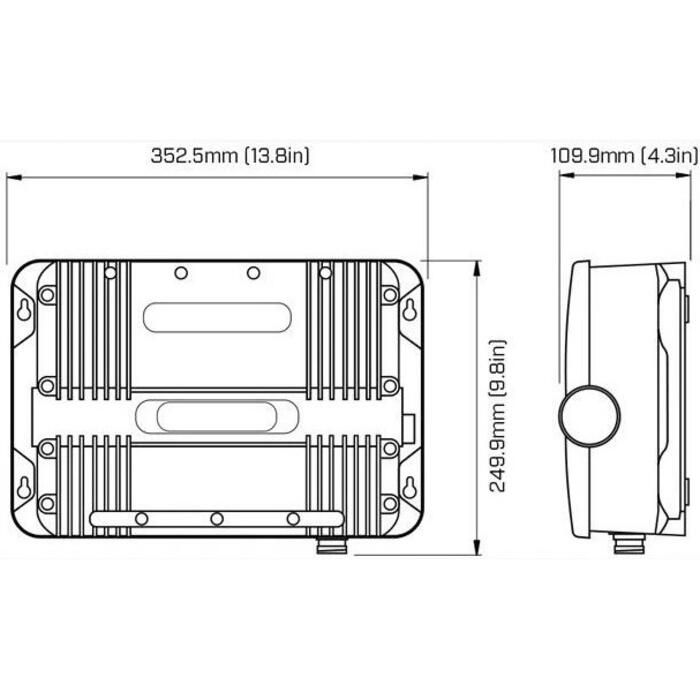

• Dimensions: 13.8 in W x 9.8 in H x 4.3 in D
• Enclosure: Rugged aluminum housing
Connections
• Power connection
• RayNet network connection (10/100 Mb/s)
• Transducer connection
What’s Included in the Box
• Raymarine CP570 Professional CHIRP Sonar Module (E70258)
• Power cable
• Mounting hardware
• Installation documentation
(Transducer sold separately)
