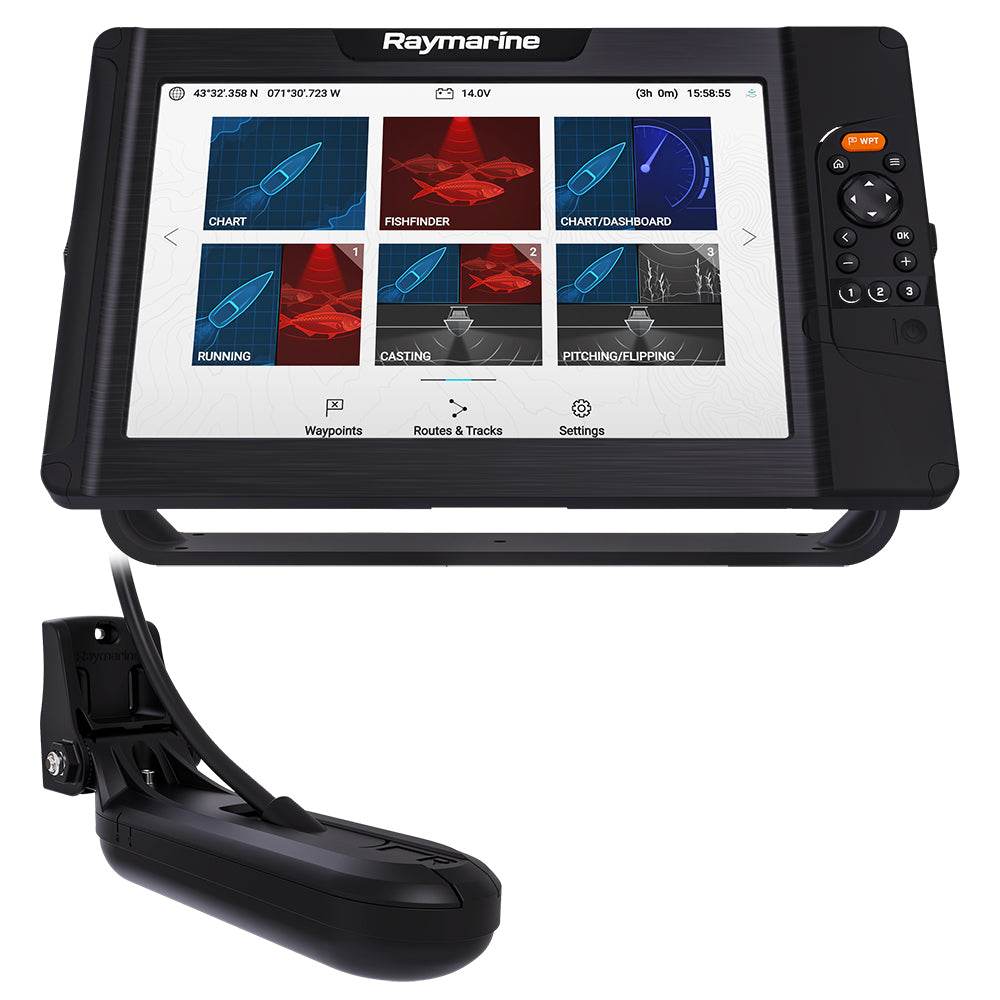

Raymarine Element™ 12 HV Combo (E70536-05-102) is a 12-inch CHIRP sonar and GPS fishfinder featuring HyperVision™ 1.2 MHz high-resolution sonar, 1280 x 800 WXGA display resolution, built-in RealVision™ 3D, integrated GPS/GNSS, and LightHouse North America charts.

This combo includes the HV-100 transom mount transducer (A80603) delivering DownVision™, SideVision™, RealVision™ 3D, and conventional CHIRP sonar in one installation.

Designed for serious anglers, bass boats, bay boats, center consoles, and offshore fishing vessels, the Element 12 HV provides photo-like underwater clarity, fast quad-core processing, and professional-grade marine navigation performance.

Why Choose the Raymarine Element 12 HV

Built for anglers who demand precision fish targeting and structure identification, the Element 12 HV delivers exceptional clarity with HyperVision™ CHIRP sonar operating at 1.2 MHz for ultra-high resolution imaging up to 100 feet, while 350 kHz DownVision™ and SideVision™ provide extended range imaging up to 600 feet.

The integrated RealVision™ 3D sonar allows accurate visualization of ledges, channel beds, drop-offs, and underwater contour changes in lifelike detail.

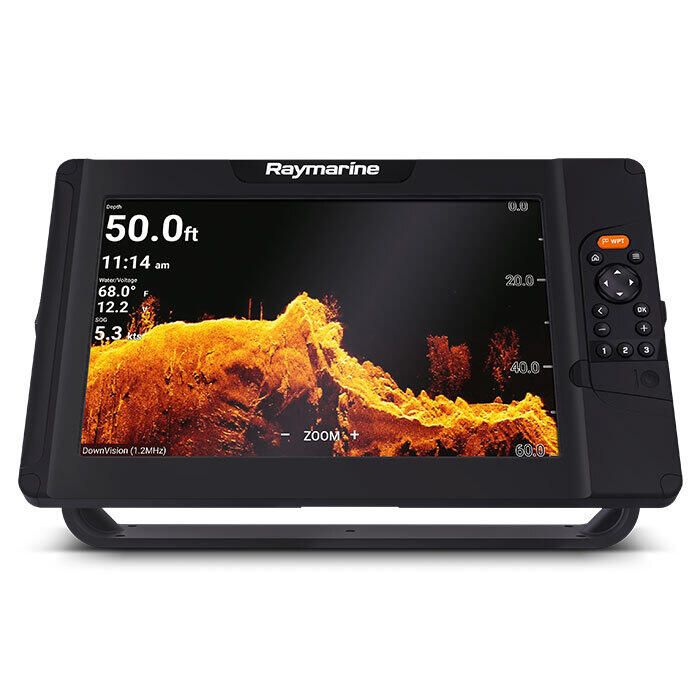

HyperVision™ CHIRP Sonar Performance

• 1.2 MHz HyperVision™ CHIRP for 3x clarity over conventional side and down imaging
• RealVision™ 3D sonar built-in (no external module required)
• DownVision™ Standard: up to 600 ft | Hyper: up to 100 ft
• SideVision™ Standard: up to 300 ft | Hyper: up to 100 ft
• CHIRP Conical Sonar: up to 900 ft
• RealVision™ 3D depth: up to 300 ft (Standard)
• Photo-like imaging of fish, structure, vegetation, and bottom composition

12” High-Visibility Marine Display

• 12” optically bonded LCD display
• Sunlight-viewable, high-brightness screen
• Non-touch display with dedicated keypad controls
• Oversized waypoint key for instant marking
• Three user-programmable shortcut keys
• Fast quad-core processor for instantaneous chart redraw
• Smooth continuous 3D sonar rendering

Integrated GPS & Advanced Charting

• Built-in GPS / GLONASS receiver
• Includes Raymarine LightHouse North America chart
• Supports Navionics®, C-MAP®, and regional chart options
• RealBathy™ personal sonar mapping
• Navionics SonarCharts Live support
• Create high-definition bathymetric maps in real time

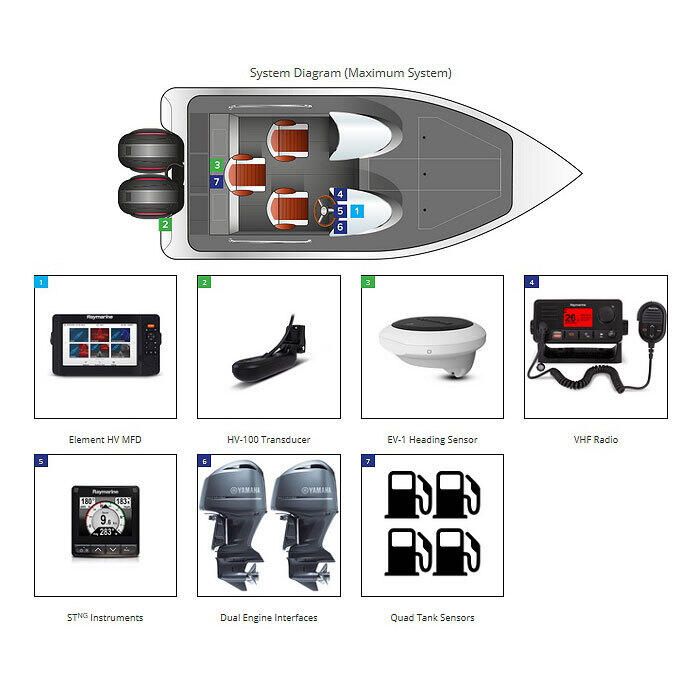

Networking & Marine Integration

• NMEA2000 networking support
• Connect compatible engines (max 2)
• Tank sensors (max 4)
• Heading sensor input for chart stabilization
• GPS output for VHF Distress and DSC
• SeaTalk ng compatible (requires A06045 adapter cable)

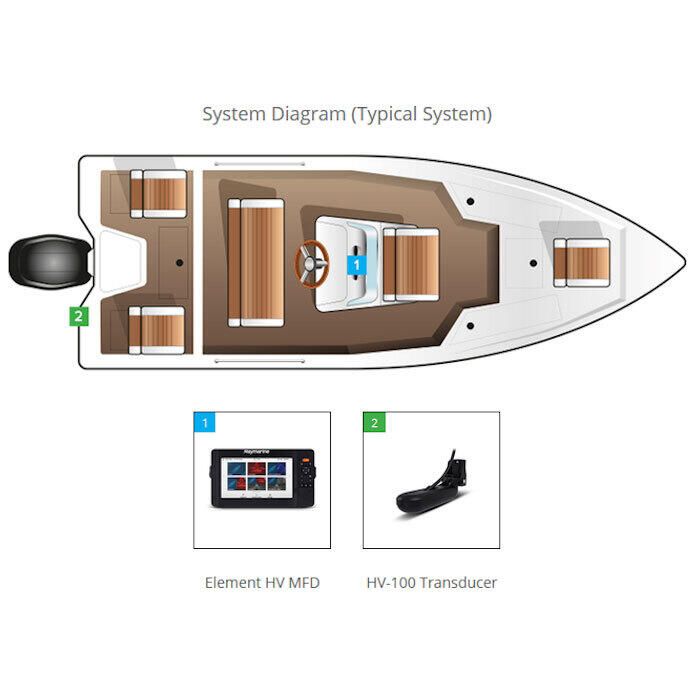

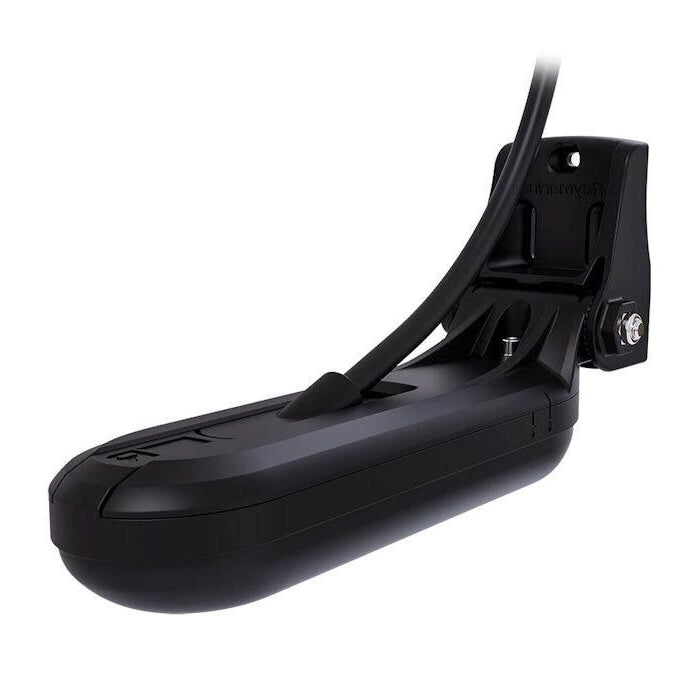

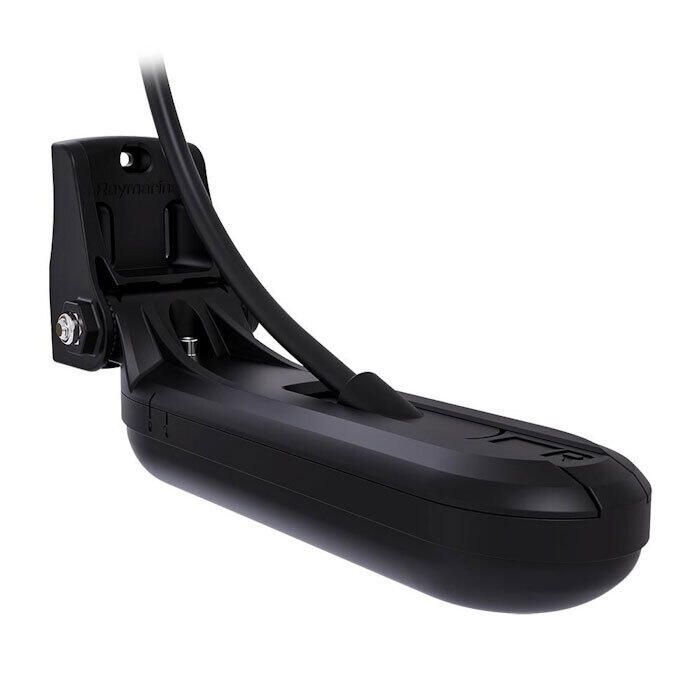

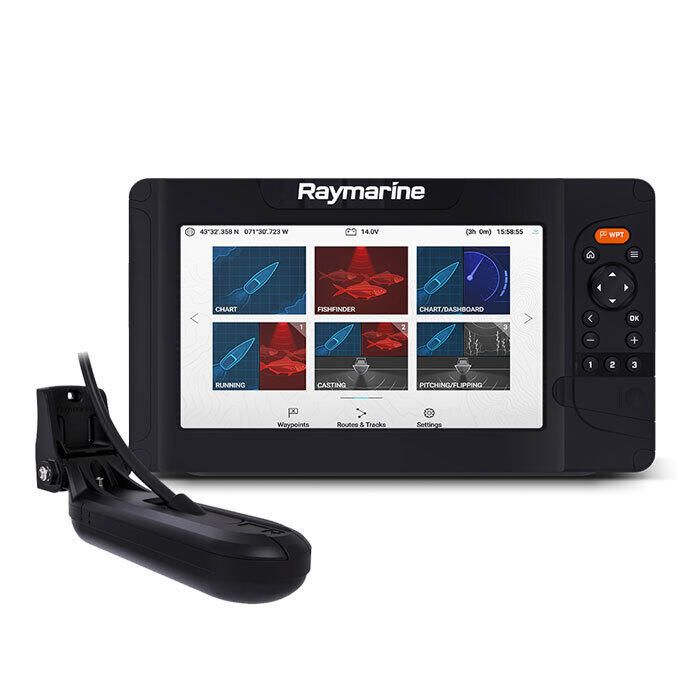

Included HV-100 Transom Mount Transducer

• Model: A80603 HV-100
• Combines HyperVision™, DownVision™, SideVision™, RealVision™, and CHIRP sonar
• Frequency: 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP
• Max Depth:
– 3D: 300 ft
– Down: 600 ft
– Port/Starboard: 300 ft
– Conical: 900 ft
• Beam Width: 3D 180° | Down 60° | Conical 25°
• Records Depth and Temperature
• 19 ft (6 m) cable length
• Suitable for fiberglass and metal hulls
• Deadrise angle compatibility: 0–90°

Physical Specifications

• Dimensions (H x W x D): 8.47” x 14.06” x 5.88”
• Sonar Connection: 15-pin HyperVision™ connector
• Touchscreen: No
• Display Size: 12”
• Cartography Brand Compatibility: Navionics / C-MAP

What’s Included in the Box

• Raymarine Element 12 HV Display
• HV-100 Transom Mount Transducer (A80603)
• Trunnion mounting bracket with hardware
• Surface mount kit with hardware
• Sun cover
• Power / NMEA2000 1.5 m cable
• Documentation pack

Built for Serious Anglers

Powered by the LightHouse Sport operating system, the Element 12 HV is optimized for fast operation and intuitive fishing control. Its rugged marine construction and sunlight-viewable display ensure reliable performance in offshore, coastal, and freshwater environments.

Whether targeting structure, tracking bait schools, or mapping custom fishing grounds, the Element 12 HV delivers professional-grade sonar imaging and navigation precision.
