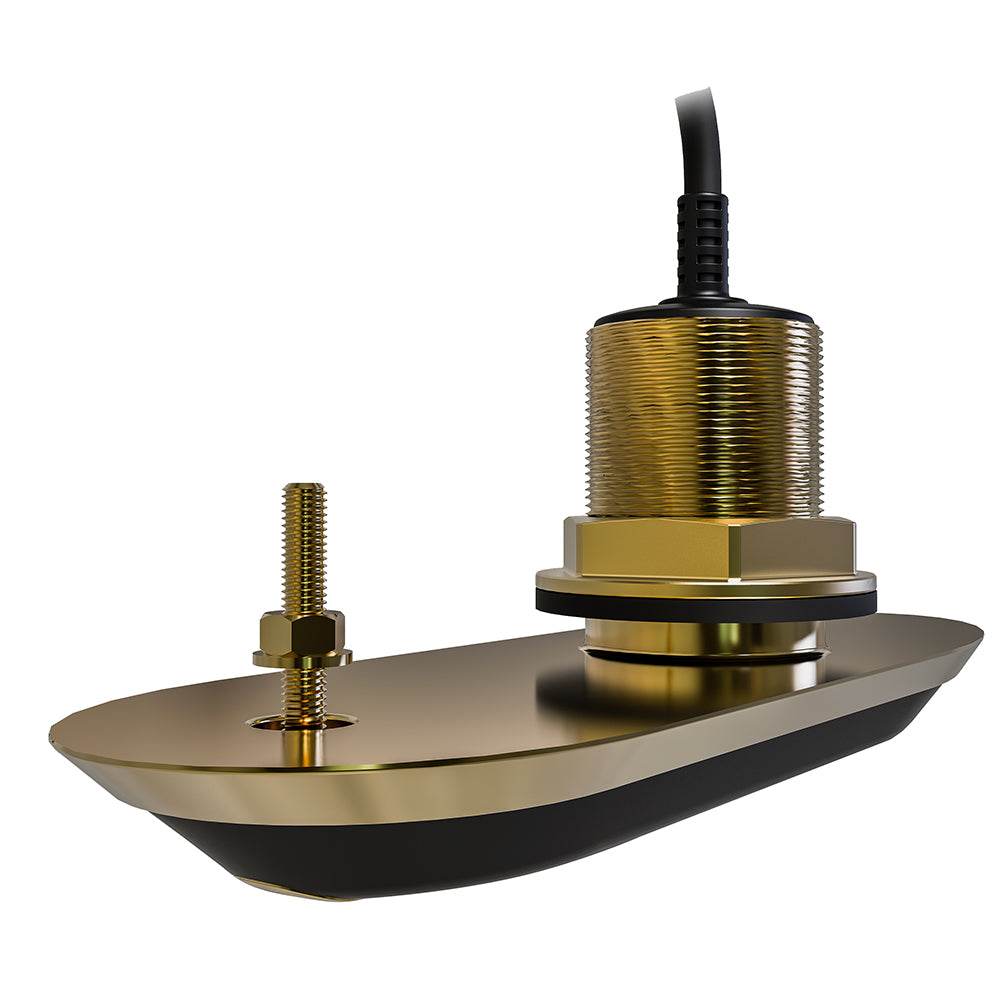

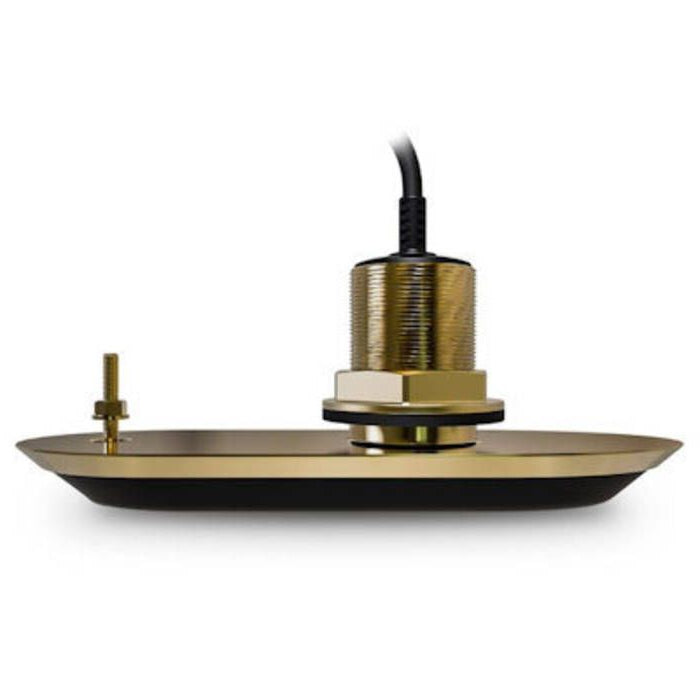

RV-200 RealVision 3D Thru-Hull Transducer Overview
The Raymarine RV-200 RealVision 3D All-In-One Bronze Thru-Hull Transducer (A80465) with 8-meter (26 ft) cable is a 4-channel Wide Spectrum CHIRP sonar system designed for inboard and outboard powerboats.
Featuring RealVision 3D™, DownVision™, SideVision™, and high-frequency CHIRP fish targeting, this bronze thru-hull transducer delivers lifelike 3D sonar imaging, precise structure detail, and accurate fish detection.
Built with a rugged cast-bronze housing and 0° offset for flat-bottom hulls, the RV-200 is ideal for fiberglass and wooden boats requiring professional-grade sonar performance.
All-In-One Wide Spectrum CHIRP Sonar Performance
The RV-200 integrates multiple sonar technologies into one compact thru-hull housing, eliminating the need for multiple transducers.
- RealVision 3D™ sonar for lifelike, three-dimensional underwater imaging
- DownVision™ for photo-like images of structure directly beneath the boat
- SideVision™ for wide-area scanning to port and starboard
- High-frequency CHIRP sonar for precise fish targeting
- 4-channel Wide Spectrum CHIRP technology
- Imaging: Standard / Down / Side
- CHIRP: High
This all-in-one configuration provides tournament-level fish finding and structure scanning clarity.
Built-In AHRS Stabilization
Unlike basic transducers, the RV-200 features an integrated Attitude and Heading Reference System (AHRS) that automatically stabilizes sonar imagery.
- Compensates for vessel pitch, roll, and yaw
- Maintains clear imaging in waves and swells
- Stabilized sonar while maneuvering
- Improved bottom tracking and fish detection
- This ensures consistent, reliable imaging in real-world marine conditions.
Rugged Bronze Thru-Hull Construction
Engineered for durability and performance in demanding saltwater environments.
- Cast-bronze thru-hull body
- Suitable for fiberglass or wooden hulls
- 0° offset transducer elements for flat-bottom boats
- Low-profile design reduces drag and cavitation
- Near-flush installation
- No fairing block required
- Ideal for trailered boats
Bronze construction provides long-term corrosion resistance and structural strength for offshore and coastal use.
Integrated Water Temperature Sensor
- Built-in fast-response water temperature sensor
- Quick, accurate temperature readings
- No additional sensor required
- Temperature: Yes
- Speed Included: No
Installation & Connectivity
- Mounting Style: Thru-Hull
- Pins: 25
- Cable Length: 8 meters (26 feet)
- Designed for compatible Raymarine multifunction displays supporting RealVision 3D
- The included 8-meter cable provides flexible routing for a clean installation.
What’s Included in the Box
- RV-200 Bronze RealVision 3D Thru-Hull Transducer
- 8-meter (26-foot) attached cable
- Anti-rotation bolt kit
- Installation instructions
Key Specifications
- Model: RV-200
- Part Number: A80465
- Sonar Channels: 4-channel Wide Spectrum CHIRP
- Imaging: RealVision 3D™, DownVision™, SideVision™, Standard
- CHIRP Frequency: High
- Mounting Style: Bronze Thru-Hull
- Hull Compatibility: Fiberglass and wood
- Offset: 0° (flat bottom hulls)
- Temperature Sensor: Built-in
- Speed Sensor: No
- Pins: 25
- Cable Length: 26 ft (8 m)
Why Choose the RV-200 Over Basic Thru-Hull Transducers?
The RV-200 combines multiple sonar technologies into one bronze thru-hull housing, eliminating clutter and reducing drag while delivering stabilized RealVision 3D imaging. With built-in AHRS stabilization, Wide Spectrum CHIRP, and professional-grade structure detail, it outperforms standard dual-frequency or basic CHIRP thru-hull transducers.
Designed for serious anglers and offshore boaters who demand maximum clarity, reliable performance, and clean installation.
