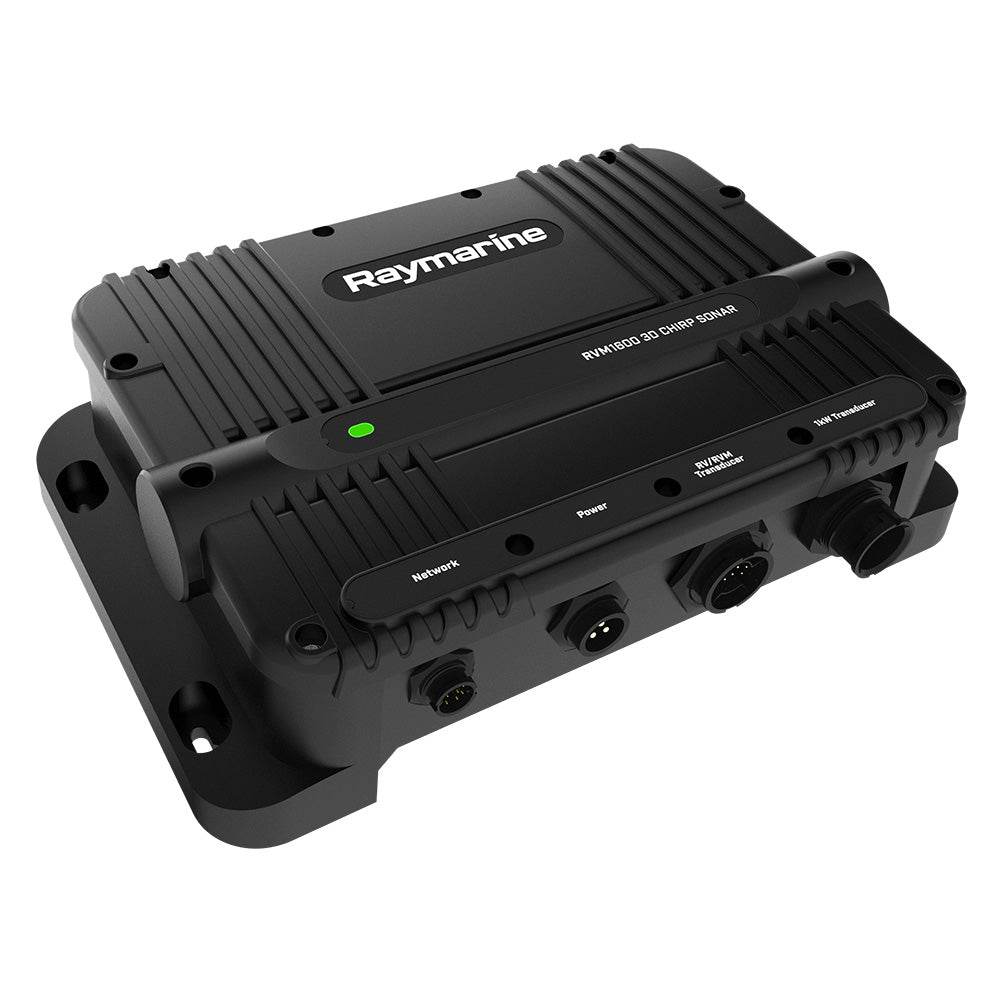

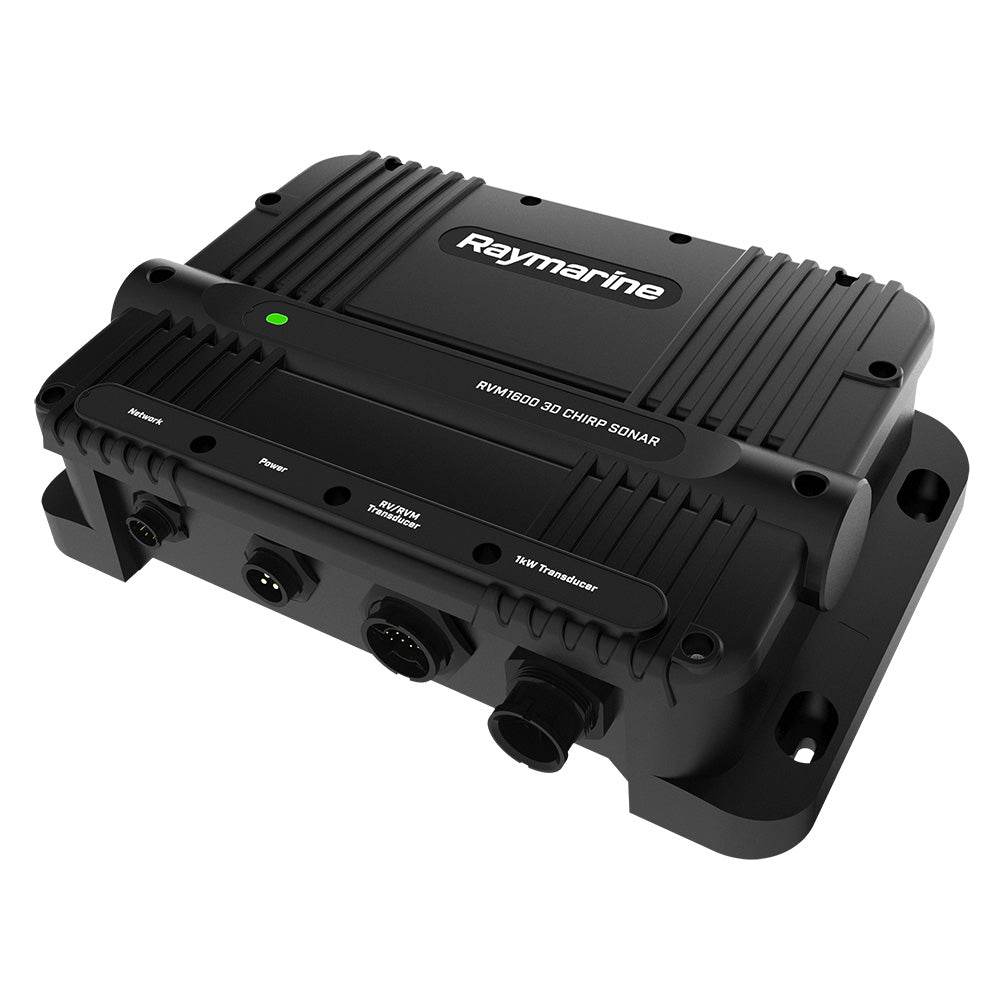

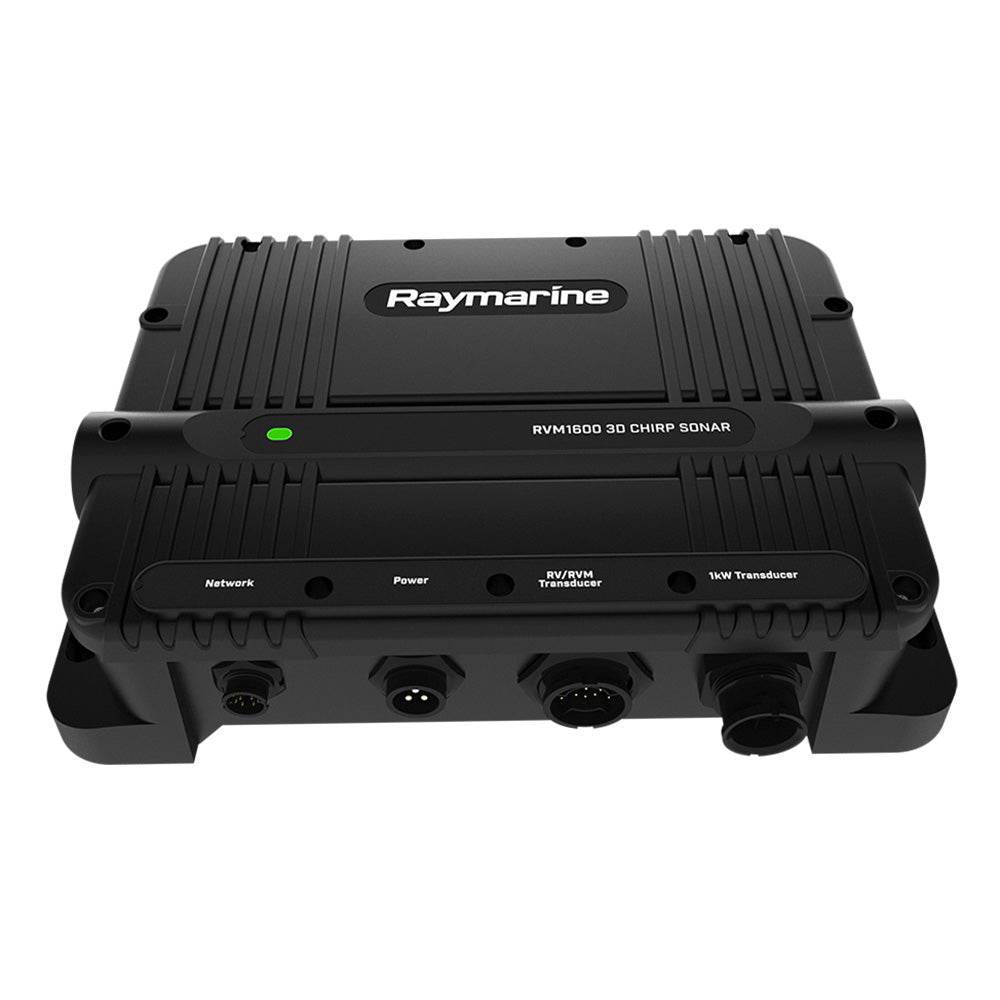

The Raymarine RVM1600 Fishfinder Module with RealVision MAX (E70665) is a high-performance 3D CHIRP sonar black box designed for Raymarine Axiom displays running LightHouse 4.3 or higher.
Featuring RealVision MAX DownVision™, SideVision™, 3D sonar, and 600-watt High CHIRP traditional sonar, this module delivers extended depth capability, faster ping rates, high-contrast color palettes, and superior fish target separation.
Compatible with RayNet networking and optional 1kW Airmar CHIRP transducers, the RVM1600 enables offshore fishing up to 3,000 ft (914 m).
RealVision MAX Sonar Performance
The RVM1600 delivers next-generation RealVision MAX sonar with improved clarity, stronger target definition, and extended range performance compared to previous RealVision systems.
• RealVision MAX DownVision™ for photo-like bottom detail
• RealVision MAX SideVision™ with full port and starboard scanning
• RealVision MAX 3D sonar for precise structure and wreck visualization
• 600-Watt High CHIRP traditional sonar for deeper water performance
• Faster ping rates for sharper fish arches and bait tracking
• High-contrast RealVision MAX color palettes for enhanced fish visibility
Multi-Channel CHIRP Fishfinder Technology
The RVM1600 provides simultaneous multi-channel sonar viewing for serious inshore and offshore anglers.
• CHIRP DownVision™ for detailed structure imaging
• CHIRP SideVision™ for expanded underwater coverage
• RealVision 3D for accurate fish and structure positioning
• Traditional 600W CHIRP for depth penetration and bottom tracking
• Supports optional 1kW Airmar CHIRP transducers
• Capable of fishing depths up to 3,000 ft (914 meters)
Advanced RealVision MAX Transducer Integration
RealVision MAX transducers (sold separately) are upgraded with larger elements and increased output power for extended sonar range.
• Transom mount and through-hull RealVision MAX transducer compatibility
• Built-in AHRS (Attitude and Heading Reference System) stabilizes 3D sonar imagery
• Automatic motion compensation for vessel pitch and roll
• Integrated fast-response water temperature sensor
• Provides DownVision™, SideVision™, 3D and 600W High CHIRP
Seamless Axiom & Network Compatibility
• RayNet networking compatible
• Works with all Raymarine Axiom displays running LightHouse 4.3 or higher
• Uses the same RealVision MAX processing found in Axiom 2 Pro RVM chartplotters
• Black box sonar module ideal for multi-display helm installations
What’s Included in the Box
• RVM1600 RealVision MAX 3D CHIRP sonar module
• Power cable (1.5 m / 4.9 ft)
• RayNet (female) to RayNet (female) network cable (2 m / 6.6 ft)
• Mounting screws M4.5 x 20 (x4)
• Documentation
Technical Specifications
• Model: RVM1600
• Part Number: E70665
• Sonar Type: RealVision MAX 3D, DownVision™, SideVision™, CHIRP
• Traditional CHIRP Power Output: 600 Watts
• Optional Transducer Support: 1kW Airmar CHIRP
• Maximum Depth Capability: Up to 3,000 ft (914 m) with compatible transducer
• Networking: RayNet compatible
• Display Compatibility: Raymarine Axiom (LightHouse 4.3+)
• Module Type: Black Box Sonar Processor
Why Choose the RVM1600 Over Standard Sonar Modules?
• Extended depth range compared to previous RealVision systems
• Faster ping rates for improved fish target separation
• Enhanced 3D structure recognition
• High-contrast palettes for offshore and low-visibility conditions
• Offshore-ready expansion with 1kW CHIRP capability
WARRANTY INFORMATION
Manufacturer Warranty: 2-Year Limited Warranty (Raymarine Standard Marine Electronics Warranty)
