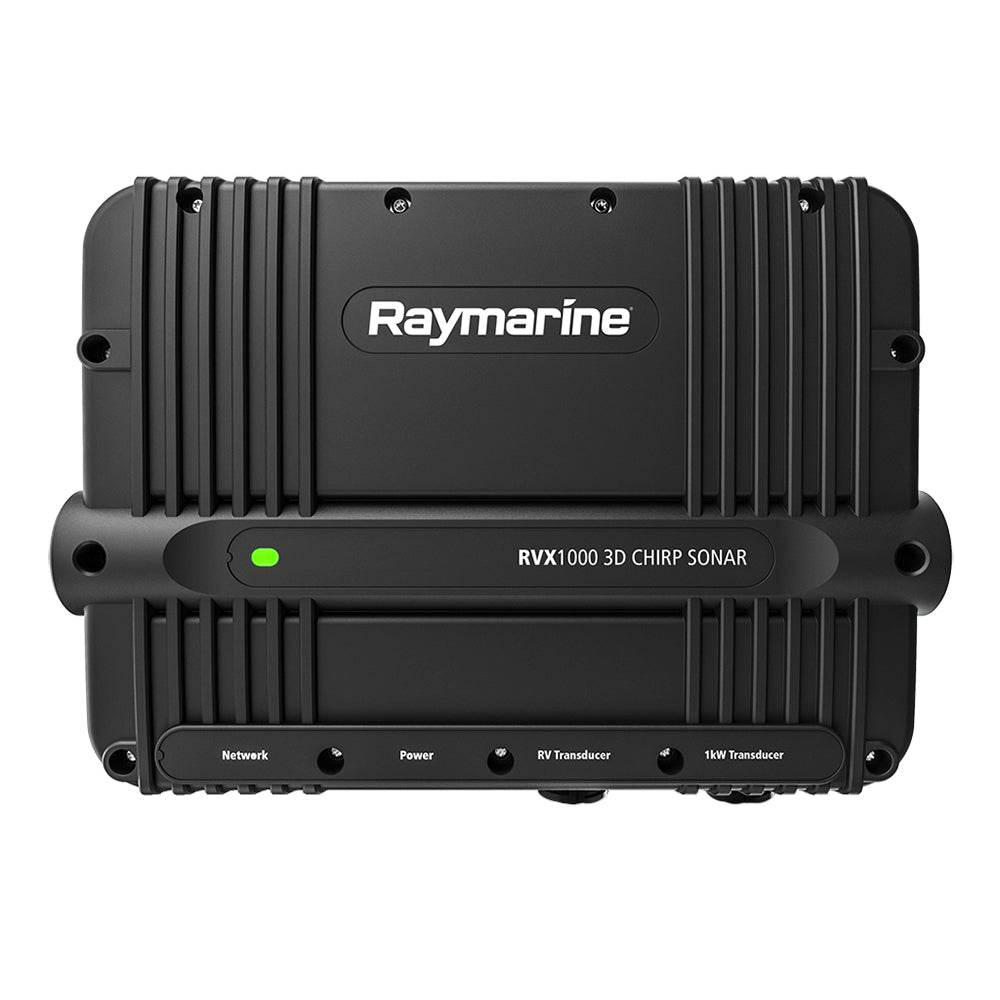

The Raymarine RVX1000 3D CHIRP Sonar Module (E70511) is a high-performance 5-channel black box sonar system featuring RealVision™ 3D, CHIRP DownVision™, CHIRP SideVision™, High-Frequency CHIRP, and powerful 1kW dual-channel CHIRP sonar.
Designed for inshore and offshore fishing, this IPX6/IPX7 waterproof sonar module delivers up to 5,000 ft depth capability and integrates seamlessly with LightHouse 3-enabled Raymarine multifunction displays (v3.4+).
Ideal upgrade for eS and gS Series systems, the RVX1000 provides professional-grade fishfinding, structure imaging, and 3D sonar clarity without display lag.
High-Performance 5-Channel CHIRP Sonar
• RealVision™ 3D sonar with GPS track positioning
• CHIRP DownVision™ for photo-like structure detail
• CHIRP SideVision™ for wide port & starboard scanning
• High-Frequency CHIRP sonar for target separation
• 1kW high-power dual-channel CHIRP sonar for offshore depths
• Fast quad-core processor for lag-free multi-channel sonar
Depth Performance:
• High-Frequency CHIRP: Up to 900 ft
• DownVision™: Up to 600 ft
• SideVision™: Up to 300 ft (per side)
• 1kW CHIRP Sonar: Up to 5,000 ft
RealVision™ 3D Imaging Technology
• Award-winning RealVision™ 3D sonar with life-like underwater rendering
• Built-in GPS track mapping for precise structure positioning
• TruZoom™ magnification reveals detail without resolution loss
• Sonar Scroll Back – rewind, pause, and replay sonar history
• Gyro stabilization compensates for boat movement for stable 3D imagery
This technology provides unmatched fish identification, bottom contour mapping, and structure detection in both shallow and deep-water conditions.
Designed for Offshore & Tournament Anglers
• Ideal for center consoles, offshore sportfishing boats, and bay boats
• Professional-grade black box sonar solution
• Great upgrade option for Raymarine eS and gS Series owners
• Axiom Pro sonar performance in a remotely mounted module
• Supports dual transducer configurations
Compatible with
- All LightHouse 3-enabled Raymarine multifunction displays running software version 3.4 or higher.
Transducer Compatibility
25-Pin RealVision Port Supports:
• RealVision™ Transducers (direct connect)
• CPT-S Transducers (Adapter A80490 required)
• DownVision™ Transducers (Adapter A80490 required)
11-Pin 1kW Port Supports:
• Airmar CHIRP Transducers (direct connect)
• Airmar B175 series (A80328 adapter when using one half of pair)
• Airmar 50/200 kHz CP370 (Adapter A80496 required)
• Airmar 50/200 kHz Embedded Connector

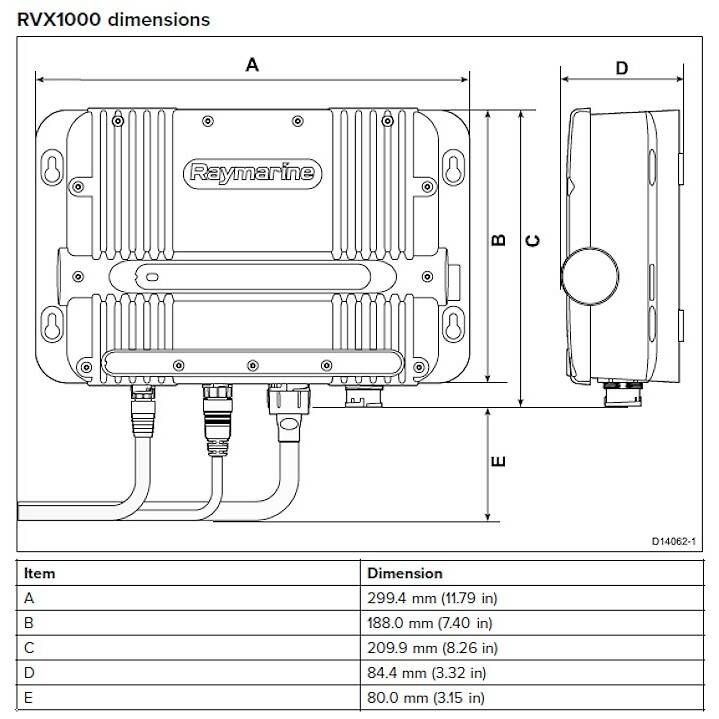

Technical Specifications
Sonar Type: RealVision™ 3D + 1kW High Power CHIRP
Channels: 5
Waterproof Rating: IPX6 / IPX7
Nominal Supply Voltage: 12V DC & 24V DC
Operating Voltage Range: 10.8V – 31.2V DC
Power Consumption: 10.4W Maximum
Current Draw: 2.4A Peak / 1.2A RMS
Fuse/Breaker: 5A
Operating Temperature: -25°C (-13°F) to +55°C (+131°F)
Storage Temperature: -30°C (-22°F) to +70°C (+158°F)
Connections:
• (1) 25-pin RealVision™ port
• (1) 11-pin 1kW CHIRP port
• (1) RayNet network port
• (1) Power connection
Built for Marine Environments
• IPX6/IPX7 waterproof housing
• Wide operating temperature range
• Designed for harsh offshore and saltwater conditions
• Efficient 10.4W max power consumption
This compact black box module mounts securely and delivers dependable sonar performance season after season.
What’s Included in the Box
• RVX1000 Sonar Module
• 1.5M Power Cable
• 2M RayNet Network Cable
• (4) #8 Fixing Screws
• Documentation Pack
