Simrad GO9 9" XSE with HDI Transducer and C-MAP DISCOVER

GO9 9 inch XSE Chartplotter/Fishfinder with Medium/High DownScan Transom Mount Transducer & C-MAP Discover Chart (000-13211-002)

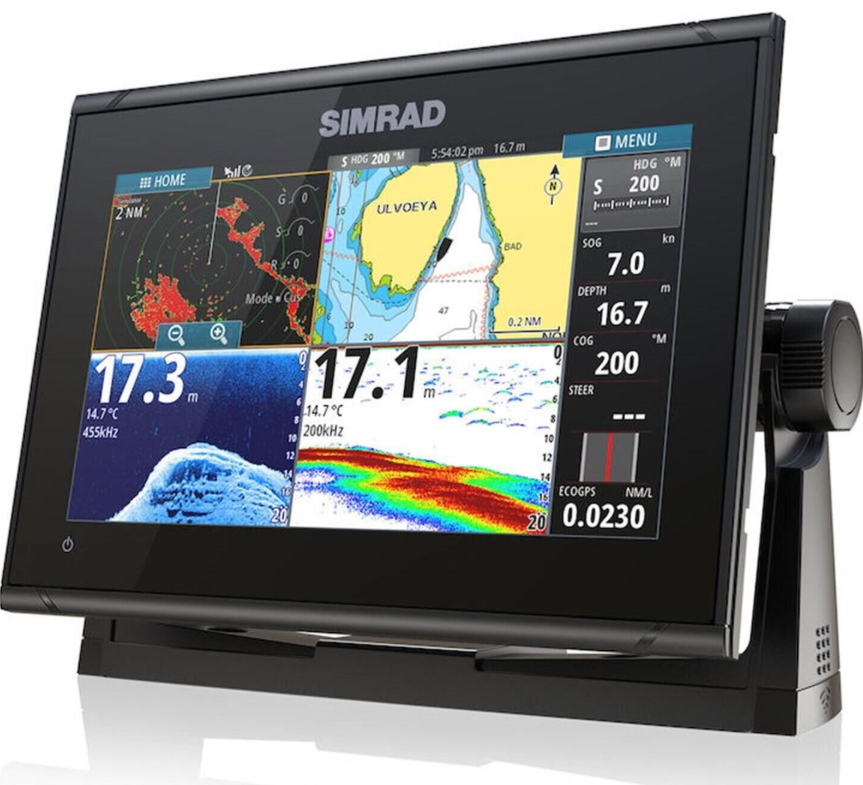

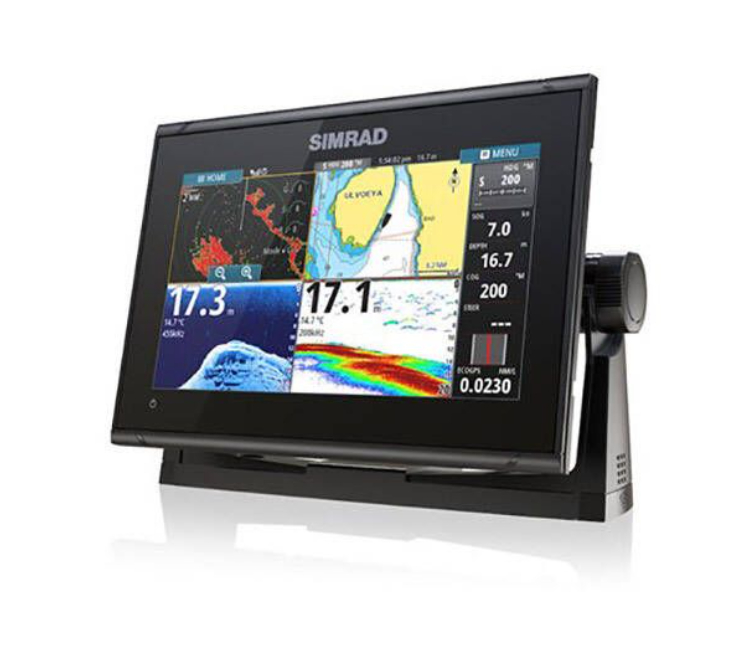

GO9 XSE Multi-function display with built-in Echosounder, GPS and Wi-Fi. Super-bright, 9" multi-touch widescreen display with NMEA 2000 and radar interface. Includes Medium / DownScan transducer

Features:

• Easy to use, High brightness 9" tablet-style touchscreen

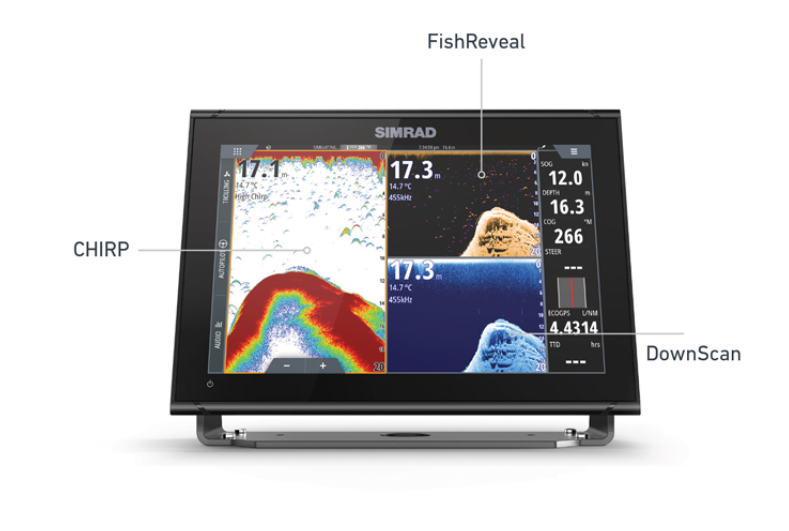

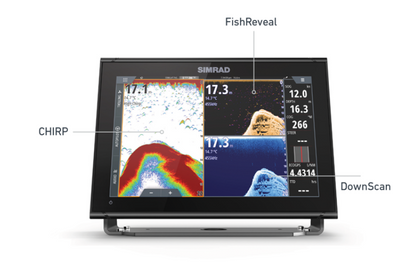

• Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan and Downscan images
• Radar port for connection to a Simrad solid state radar
• Direct Audio, Autopilot, communication and engine connection and control over NMEA2000
• Built-in WiFi for mobile device mirroring and internet downloads of charting and software

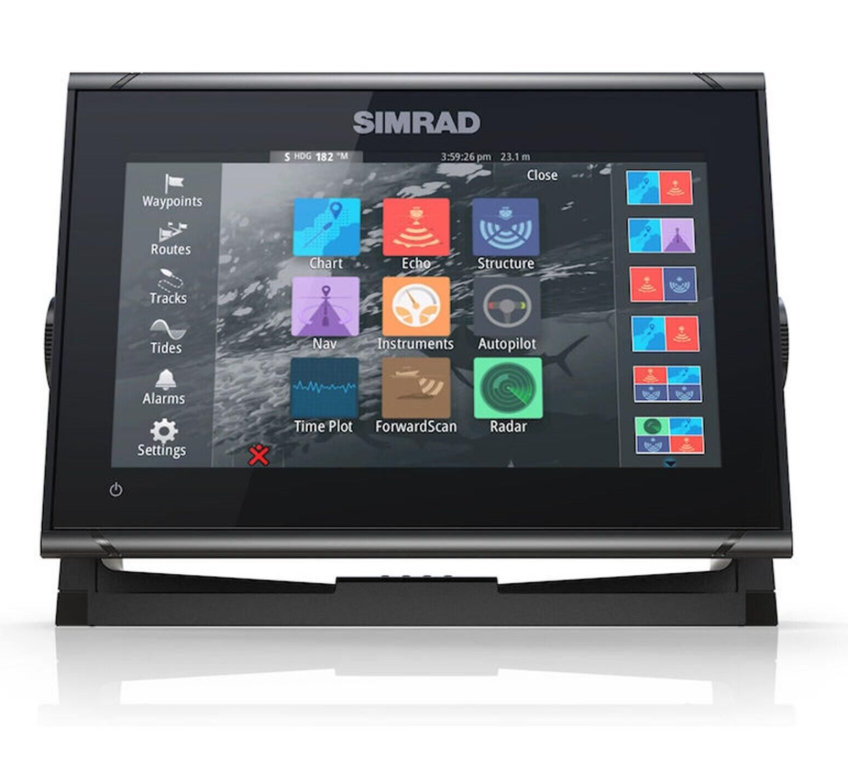

• Easy to use multi-touch software
• Safely and easily navigate using your favorite cartography (Insight, Navionics, CMAP)
• Determine depth, bottom type and find fish using one of the many echosounder technology options
• Quick and simple control of entertainment systems connected on NMEA2000
• Vessel circuit control when connected to a C-zone digital switching system
• View and monitor engine data while underway
• Low Profile Glass dash styling
• Super bright widescreen display
• Built-in Wi-Fi connectivity
• Software update notifications and downloads when connected to the internet
• Screen mirroring when connected to a mobile device
• Built-in 10 Hz GPS antenna
• Dual Micro SD card slot
• Built-in echosounder (Broadband & Chirp) Transducer required

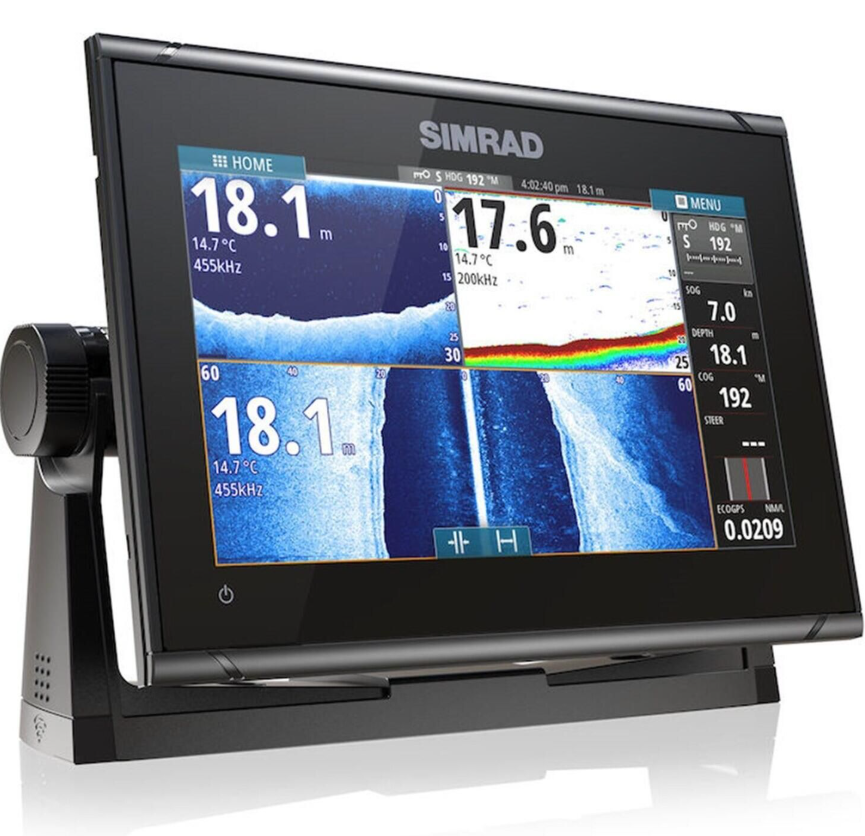

• Built-in DownScan and Sidescan Imaging (HDI Transducer included)
• Built-in Forwardscan Imaging (transducer required)

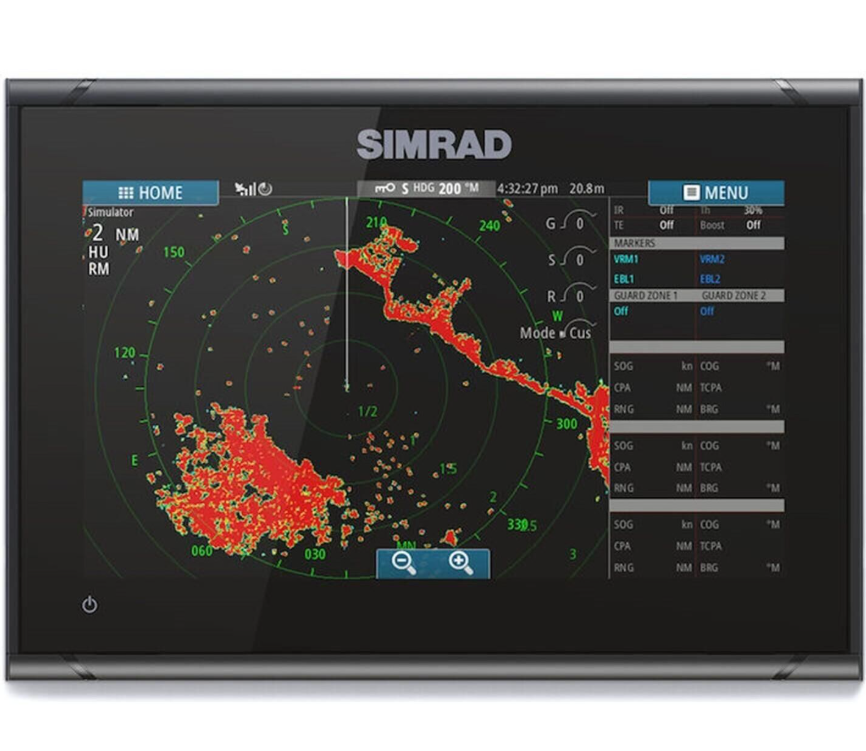

• Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners
• Operable with OP40/OP50 Remote
• Advanced NMEA2000 networking

The Simrad GO9 XSE is a powerful, all-in-one chartplotter and fishfinder designed for anglers and powerboaters who want intuitive control and professional-grade performance. Its 9″ multi-touch display offers smartphone-style operation—tap, swipe, and zoom to navigate with ease.

Key Features

• High-definition CHIRP sonar and DownScan Imaging™ deliver crystal-clear fish and structure views beneath your boat.
• C-MAP® Discover charts provide detailed coastal and inland mapping for confident navigation.
• Compatible with Navionics®, Insight Genesis®, and other leading cartography options.
• Built-in 10 Hz GPS provides fast, accurate position updates, ideal for high-speed vessels.
• TripIntel™ technology tracks fuel range, tides, and trip history for smarter voyage planning.
• Fully customizable interface with split-screen and shortcut options for fishing, cruising, or watersports.

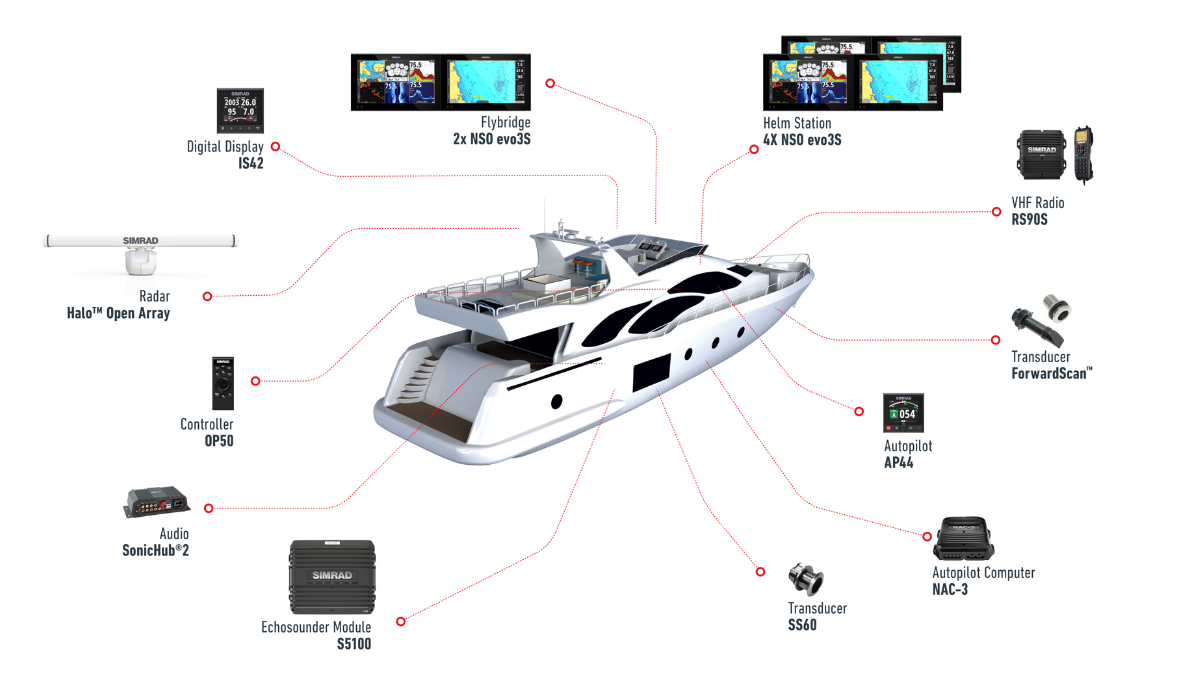

• NMEA 2000® connectivity integrates with engine data, sensors, and gauges for a clean digital helm.
• Wi-Fi enabled for GoFree™ cloud access—download charts, update software, or control remotely from your mobile device.
• Compatible with Simrad radar systems (Broadband 3G/4G, HALO Pulse Compression) for enhanced situational awareness.
• Optional ForwardScan® sonar for real-time depth views ahead of your vessel.

Compact, versatile, and easy to use, the GO9 XSE combines advanced sonar, mapping, and radar capabilities—making it one of the best chartplotter/fishfinder combos for serious boaters and anglers.

• Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.

Specifications:

• Casing: PC/ABS
• Operating temp: -15°C to +55°C (+5°F to +131°F)
• Water ingress: IPX6 and 7
• Weight (excluding mounting hardware): 1.315 kg (2.9 lbs) - GO9 XSE
• Screen brightness: 1200 nits
• Screen resolution: 480 x 800 (H x W)
• Viewing angle in degrees (typical value at contrast ratio = 10): L/R: 70, top: 50, bottom: 60
• Operating voltage: 10 - 17 V DC
• Current draw at 13.6 V (sonar off, max B/L): 1 A
• Low power standby mode: yes
• Protection: reverse polarity and temporary over-voltage to 36 V
• Alarm output current: 1 A max
• Processor: iMX61 single core
• Conformity: CE, C-Tick
• NMEA 2000 (compliant):1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector)
• Sonar 1 port (9 pin connector) Radar 1 port (5 pin Ethernet connector)
• Card reader: Dual microSD

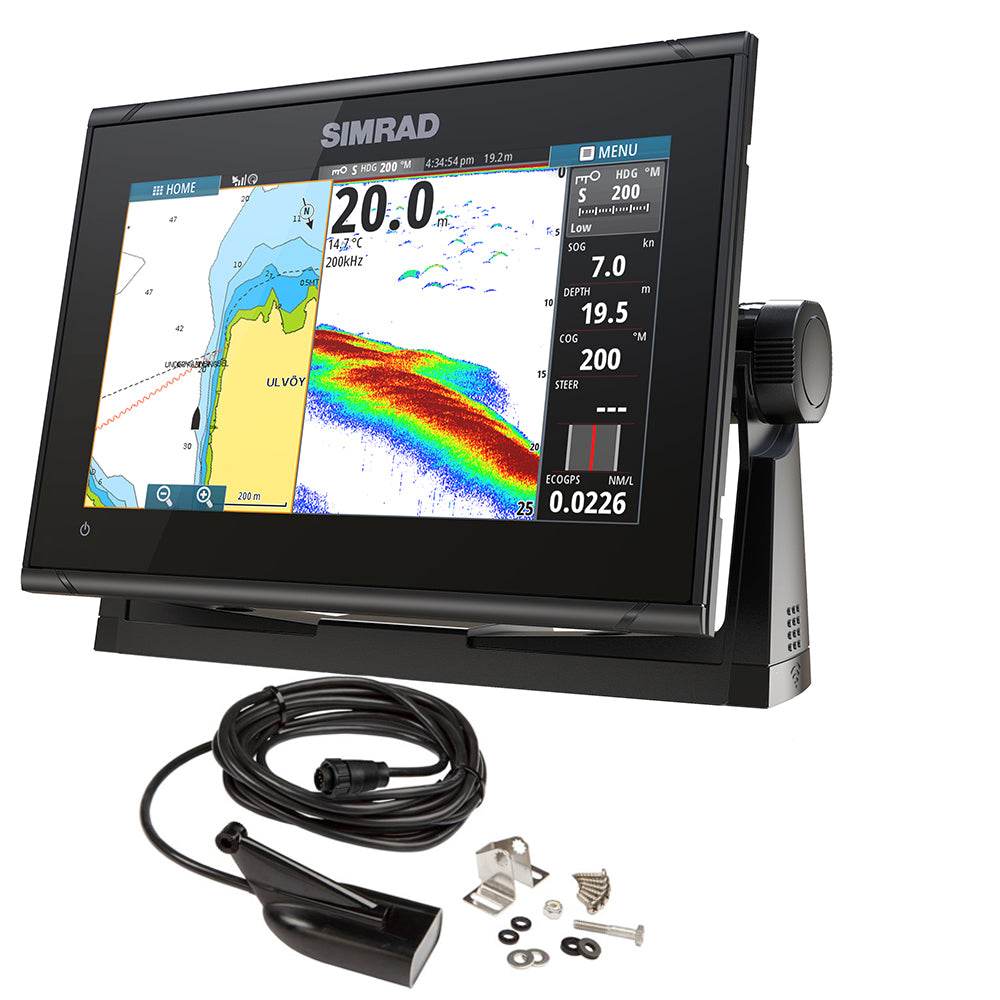

Comes With:

• 000-12728-001 - MED/HIGH 455/800 9PIN
• 000-13702-001 - Gimbal bracket, GO9,V9
• 000-13700-001 - GO9 / V9 Bezel Replacement
• 000-13699-001 - GO9/V9 Dash mount kit
• 000-00128-001 - Power Cable
• 000-13698-001 - GO9 XSE Suncover

C-MAP Discover Chart Features

• Full-Featured Vector Charts
• Custom Depth Shading
• High-Resolution Bathymetry
• Easy-Routing
• Tides & Currents

Specifications:

• Touchscreen: Yes
• Screen Size: 9"
• Cartography Brand: Navionics/C-Map/Lowrance
• Included Transducer: 000-12728-001
• Transducer Included: Yes

• Display Resolution: 800x480
