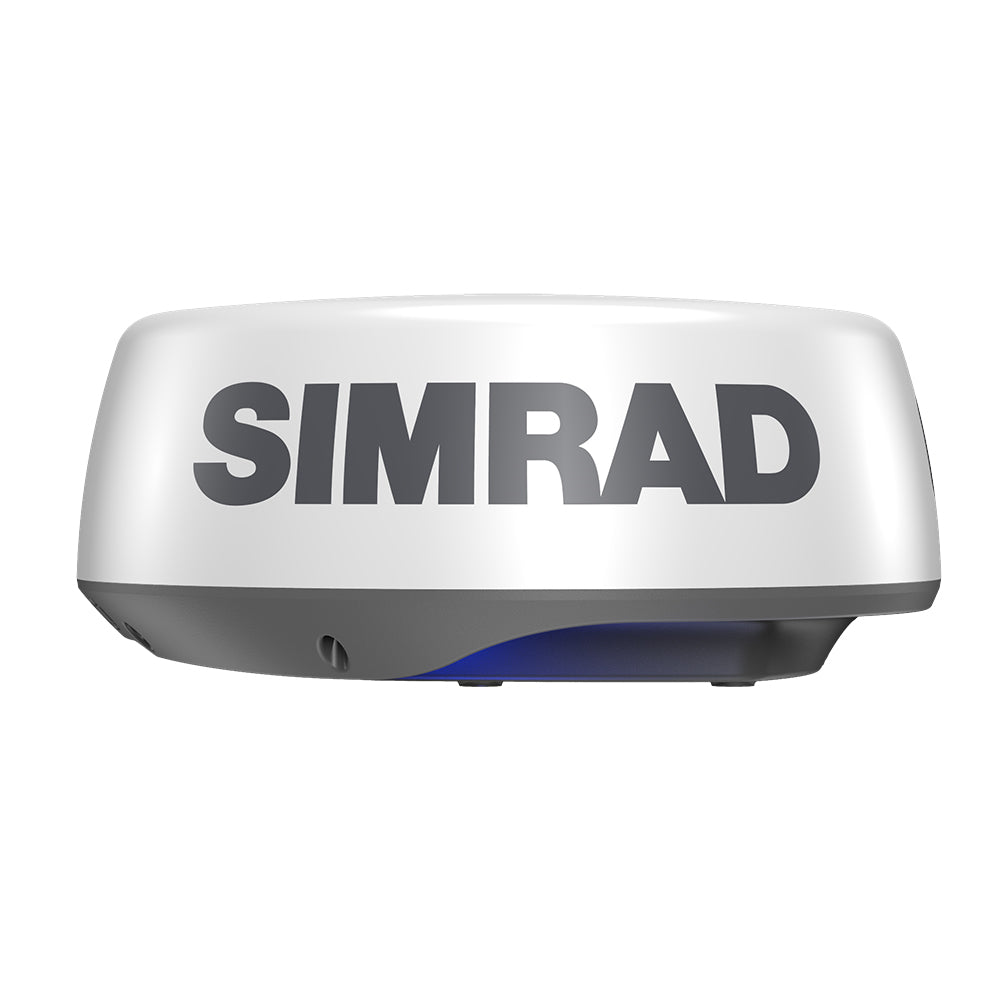

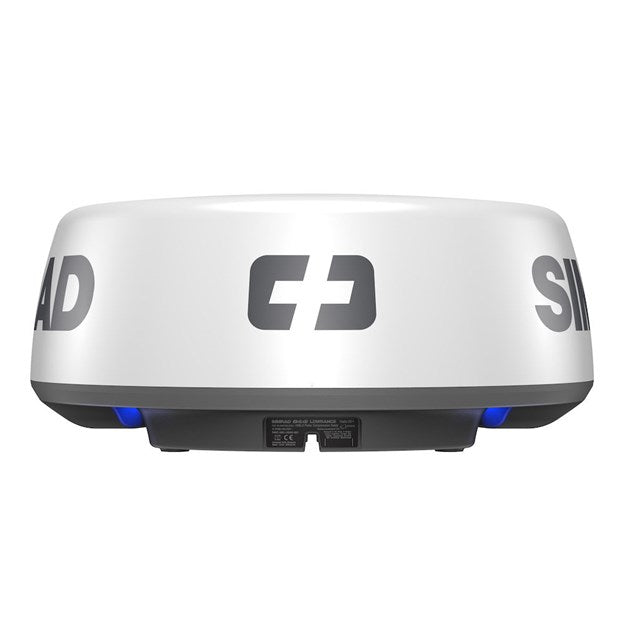

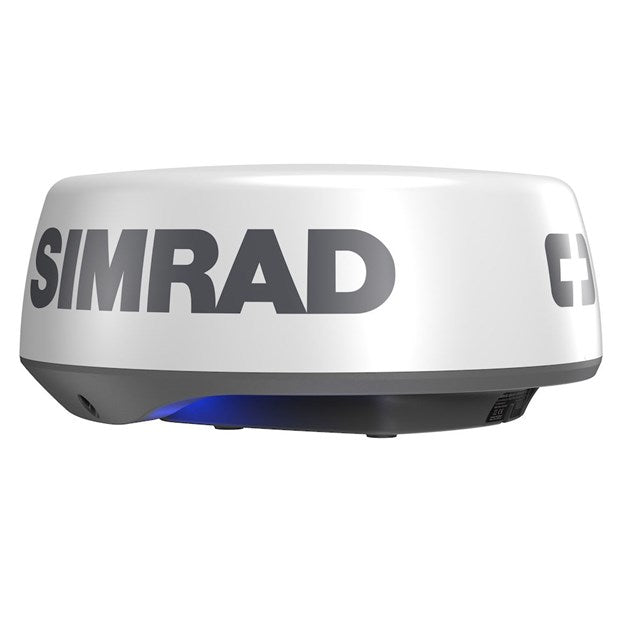

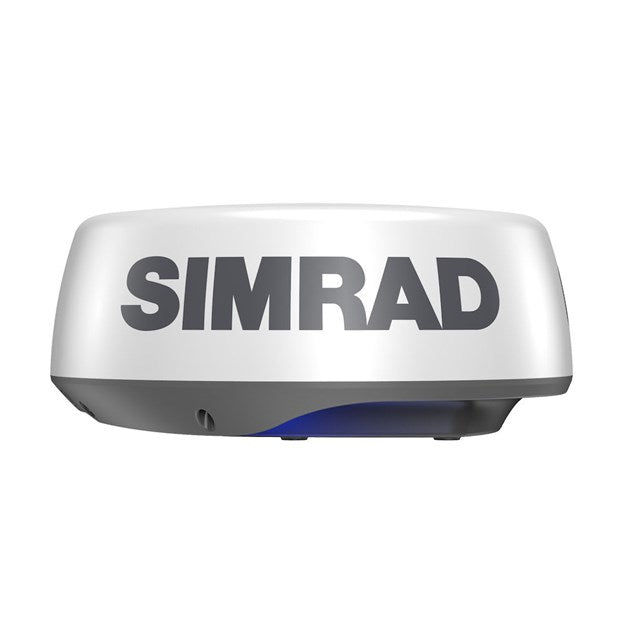

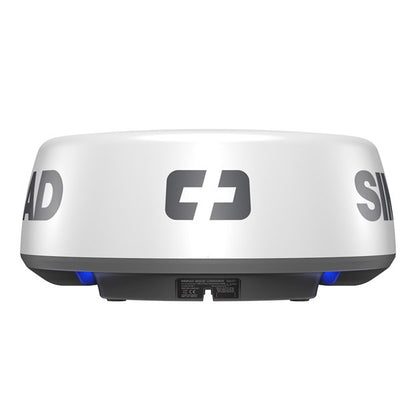

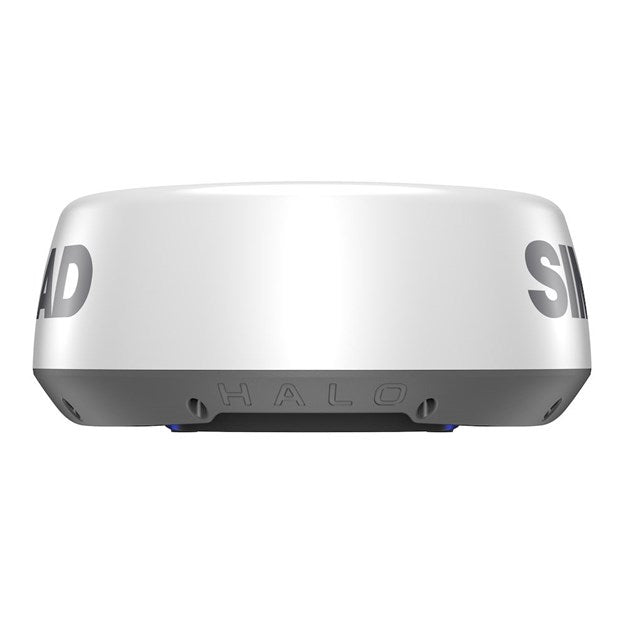

HALO20+ 20" Radar with 10M Cable (000-14536-001)
See Far And Near With One Compact Dome: Perfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision: HALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
Built-in VelocityTrack™ Doppler Technology: VelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with colour-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Whenever You Are: HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy to Use Radar: Harbour, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.
Features:
36 nm range from a compact 20-inch dome
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation sees both far and near
Ultra-fast 60 RPM operation at ranges up to 1.5 nm
VelocityTrack™ Doppler technology to avoid collision
Easy operation with harbour, offshore, weather and custom modes
MARPA target tracking (up to 10 targets, 20 in dual range)
Ready instantly from standby
Low power consumption
Included:
20" dome
10m cable (000-14548-001)
Ethernet Adapter Cable (000-14552-001)
Specifications:
Range - Max (Miles): 36nm
Array Size (Inches): 20"
Physical
Dimensions W x H x D510mm dia x 223 mm H. (20" dia x 8.8" H)
Weight5.9 kg (13 lbs) without cable
Electrical
Power Consumption max29W
Power Consumption typical20W
Recommended Fuse Rating5A
Supply Voltage10.5 - 31.2 VDC (12/24V systems)
Environment
Humidity95% RH at 35°C (95°F)
Operating Temperature Range-25° to + 55°C (-13° to +130°F)
WaterproofratingIPX6
Approvals
Approvals ComplianceFCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Radar
Beam width: 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V
Max Range, scale: 36 NM
Max Wind Speed: 100 knots (51 m/s)
Min Range, scale: 50 m / 200 ft / 50 yd
Radar Modes: Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
Radar Technology: Pulse Compression
Rotation speed: Up to 60 RPM (Range Dependent)
Other
Interface: Simrad MFD
Warranty Period: 2 Years
