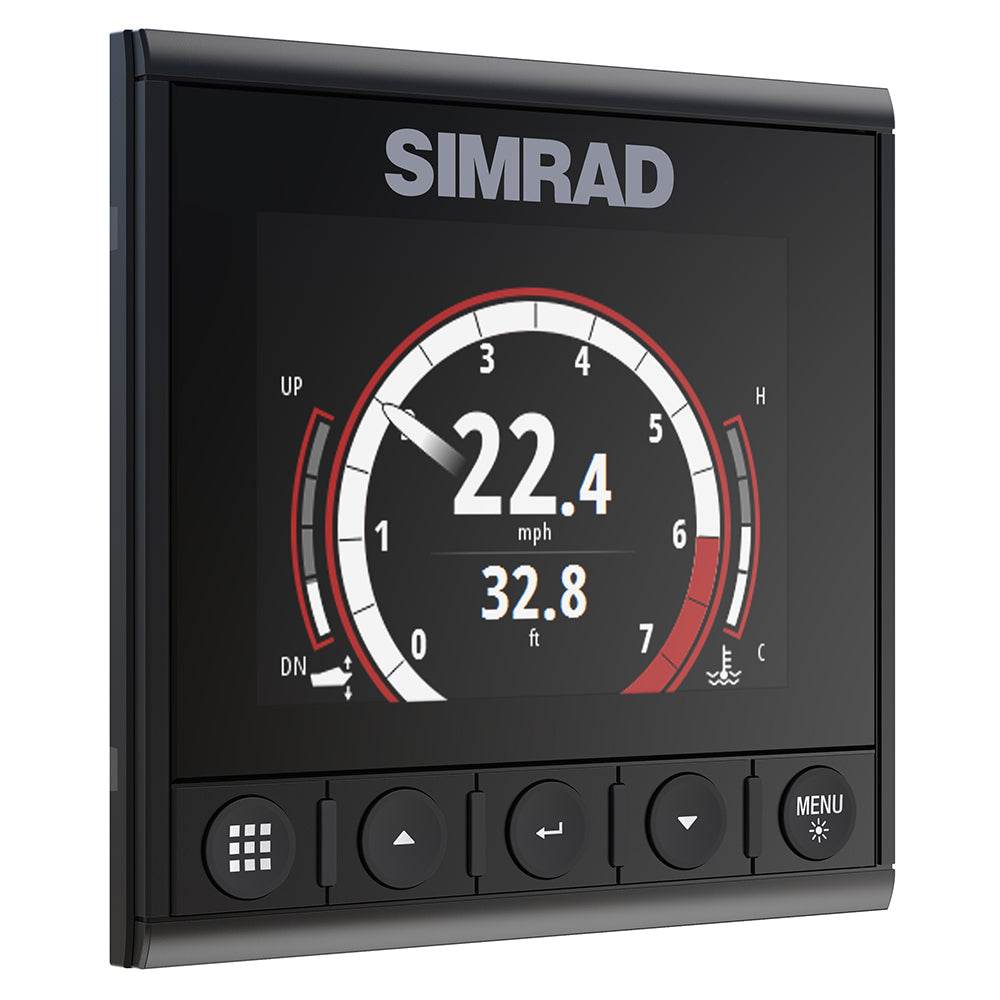

Simrad IS42 Digital Display

IS42 Smart Instrument Digital Display (000-13285-001)

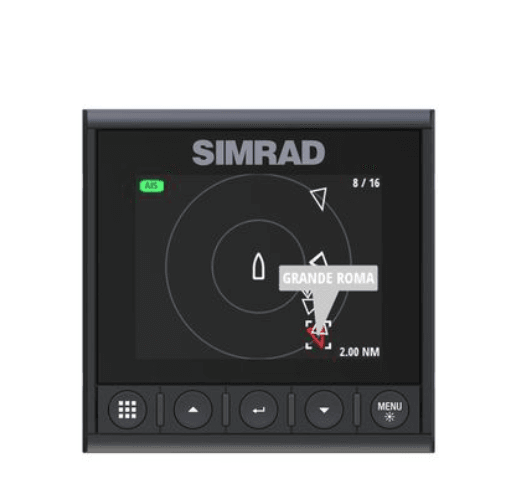

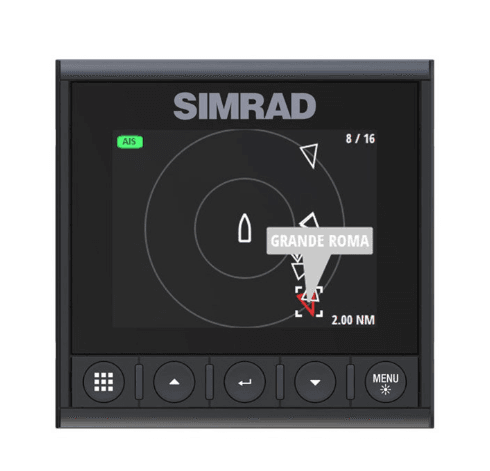

The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.

Features:

• Optically bonded 4.1" color display

• Multi-purpose digital instrument

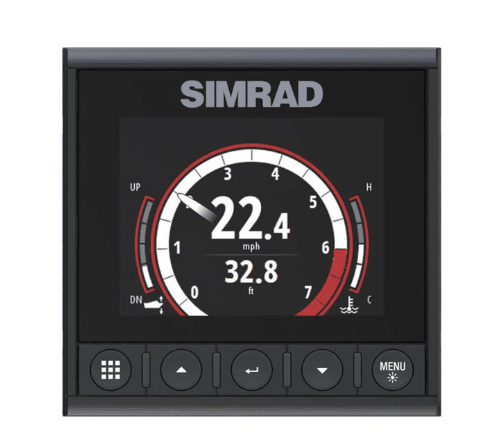

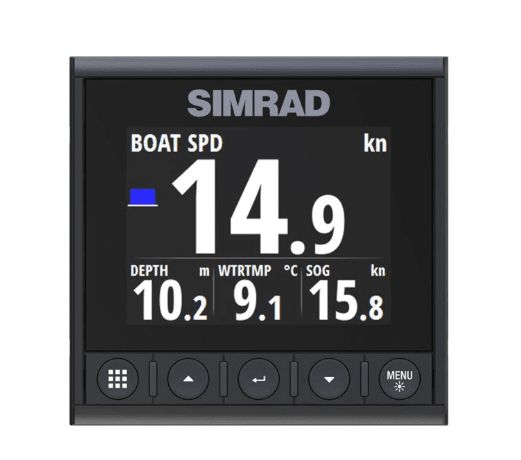

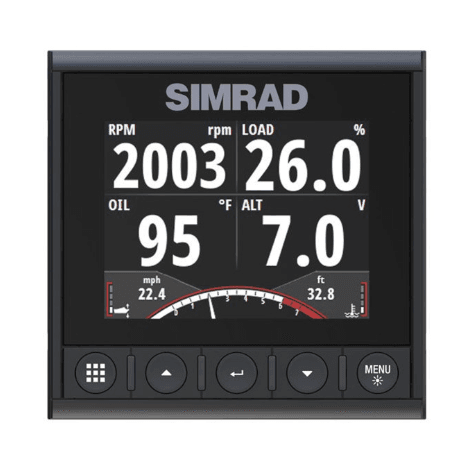

• Display wind, speed, depth, engine data, autopilot status and more

• Intuitive operation

• Easy installation

• Add an OP12 keypad for full Simrad autopilot control

• Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers

• Low-profile glass helm design

• Low power consumption

• Certified NMEA 2000® connectivity

Details:

• Dimensions: 118 x 115 x 28mm (4.6" x 4.5" x 1.1")

• Weight: 0.32kg (0.7lbs)

• Power Consumption: 1.8 Watts (MAX)

• Network Load: 3 LEN

• Color: Black

• Display Size: 4.1" (diagonal). 4:3 Aspect ratio

• Display Type: Transmissive TFT-LCD, bonded. White LED backlight

• Display Resolution: 320 x 240 pixels

• Illumination: White for day mode. Red, green, blue or white for night mode

• Environmental Protection, Waterproof: IPx7

• Environmental Protection, Humidity: up to 95% RH

• Compass Safe Distance: 300mm (1.0")

• Temperature Operating: -15 to +55°C (5°F to +131°F)

• Temperature Storage: -30 to +70 °C (-22 to +158° F)

Specifications:

Includes:

• N2K-T-RD Network T-Connector
• N2KEXT-2RD 2ft Network Extension Cable

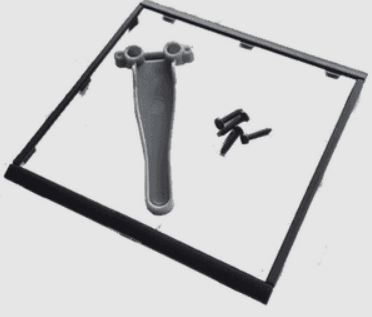

• Install kit for Triton² / IS42

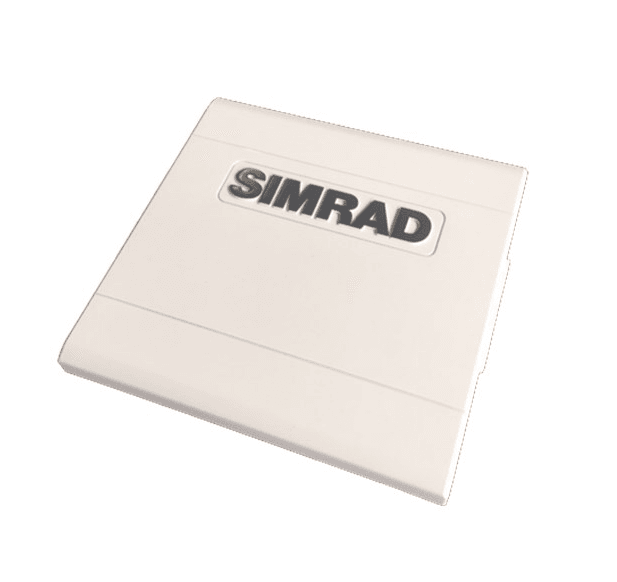

• IS42 Sun Cover

Owner's Manual
