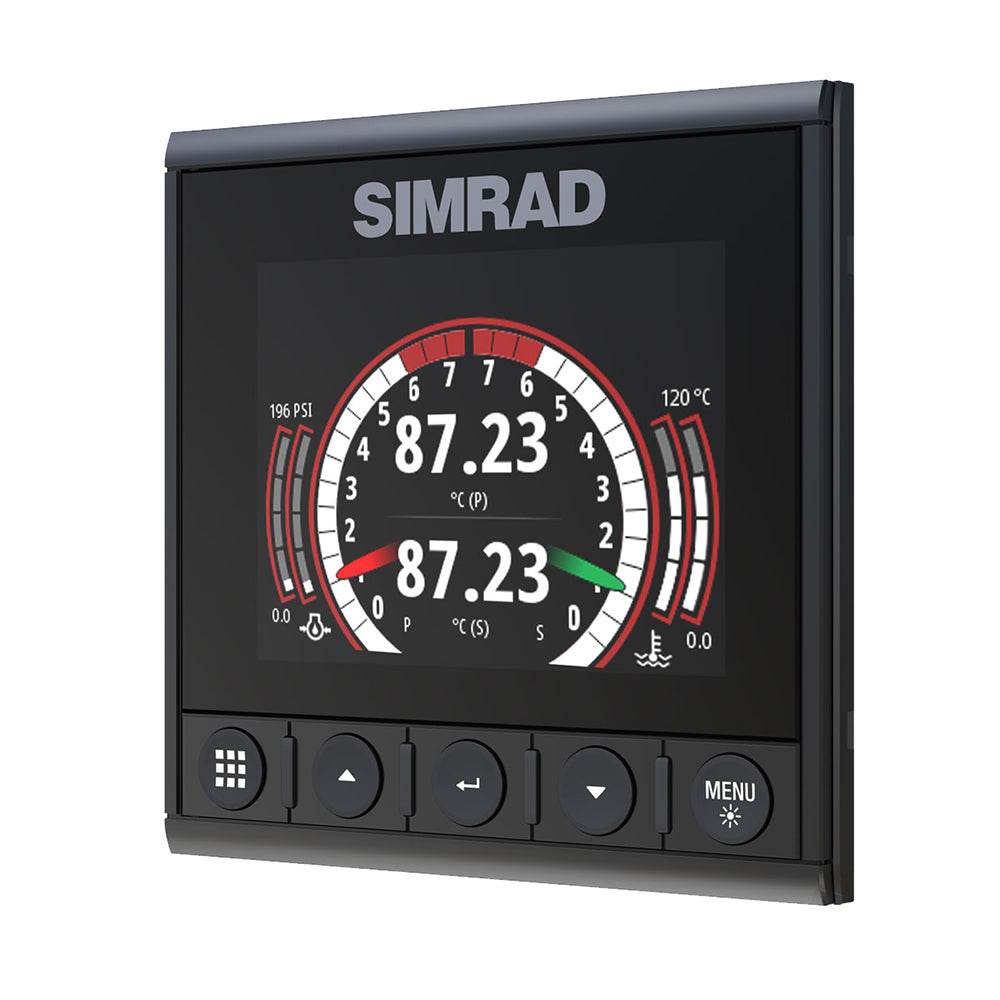

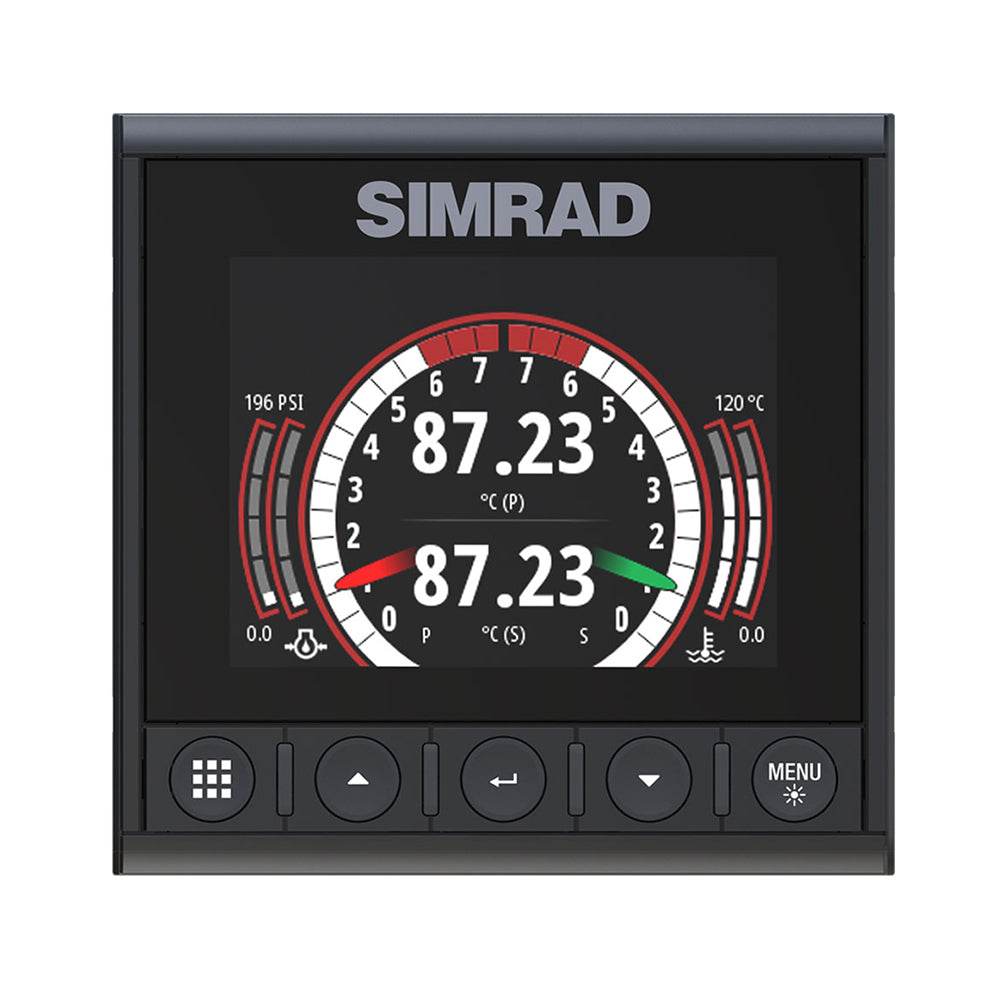

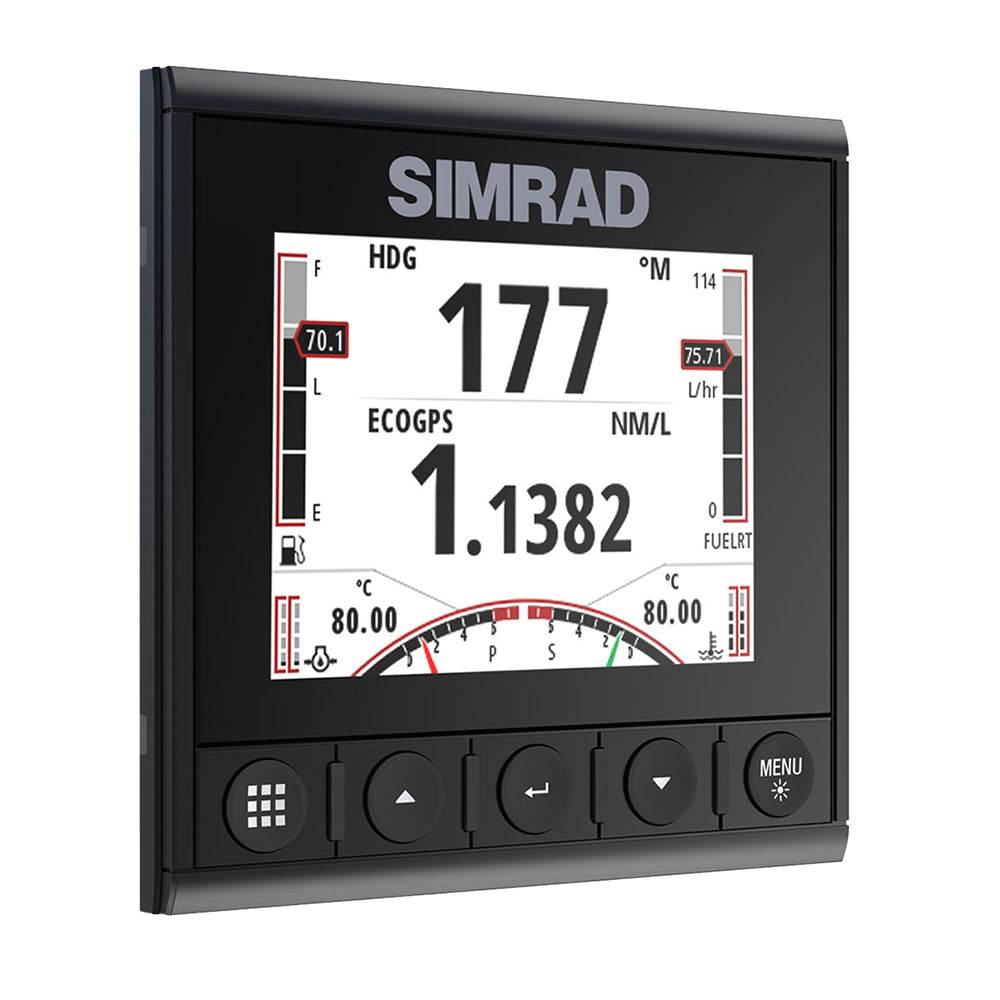

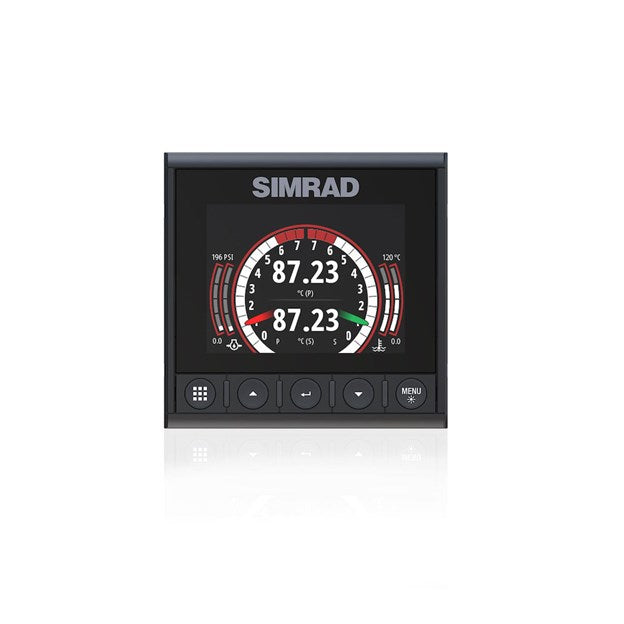

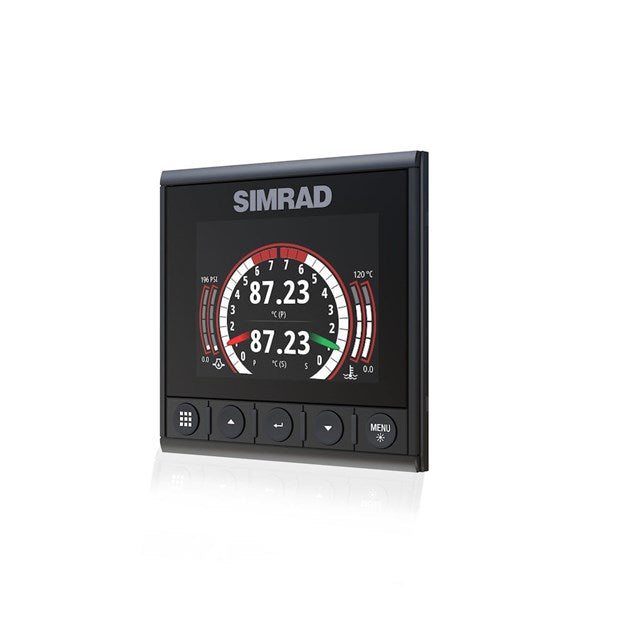

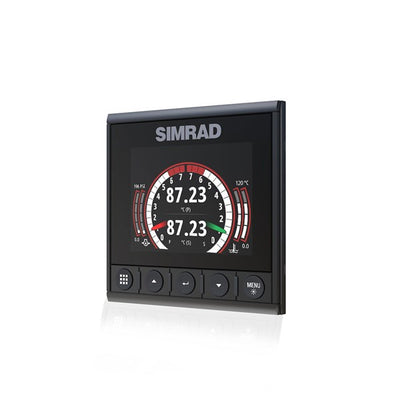

Simrad IS42J Digital Gauge

IS42J Instrument Links J1939 Diesel Engines to NMEA 2000® Network (000-14479-001)

More than a standalone gauge, the IS42J links J1939 diesel engines to the boater’s NMEA 2000® network. This allows boaters to view engine data on a wide range of other Simrad gauges and multifunction displays, vessel-wide, without the need for a separate J1939 gateway or converter.

The IS42J is simple to install, with only one cable required for each J1939 engine and a single connection to the boat’s DC power supply. With a dual-engine J1939 gateway built in, there are no separate black-box components to install, and plug-and-play adapter cables are available to suit a wide range of J1939 diesel engines. Sharing engine data with other Simrad gauges or displays is also simple via NMEA 2000® connectivity.

Key Features:

• Bright, optically bonded 4.1-inch color display
• Monitor up to two J1939 connected engines
• Built-in J1939-to-NMEA 2000® gateway
• Intuitive operation with waterproof silicon keys
• Easy to install and configure
• Low-profile glass helm design
• Displays and converts many J1939 SPN’s
• Configurable data types for digital values and sidebars
• Fuel usage and fuel economy monitoring

• Display Resolution: 320 x 240, 4:3

• Compass Safe: 300mm (1.0')
• Dimensions W x H x D: 118 x 115 x 37mm (4.6 x 4.5 x 1.4")
• Mounting Type: Flush
• Weight: 0.32 kg (0.7 lbs)

• Power Consumption max: 2.2W
• Power Consumption typical: 1.8W
• Recommended Fuse Rating: 3A
• Supply Voltage: 12V DC (10-16V DC)

• Humidity: Up to 95% RH
• Operating Temperature Range: -25 to +65ºC (-13ºF to +149ºF)
• Storage Temperature Range: -40 to +85ºC (-40ºF to +185ºF)
• Waterproof rating: IPx7

• N2K PG NsReceive: 59392, 59904, 60928, 126208, 126992, 126996, 127488, 127489, 127505, 127508, 128259, 128267, 129025, 129026, 129029, 129033, 130136
• Transmit: 59904, 60928, 126208, 126996, 127258
• NMEA 2000 Connectivity: 1 x NMEA2000 Micro-C port, 1 LEN

• Interface: Keypad
• Languages: English, French, Spanish, German, Italian, Swedish, South African, Danish, Finnish, Icelandic, Dutch, Norwegian, Portugues, Greek
• Warranty Period: 2 Years

What's in the box:

• N2K-T-RD Network T-Connector

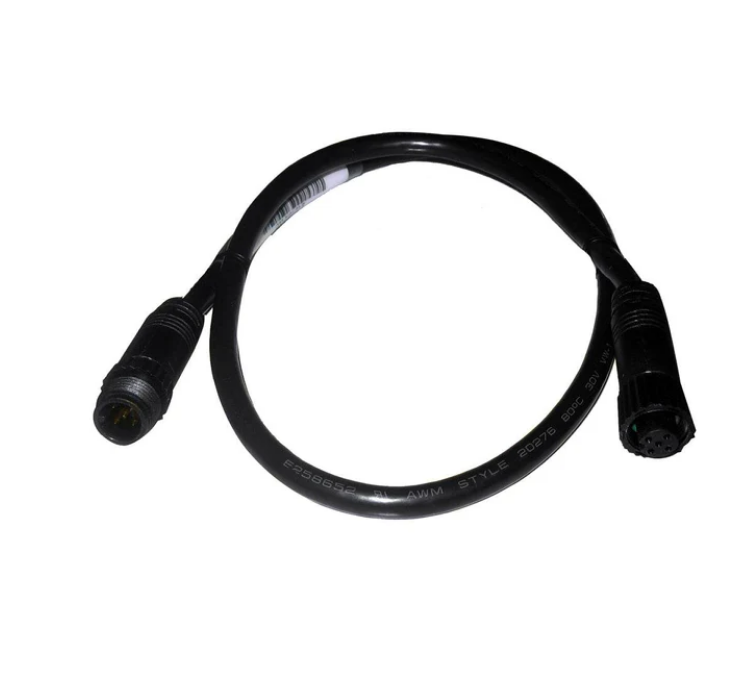

• N2KEXT-2RD 2ft Network Extension Cable
• Install kit for Triton² / IS42
• IS42 Sun Cover

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
