Product Description

NAC-2 Low Current Course Computer (000-13249-001)

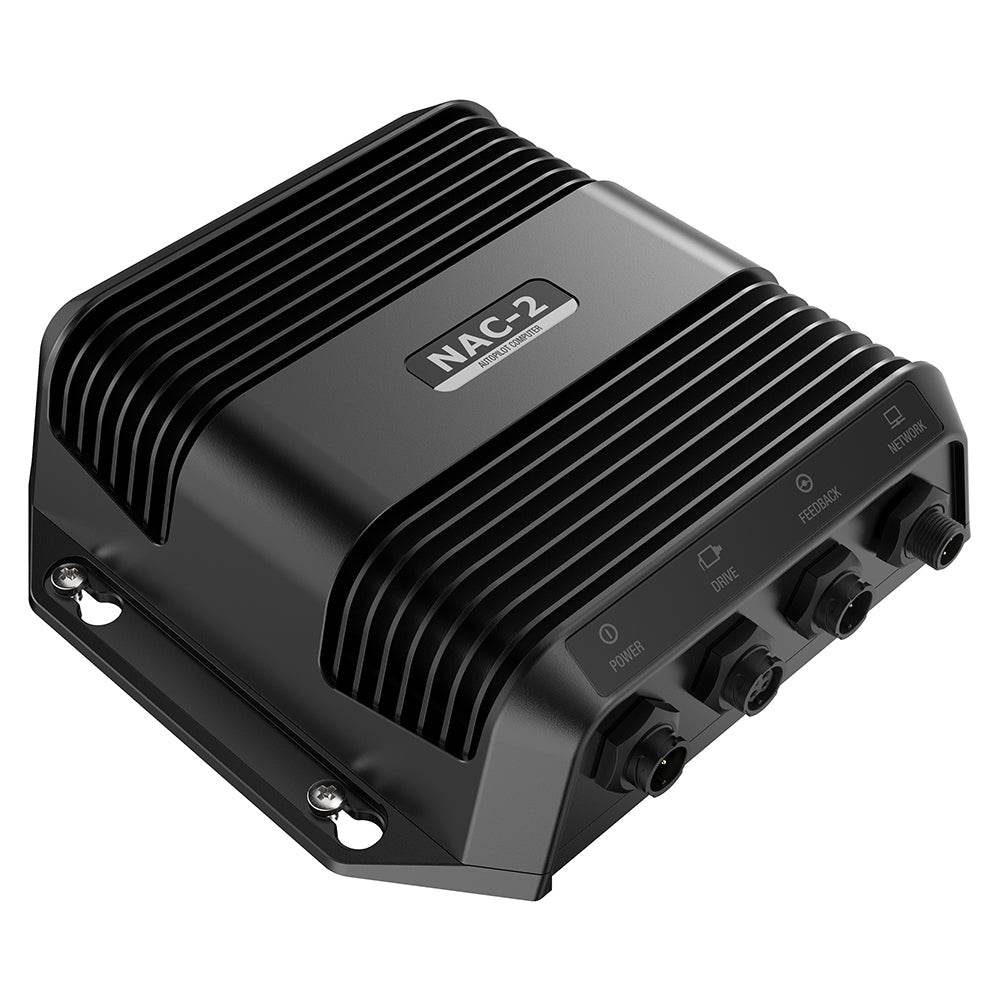

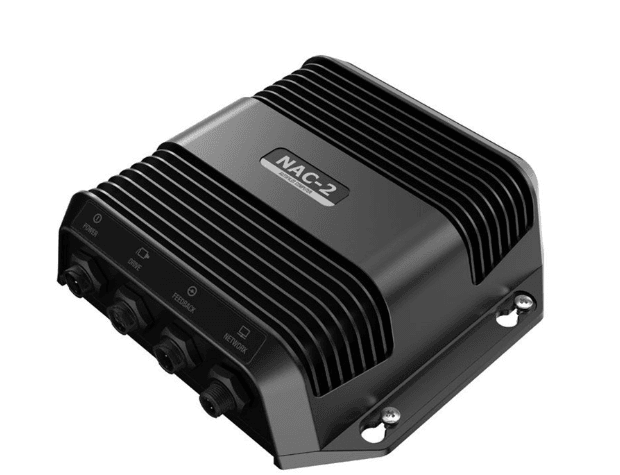

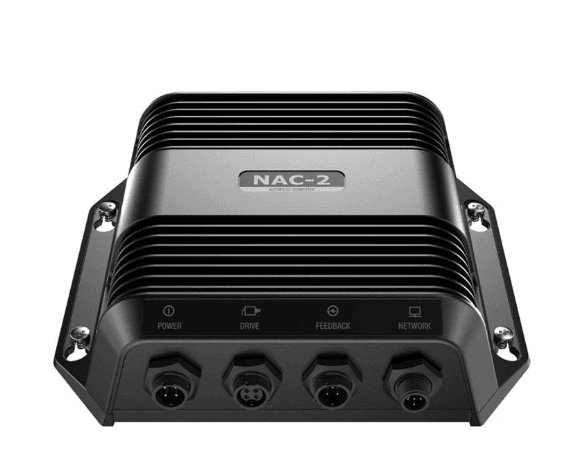

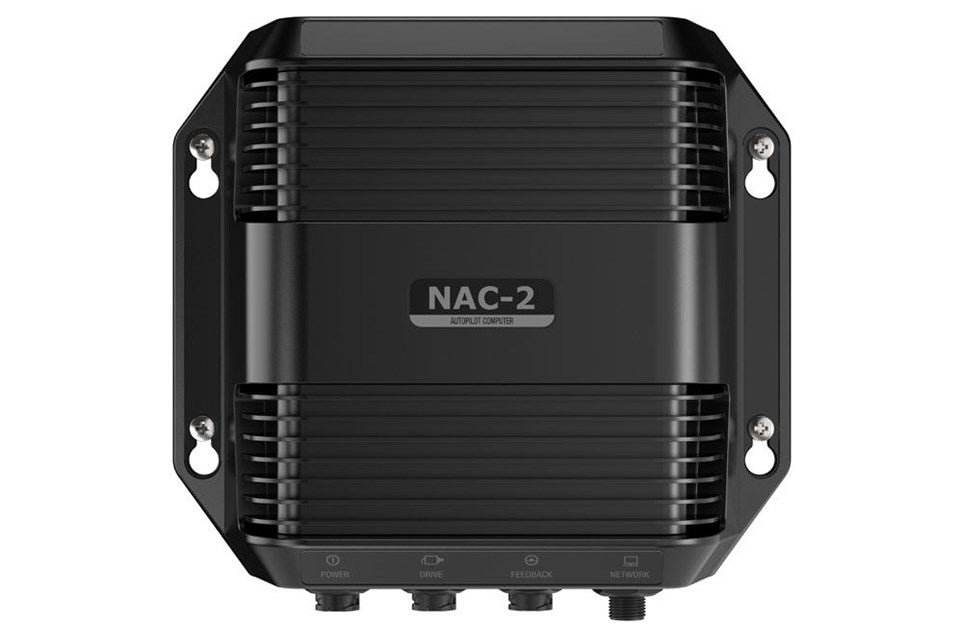

The NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (8 Amps continuous/16 Amps peak).

Features:

Reliable autopilot performance based on Simrad Continuum steering technology
Recommended for boats up to 10M (33') in length
Output of 8 Amps continuous, 16 Amps peak
Clutch output (3 Amps maximum)
Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
Supports Simrad RF25 rudder feedback units
Plug-and-play connectors for easy installation
NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

Specifications

Waterproof rating	Splashproof, IPx5
Power	9-31.2 vDC
Power consumption	140mA Plus drive load
Performance	Drive 8 amps, 12 Amps fo r1 second

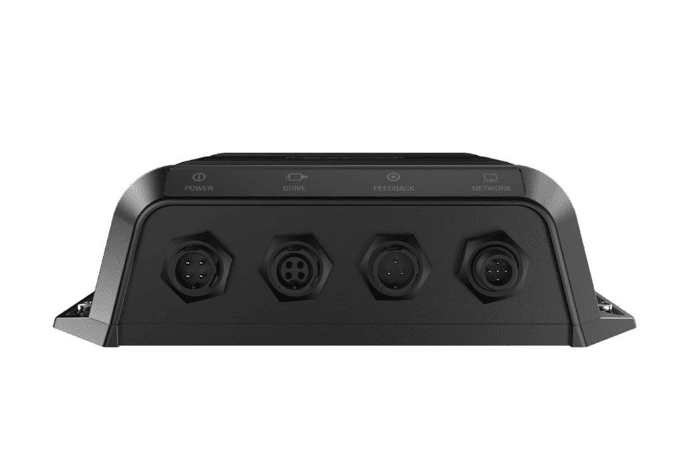

Interfaces
Network	1 Micro C NMEA2000
Feedback	Variable voltage/resistive 0-5V
Drive Output	To PUMP-1 or HELM-1
Power supply	9-31.2 V DC
Solenoid	12/24V DC, common, load range 10mA to 10A, off current <1mA
Clutch	12/24V DC, min 10mA, max 3A

What's in the Box:

NAC-2

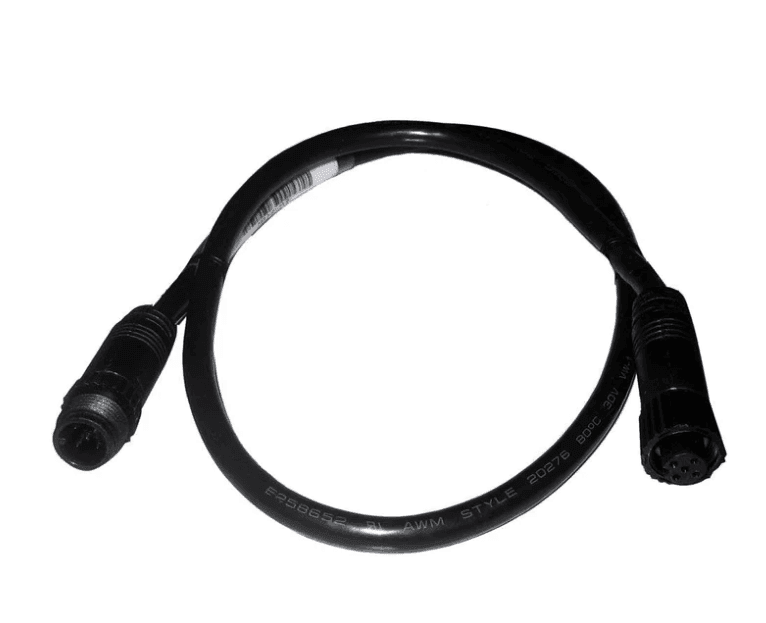

N2KEXT-2RD - 0.61 m (2-ft) NMEA
N2K-T-RD T
Warranty: 2 years
