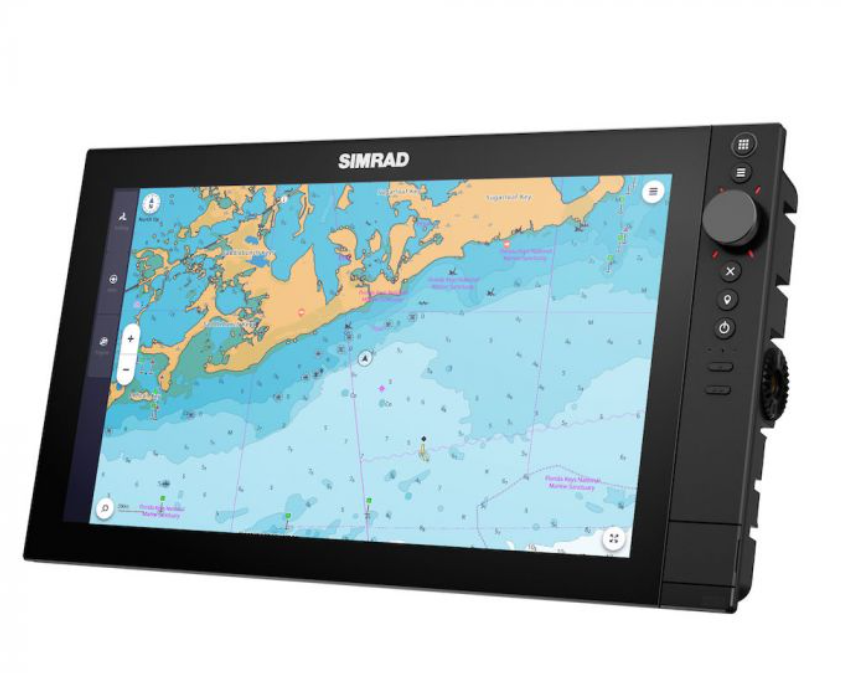

Simrad NSS4 16″ Combo (U.S. C-MAP)

NSS 4-16 16-inch Combo with U.S. C-MAP (000-16018-001)

Simrad NSS 4 – Sleeker, Faster, Smarter. The Ultimate All-in-One Chartplotter & Fishfinder

Completely redesigned inside and out, the Simrad NSS 4 (00016018001) sets a new benchmark in marine navigation and sportfishing technology. Featuring a responsive touchscreen, intuitive rotary dial, and dedicated keypad, every control works seamlessly together to deliver total command in any condition. Powered by an advanced Qualcomm® 8-core processor, the NSS 4 offers lightning-fast chart rendering, ultra-smooth transitions, and instant response. With dual-channel 1 kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization, this high-performance MFD is built for serious anglers and cruising enthusiasts alike.

SLEEKER – Refined Design, Inside and Out

Experience a next-generation look and feel at the helm. The glass-to-edge design gives your dashboard a premium, modern appearance, while hybrid control options—touchscreen, rotary dial, and keypad—offer unmatched flexibility and precision. Every detail of the NSS 4’s design elevates both aesthetics and usability, transforming your boating experience.

FASTER – Built for Performance

At its core, the Qualcomm® 8-core processor delivers unprecedented speed for every action—from page transitions and auto-routing to sonar updates and data syncing. The latest Simrad operating system enhances performance even further, offering a streamlined user interface that’s faster and more intuitive at every touchpoint.

SMARTER – Advanced Sonar & Imaging

Unlock superior target separation and fish detection with dual-channel 1 kW CHIRP sonar, giving you a clearer, more complete picture of what lies beneath. Support for Active Imaging™ HD brings incredible underwater clarity, revealing structure and fish detail with stunning precision—ideal for deep-sea anglers and coastal explorers.

INTEGRATED FOR THE FUTURE

The NSS 4 is designed for seamless integration across your vessel. Effortlessly connect to HALO® radars, the RECON™ trolling motor, and the Simrad® app for real-time data and remote access. It also supports a wide range of third-party systems, including Mercury® SmartCraft Connect, SiriusXM®, CZone® digital switching, and more—giving you a truly connected helm that evolves with your needs.

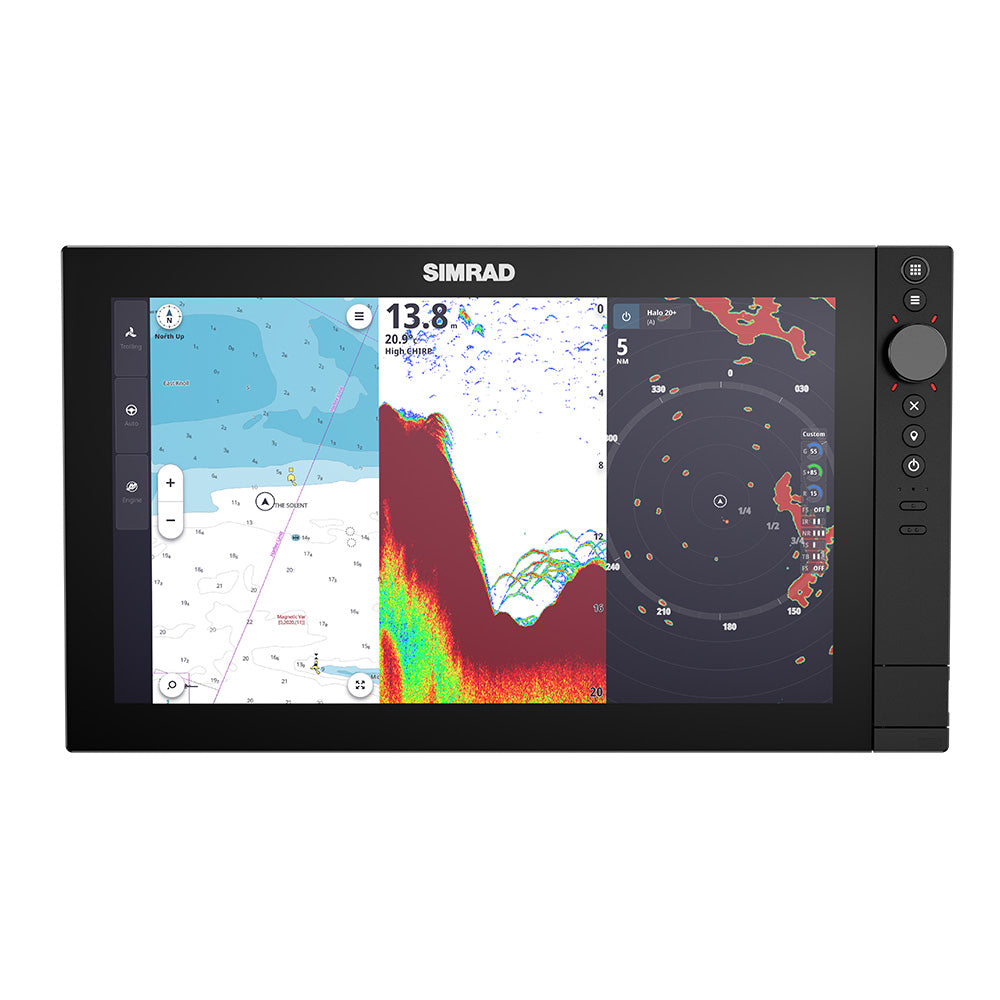

Experience the next generation of marine navigation and sonar performance with the Simrad NSS 4-16 16" Combo, a premium multi-function display built for serious anglers, captains, and adventure boaters. Engineered with lightning-fast processing, hybrid controls, and brilliant SolarMAX™ HD clarity, this chartplotter and fishfinder combo delivers powerful tools to help you explore confidently, locate targets precisely, and navigate smarter — all in one sleek, durable package.

Key Features

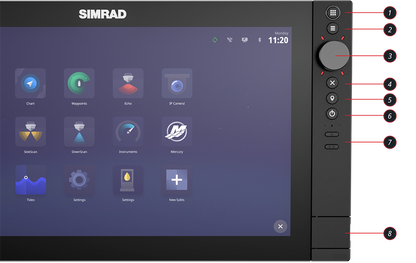

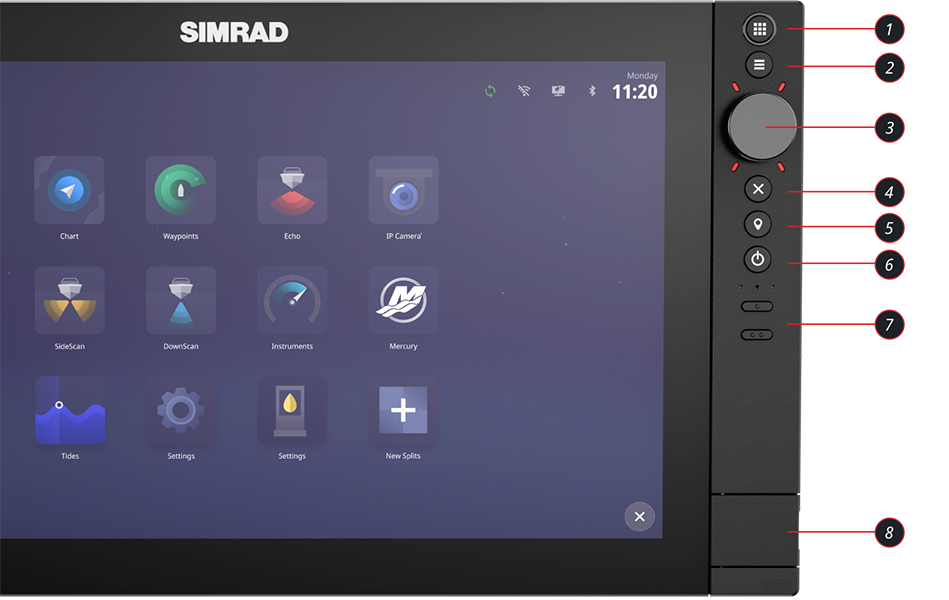

• Hybrid Touch Controls – Intuitive control via responsive touchscreen, rotary dial, or physical keypad — perfect for calm or rough conditions.
• Modern Glass-to-Edge Display – Sleek, frameless design that enhances visibility and complements any helm.
• Qualcomm® 8-Core Processor – Experience ultra-fast operation, instant chart redraws, and seamless multitasking with Simrad’s most advanced hardware yet.
• Enhanced Operating System – Redesigned for smoother navigation, smarter menus, and custom layout flexibility.

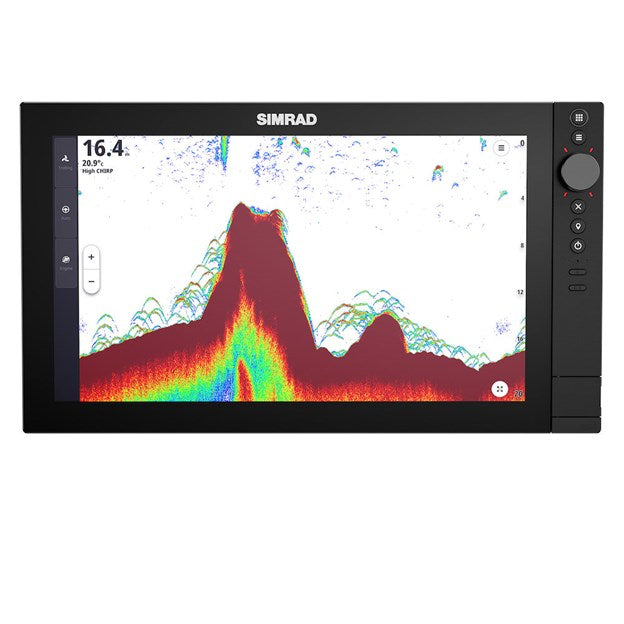

• Built-In Dual Channel 1 kW CHIRP Sonar – Delivers crystal-clear fish targets and deep-water precision with unmatched detail.
• Active Imaging™ & Active Imaging™ HD Support – Capture high-definition DownScan and SideScan images with superior clarity.

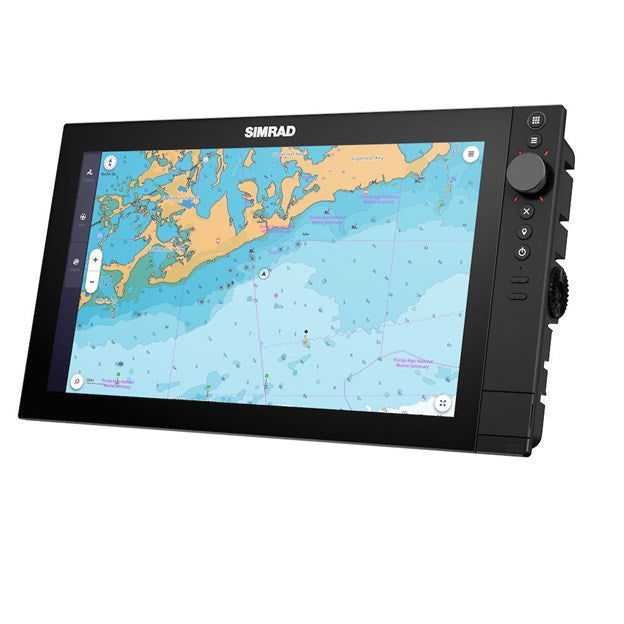

• C-MAP® X-Gen Chart Compatibility – Preloaded with U.S. Discover X charts, plus full support for C-MAP Reveal X, CMOR, and StrikeLines.
• Trolling Motor Integration – Compatible with Simrad® RECON™, Rhodan®, and Motorguide® trolling motors for precise boat control.
• Seamless System Expansion – Connect to Simrad sonar modules (S3100H, S5100), HALO radar, and more for a complete, integrated helm.
• Broad Compatibility – Works with Mercury®, CZone®, SiriusXM® Weather, and other leading marine systems.

Technical Specifications

Display & Design

• Display: 16" SolarMAX™ IPS Touchscreen with ultra-wide viewing angles
• Resolution: Full HD 1920 × 1080
• Brightness: > 1,200 nits for true sunlight readability
• Viewing Angles: 80° in all directions
• Waterproof Rating: IPX6 / IPX7 marine-grade protection

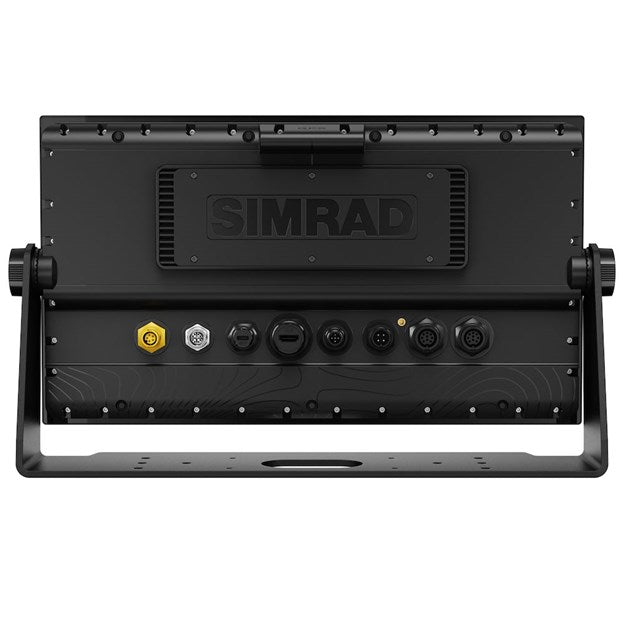

• Mounting: Bracket or rear-mount (both included)
• Dimensions: 16.67″ W × 9.51″ H × 3.49″ D
• Weight: 3.8 kg (8.38 lbs)

Performance & Power

• Processor: Qualcomm® 8-core high-speed performance
• Power Use (max): 43.5 W
• Voltage: 12/24 V DC (10 – 31.2 V)
• Fuse Rating: 5 A
• Operating Temp: -15 °C to 55 °C (5 °F to 131 °F)
• Storage Temp: -20 °C to 60 °C (-4 °F to 140 °F)

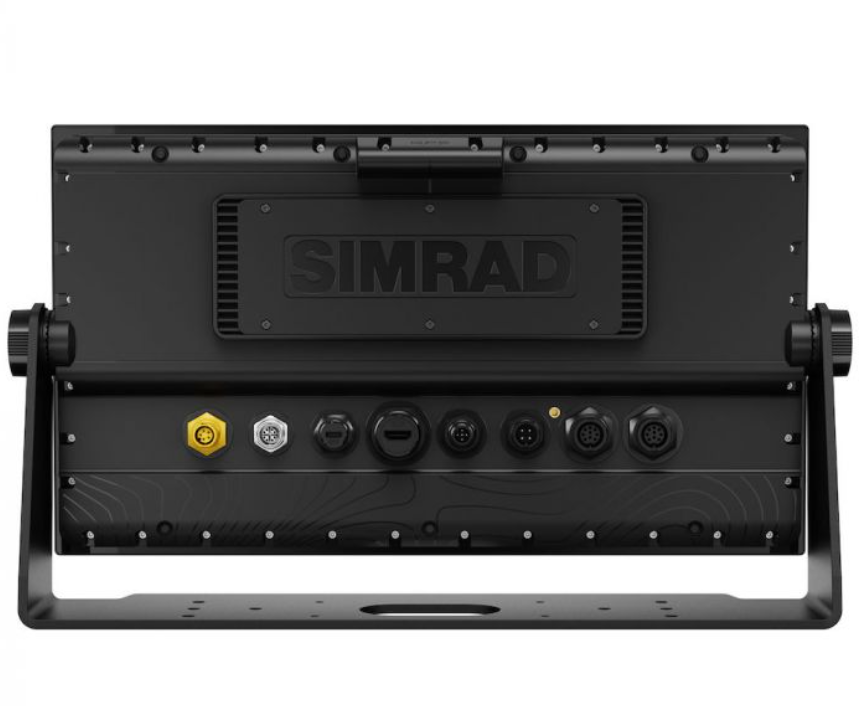

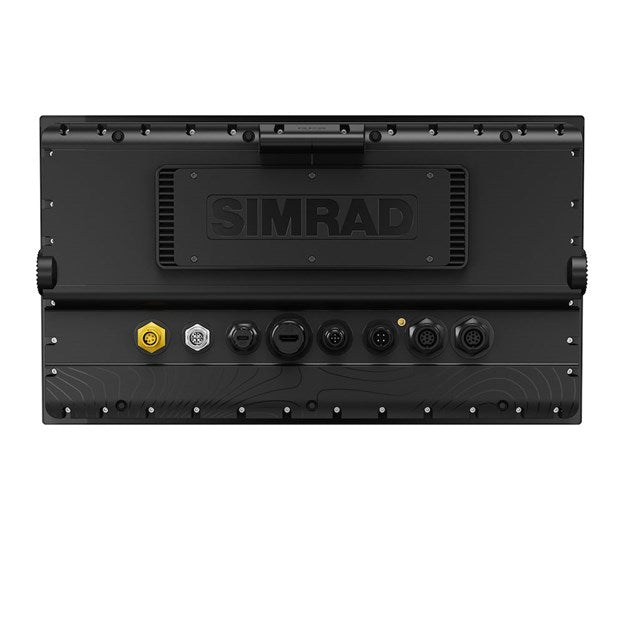

Connectivity & Networking

• Ethernet: 1 × X-Coded M12 GbE, 1 × 5-pin yellow port
• Wi-Fi: Wi-Fi 5 (IEEE 802.11ax)
• Bluetooth: Yes
• NMEA 2000: 1 × Micro-C port (1 LEN)
• Video Input: HDMI, IPCAM-1, FLIR 232/300, ONVIF IP Camera
• Storage: Dual microSD® / SDHC® slots

Navigation & Cartography

• Preloaded Charts: U.S. C-MAP® Discover X (coastal & inland)
• Supported Charts: C-MAP Reveal™ X, CMOR, StrikeLines
• GPS: 10 Hz GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS)
• Waypoints: 10,000 Routes: 125 Tracks: 75 (75,000 trackpoints)

Sonar & Radar

• Sonar Ports: 2 × 9-pin Xsonic 1 kW ports
• Frequencies: Low, Medium, High CHIRP (1 kW RMS)
• Imaging: DownScan & SideScan 455 / 700 / 800 / 1200 kHz CHIRP
• Modules: Compatible with S3100 & S5100 Simrad sonar modules

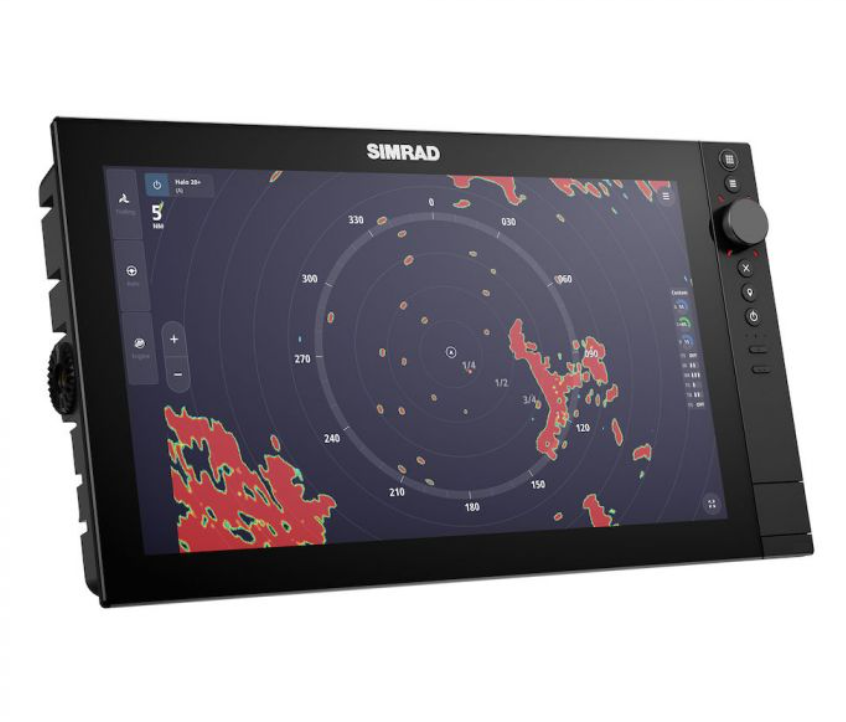

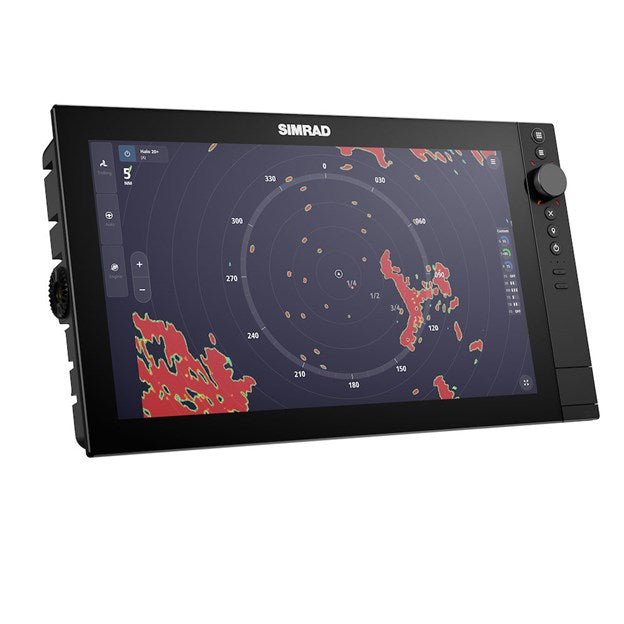

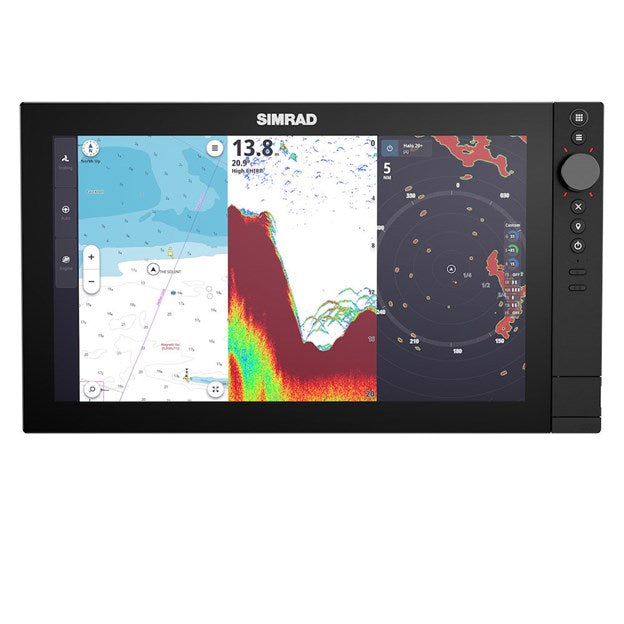

• Radar: HALO dome & open array radars, 3G/4G, 10 / 25 kW HD

Integration & Control

• Autopilot: Compatible with NAC-1, NAC-2, NAC-3, NAC-D
• Digital Switching: CZone® / DDS supported
• Weather: SiriusXM® Marine Weather (via WM4 module, subscription required)
• Trolling Motor: Simrad® RECON™, Rhodan®, Motorguide® ready

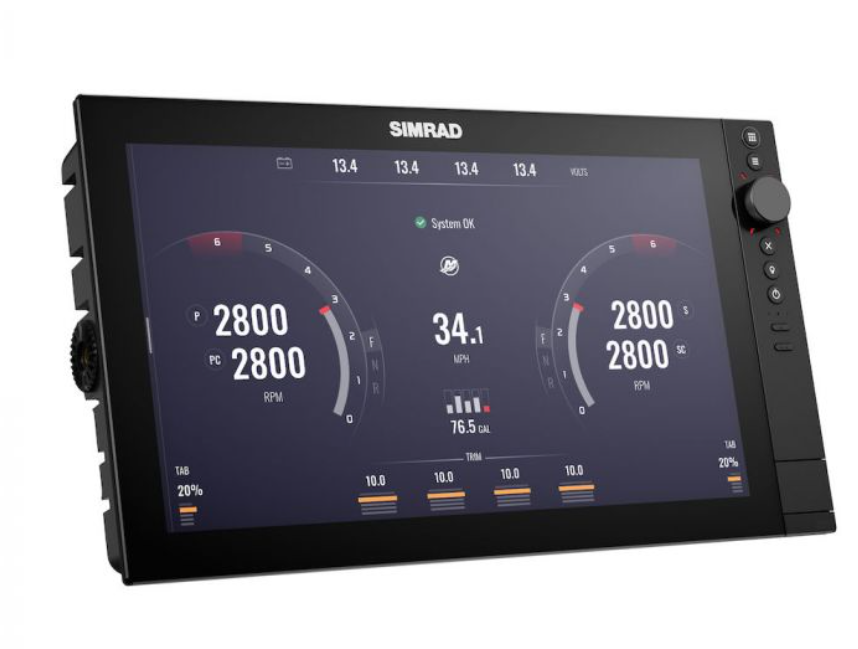

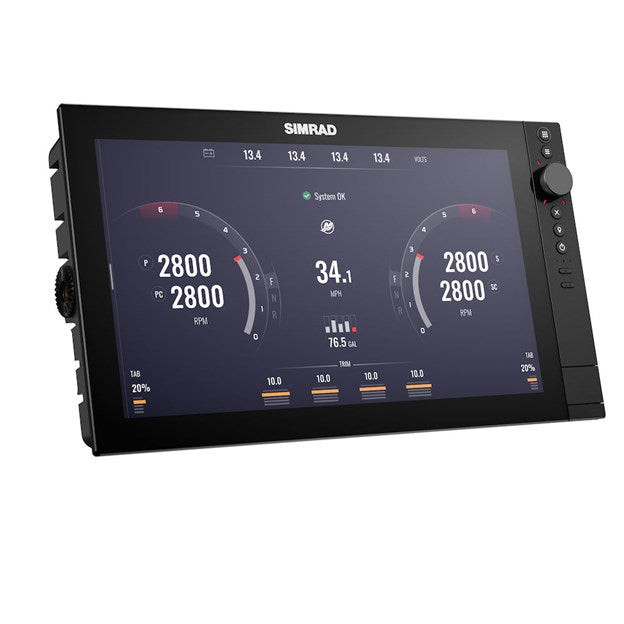

• Engine & Accessory Support: Mercury®, CZone®, and more

Durability & Warranty

• Built for Marine Conditions: Rugged, sealed construction for offshore and freshwater environments
• Warranty: 2-Year Limited Warranty from Simrad

Why Choose the Simrad NSS 4-16 Combo?

From offshore navigation to precision fishing, the Simrad NSS 4-16 16" Combo is built to perform in any environment. With blazing speed, full network integration, and stunning full-HD sonar imaging, it’s the ultimate all-in-one chartplotter/fishfinder for professional and recreational boaters alike.

Specifications:

• Cartography Brand: C-Map Reveal X
• Screen Size: 16"
• Touchscreen: Yes
• Transducer Included: No
