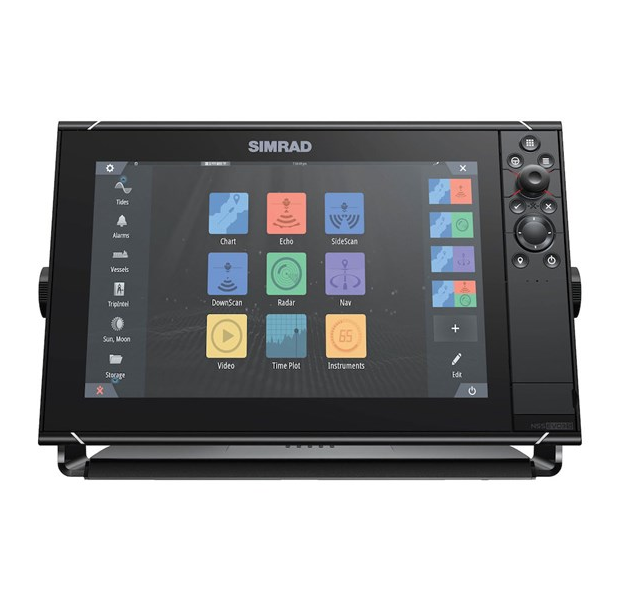

Simrad NSS12 evo3S 12" Combo Multi-Function Display (MFD) Chartplotter/Fishfinder – Part Number 000-15403-002 – features the powerful iMX8 processor for 2X faster page loading, preloaded US C-MAP® charts with Florida Reveal layer, 1kW CHIRP sonar, dual transducer ports, Active Imaging™, ForwardScan®, SolarMAX™ IPS touchscreen, NMEA 2000® and Ethernet networking.
Designed for serious offshore anglers and performance boaters, this 12-inch marine GPS display delivers pro-level radar, autopilot, engine integration, SiriusXM® weather compatibility, and full system expandability. No HDMI video out port.
NSS12 Overview
The Simrad NSS12 evo3S delivers tournament-level fishfinding and advanced navigation in a fast, intuitive 12-inch multifunction display . Powered by the high-performance iMX8 processor, it provides ultra-smooth chart redraw, faster split-screen switching, and responsive touchscreen control—ideal for demanding coastal and offshore use.
Preloaded US C-MAP® charts include high-resolution inland and coastal coverage plus C-MAP® Reveal detail of the Florida ocean floor. It is also compatible with C-MAP, Navionics®, CMOR, and Florida Marine Tracks for expanded coverage and fishing intelligence.
Display & Performance
12" SolarMAX™ IPS Touchscreen
Screen Size: 12-inch widescreen
Display Resolution: 800 x 1280
SolarMAX™ IPS technology for ultra-wide viewing angles
Viewable through polarized sunglasses
Optically bonded to prevent internal fogging or condensation
Engineered for high-heat summer sun performance
Dark-themed UI wallpaper for reduced night glare
The high-definition IPS display delivers crisp charts, sonar returns, radar overlays, and engine data in all lighting conditions.
h3 Faster Processing Power
iMX8 processor for 2X faster page loading
Smooth 3D and Navigation perspective chart views
Instant chart orientation toggle: North Up, Heading Up, Course Up
Integrated Tide Graph in instrument bar

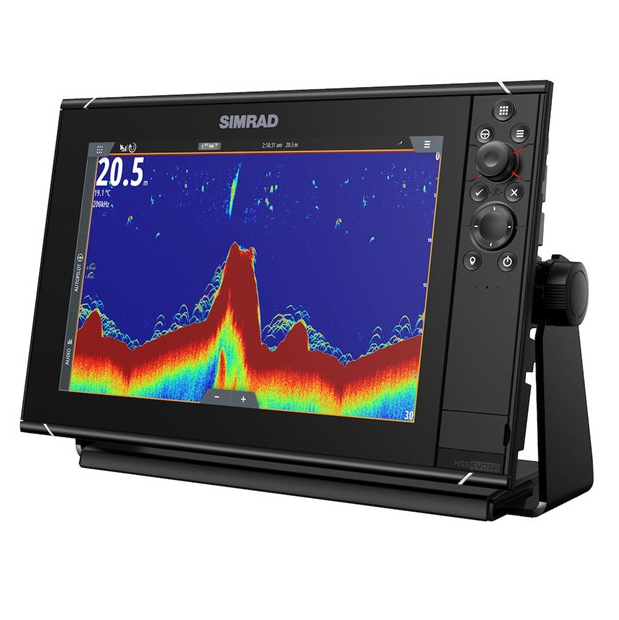

Advanced Sonar & Fishfinding
1kW CHIRP-Enabled Sonar
Built-in 1kW CHIRP sonar for superior bottom tracking
Exceptional target separation and fish definition
Dual sonar channels (CH1 & CH2)
Dual transducer ports for connecting multiple transducers

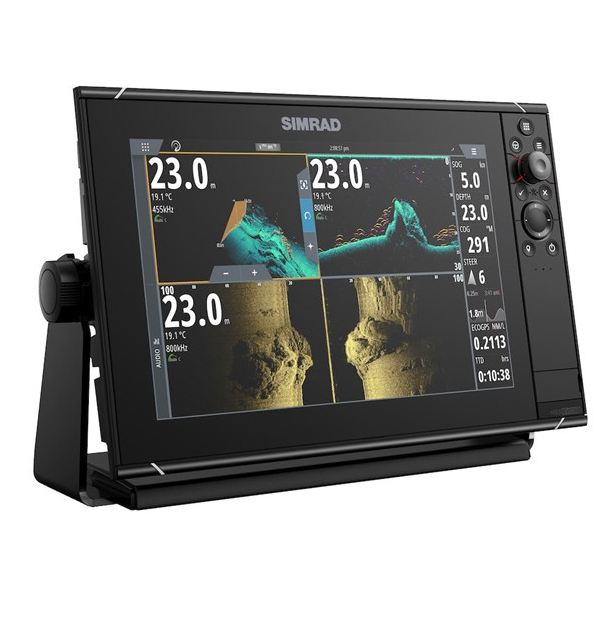

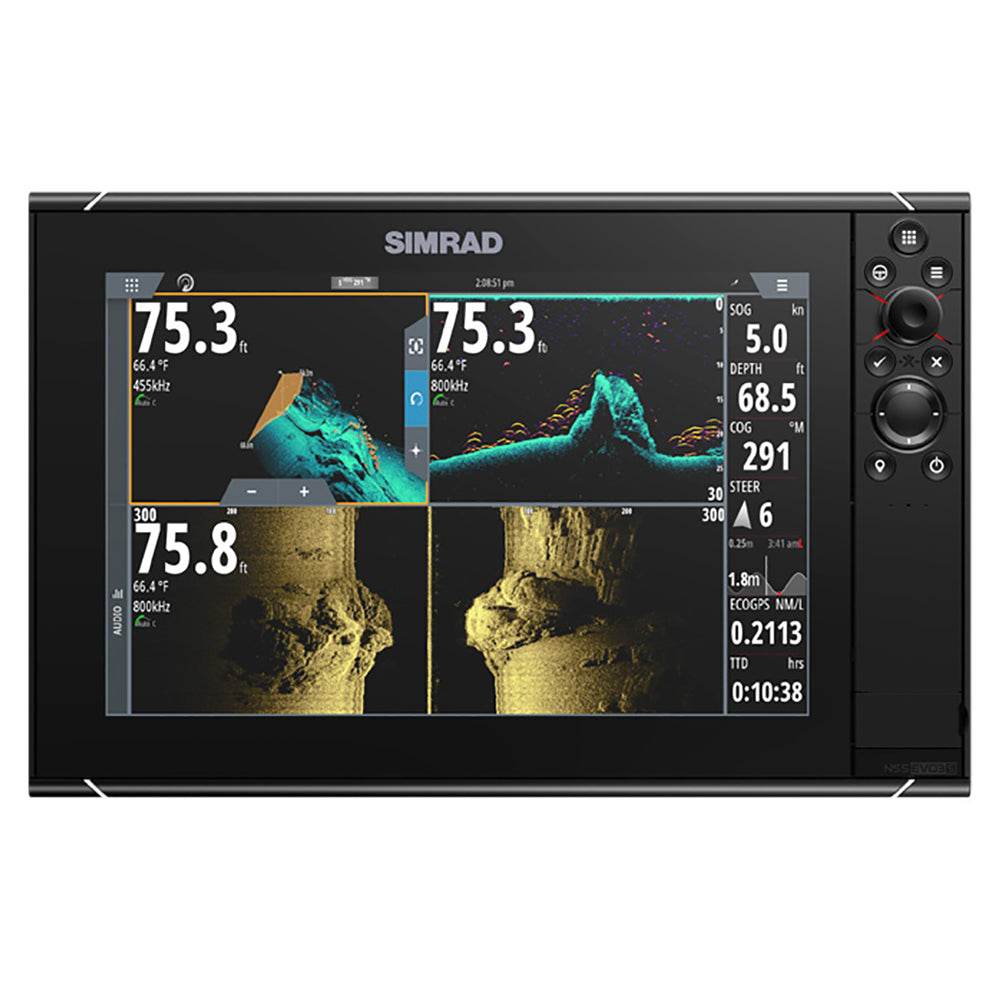

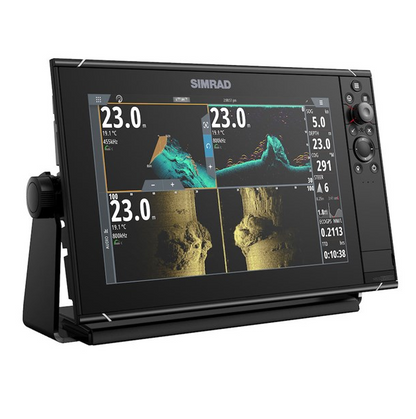

Active Imaging™ & ForwardScan®
Active Imaging™ compatible for structure detail
ForwardScan® sonar support for safer navigation in shallow water
Crystal-clear structure and fish-holding detail
Compatible with advanced modules and transducers including Active Imaging™ 3-in-1, TotalScan™, and deepwater S5100 sonar module for expanded capability.

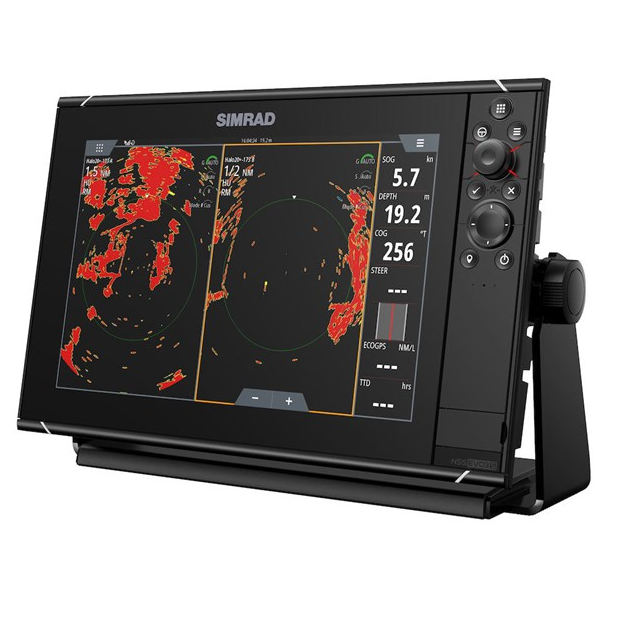

Radar, Thermal & Weather Integration
Compatible with Simrad HALO® Pulse Compression radar systems for bird tracking, weather monitoring, and collision avoidance
FLIR M232 thermal camera support (320 x 240 resolution, Ethernet video distribution, pan/tilt control)
WM-4 Receiver compatibility for SiriusXM® Marine Weather and Fish Mapping subscriptions
Optional SiriusXM® audio access with 140+ channels
Perfect for offshore navigation, crowded harbor maneuvering, and low-visibility conditions.
Networking & System Expansion
Industry-standard connectivity for full helm integration:
2x Ethernet network ports
NMEA 2000® connectivity
NMEA 0183 support (via composite video/NMEA port)
Power control & external alarm connections
Engine and fuel monitoring integration
Simrad autopilot compatibility
Audio system control
Mirror your display to compatible iOS and Android devices for remote access to charts, sonar, radar, and engine data. Wireless connectivity also allows software updates via hotspot. The Simrad App enables waypoint saving, registration, and manual downloads.
Connections
Ethernet: 2x Ethernet network ports
Sonar CH1
Sonar CH2
NMEA 2000® data port
Composite video & NMEA 0183
Power, power control, external alarm
h2 What’s In The Box
NSS12 evo3S Display Unit
Bezel Trim
Documentation Pack
Power Cable Kit
U-Bracket Mounting Kit
Panel Mounting Kit
Key Specifications
Model: NSS12 evo3S
Part Number: 000-15403-002
Screen Size: 12"
Display Resolution: 800 x 1280
Built-in 1kW CHIRP sonar
Dual sonar channels
No HDMI video out port
Why Choose NSS12 evo3S?
The NSS12 evo3S is built for anglers and offshore captains who demand faster performance, clearer sonar imaging, and seamless integration with radar, autopilot, weather, and engine systems .
With expandability rivaling larger helm displays and the processing power to handle split-screen sonar, chart, and radar views simultaneously, it delivers professional-grade marine electronics performance in a compact 12-inch format.
Ideal for center consoles, bay boats, offshore fishing boats, and performance cruisers seeking a high-speed, fully networked navigation and fishfinding solution.
