Simrad NSS4 10" Chartplotter/Fishfinder Combo (C-MAP DISCOVER X)

NSS4-10 10" Chartplotter and Fishfinder Combo with C-MAP DISCOVER X Chart (000-16012-001)

Upgrade your helm with the versatile Simrad NSS4‑10, a premium 10″ combo chartplotter and fishfinder designed for serious sportfishing and cruising.

Engineered for performance and ease of use, this unit delivers best-in-class features, seamless system integration and razor-sharp visuals — so you spend more time on the water and less time in menus.

Key Features & Capabilities:

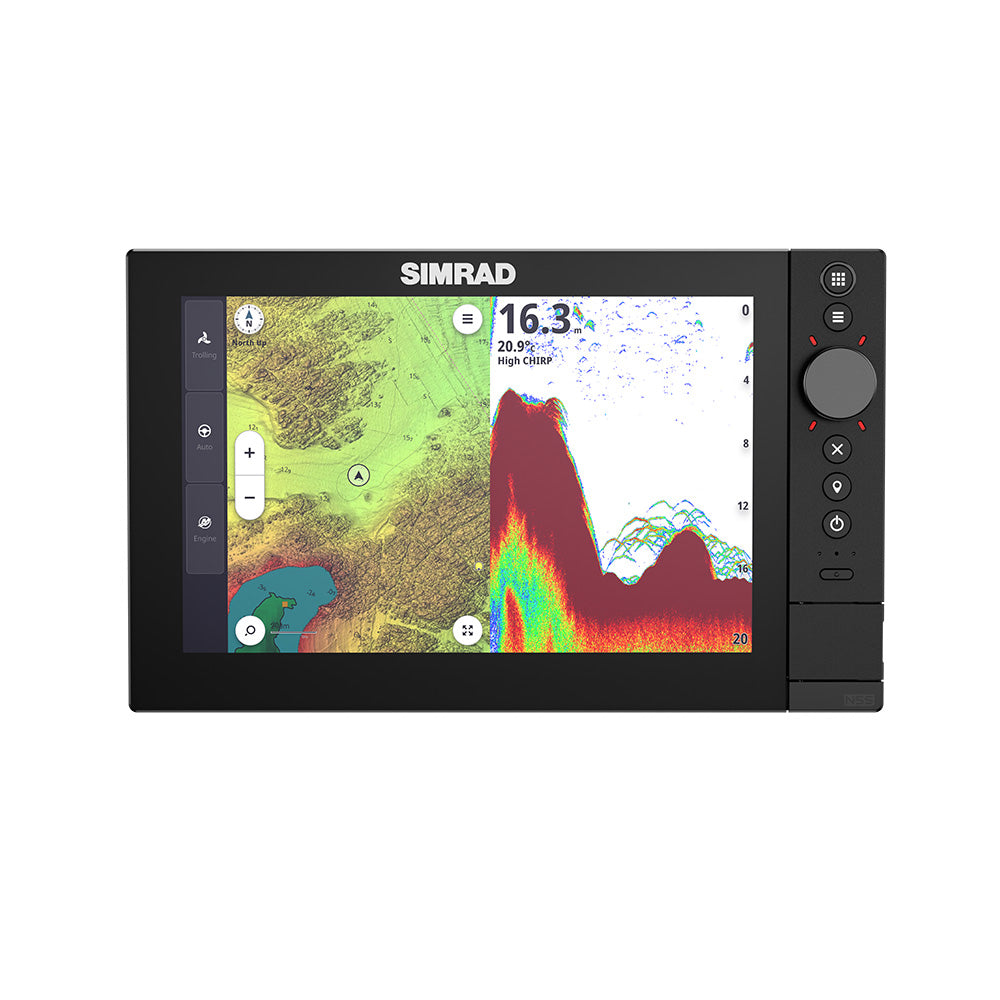

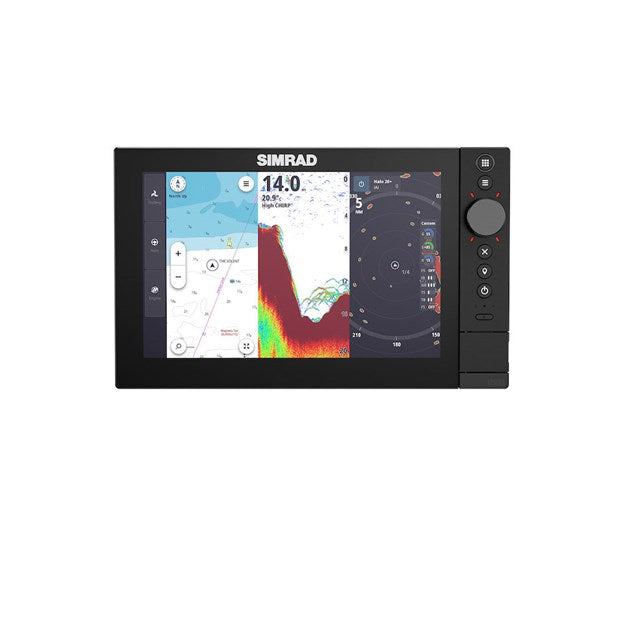

• Sleek 10″ SolarMAX IPS touchscreen display (1280 × 800 resolution, >1200 nits brightness) with ultra-wide 80° viewing angles top/bottom and left/right — perfect for sunlit conditions and polarized sunglasses.
• Hybrid control interface: intuitive touchscreen plus rotary dial and keypad for accurate input in all environments.
• Lightning-fast performance powered by a Qualcomm® 8-core processor — enabling smooth page transitions, ultra-responsive auto-routing and quick access to functions without lag.

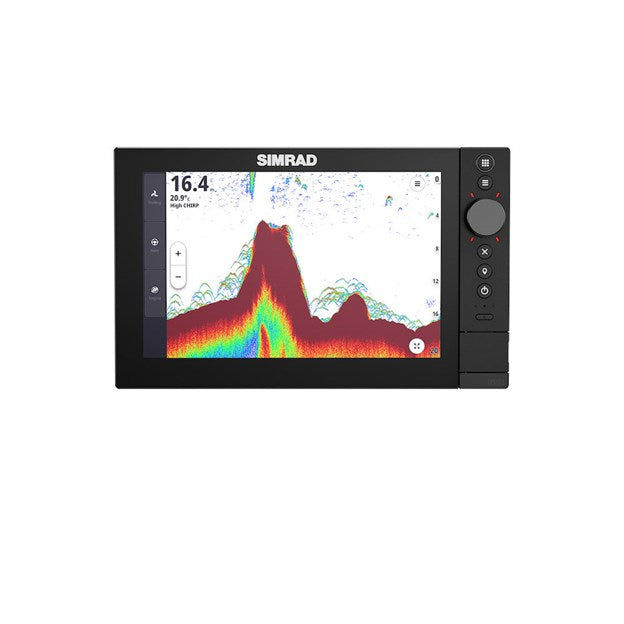

• Built-in dual-channel 1 kW CHIRP echosounder (two 9-pin Xsonic ports) plus full support for advanced sonar modes including DownScan, SideScan and ultra-high-resolution Active Imaging™ HD — delivering superior target separation, underwater structure detail and fish-arch clarity.

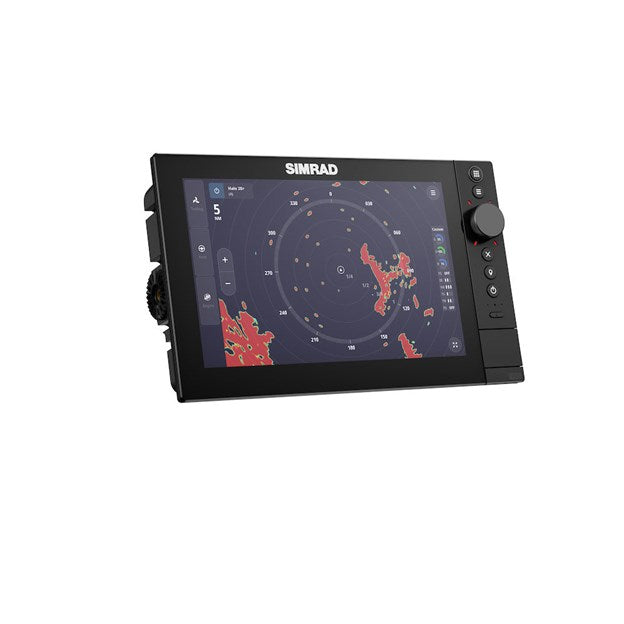

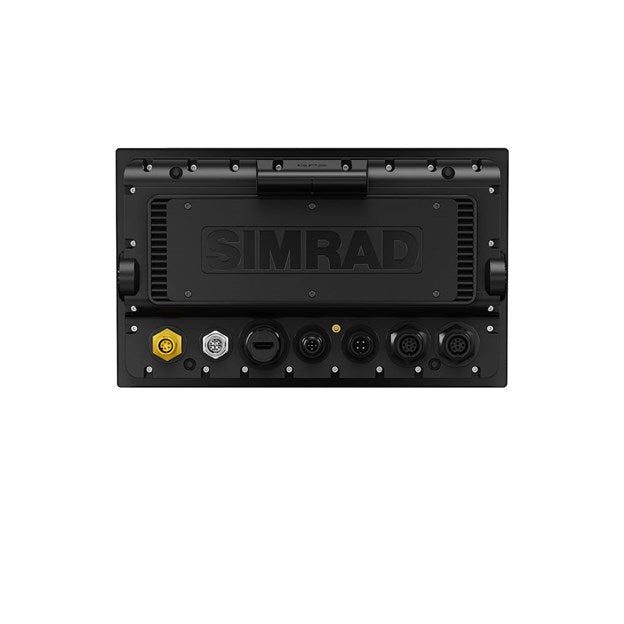

• Plug-and-play compatibility with the full suite of marine navigation and angling tools: supports the latest HALO® radars, RECON™ trolling motors, WiFi 5 (802.11ax), M12 GbE Ethernet, HDMI video in, ONVIF IP-cams and more.

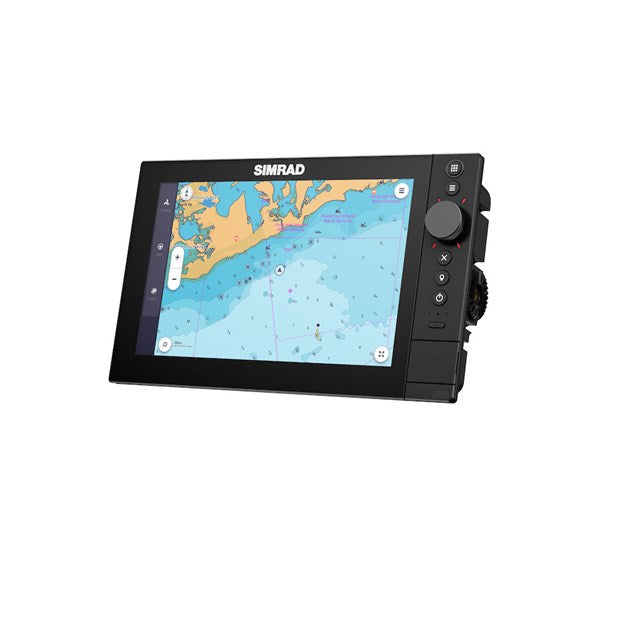

• Charting excellence: Ships with U.S. C-MAP® Discover X chart card; full support for C-MAP Reveal X, CMOR, StrikeLines and other third-party charts for high-definition mapping, satellite overlay and shaded relief.

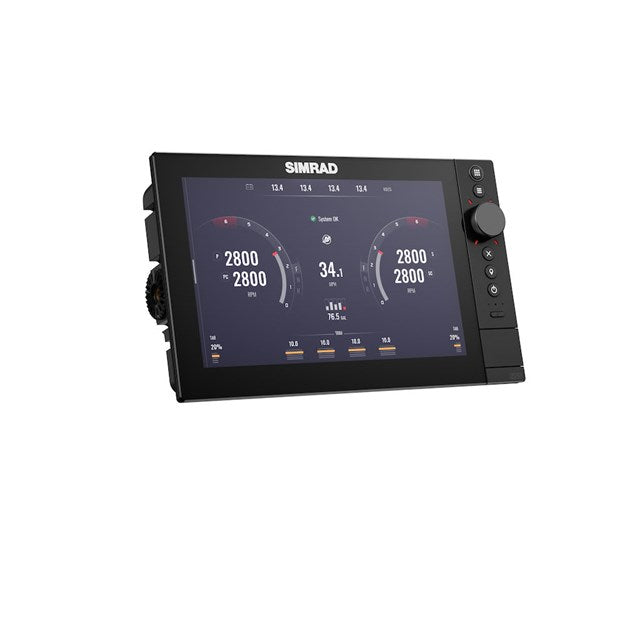

• Seamless network integration: NMEA 2000 Micro-C port, AIS receive via NMEA 2000, external storage (2× microSD/SDHC), and connectivity to Mercury® SmartCraft®, CZone® digital switching, SiriusXM® weather/radar (*subscription required) and more.
• Built to withstand the elements: IPX6/7 waterproof rated, operating temperature from ­15 °C to 55 °C (5 °F to 131 °F), storage down to –20 °C/–4 °F and up to 60 °C/140 °F. 12/24 V DC supply (10-31.2 V range), max power consumption 28 W (fuse rating 5 A).

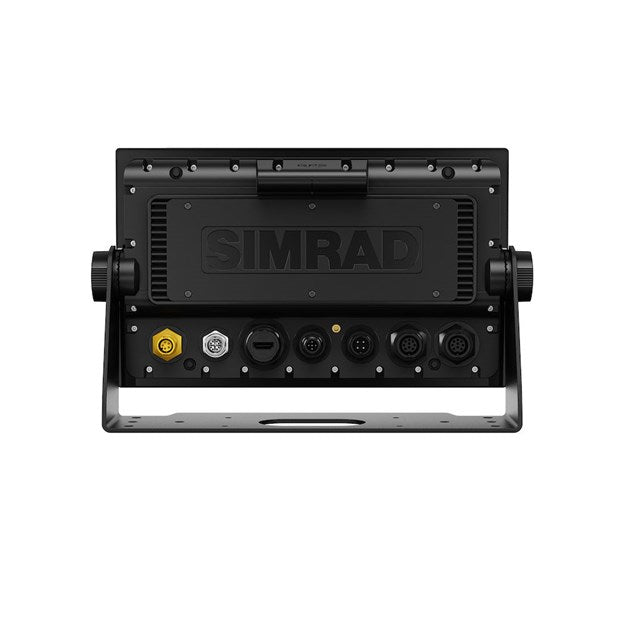

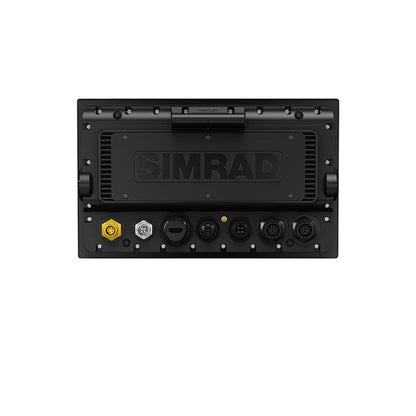

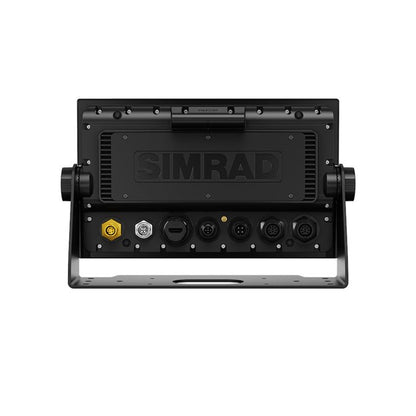

• Compact and lightweight: Display only 287.9 × 176.1 × 79.6 mm (11.33″ × 6.93″ × 3.13″); weight 1.8 kg (3.97 lb). Ships with bracket mount and rear mount hardware. 2-year warranty included.
• Unrivaled waypoint and routing capacity: Manage up to 10,000 waypoints, 75,000 trackpoints, 75 saved tracks and 125 routes (within NSS/NSO evo2/3 network limits).
• Engineered for fish­-focused boaters and cruising enthusiasts alike: Whether you’re tracking premium sportfishing grounds or navigating offshore routes, this system does both with high performance.

Why This Model Stands Out:

• The glass-to-edge aesthetic gives your helm an elevated, modern finish that stands apart from standard marine displays.
• Advanced sonar integration means you can link to multiple sonar modules on the same display, enabling up to four simultaneous sonar feeds for unprecedented underwater visibility and target separation.
• Reviewers highlight the speed gains and smoother UI built into the NSS 4 generation — the Qualcomm 8-core processor delivers responsiveness rarely seen in marine MFDs.
• Full ecosystem connectivity means future-proofing: supports you today and scales as your angling or cruising demands grow.

Ideal For:

• Offshore and inshore sportfishing boaters who demand advanced fishfinder tech like CHIRP, Active Imaging HD and multi-feed sonar.
• Cruisers and multi-purpose boats who need reliable chart-plotting, auto-routing, radar integration and navigation features.
• Helm designers and boat owners who want premium looks and high-performance electronics at the core of a modern dashboard.

Installation & Compatibility Notes:

• Ensure you pre-plan for network connectivity: you’ll need the M12 GbE port and WiFi 5 to leverage full system features.
• Built-in sonar is included in some bundle configurations — verify whether your specific unit (SKU 00016012001) includes the dual-channel 1 kW CHIRP sonar or requires external module.
• Supports sonar modules such as S3100H/S5100 for enhanced features like heave compensation and multiple channel sonar.
• For maximum clarity from newer imaging modes (Active Imaging™ HD, SideScan FishReveal), pair with compatible transducers/modules as specified by the manufacturer.
• Make sure chart card slot access (dual SD slots) is free and ready for your region’s mapping needs.

By integrating high-end features — from the industry-leading 8-core processor to full ecosystem compatibility — this Simrad NSS4-10 delivers an exceptional blend of speed, clarity and fish-finding intelligence.

Whether you’re marking hotspots, navigating tricky waters or simply raising your helm’s visual game, this multifunction display sets a new benchmark in marine electronics.
