NSX™ 3009 Chartplotter & Fishfinder Overview

Simrad NSX™ 3009 9-inch marine chartplotter and fishfinder with included Active Imaging™ 3-in-1 transducer (CHIRP, SideScan, DownScan), manufacturer part number 000-15366-001.

Features SolarMAX™ IPS high-bright touchscreen display (>1200 nits), integrated 1 kW sonar support, FishReveal™, C-MAP® DISCOVER™ X North America chart card included, NMEA 2000®, Ethernet, WiFi, Bluetooth, internal 10Hz GPS with WAAS/EGNOS/MSAS/GLONASS, and IPX6/IPX7 waterproof rating.

Compatible with HALO® radar and Simrad® autopilot systems. Designed for serious freshwater and saltwater anglers who demand high-resolution structure imaging, fast autorouting, and full system expandability.

Built for Anglers Who Want More Than Basic Sonar

Everything about NSX™ is engineered to bring you closer to the fish. The included Active Imaging™ 3-in-1 transducer delivers:

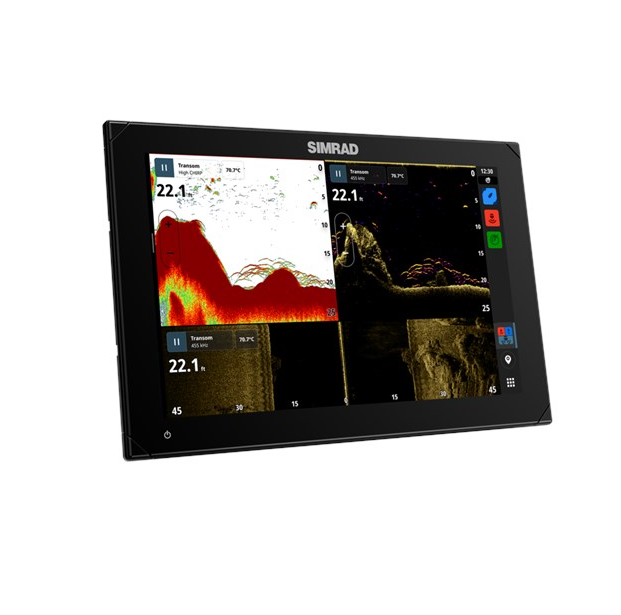

• CHIRP sonar for clear fish arches and superior target separation
• SideScan Imaging™ to see structure and fish-holding areas out to the sides
• DownScan Imaging™ for photo-like views beneath your boat

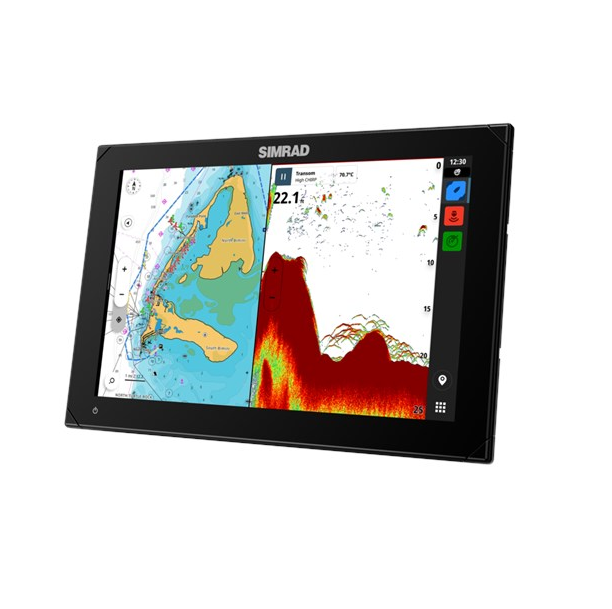

• FishReveal™ to combine CHIRP targets with DownScan clarity

The NSX™ 3009 also supports a 1 kW transducer via its 9-pin Xsonic sonar port, allowing deeper water performance and increased bottom detail beyond standard setups.

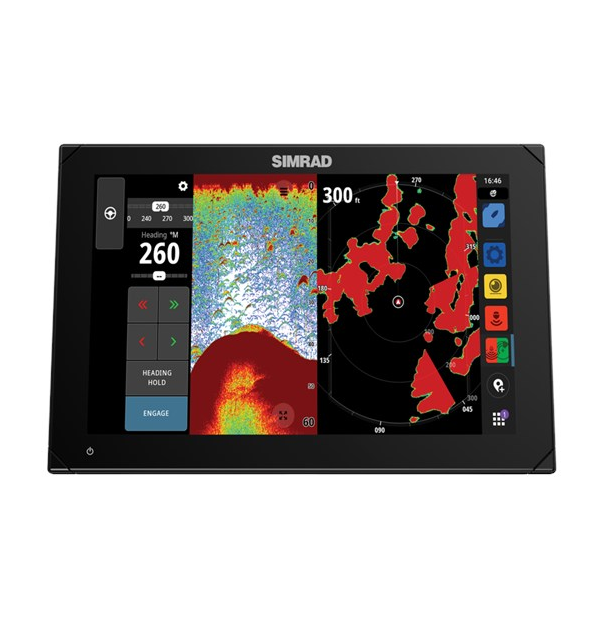

9” SolarMAX™ IPS Touchscreen – Crystal Clear in Any Light

The 9-inch high-definition IPS display is optimized for marine conditions:

• Screen brightness: >1200 nits
• Extreme 85° viewing angles (top, bottom, left, right)
• Viewable in direct sunlight
• Works through polarized sunglasses
• Enhanced day and night modes

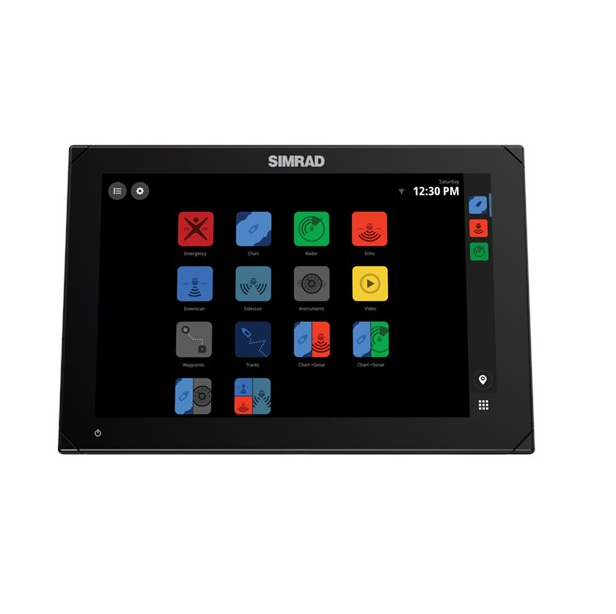

• Smooth multi-touch interface with drag-and-drop screen customization
• Dimensions: 9.4” W x 5.9” H x 2.9” D
• Mounting: Bracket mount (included), flush mount, or panel mount

Next-Gen C-MAP® DISCOVER™ X Charts Included

Navigate with confidence using the included C-MAP® DISCOVER™ X North America chart card featuring:

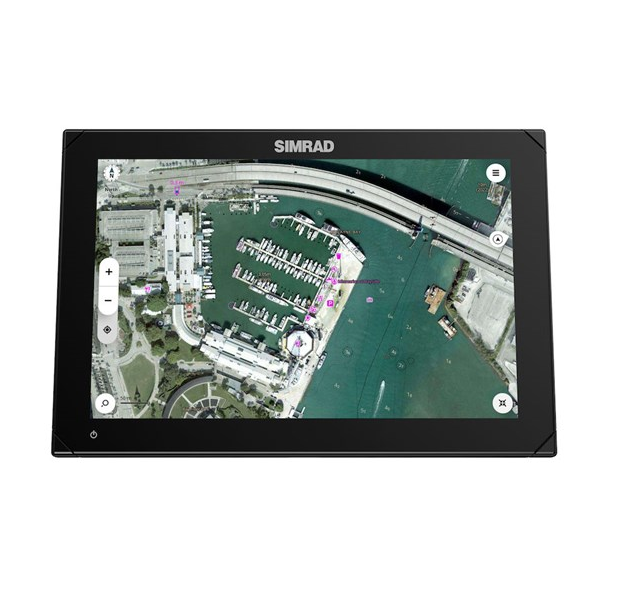

• Fresh, intuitive chart presentation
• Daily updates
• Custom depth shading
• High-resolution bathymetry with 1-foot contour detail
• Support for C-MAP® REVEAL™ X charts

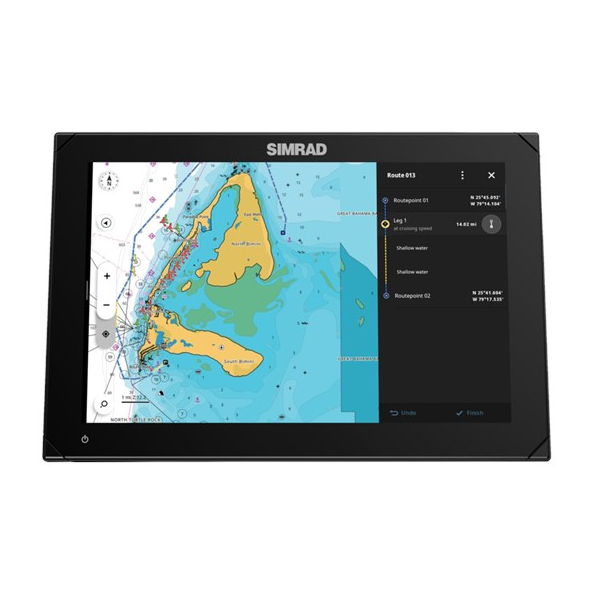

Experience Simrad’s fastest-ever Autorouting and plan trips via the Simrad® Companion App. Review tracks, plot waypoints, and sync directly to your NSX unit.

Capacity:
• 6,000 waypoints
• 500 routes (100 points max per route)
• 50 tracks (up to 12,000 track points)
• 1 MicroSD card slot

Advanced System Expansion – Radar, Autopilot & Networking

Fully expand your helm system with seamless integration:

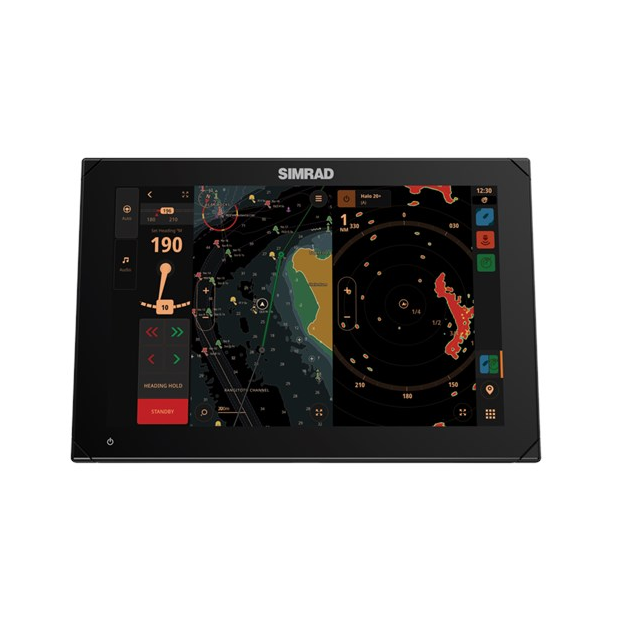

• HALO® dome and open array radar compatibility (up to 48nm range support depending on radar)
• Simrad® autopilot integration

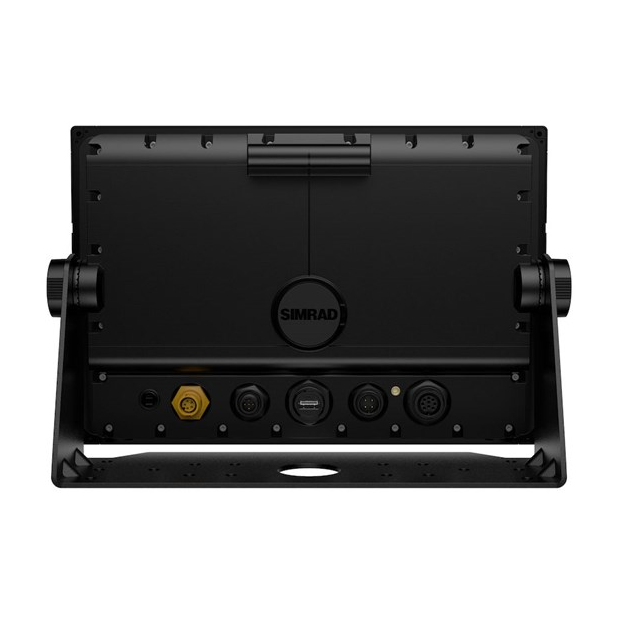

• Ethernet port (5-pin)
• NMEA 2000® Micro-C (1 LEN)
• IP camera support
• WiFi (IEEE 802.11 b/g/n)
• Bluetooth 4.0
• AIS receive over NMEA 2000

Integrated internal GPS:
• 10 Hz high-speed update
• 32-channel receiver
• WAAS, EGNOS, MSAS, GLONASS
• 3m horizontal accuracy

Fast Setup, Simple Operation

Get on the water quicker with:

• Guided Setup Wizard
• Simplified sonar device setup prompts
• Fully editable instruments bar
• Clean, modern interface
• Wireless software updates and data transfer via Simrad® App

Electrical & Environmental Specifications

• Supply voltage: 12V DC (10–17V DC)
• Max power consumption: 11.5W (830 mA at 13.8V)
• Recommended fuse: 2A
• Waterproof rating: IPX6 and IPX7
• Operating temp: 5°F to 131°F (-15°C to +55°C)
• Storage temp: 4°F to 140°F (-20°C to +60°C)
• Shock rating: 100,000 cycles at 20G
• Compass safe distance: 50 cm (1.7’)

What’s Included in the Box

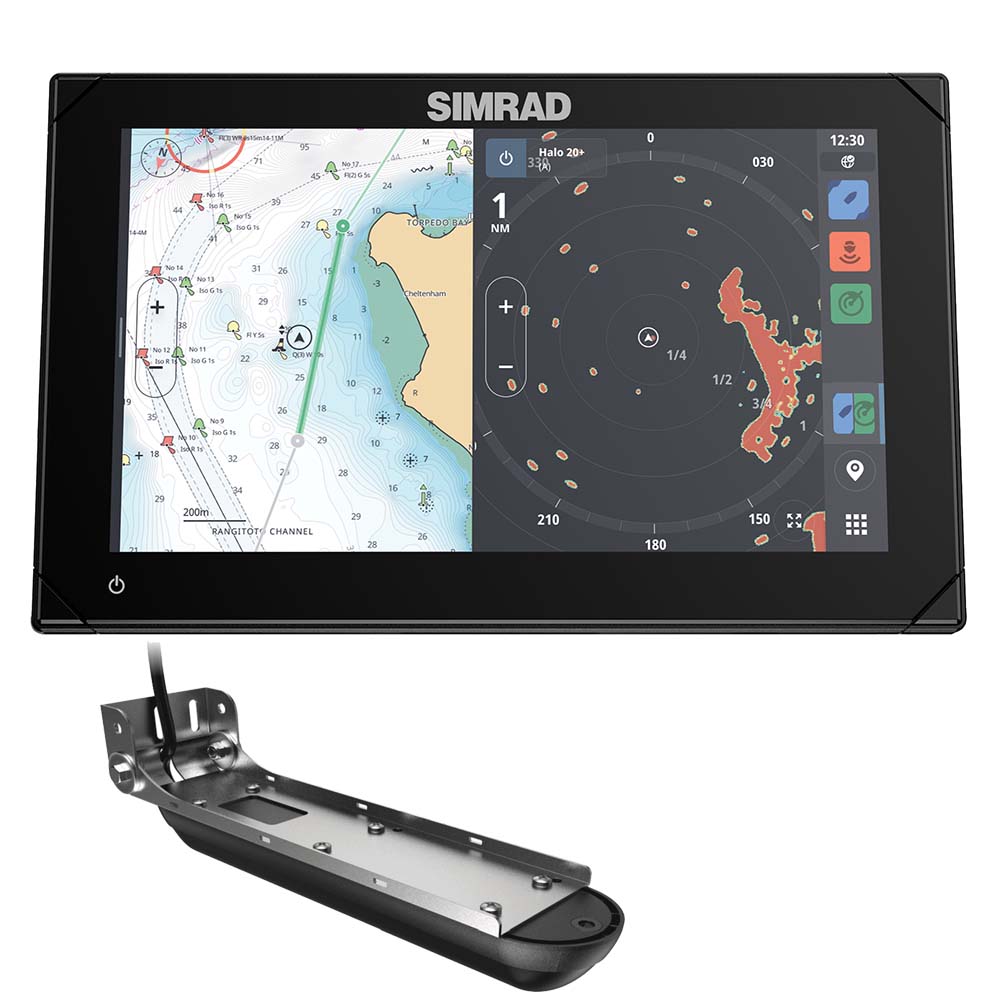

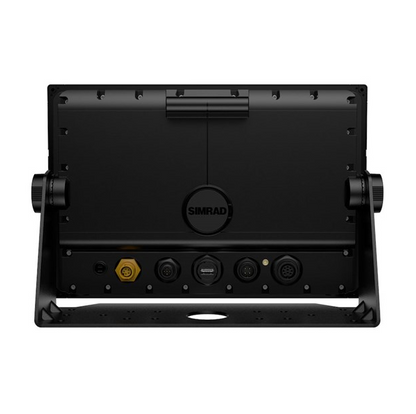

• Simrad NSX™ 3009 9” display unit
• Active Imaging™ 3-in-1 transducer
• C-MAP® DISCOVER™ X North America chart card
• Mounting bracket and hardware
• Power cable
• Documentation

Warranty & Confidence

• Manufacturer warranty: 2 Years
• Built to withstand harsh offshore and inshore marine environments
• IPX6/IPX7 water resistance for washdown and heavy spray protection

The Simrad NSX™ 3009 delivers tournament-level sonar clarity, lightning-fast navigation, and full helm integration in a compact 9-inch format. Whether you're chasing offshore pelagics, working coastal structure, or scanning inland lakes, this system gives you the clarity, control, and expandability serious anglers demand.

Brochure (pdf)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
