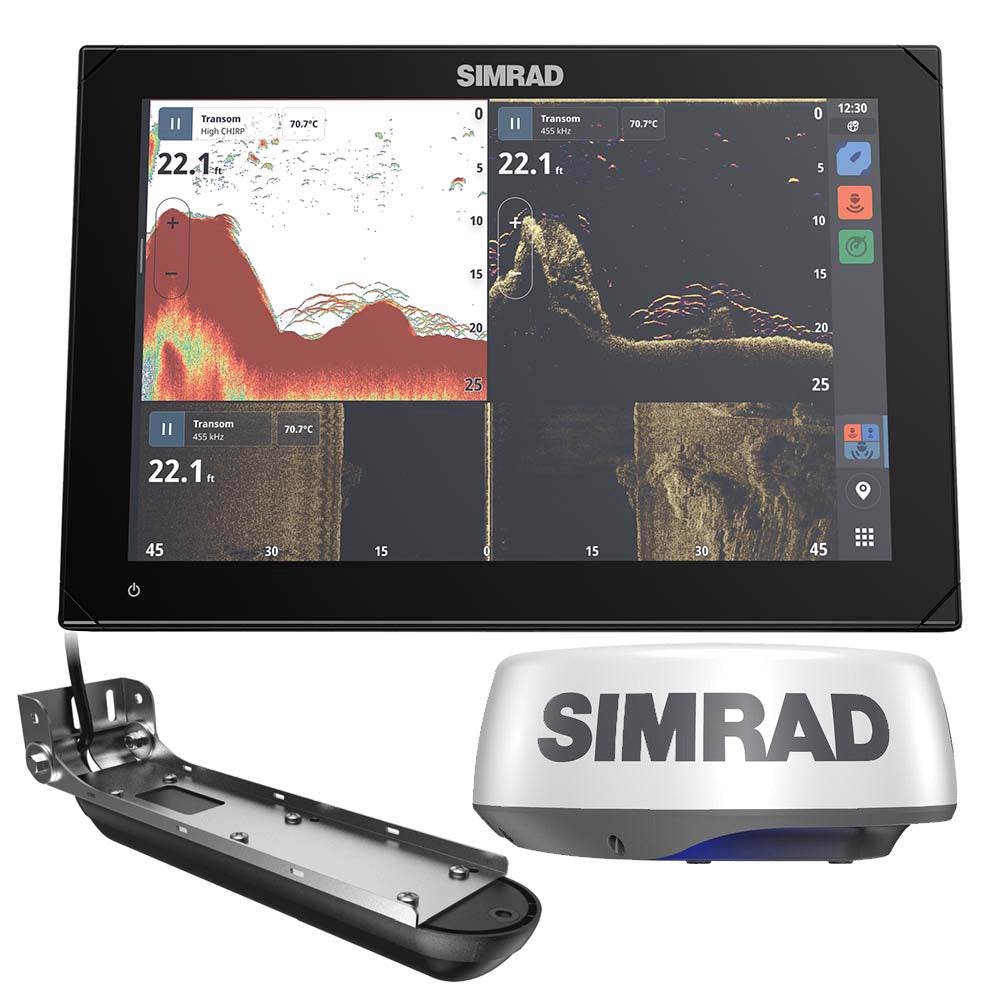

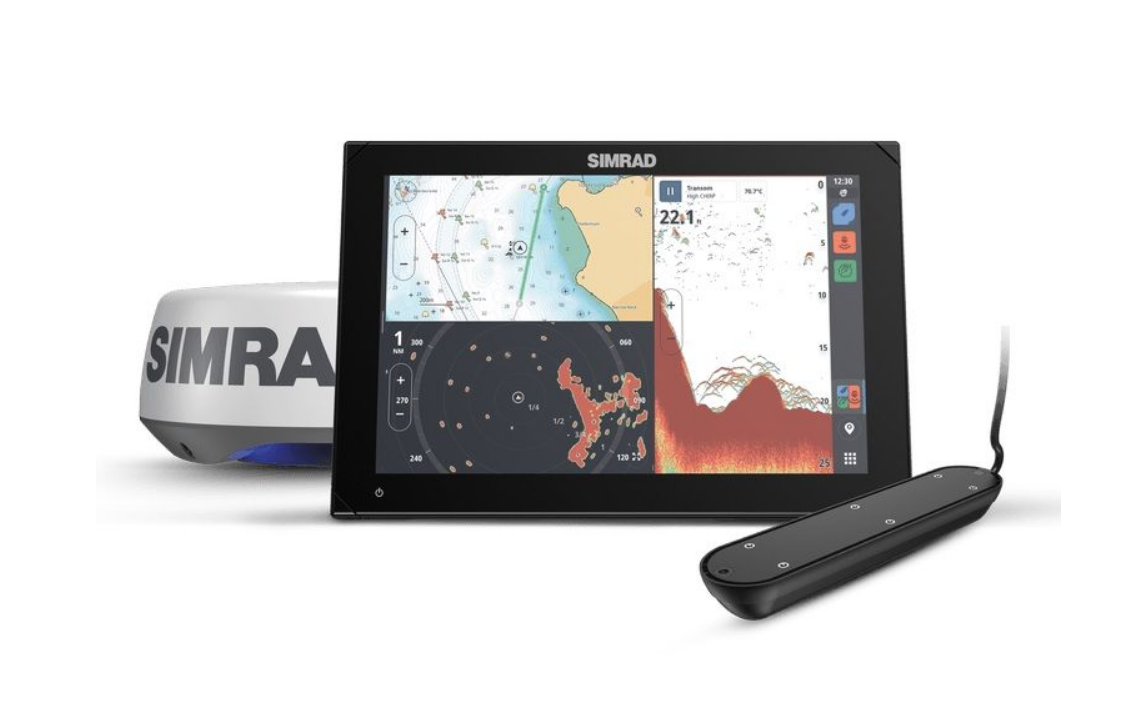

Simrad NSX™ 3012 Radar Bundle 000-15378-001 with HALO20+ 20” Radar Dome and Active Imaging™ 3-in-1 Transducer is a premium 12-inch touchscreen chartplotter fishfinder combo built for offshore fishing, coastal cruising, and serious navigation.
Featuring SolarMAX™ IPS 1280 x 800 display resolution, C-MAP® DISCOVER™ X North America charts, FishReveal™, CHIRP/SideScan/DownScan Imaging™, internal 10Hz GPS, and award-winning HALO20+ pulse compression radar with 36nm range and VelocityTrack™ Doppler collision avoidance, this all-in-one Simrad marine electronics package delivers professional-grade sonar, radar, and networking in one expandable system.
3012 12-inch Chartplotter & Fishfinder System Overview
Designed for anglers and boaters who demand speed, clarity, and control, the NSX™ 3012 delivers intuitive multi-touch navigation, ultra-fast autorouting, and seamless integration with Simrad sonar, radar, and autopilot systems.

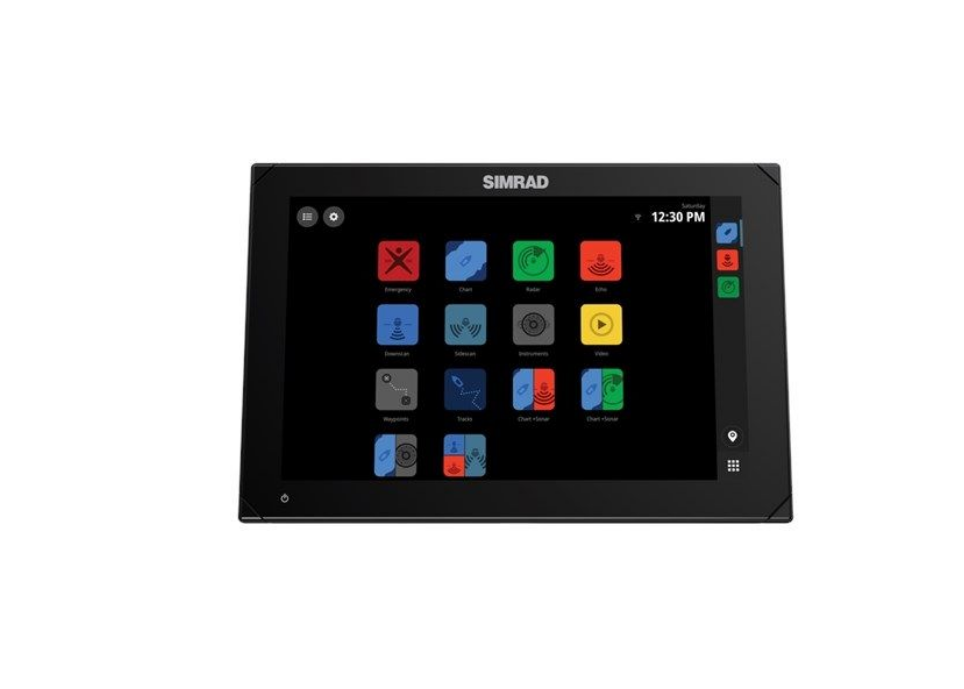

Brilliant 12” SolarMAX™ IPS Touchscreen
Display Type: SolarMAX™ IPS touchscreen
Resolution: 1280 x 800 pixels
Brightness: >1200 nits for direct sunlight visibility
Wide 85° viewing angles (top, bottom, left, right)
Viewable through polarized sunglasses
Backlight Color: White
Advanced Sonar Performance – Active Imaging™ 3-in-1 Included
Active Imaging™ 3-in-1 transducer (CHIRP, SideScan, DownScan Imaging™)
FishReveal™ target identification
Single-channel CHIRP 50/200 kHz capability
9-pin Xsonic port with 1 kW transducer support for deeper water performance
Clear structure and bottom separation

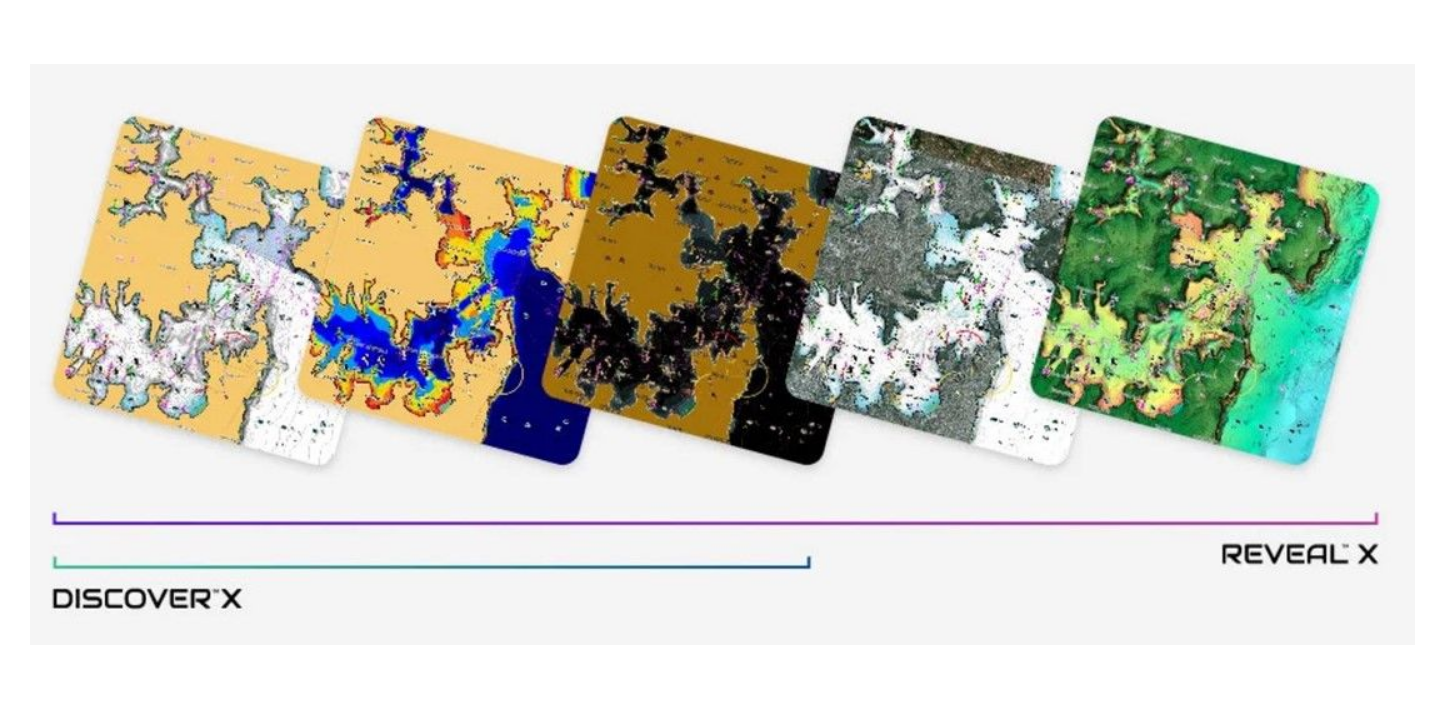

Next-Gen C-MAP® X Charts & Fastest Autorouting
Preloaded C-MAP® DISCOVER™ X – North America
Supports C-MAP® REVEAL™ X upgrades
Fresh chart presentation with daily updates
Ultra-fast autorouting
Simrad® Companion App sync for routes, tracks, and waypoints
Built-In GPS & Connectivity
Internal 10Hz GPS with WAAS, MSAS, EGNOS, GLONASS
32-channel receiver
3m horizontal accuracy
WiFi (802.11 b/g/n)
Bluetooth 4.0
1x Ethernet port (5-pin)
1x NMEA 2000 Micro-C (1 LEN)
USB-A (5V, 1.5A output)
MicroSD slot
IP Video support
AIS receive over NMEA 2000
Rugged Marine Construction
Waterproof Rating: IPX6 and IPX7
Operating Temp: 5°F to 131°F
Shock: 100,000 cycles at 20G
Supply Voltage: 12V DC (10–17V range)
Power Consumption: 29.7W

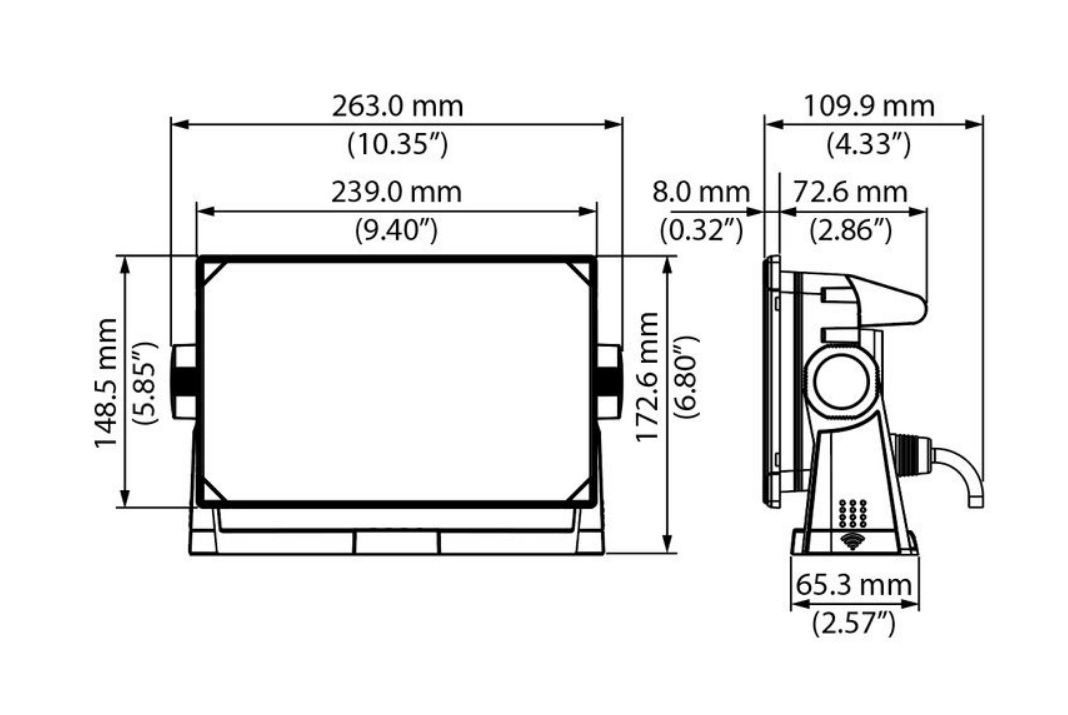

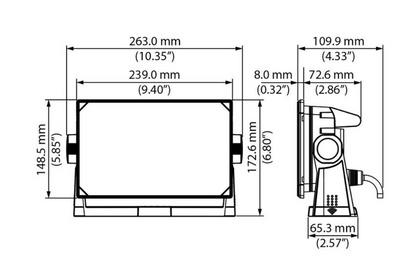

Mounting: Bracket (included), panel or flush mount
Compass Safe Distance: 50 cm

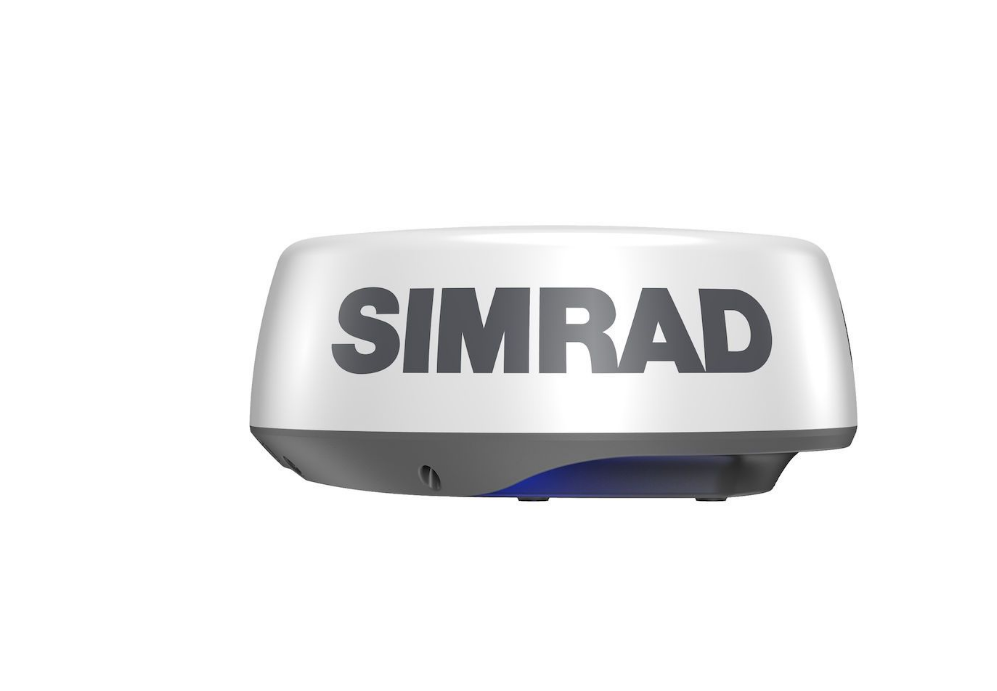

HALO20+ 20” Radar Dome – 36nm with Doppler
The included HALO20+ radar provides short, mid, and long-range detection in a compact 20-inch dome—ideal for center consoles, bay boats, and offshore vessels.
Dual Range Pulse Compression Radar
Maximum Range: 36 nautical miles
Simultaneous Dual Range viewing
Beam sharpening for superior target separation
Harbor, Offshore, Weather & Custom modes
Ultra-Fast Collision Avoidance
60 RPM rotation up to 1.5nm
Full 360° sweep every second
VelocityTrack™ Doppler technology
Color-coded approaching vs departing targets
MARPA tracking (up to 10 targets; 20 in dual range)
Instant-On Performance
Wakes instantly from standby
Low power consumption
Faster startup than traditional pulse radar
Included with Radar:
20” HALO20+ Dome
10m Radar Cable (000-14548-001)
RJ45 Female to 5-pin Ethernet Adapter (000-14552-001)
What’s Included in the NSX™ 3012 Radar Bundle
NSX™ 3012 12” Display
C-MAP® DISCOVER™ X North America chart card
Gimbal mounting bracket with knobs
Dash mount kit
Suncover
4-pin power cable
Fuse kit
Corner bezel clips
Active Imaging™ 3-in-1 transducer (000-14489-001)
HALO20+ 20” Radar Dome
10m Radar Cable
Ethernet Adapter Cable
System Expansion & Integration
Compatible with HALO Dome & Open Array radars

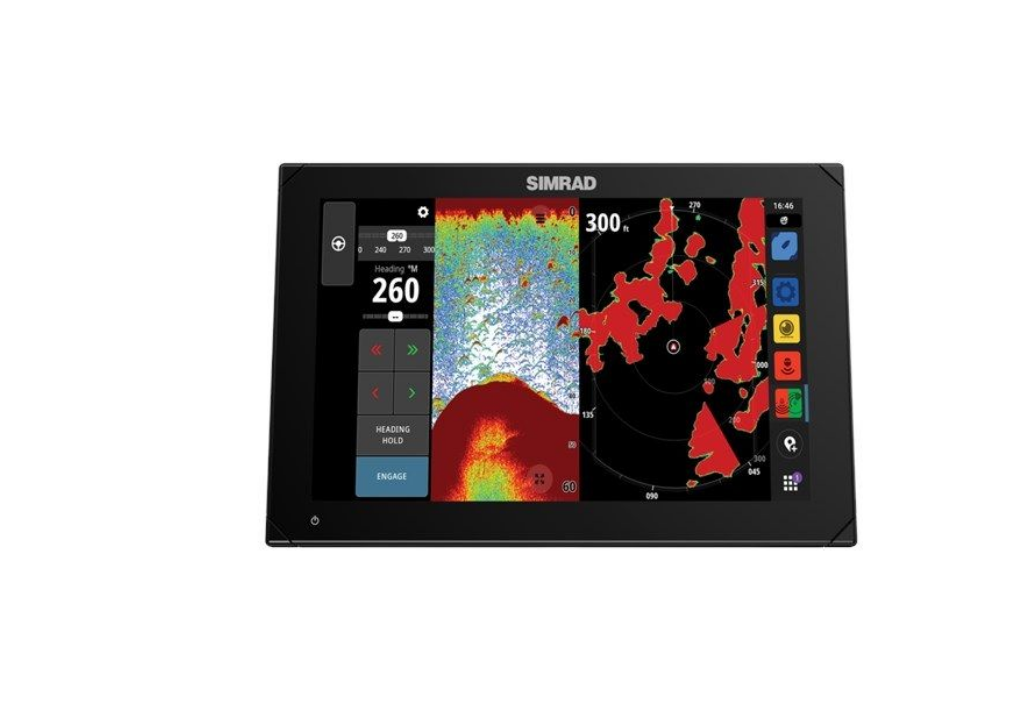

Simrad® autopilot integration
Digital switching (Simrad COMMAND DDS on release)
Third-party app integration
Full Ethernet & NMEA 2000 networking
Warranty & Confidence
Backed by Simrad’s limited manufacturer warranty. Designed and tested to IEC 60945 marine standards for humidity, vibration, and shock—built to perform offshore in demanding saltwater conditions.
This NSX™ 3012 Radar Bundle delivers the clarity of premium IPS navigation, high-definition Active Imaging™ sonar, and the safety of 36nm HALO20+ Doppler radar in one powerful, expandable marine electronics package—ready for serious anglers, offshore captains, and performance boaters who refuse compromise.
