Simrad 12" NSX 3012UW Combo (Active Imaging 3-in-1)

NSX 3012UW Combo with Active Imaging™ 3-in-1 Transducer (000-16216-001)

Experience boating in a whole new dimension with the Simrad NSX 3012UW Combo with Active Imaging™  3‑in‑1 Transducer (00016216001):

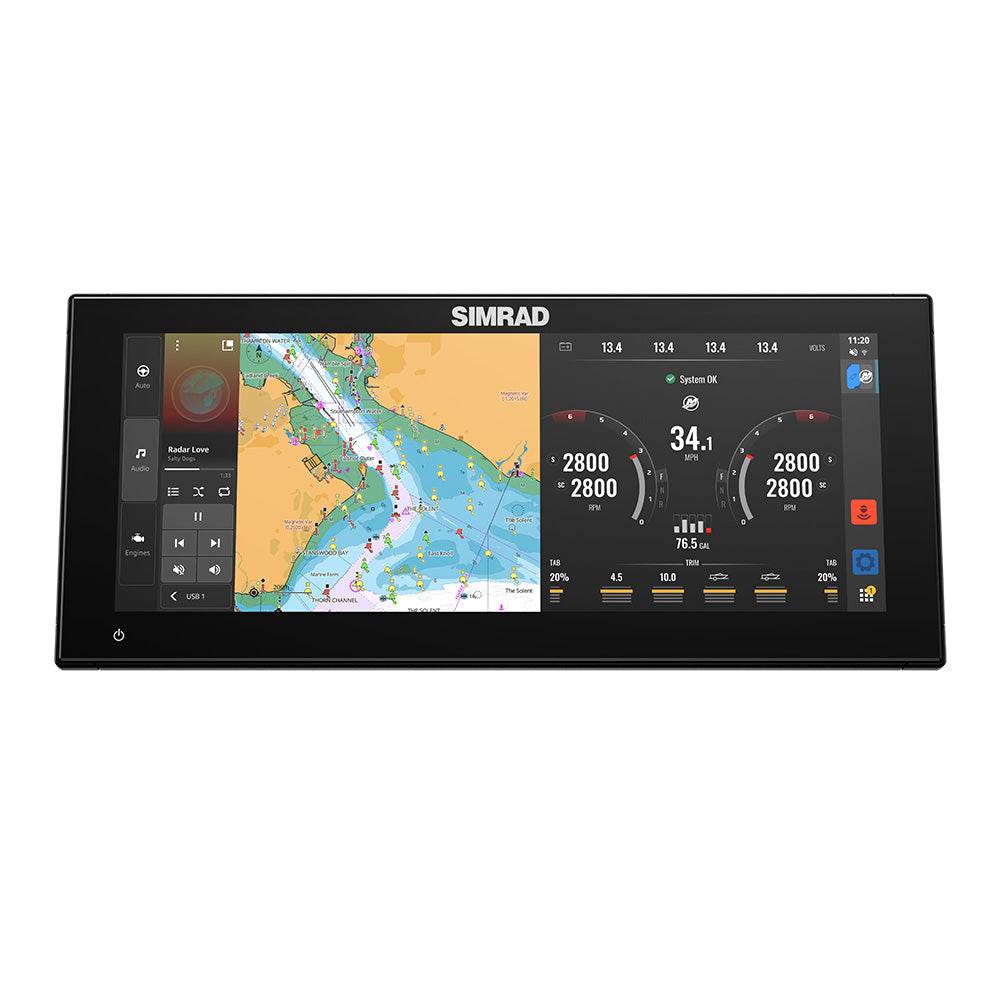

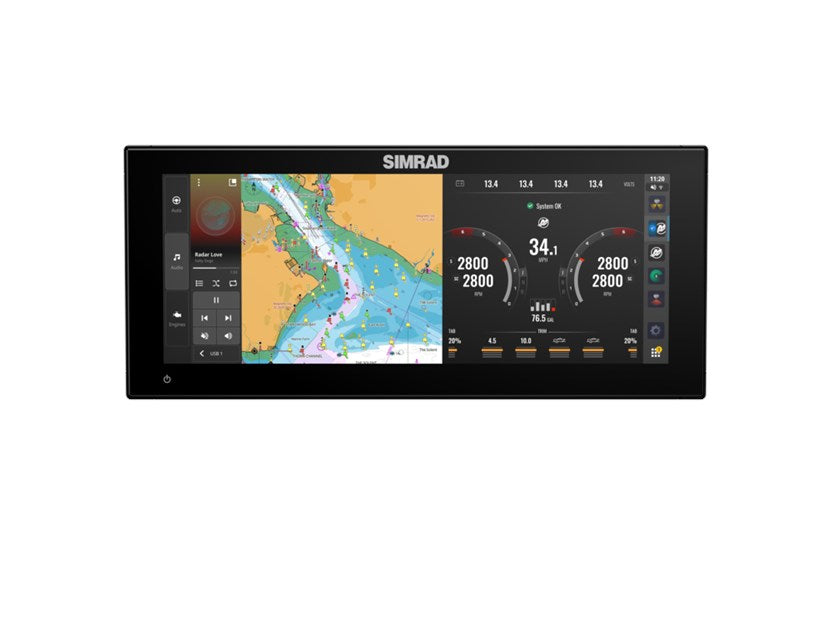

• A pioneering ultrawide 12-inch display (1920 × 720 resolution) delivers the visual real-estate of two screens in one seamless panel — optimized for immersive navigation and chart-viewing.
• With a peak screen brightness of over 1,000 nits and SolarMAX™ IPS touchscreen technology, enjoy outstanding clarity even in bright sunlight — and with wide 85° viewing angles top, bottom, left, right.
• Engineered for performance, the display consumes just 19.8 W (1434 mA at 13.8 V) and supports a 12 V DC system (10-17 V min-max). Compact and lightweight at 1.5 kg (3.3 lbs) for flexible installation.
• Built to last in harsh marine environments: waterproof rated IPx6 & IPx7, operating temperature from -15 °C to 55 °C (5 °F to 131 °F), and vibration/shock certified (100,000 cycles at 20 G).

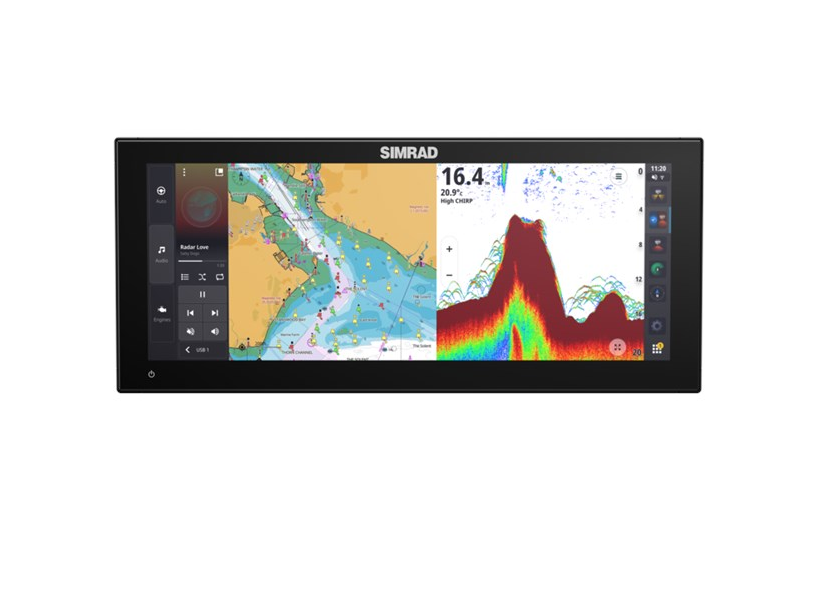

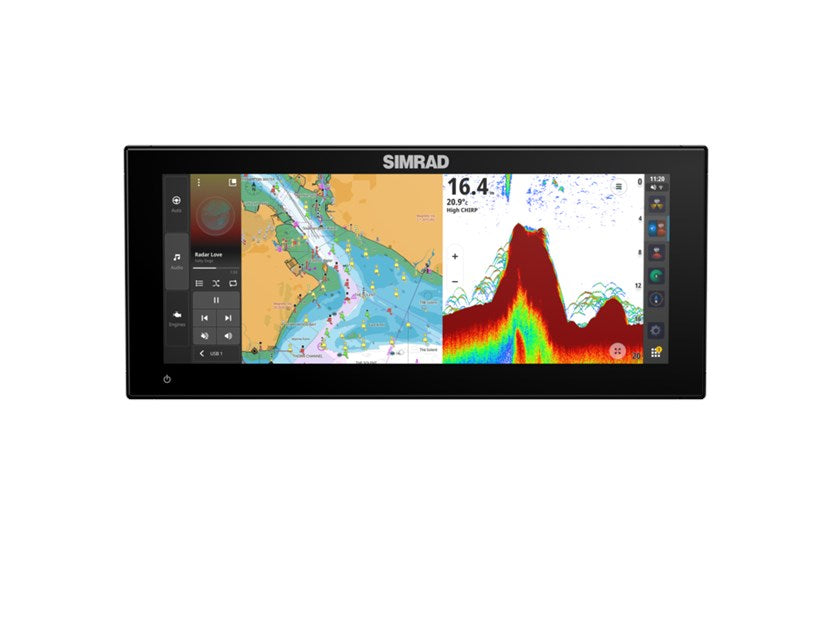

• Advanced sonar and fish-finding capabilities: includes the Active Imaging™ 3-in-1 transducer (CHIRP, SideScan and DownScan imaging) and supports compatibility with 1 kW transducers for deep water reach and high-resolution views up to 300 ft to the side or below the boat.

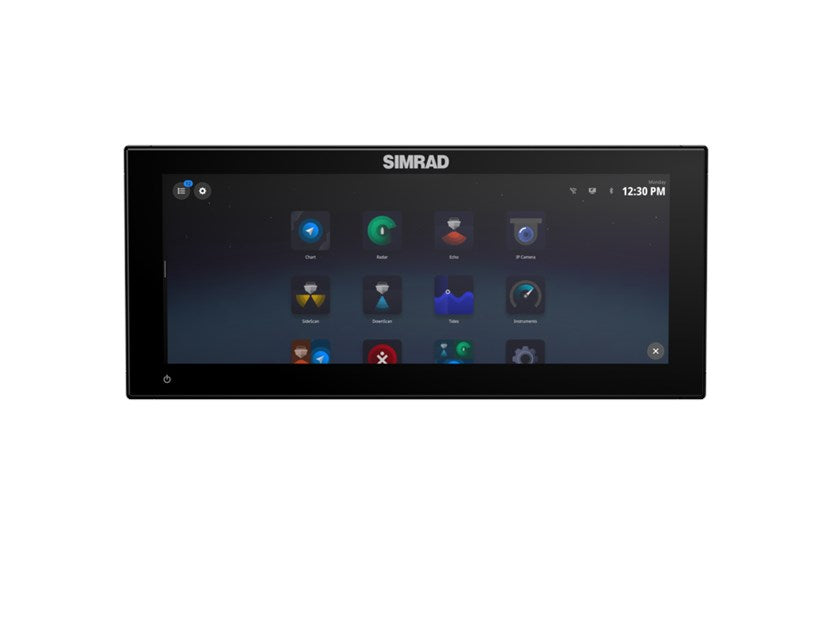

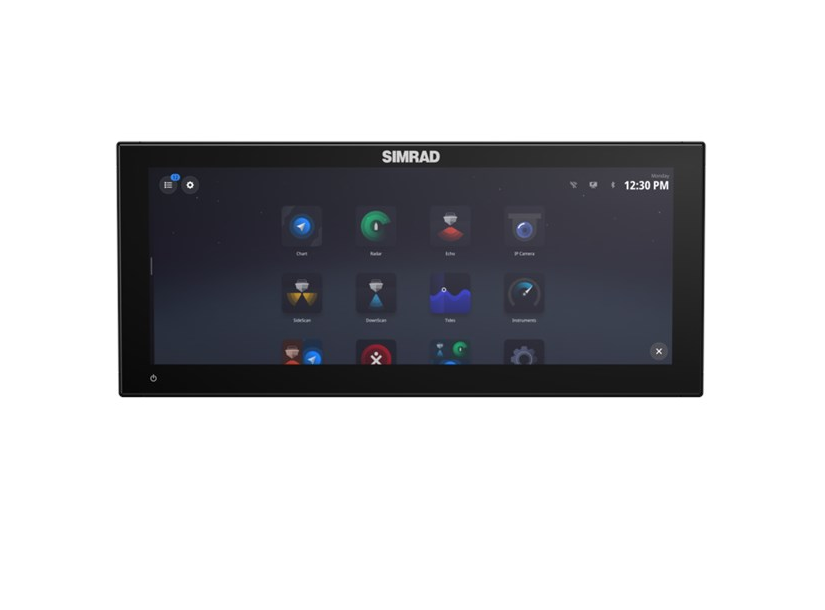

• The intelligent instrument panel is fully customizable, enabling you to display only the data you need when you need it — with an intuitive activity bar for one-touch switching between favourite apps. Spend less time navigating menus and more time navigating water.

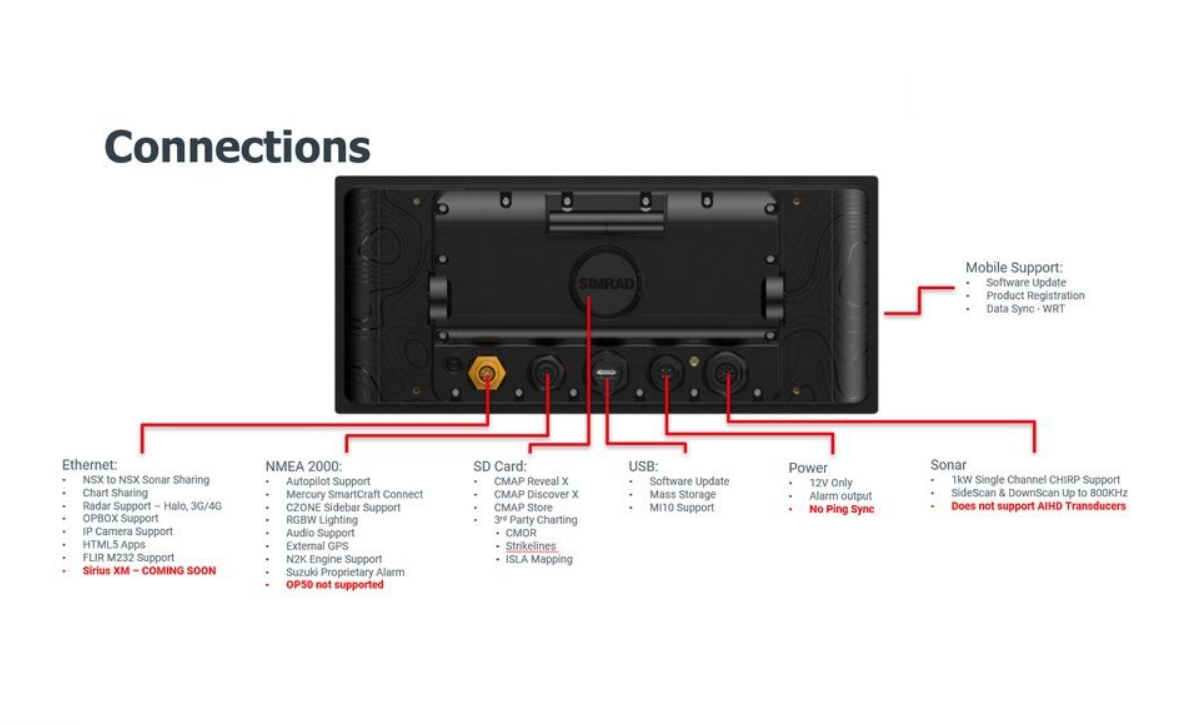

• Seamless integration with your boat’s systems: superior engine control via multiple propulsion brands (including Mercury®, Honda and Suzuki), plus full support for the Simrad suite (radar, autopilot, HALO®), third-party systems (CZone® digital switching, RGBW lighting, IP cameras, audio), and network connectivity (Wi-Fi, Bluetooth 4.0, Ethernet, NMEA 2000®).

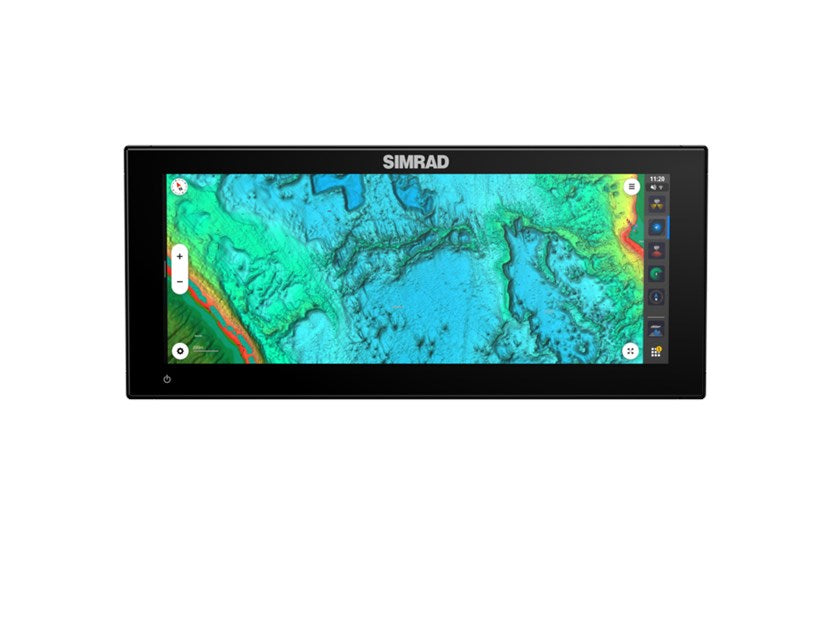

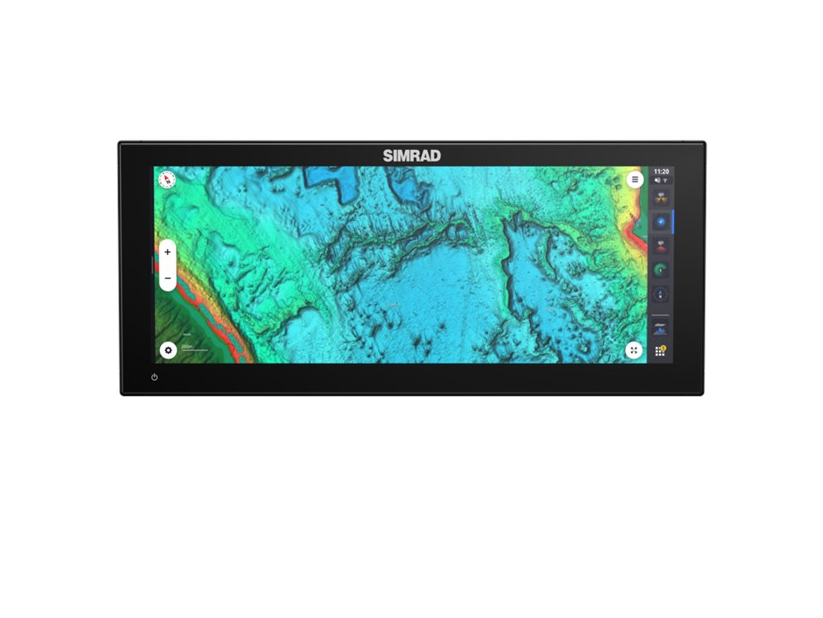

• Navigation power: bundled with C-MAP® DISCOVER™ X charts for North America (upgradeable to REVEAL™ X), plus 6,000 waypoints, 500 routes (up to 100 points each), 50 tracks (up to 12,000 track points), 32-channel internal GPS at 10 Hz for sub-3 m accuracy.
• Installation is streamlined: fewer cut-outs, simplified wiring, and one large ultrawide display replaces dual smaller ones for a clean dash aesthetic — ideal for premium boat builds and retrofits alike.
• Multi-language support covers German, English, Dutch, Danish, Spanish, French, Italian, Norwegian, Portuguese, Finnish, Swedish, Icelandic, Greek, Chinese (Simplified & Traditional), Japanese, Korean, Croatian, Lithuanian, Latvian, Estonian, Polish, Ukrainian.
• Two-year warranty included.

Why this unit is a game-changer:
For anglers, boating enthusiasts and tech-savvy captains alike, the NSX 3012UW elevates your helm station — providing an immersive ultrawide display, cutting-edge sonar technology, full boat system integration and effortless connectivity.

Whether tracking fish under the hull, routing across open seas, or building a clean dash layout, this unit is engineered for serious on-water performance.

Important note:
To unlock full functionality such as Active Imaging and advanced sonar modes, ensure you update the unit to minimum software version 1.7 and install compatible sonar modules if required.
