Simrad 12" NSX 3012UW Multifunction Display (No Transducer)

NSX 12-inch 3012UW - No Transducer (000-16299-001)

Take your marine navigation and fishing experience to the next level with the Simrad NSX 3012UW – No Transducer (00016299001). Designed for maximum immersion, connectivity and control, this 12-inch ultrawide multifunction display delivers a unique aspect-ratio dashboard experience and robust integration across your vessel’s systems.

Key Features & Benefits:

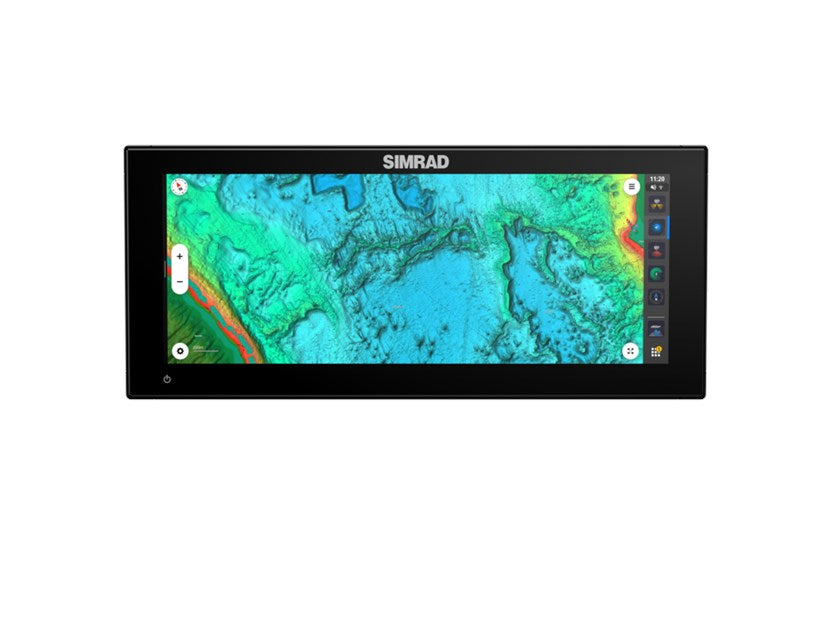

• Immersive ultrawide 12″ SolarMAX™ IPS HD touchscreen – the 1920 × 720 resolution screen brings more screen real estate and sharper visuals than traditional displays.
• Extreme viewing angles (85° top, bottom, left & right) and brightness over 1,000 nits, so you can see clearly from any helm position and even when wearing polarized sunglasses.

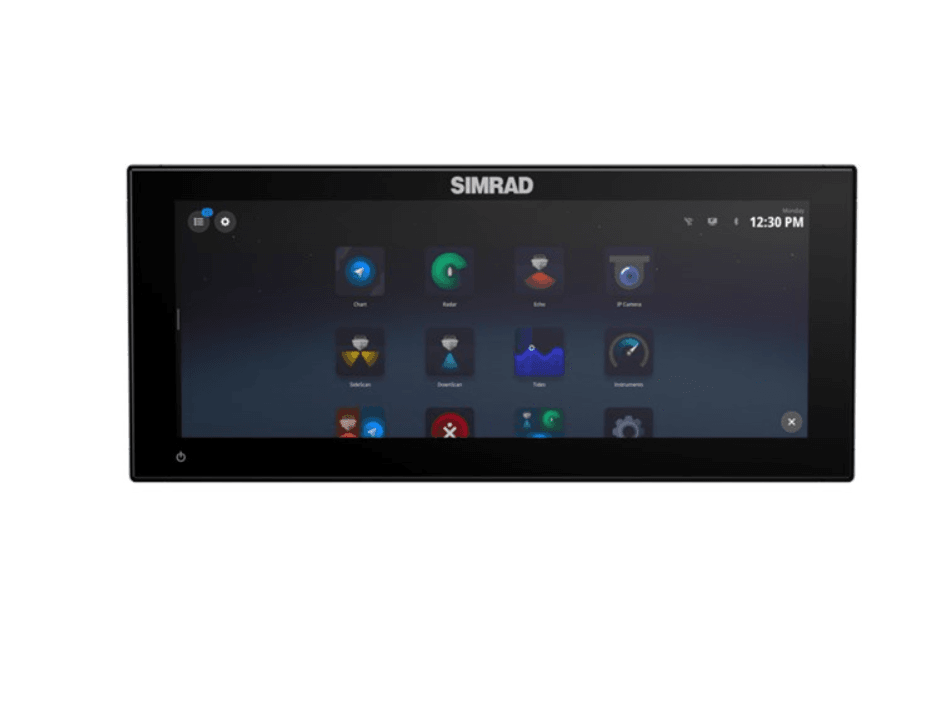

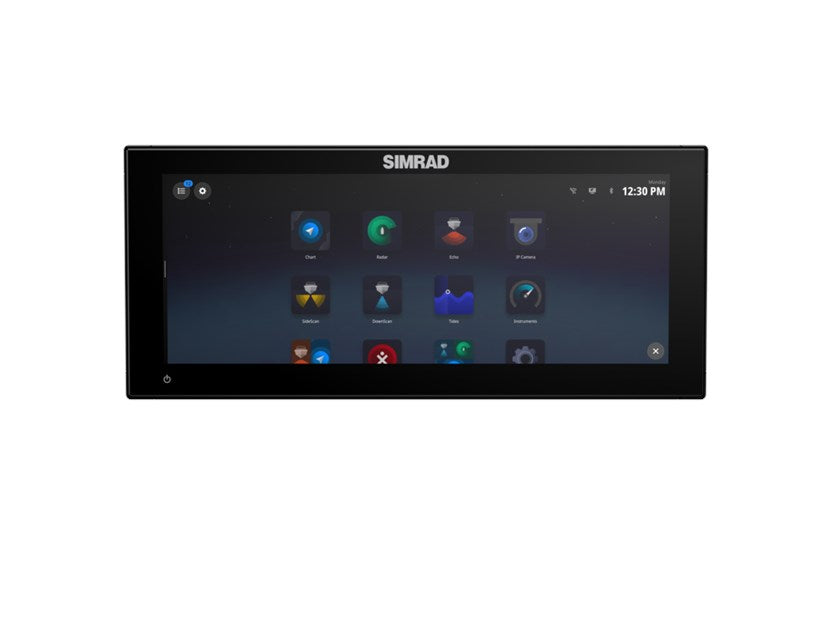

• Built-for simplicity and efficiency: an intuitive Setup Wizard, activities bar to pin favourite apps, and a fully-customisable instruments panel so you display exactly the data you need, when you need it.

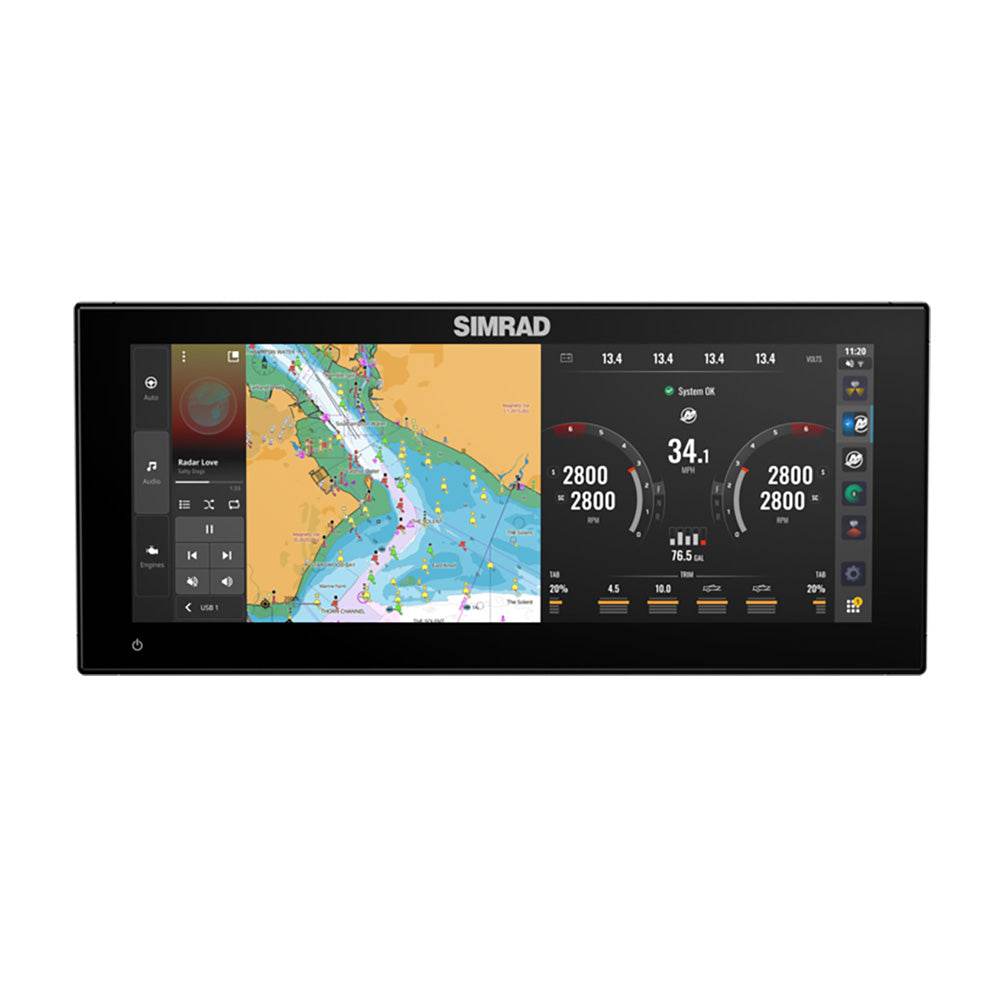

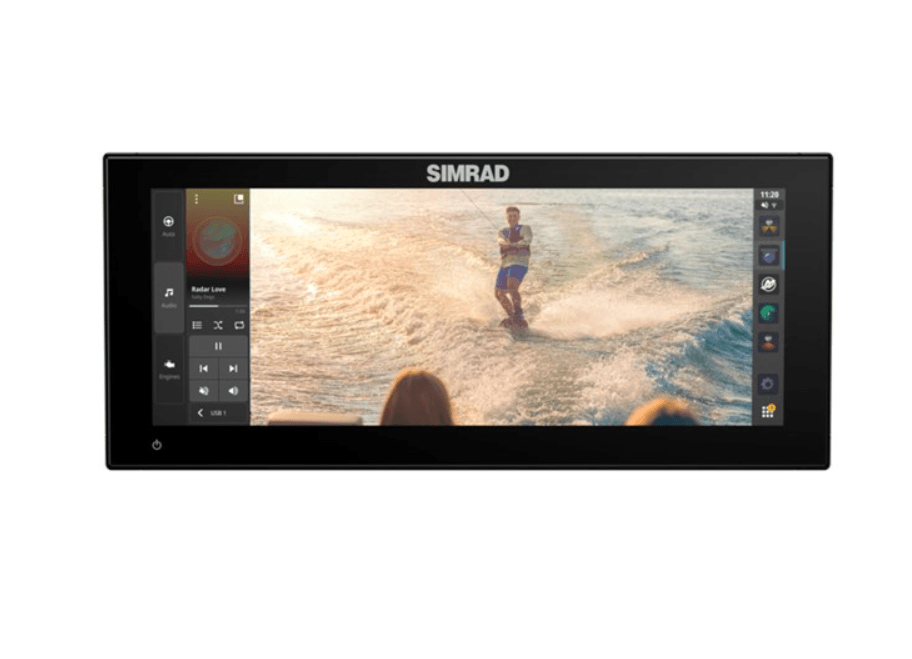

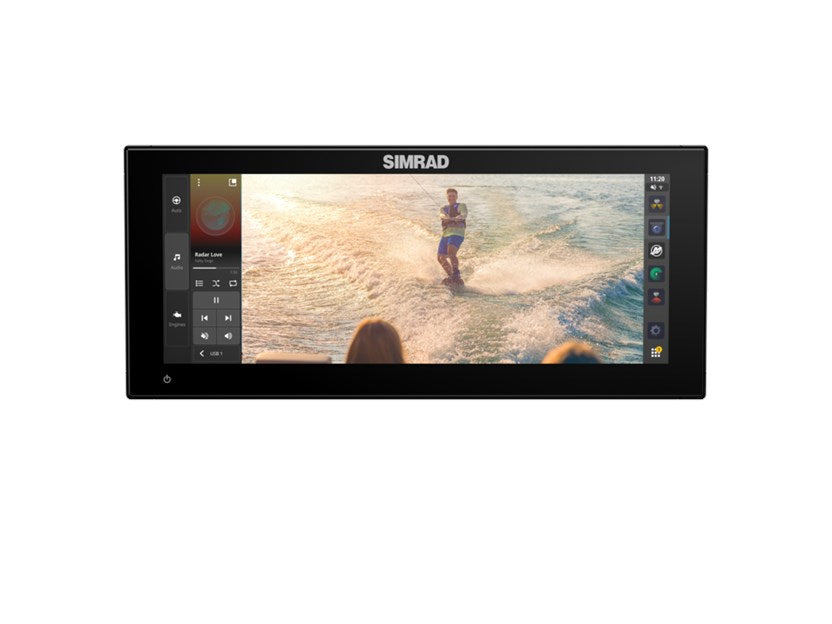

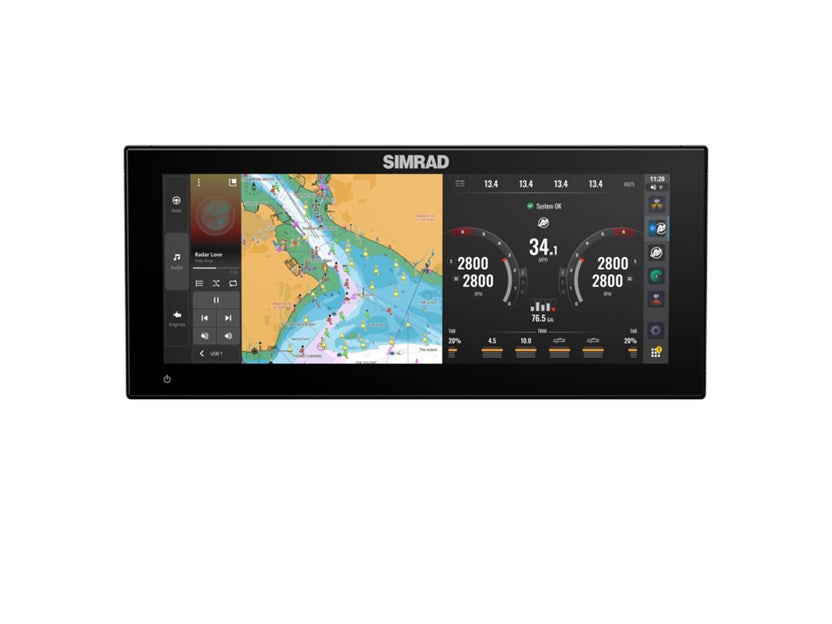

• Unrivalled system integration: Seamlessly control and monitor your entire vessel — engine systems (including best-in-class integration with Mercury® SmartCraft® Connect, Honda and Suzuki propulsion), CZone® digital switching, RGBW lighting, IP cameras, audio systems and more.

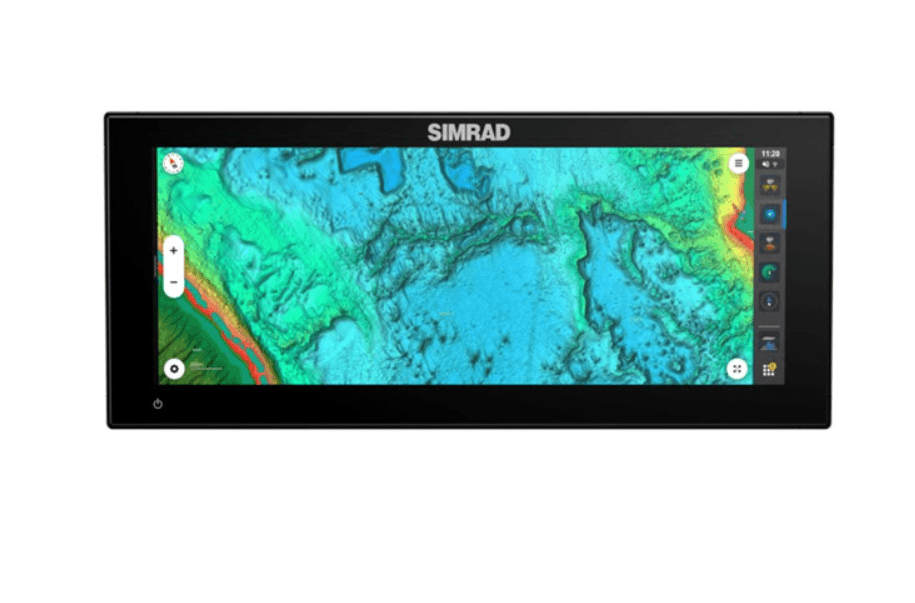

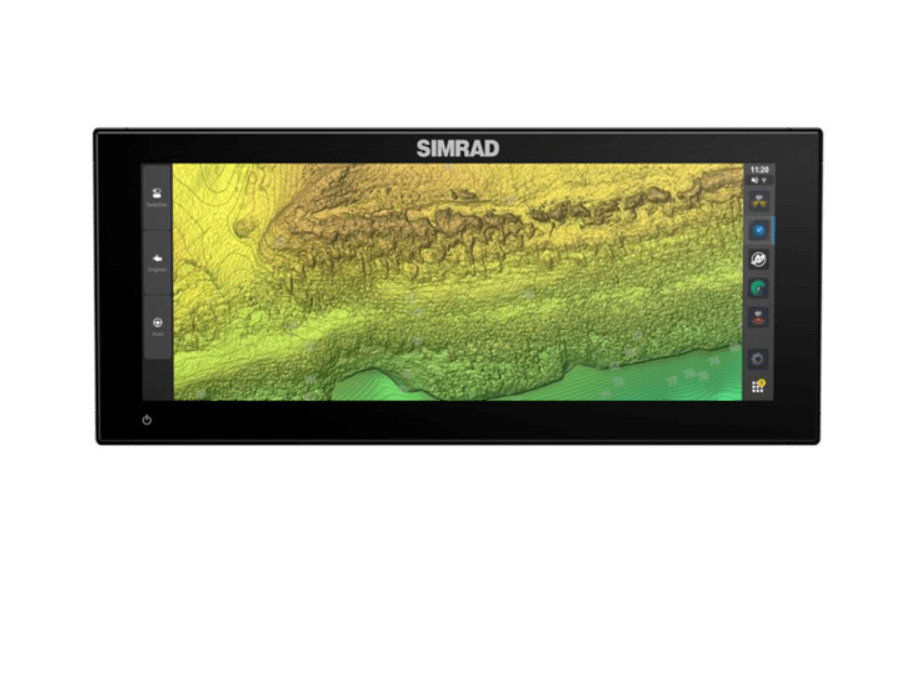

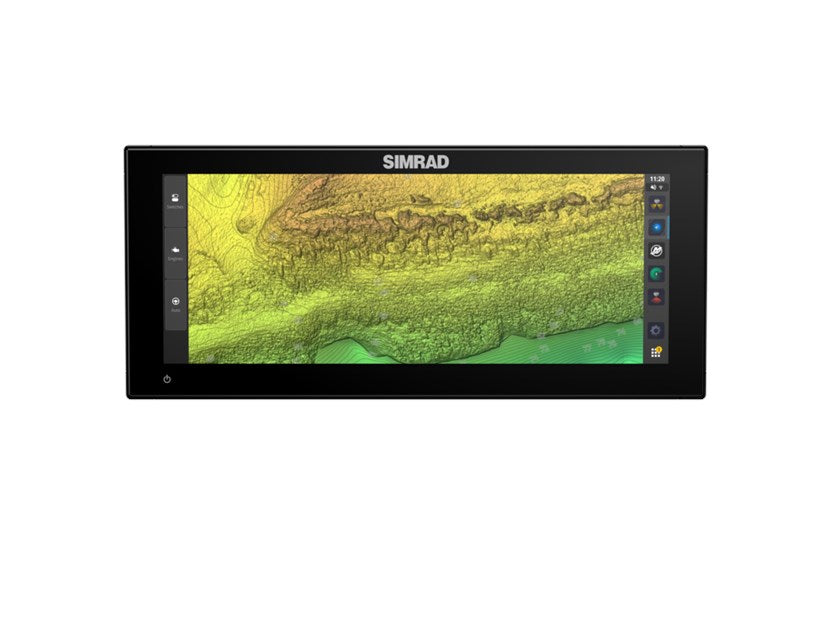

• Advanced charting & navigation: Optimised for C-MAP® DISCOVER™ X and REVEAL™ X charts, X-Chart Manager onboard, and autorouting that’s up to three times faster than legacy systems.

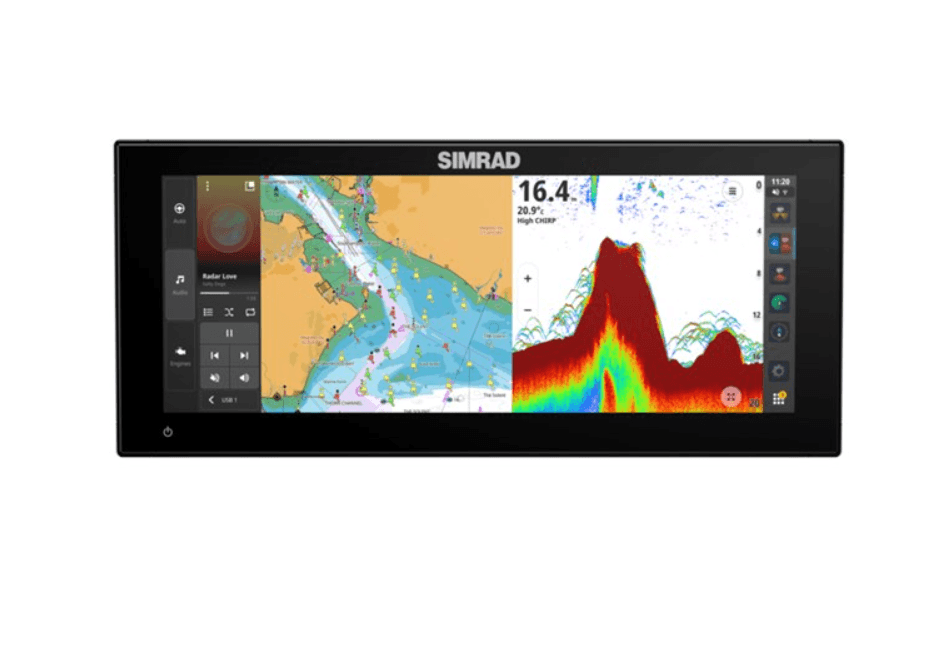

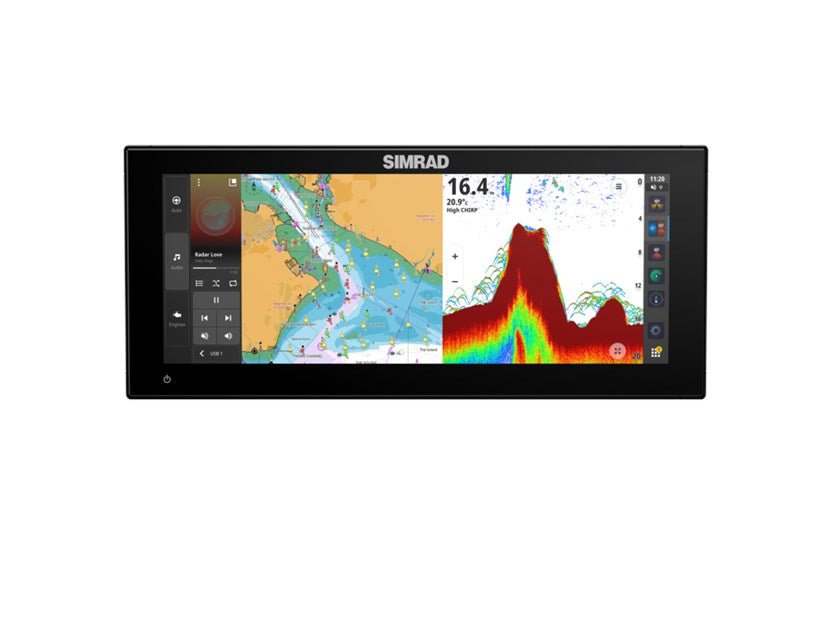

• Fishing powerhouse when you add compatible sonar module: Support for leading sonar technologies such as FishReveal™, Active Imaging™ (CHIRP, SideScan, DownScan) and compatibility with 1 kW transducers to fish deeper and see farther left/right or below the boat. *Note: transducer & module required separately.
• Comprehensive network connectivity: Supports Ethernet, Wi-Fi, Bluetooth 4.0, USB, NMEA 2000®, plus full integration with radar (3G/4G/HALO®), autopilot systems (NAC-1/2/3/D), and the Simrad® app for waypoint management and planning.
• Rugged marine grade construction: IPx6 & IPx7 waterproof rating, operating temperature range -15 °C to 55 °C, shock/vibration rated and designed for compass safe distance of 50 cm.

Specifications at a glance:

• Display size: 12″
• Resolution: 1920 × 720 px
• Screen brightness: > 1,000 nits
• Viewing angles: 85° all around
• Power consumption max: 19.8 W @ 13.8 V
• Supply voltage: 10-17 V DC (12 V nominal)
• Dimensions (no bracket): W: 337 mm (13.30″) × H: 147.9 mm (5.82″) × D: 88.5 mm (3.48″)
• Weight: approx. 1.5 kg (3.3 lbs)
• What’s included: Display only — no transducer included (model 000-16299-001)
• Mounting: Rear mount bracket sold separately

Why choose this model?
If you’re looking to upgrade your helm with a true ultrawide display that replaces the need for dual-screens, integrate all your boat systems into one sleek dashboard and unlock advanced fishing and navigation capabilities down the road, then the NSX 3012UW is an ideal choice.

By purchasing without a transducer included you keep installation flexible and cater to your specific transducer or sonar module preferences. Enjoy a modern, customizable user interface, broad connectivity and a durable screen built for the marine environment.

Installation Tips & Recommendations:

• Since the bracket mount is sold separately, plan your dash layout in advance to ensure optimal placement and viewing angle.
• If using sonar or fish-finding features, budget for the appropriate sonar module (e.g., S3100/S5100) and select a compatible transducer (especially for deep water/1 kW capability) — compatibility confirmed from manufacturer resources.
• Ensure software is updated to version 1.7 or later to enable full capabilities (e.g., FishReveal™, Active Imaging™).
• Use the built-in Simrad Companion App to plan routes, sync waypoints and manage chart updates from shore before heading out on the water.
• Protect your investment by mounting away from direct engine heat and keeping wiring tidy. Use NMEA 2000® network for expanded sensor/engine data integration.

Upgrade your boating, fishing and navigation experience with the Simrad NSX 3012UW – an ultrawide powerhouse built for immersive control, connectivity and clarity on the water.
