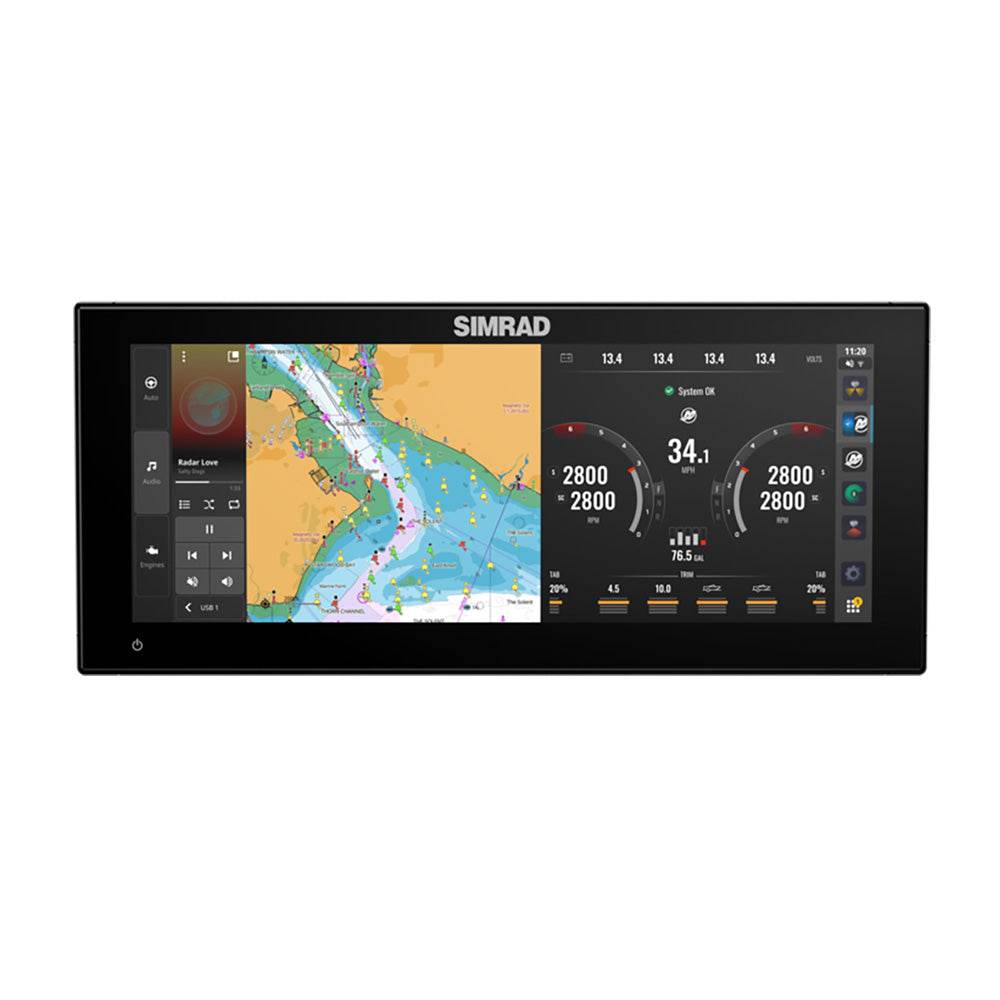

Simrad 15" NSX 3015UW Multifunction Display (No Transducer)

NSX 3015UW - No Transducer (000-16298-001)

Introducing the Simrad NSX 3015UW – No Transducer (SKU 00016298001) – the ultimate ultrawide marine multifunction display (MFD) designed for today’s performance-oriented boaters, anglers and cruisers.

• Massive 15″ ultrawide SolarMAX™ IPS HD touchscreen display delivers an immersive dash view with a unique aspect ratio created to replace dual-screen setups and provide high-impact visuals and usability.
• Resolution of 1920 × 720 pixels for crisp charting and sonar detail, with screen brightness over 1000 nits and extreme viewing angles (85° top/bottom/left/right) so you can read your display easily even in bright sunlight or with polarized sunglasses.

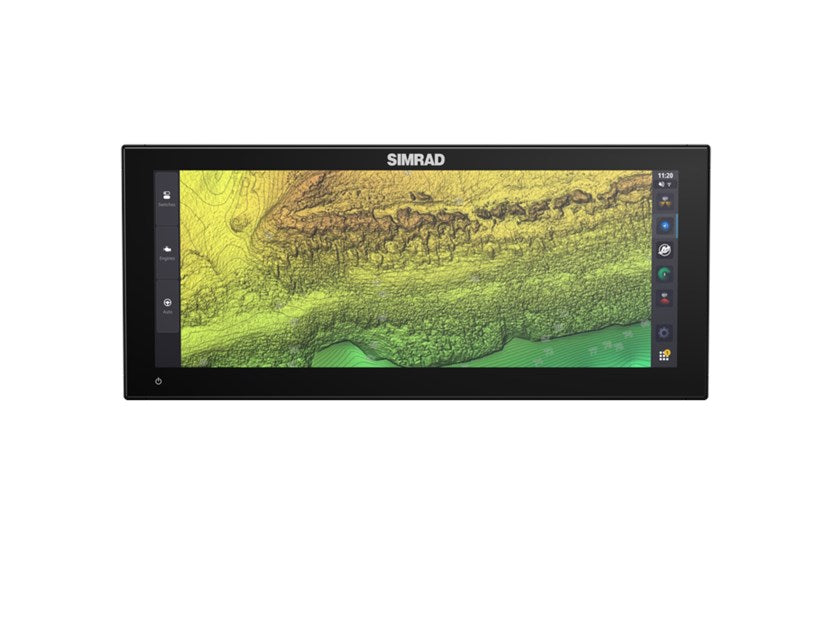

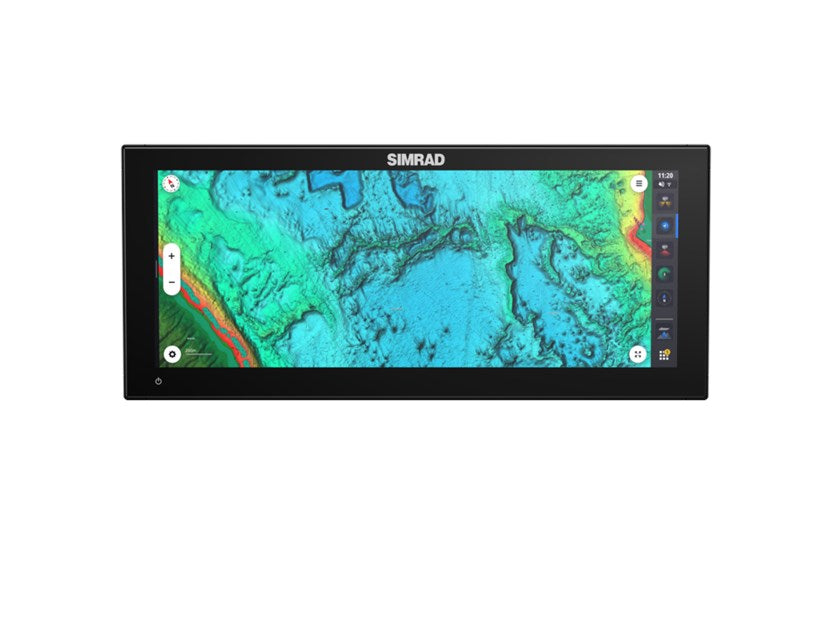

• Optimized for the most advanced marine cartography: supports C-MAP® DISCOVER™ X and REVEAL™ X charts with X-Chart Manager for quick updates, 3x faster auto-routing and full coverage of North America and Canada.

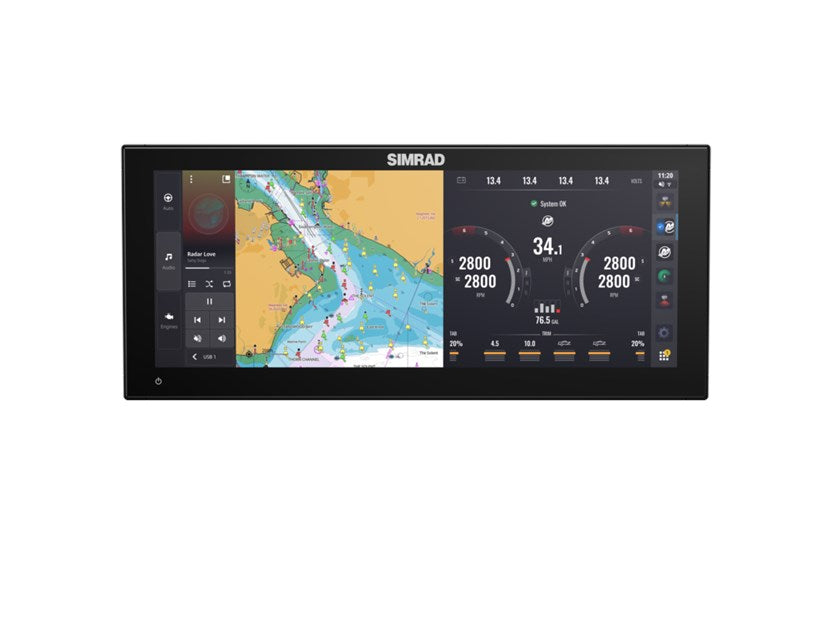

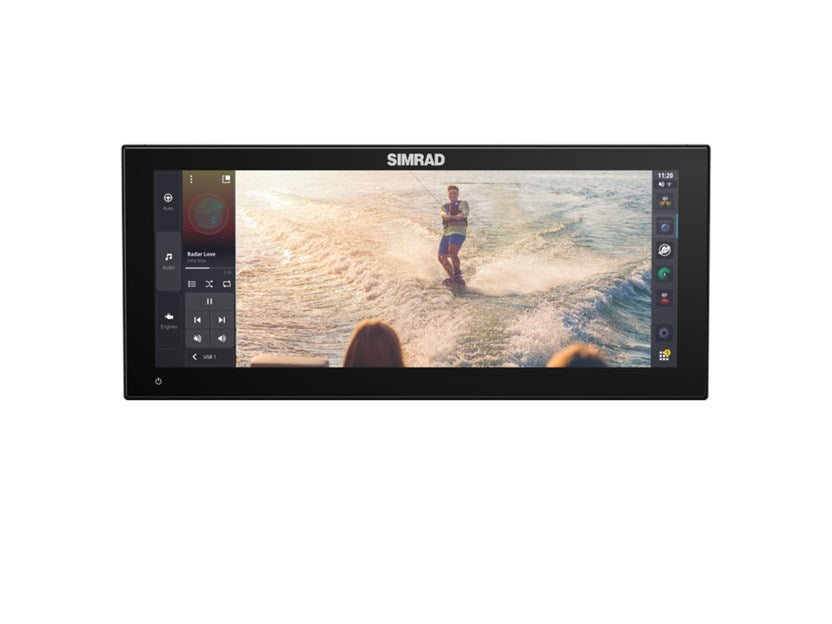

• Engine and system integration at a best-in-class level: Fully compatible with Mercury® SmartCraft® Connect, Honda and Suzuki propulsion systems, and third-party systems. Bow-to-stern integration: CZone® digital switching, RGBW lighting, IP cameras, audio systems – all manageable from one platform.

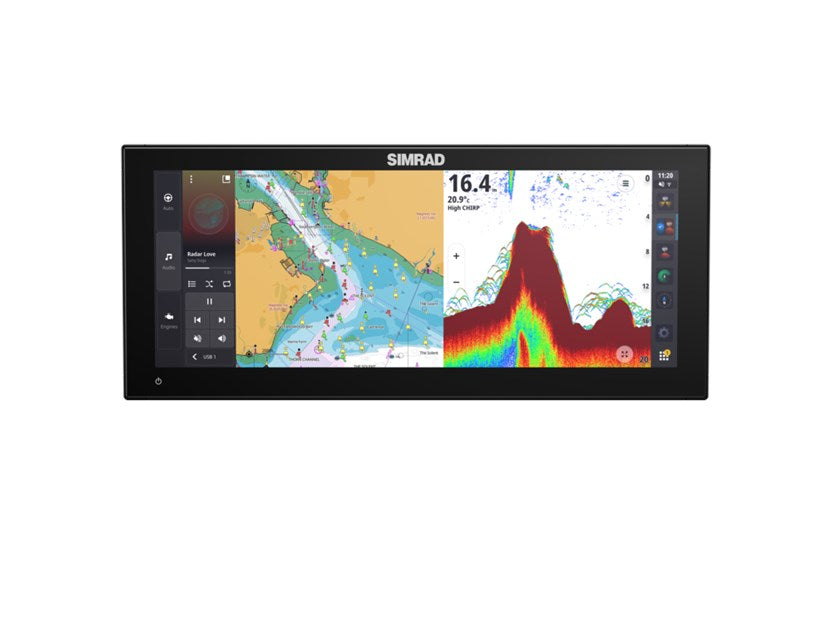

• Designed for anglers and serious fishing: Compatible with wide range of 1 kW transducers (requires separate sonar module and minimum software 1.7), supports leading sonar technologies like FishReveal™ and Active Imaging™ (SideScan, DownScan, CHIRP) so you can see high-resolution structure 300 ft to sides and below the boat.
• Full marine network connectivity: Built-in WiFi (IEEE 802.11 b/g/n), Bluetooth 4.0, Ethernet, USB, NMEA 2000® (Micro-C port), allowing you to connect radars (3G/4G/HALO®), autopilot systems (NAC-1, NAC-2, NAC-3, NAC-D), IP cameras and more.

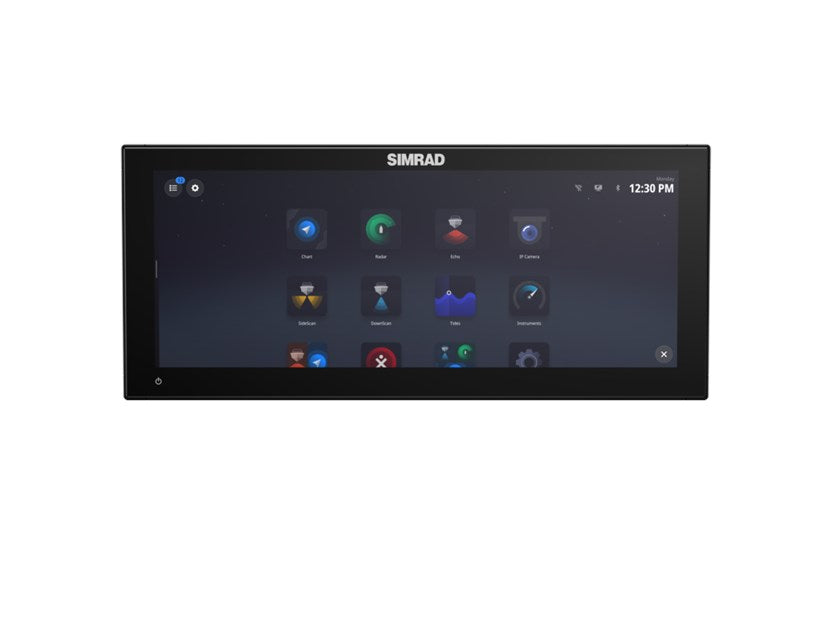

• Intuitive user interface for simpler boating: New operating system features an “Activities Bar” to pin and switch between your favorite apps with one touch, fully customizable instrument panel, and a Setup Wizard that guides installation and configuration to get you up and running fast.
• Rugged, marine-built construction: IPx6/IPx7 waterproof rating, built to withstand harsh environments with operating temperature –15° C to +55° C, and designed for compass safe zone of 50 cm (1.7 ft). Dimensions (no bracket, no suncover): 390.0 mm W × 170.4 mm H × 88.5 mm D (15.55″ × 6.71″ × 3.48″).
• Expandable for full system growth: Perfect as a stand-alone ultrawide MFD now, yet fully network-capable for future radar, sonar, cameras, lighting and autopilot upgrades. Bracket mount sold separately to allow flexible helm installation.
• Listed as “No Transducer” – this version ships without a sonar probe, giving you the flexibility to choose or upgrade transducers as needed for your vessel and fishing style.

Why choose the NSX 3015UW?
If you’re looking for a marine display that brings the visuals, networking and system-control of a high-end bridge into a compact helm station, this ultrawide 15″ MFD delivers.

With full charting, sonar and system integration with major propulsion and digital­switching brands, you’re stepping up to a far more capable and future-proof helm platform.

Whether you’re running a center console, wake/surf boat, salt-water fishing rig or cruiser, the NSX 3015UW is designed to get you there smarter, faster and with more situational awareness.

Installation Notes:

• Ensure your vessel’s power supply is between 10-17 V DC. Max consumption is approx. 25 W (1811 mA at 13.8 V).
• Mounting recommends rear mount or optional bracket (sold separately). Make sure to allow compass safe zone (50 cm/1.7 ft) for accurate performance.
• For anglers planning to use Active Imaging™ or 1 kW transducers, ensure minimum software version 1.7 or higher is installed.
• Network integration, mounting and cable routing planning advised to ensure full use of Ethernet, WiFi, NMEA 2000 and other connections.

Upgrade your helm today with the Simrad NSX 3015UW — the ultrawide marine MFD that changes how you navigate, fish and control your vessel.
