Product Description

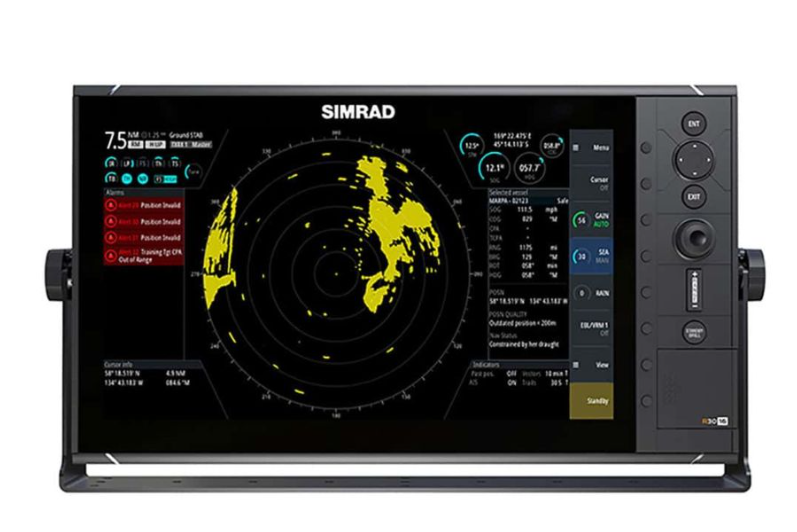

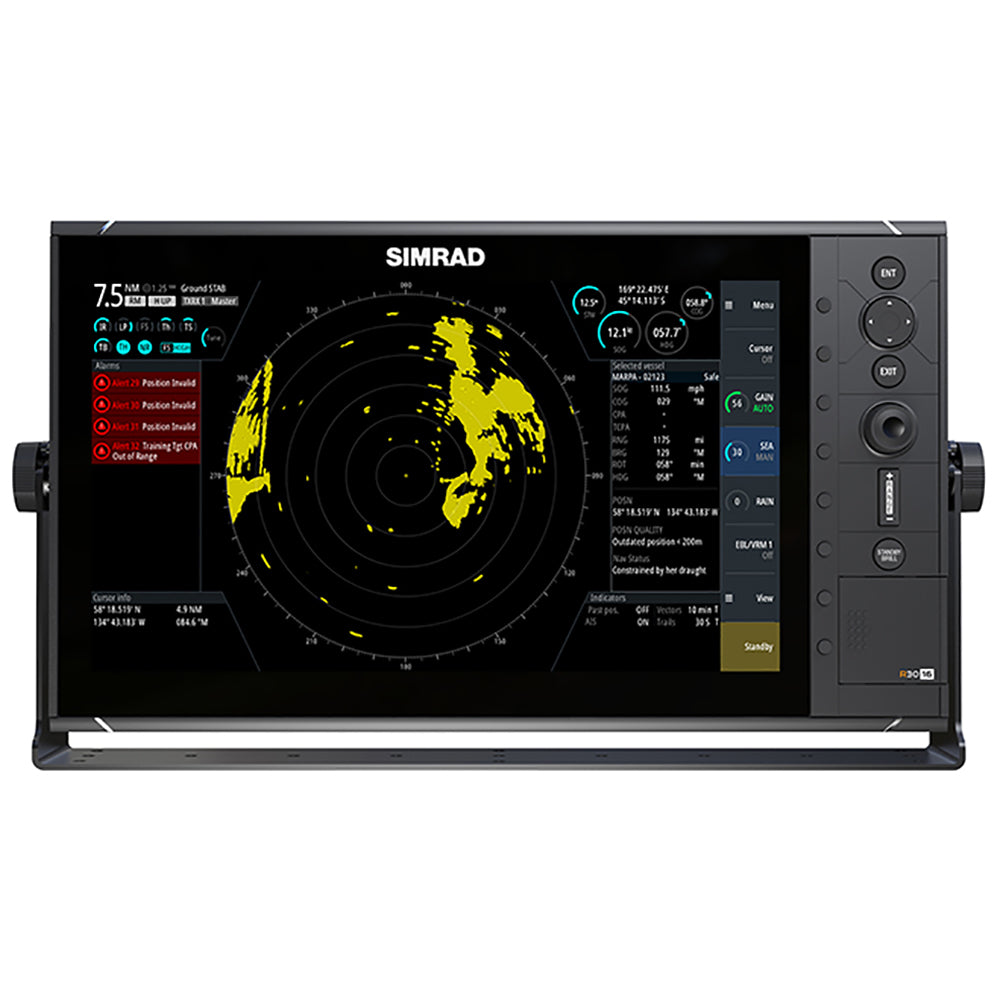

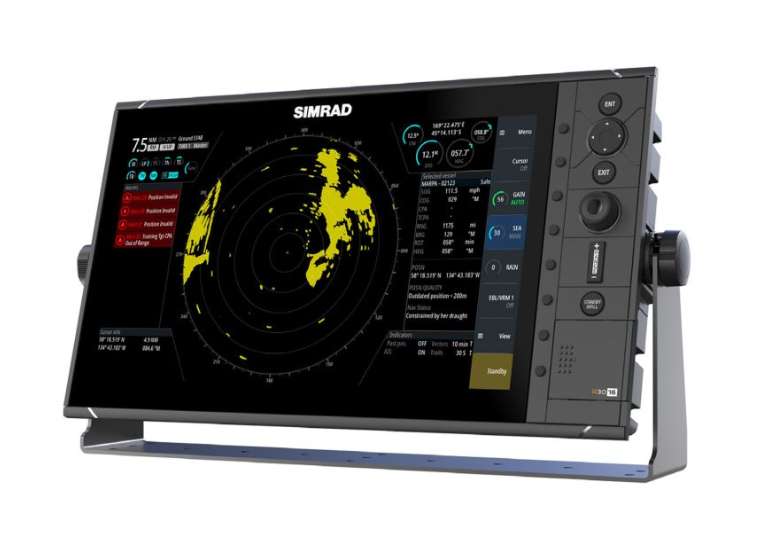

R3016 Radar Control Unit Display - 16"
The Simrad R3016 is a dedicated radar control unit with integrated 16-inch widescreen display, compatible with a range of Simrad radar solutions including Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar. An ideal safety and navigation accessory for offshore cruisers and sportfishing vessels, the R3016 offers versatile flush or bracket-mount installation options and intuitive keypad based operation for reliable control in all conditions.
Features:
- Dedicated radar control unit
- Compatible with Simrad Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar systems
- Automatic tuning system
- Anti-sea-clutter technology for an optimum picture under adverse weather conditions
- MARPA target tracking
- 16-inch HD widescreen display
- HDMI output for an optional secondary display or remotely-operated "clone" station
- Keypad and rotary-dial interface with 8 direct-access menu keys
- Bracket and flush-mount installation options
- Ethernet, NMEA0183 & NMEA2000 connectivity
Details:
- Resolution (VxH): 1366 x 768
- Screen Size: 16"
Specifications:
Display Size | 16-inch widescreen |
Screen Brightness | 300 cd/m2 |
Networking Capability | 4x NMEA0183, 1x NMEA2000, 1x Ethernet |
Video Integration | 1x HDMI output (Supported resolutions: 1366x768) |
Display Resolution [pixels & pixels] | 1366 x 768 |
Display Type | 16-inch LED-backlit Colour TFT LCD |
Input Voltage | 12-24 V DC |
Input Draw | 20 Watts |
Dimensions | 17.93" W x 2.4" D x 10.24" H |
What's in the Box:
- Power Cable, 4-Pin
- S2016 & R3016 Bracket Mounting Kit
- SUNCOVER S2016 & R3016
-
BEZEL ASSEMBLY EDGE S2016 & R3016
