Product Description

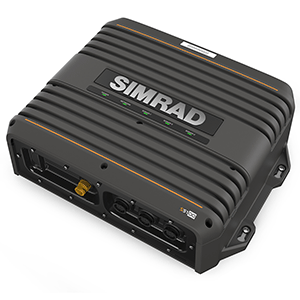

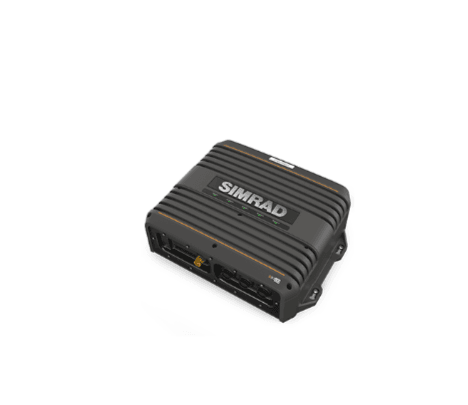

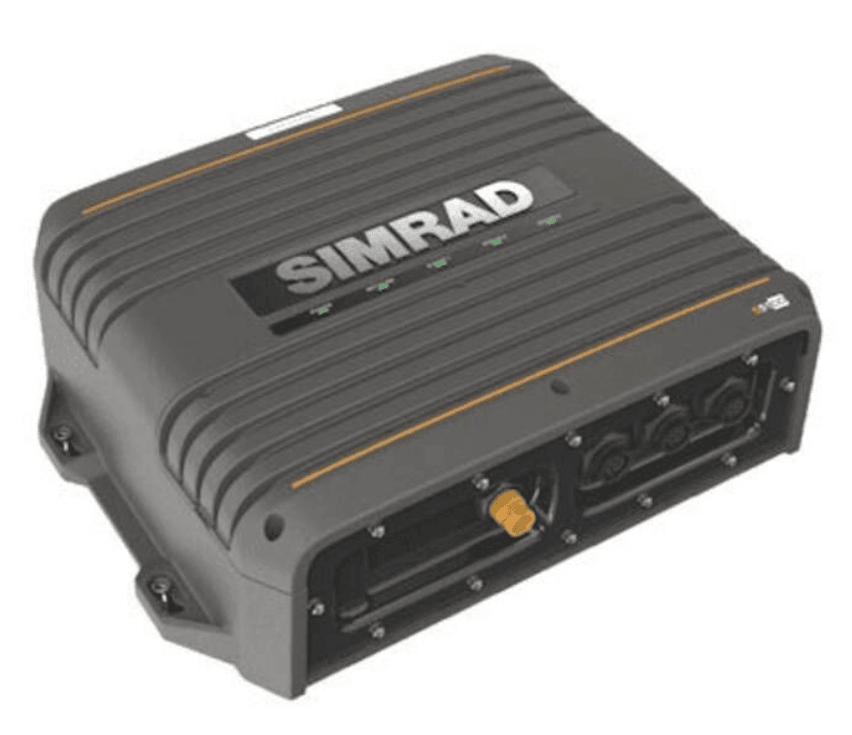

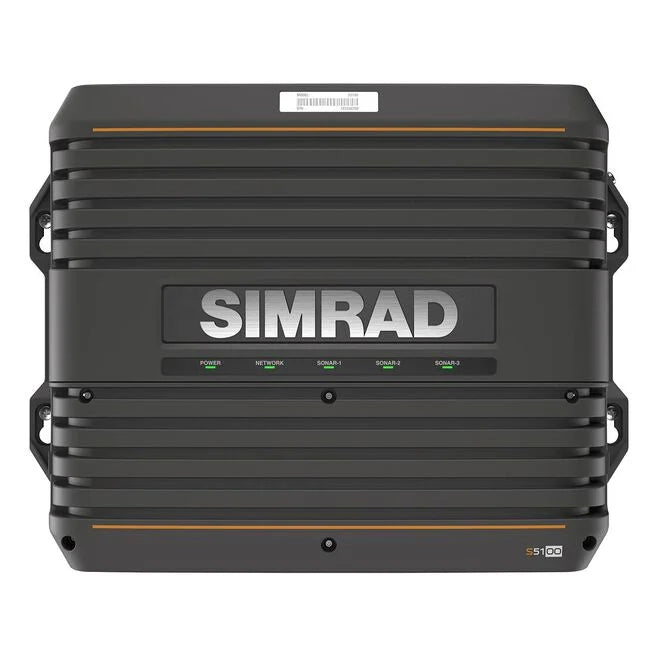

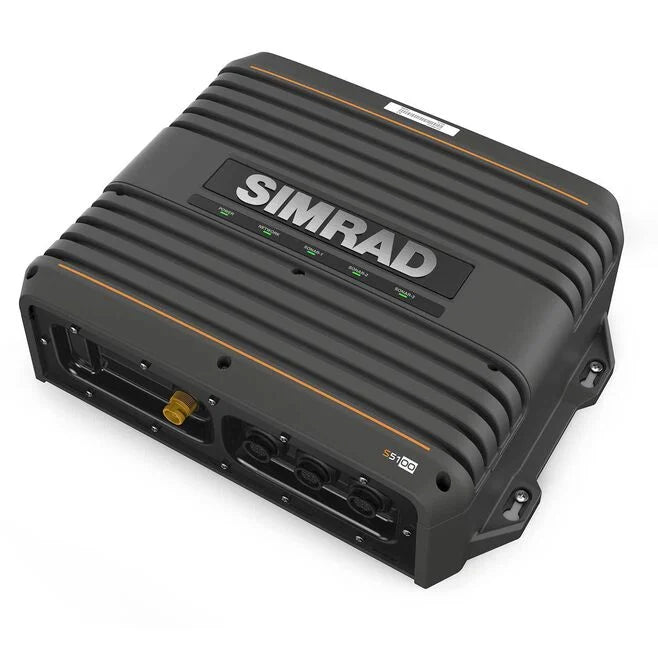

S5100 Module Redefining High-Performance Sonar

FREE Shipping

LOWEST PRICES GUARANTEED

The S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.

Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.

Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.

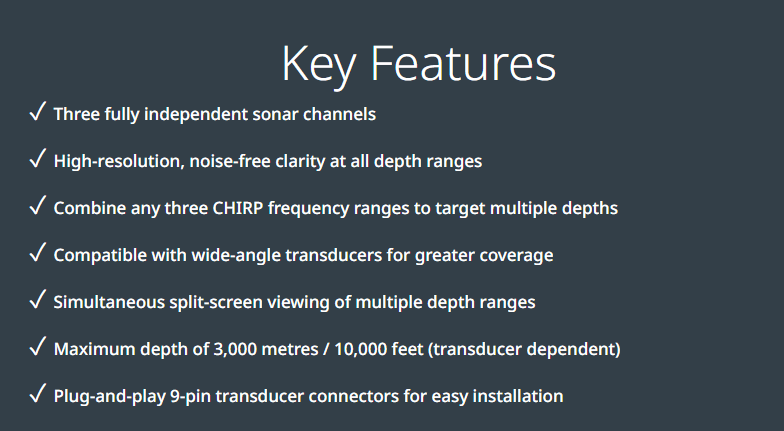

Features:

3 fully independent sonar channels deliver high-resolution coverage
Noise-free clarity at all depth ranges
Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
Compatible with wide-angle CHRIP transducers for greater coverage of the water column

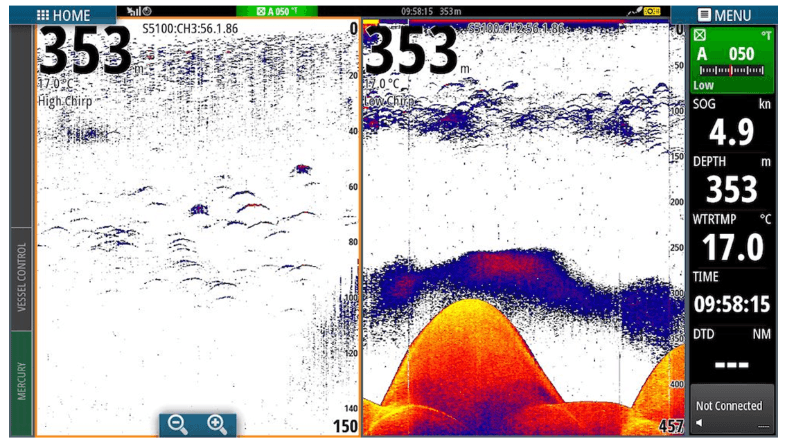

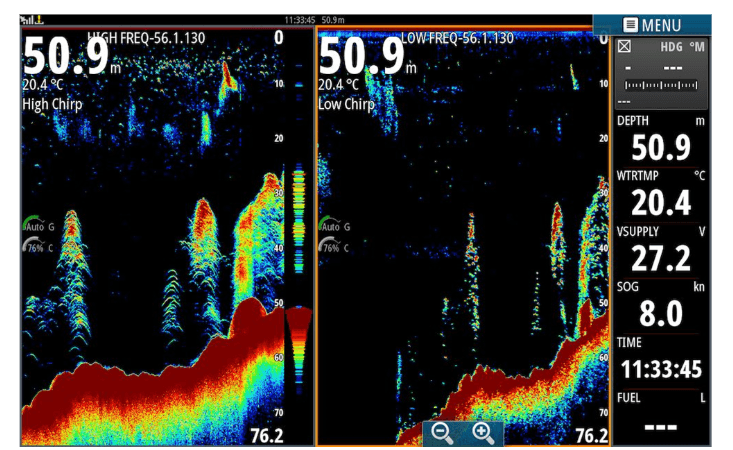

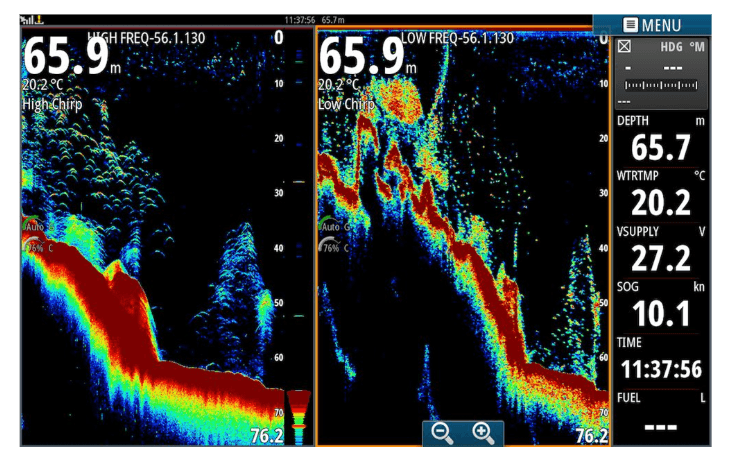

Simultaneous split-screen viewing of multiple depth ranges on your display
Maximum depth of 3,000 meters/10,000 feet (transducer dependent)
Easy to install with three plug-and-play 9-pin transducer connectors
Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders.

Specifications:

Networking	Ethernet 1 X 100 Mbps
Mounting type	Bulkhead or desk mount
Interface	Ethernet 1 x 100 Mbps
Recommended Fuse Rating	5A
Power Consumption, typical	85W Max
Power Consumption, min.	23 W
Supply Voltage	12 or 24 (10.4 - 31.2)

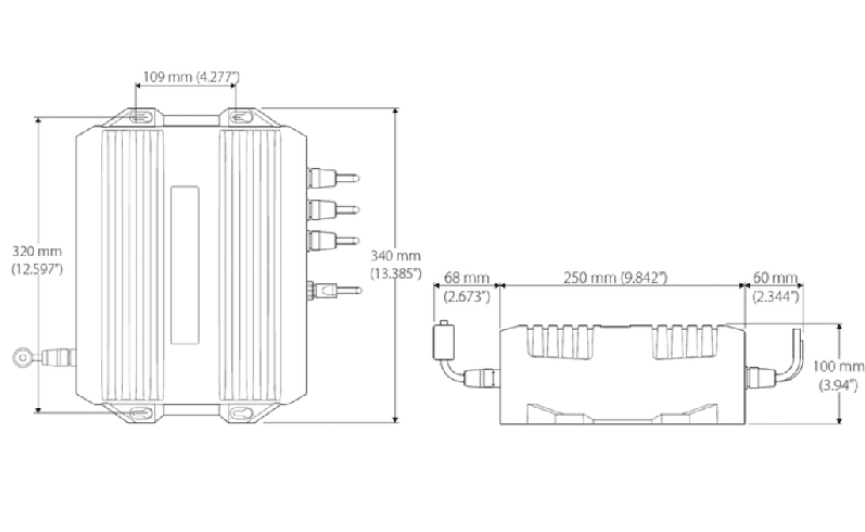

Dimensions	340 W x 100 H x 250 D mm excluding connectors (378 mm D including connectors)

What's in the Box:

S5100 Module
Power cord
4.5m Ethernet cable
7 TO 9 Pin Adapter Cable X 3
Warranty: 2 Years
