Simrad Tillerpilot TP32 (SimNet/NMEA)

Simrad Tillerpilot (TP32)

Autopilot for Sailboats up to 39'

Enhance your sailing experience with the Simrad TP32 Tillerpilot, a reliable and robust autopilot system designed for tiller-steered sailboats up to 39 feet in length and a maximum displacement of 12,600 lbs. Ideal for both short-handed cruising and coastal navigation, the TP32 offers precise steering, low power consumption, and seamless integration with your onboard electronics.

Key Features & Capabilities:

• Precision Steering: Delivers accurate and reliable course-keeping under various sea conditions, ensuring smooth and safe sailing.
• Low Power Consumption: Operates with minimal power draw, allowing for extended use without significantly impacting your boat's battery life.
• Silent Operation: Designed for quiet performance, minimizing noise to enhance the tranquility of your sailing experience.
• Waterproof Sealing: Built to withstand the marine environment with waterproof seals, ensuring durability and longevity.
• SimNet & NMEA 0183 Compatibility: Features plug-and-play installation with SimNet and NMEA 0183 systems, facilitating easy integration with compatible chartplotters and GPS devices.

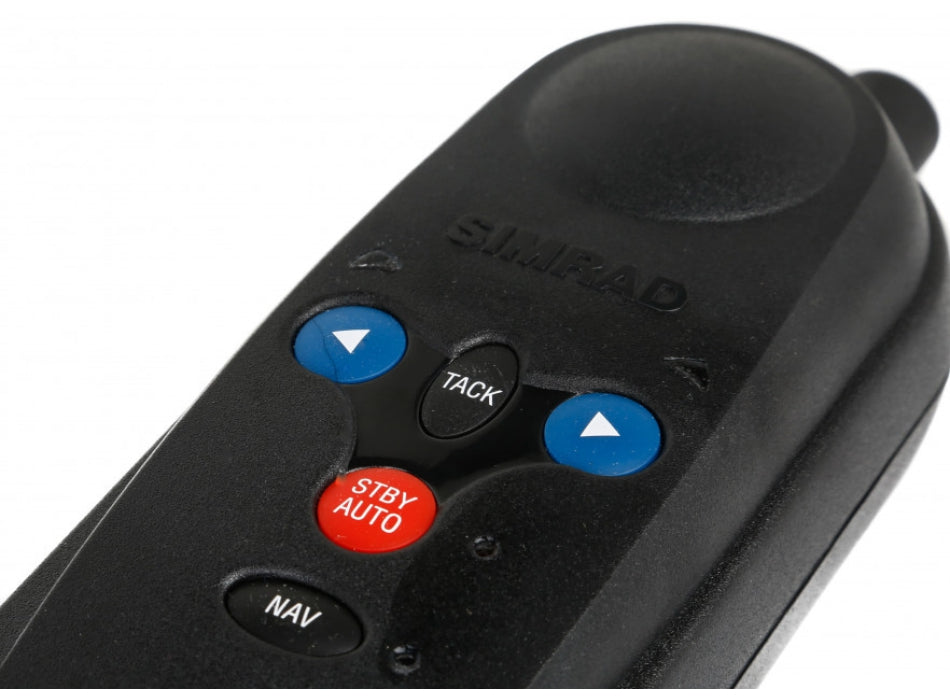

• Simple Controls: User-friendly interface with straightforward controls, making it easy to operate and adjust settings as needed.
• Advanced Steering Modes: Supports "Steer-to-compass" mode for heading control and "Steer-to-GPS" mode when connected to compatible navigation systems.
• Mounting Versatility: Default starboard mounting with the option to reverse for port side installation, offering flexibility based on your boat's configuration.
• Comprehensive Package: Includes mounting hardware, stainless steel tiller pin, and brass cup for easy installation.

Specifications:

• Drive Mechanism: Recirculating ballscrew
• Nominal Supply Voltage: 12V DC
• Operating Voltage Range: 10 - 16V DC
• Current Consumption: 60 mA (standby) / 500 mA (auto)
• Drive Unit Peak Thrust: 187 lbs
• Stroke: 10"
• Dimensions: 4" W x 2.3" H x 24" L (mid-stroke)

TP32 Tillerpilot: The TP32 is a reliable and robust autopilot, which has been optimized to draw as little power as possible and operate extremely quietly, making it ideal for sailboats up to 37 ft.

Features:

• Easy to use

• Precision steering

• Battery Optimization

• Silent Sailing

• Waterproof Sealing

• SimNet Compatible

Why Choose Tillerpilot?

Whether you're a solo sailor or prefer the convenience of autopilot assistance, the Simrad TP32 Tillerpilot offers a cost-effective solution without compromising on performance or reliability:

• Easy To Use: A simple selection of controls enable straightforward selection of the adjustments you require.
• Precision Steering: Outstanding performance through a wide range of scenarios, even extreme weather, ensures the Pilot is positive and effective in typical coastal sailing conditions.
• Battery Optimization: Low power draw ensures your battery will last longer, even if you use the autopilot for prolonged periods.
• Silent Sailing: The TP range of autopilots have been designed with minimal noise in mind. They're extremely quiet, so you can enjoy the peaceful sensation of being out on the water.
• Waterproof Sealing: Protection from the elements.
• SimNet Compatible: Simple plug & play installation, even DIY.

Specifications:

• Steering Type: Tiller

Owner's Manual (pdf)
Brochure (pdf)
