Product Description

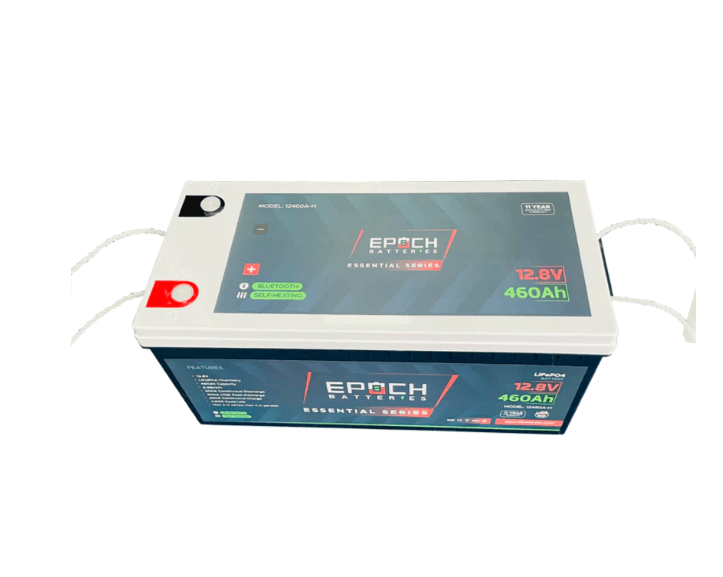

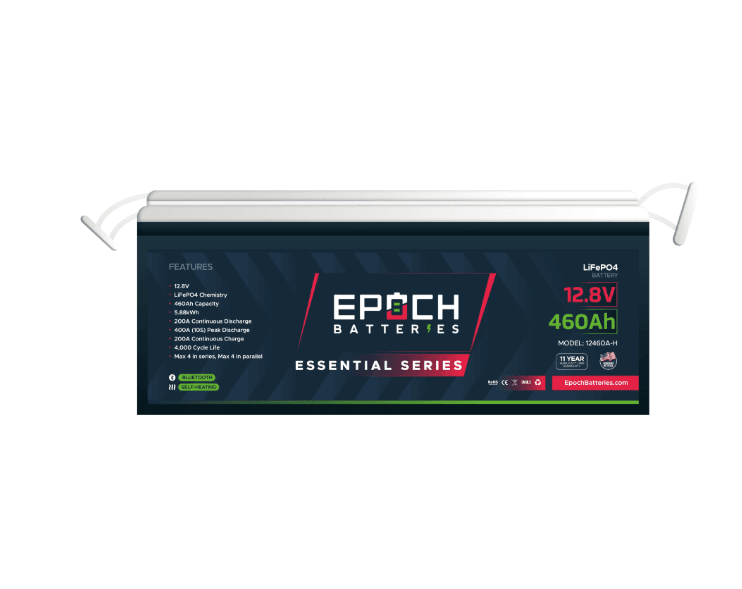

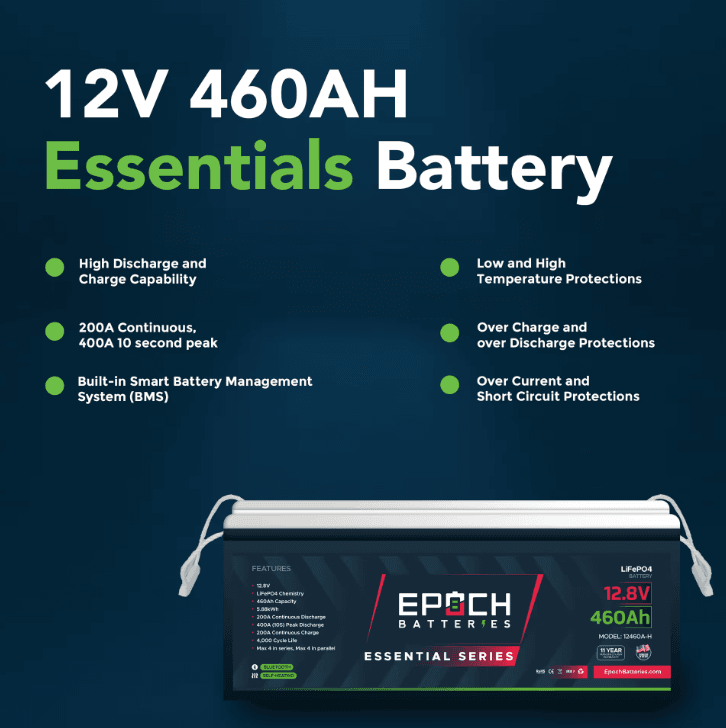

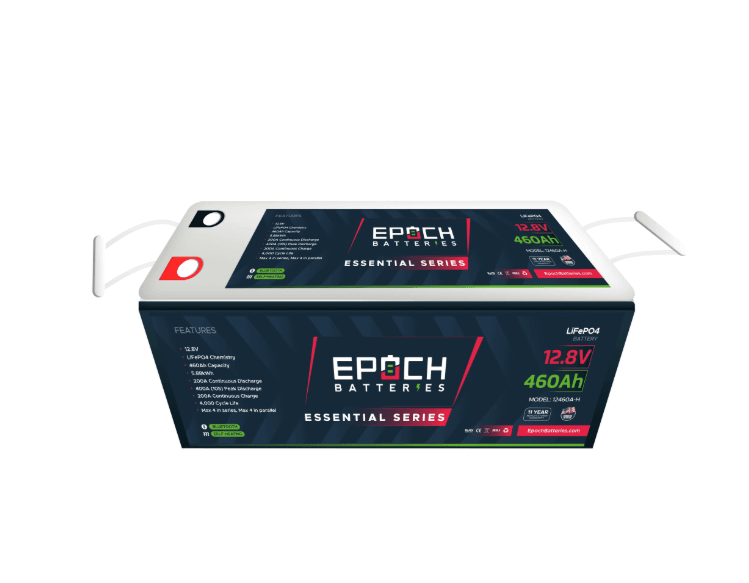

Epoch Battery 12V 460Ah Essential Series
SKU: 12460A-H
FREE Shipping
LOWEST PRICES GUARANTEED
Description:
- LiFePO4 Chemistry - Deep Cycle Battery

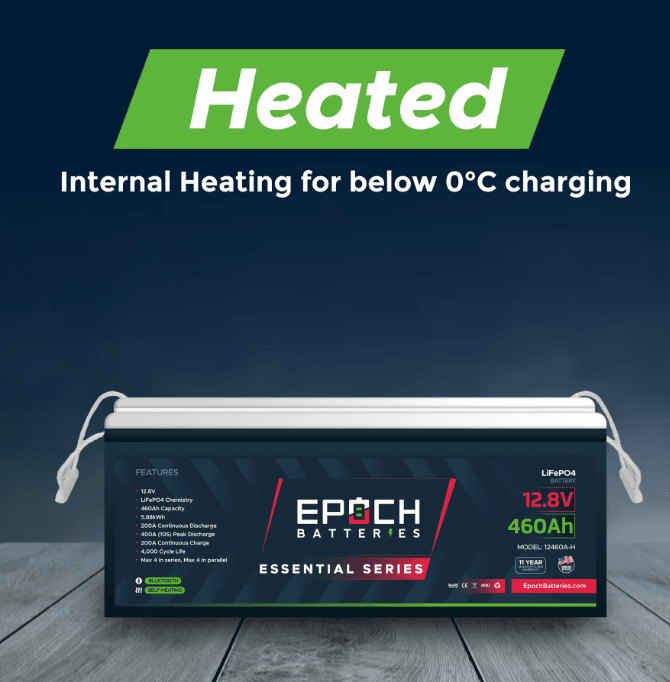

- HEATED - Internal heating allows for charging in sub-zero conditions

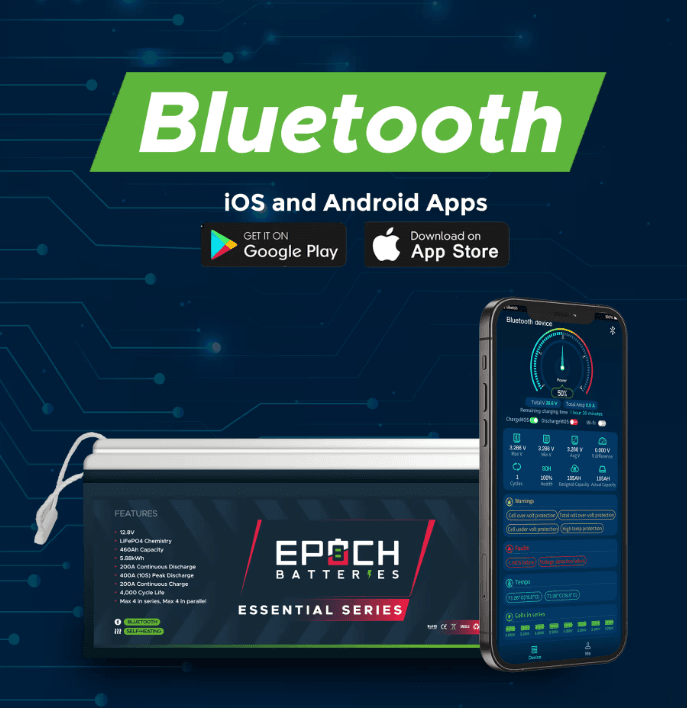

- BLUETOOTH - iOS and Android Apps

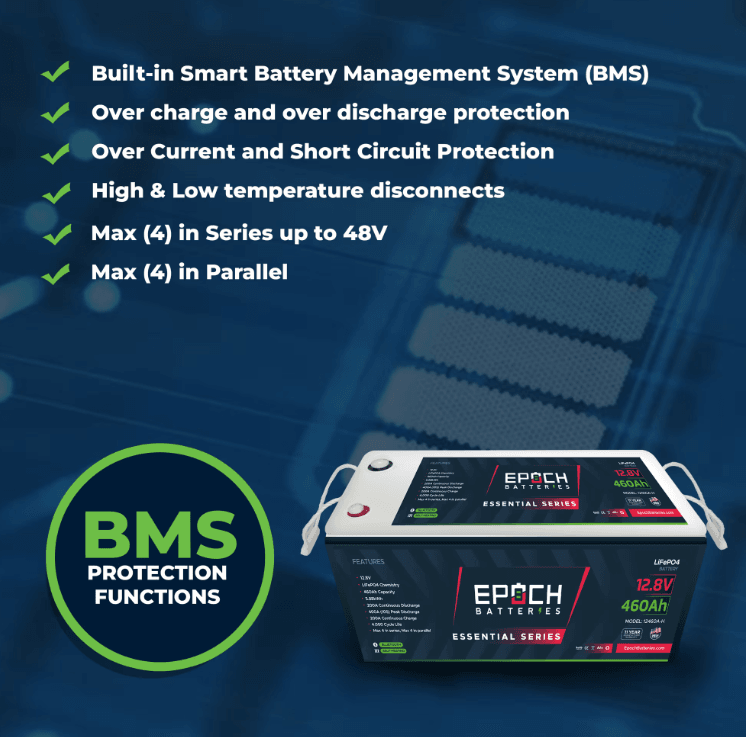

- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (4) in Parallel
- 4,000+ Cycle life & Maintenance-free

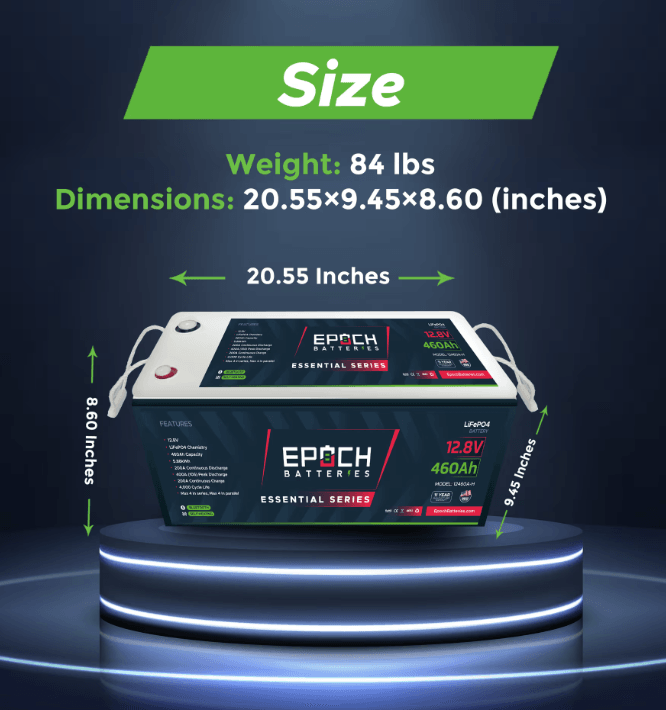

- Weight: 84lbs
-
11 Year Manufacturer Warranty
Configuration
- Cell Configuration: 4S2P
- Chemistry: LiFePO4
Current
- Ah Capacity: 460Ah

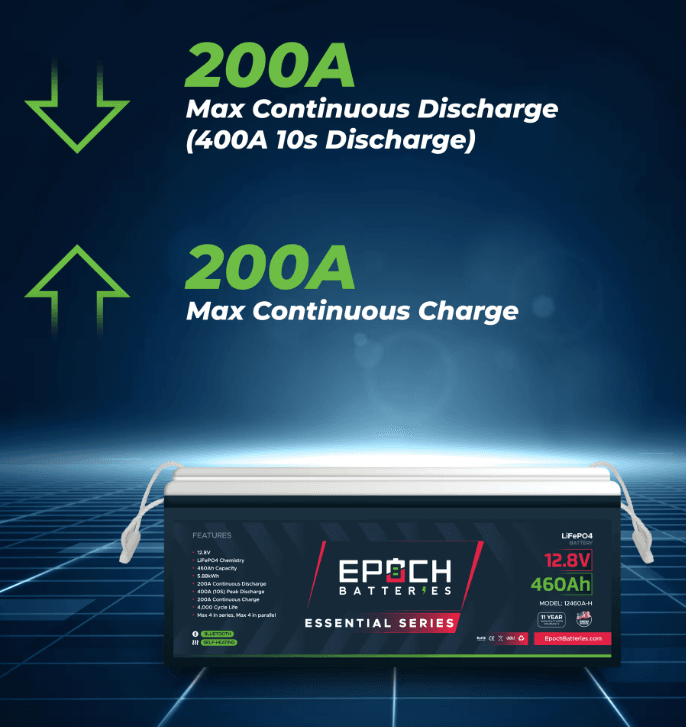

- Max Continuous Discharge Amps: 200A
- Max Charge Current Amps: 200A
- Max Discharge Peak Current Amps: 400A (10 Seconds)
- Series | Parallel: Max (4) in Series, Max (4) in Parallel - 4S4P
Voltage
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
Temperature

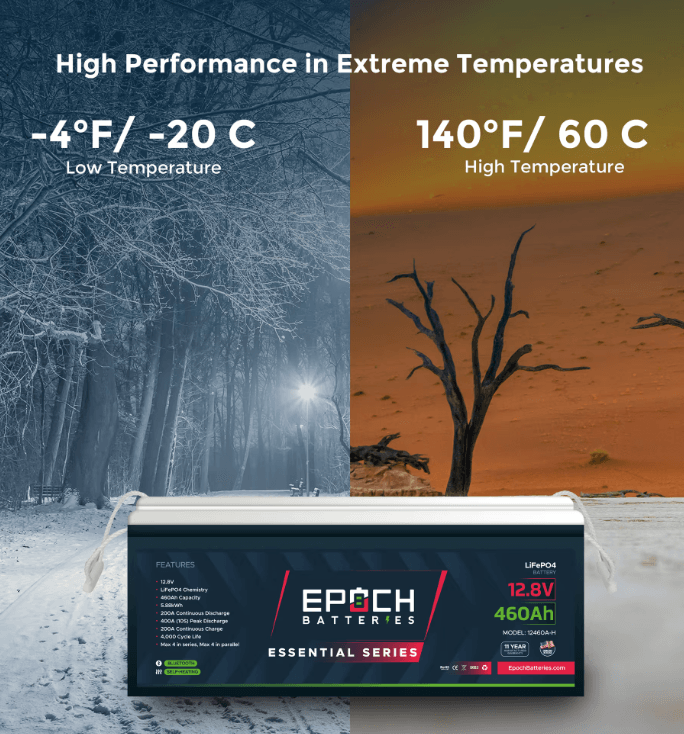

- Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
- Storage Temp: 0°C (32°F) / 35°C (95°F)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
IP Rating
IP54
Experience worry-free adventures with our robust IP54 protection. Your battery is effectively shielded against dust and water splashes, giving you the confidence to use it in light rain or dusty conditions. While not fully waterproof, IP54 provides reliable protection for most everyday outdoor scenarios.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
