Product Description

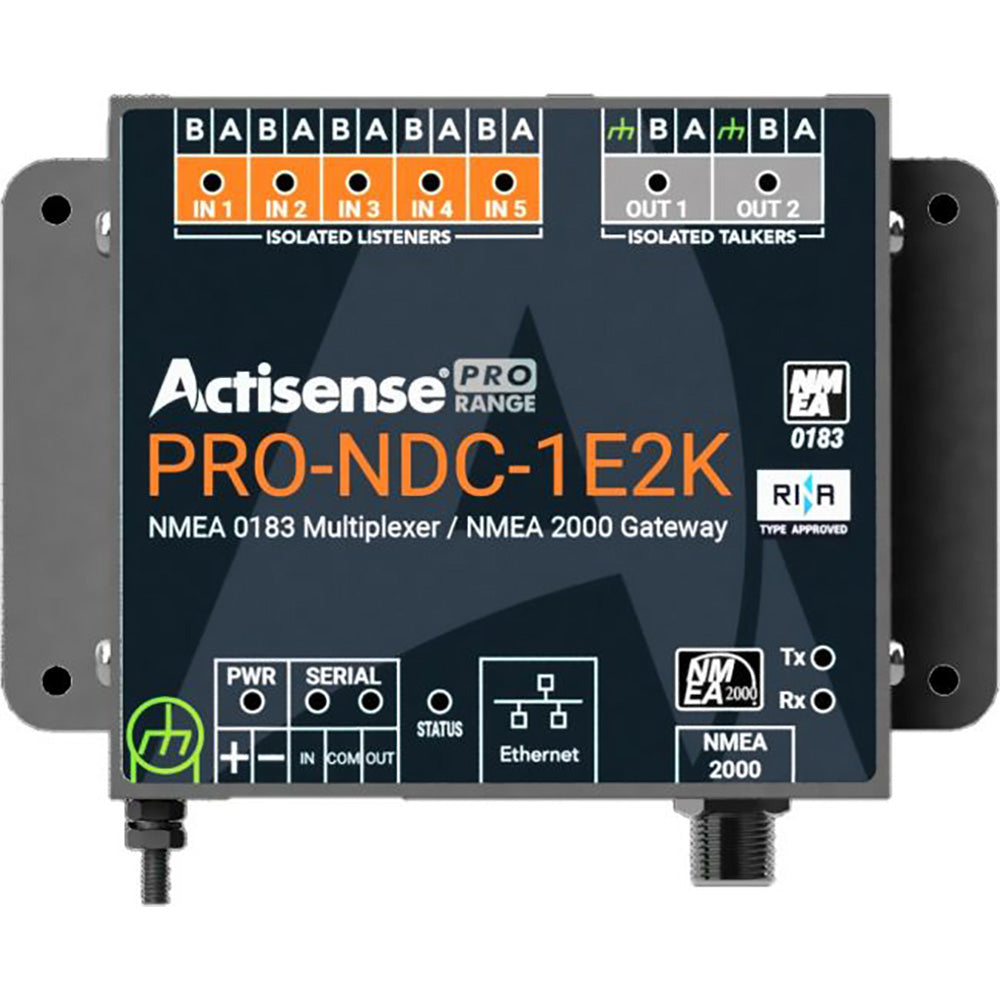

Intelligent Type Approved NMEA 0183 Multiplexer/NMEA 2000 Gateway
Interconnectivity, reimagined! The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence-level filtering.
Managing and routing your NMEA data is straightforward forward, hassle-free using the PRO-NDC-1E2K:
- Auto-switching between inputs to allow for a primary, secondary, or tertiary priority input.
- Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
- Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
- Easy to configure using the web-based UI, no need to manually enter and edit strings of text.
- RINA-type approved device means the multiplexer is fit for leisure, commercial, and class/type installations.
- Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
- Certified NMEA 2000 device connectivity allows for the conversion and output of data onto the NMEA 2000 network.
- Bi-directional conversion to and from the N2K Network allows for seamless integration between legacy and new equipment.
- NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
- NMEA 2000 data streaming over Ethernet.
- 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs protect all connected instruments.
Multiplexers are typically used to combine multiple instruments’ data output into a smaller number of outputs. As you can’t connect two talkers to one listener directly, a multiplexer allows for the data to be output through one talker connection.
An example of this could be on a commercial vessel with multiple NMEA 0183 GPS, wind, AIS, and depth instruments. To get all of this data combined and sent to an NMEA 0183 display, the multiple talker inputs can be combined into one output on the PRO-NDC-1E2K. If the data is needed on an NMEA 2000 network, the 1E2K can convert and output this data onto a connected N2K network thanks to the conversion matrix within the product and the incorporated NMEA2000 connectivity.
With the PRO-NDC-1E2K, the data can be filtered, passed or blocked and monitored, giving greater flexibility and control over all instrument data.
The device also carries the ability to stream NMEA data in various formats over Ethernet, meaning it can connect to other existing Ethernet Systems and share vessel data to connected applications or third-party devices.
Features:
- Type-approved (RINA).
- NMEA 0183 Ethernet streaming
- NMEA 2000 Ethernet streaming
- NMEA 2000 output via M12
- 5x Configurable Opto-isolated NMEA 0183 inputs.
- 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
- 1x Bi-directional, configurable, isolated serial port.
- Automatic baud rate matching on inputs.
- Advanced data filtering/routing.
- Free firmware updates make the device future-proof.
- Diagnostic LEDs on all inputs and outputs.
- Bi-colour status LED.
- Panel mountable.
- Stainless Steel housing for added durability
Benefits:
- Quick and easy to install
- Configuration using standard web browser, no PC operating system compatibility issues
- Advanced features solve NMEA 0183 data routing problems
- Fully isolated with ISO-Drive technology for peace of mind
- Easy firmware updates make the device future-proof
Specifications:
- Ethernet port – for configuration, diagnostics, and sharing NMEA 0183 and NMEA 2000 data.
- 6 OPTO-Isolated NMEA 0183 inputs (including the serial port)
- 3 ISO-Drive NMEA 0183 outputs (including serial port)
- Bi-directional conversion and sharing of NMEA 2000 data
- Advanced-Data Filtering/Routing
- Configurable Input and output baud rates
- Autoswitch mode available to offer system redundancy
- Serial port – for configuration, diagnostics, or as an additional NMEA 0183 input/output
- Free firmware updates make the device future-proof
- Power LED to indicate the operational state
- Rx LED to indicate data on inputs
- Status LED (bi-color) to indicate output Data Overload or a range of other states
- DIN rail or Panel mountable
- Pluggable screw terminal connectors for quick and easy installation
