• Suncoast Marine and Auto offers Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized [VCH10W-12]
1 1

Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized [VCH10W-12]

Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized [VCH10W-12]

$411.99
$453.00 $411.99
Sale Sold out
Shipping calculated at checkout.

Common Questions

Can I purchase "Sold Out" or "Out of Stock" items?

If an item is labeled as "Sold Out" or "Out of Stock" it simply means that we do not normally keep this item in stock at our warehouse, but it can be ordered. Here's how...

Reach out to a team member or use the Chat box to see what options we have available for the parts you need!

What is your Shipping Policy?

FREE

  • Standard Shipping on Orders over $99
  • 2-Day Shipping on Orders over $699

Low Cost Options

  • $9.99 Standard Shipping on Orders under $99
  • $19.99 2-Day Shipping on orders under $699

Special Deliveries

  • Truck Freight and Hazardous items vary and may take 5-7 business days.

Tracking

  • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

Read our Shipping Policy

(restrictions may apply to these terms)

What delivery times should I expect?

Handling Times

  • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

Delivery Times

  • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
  • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
  • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
  • Always check with a Team Member if you have questions about a specific delivery time.

See our Shipping Policy for more information.

(restrictions may apply to these terms)

How does Suncoast handle returns and refunds?

  • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
  • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
  • Certain items, like installed products and special orders, cannot be returned.
  • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

For more details and restrictions, please read our Refund Policy.

(restrictions may apply to these terms)

How can I check for availability?

Not sure if this item is in stock?

  • Live Chat with the Owner below.
  • Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.

Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.

View full details

Product Description

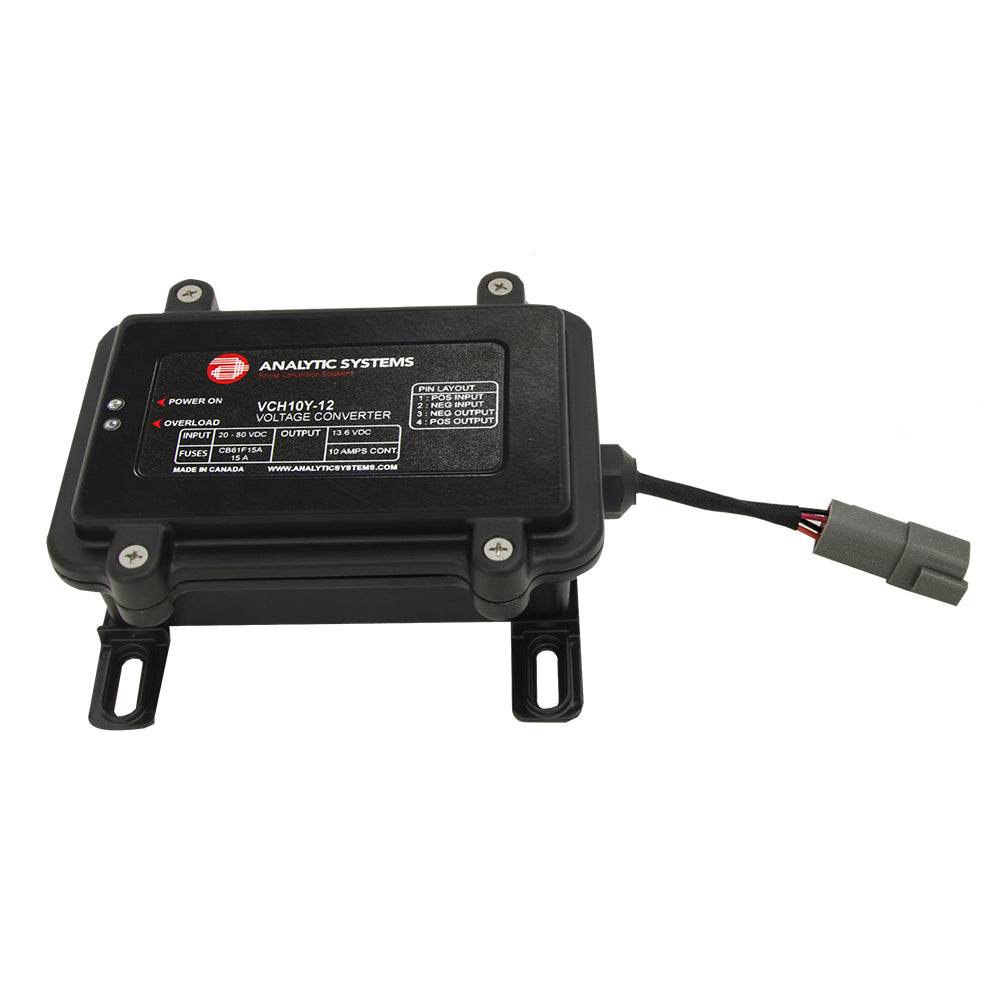

Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized

The VCH10 Step Down series of Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in rugged environments.

The standard VCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade VCH10MW features separate bayonet style MIL connectors for input and output.

The all surface mount high frequency design offers higher reliability, higher efficiency (more than 92%), more power (up to 544 watts at 48 VDC Out) and minimum size.

The VCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.

The unit has reverse input protection, output current limiting and output over-voltage protection.

Features:

  • Watertight O-ring sealed and EMC gasketed enclosure
  • MIL connectors
  • ‘Output ON’ and ‘Overload’ LED indicators
  • Compact size and easy mounting
  • Up to 80V input
  • Heavy duty ruggedization with wide temperature range
  • Paralleling diodes
  • Custom output voltages available
  • Two year warranty (parts and labor)

Specifications:

  • Charger Input - Voltage: 20-80v
  • Charger Output - Amps: 10a
  • Charger Output Voltage: 12v

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
