![ARCO Marine Zeus A225S Vortec Alternator w/Terminal Block [4017] - Suncoast Marine & Auto Supply](http://www.suncoastmarineandauto.com/cdn/shop/files/107333XL.jpg?v=1737793361&width=1946)
ARCO Marine
ARCO Marine Zeus A225S Vortec Alternator w/Terminal Block [4017]
ARCO Marine Zeus A225S Vortec Alternator w/Terminal Block [4017]
Regular price
$767.80
Regular price
$874.50
Sale price
$767.80
Unit price
per
Couldn't load pickup availability
Shipping
Shipping
FREE
- Standard Shipping on Orders over $99
- 2-Day Shipping on Orders over $699
Low Cost Options
- $9.99 Standard Shipping on Orders under $99
- $19.99 2-Day Shipping on orders under $699
Special Deliveries
- Truck Freight and Hazardous items vary and may take 5-7 business days.
Tracking
- Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)
Read our Shipping Policy
(restrictions may apply to these terms)
Delivery Times
Delivery Times
Handling Times
- Orders ship within 24 hours of purchase. (Next Day Shipping Available)
Delivery Times
- All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
- Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
- "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
- Always check with a Team Member if you have questions about a specific delivery time.
See our Shipping Policy for more information.
(restrictions may apply to these terms)
Returns and Refunds
Returns and Refunds
- Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
- If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
- Certain items, like installed products and special orders, cannot be returned.
- Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.
For more details and restrictions, please read our Refund Policy.
(restrictions may apply to these terms)
Check Availability
Check Availability
Not sure if this item is in stock?
- Live Chat with the Owner below.
- Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.
Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.
![ARCO Marine Zeus A225S Vortec Alternator w/Terminal Block [4017] - Suncoast Marine & Auto Supply](http://www.suncoastmarineandauto.com/cdn/shop/files/107333XL.jpg?v=1737793361&width=1445)
Product Description

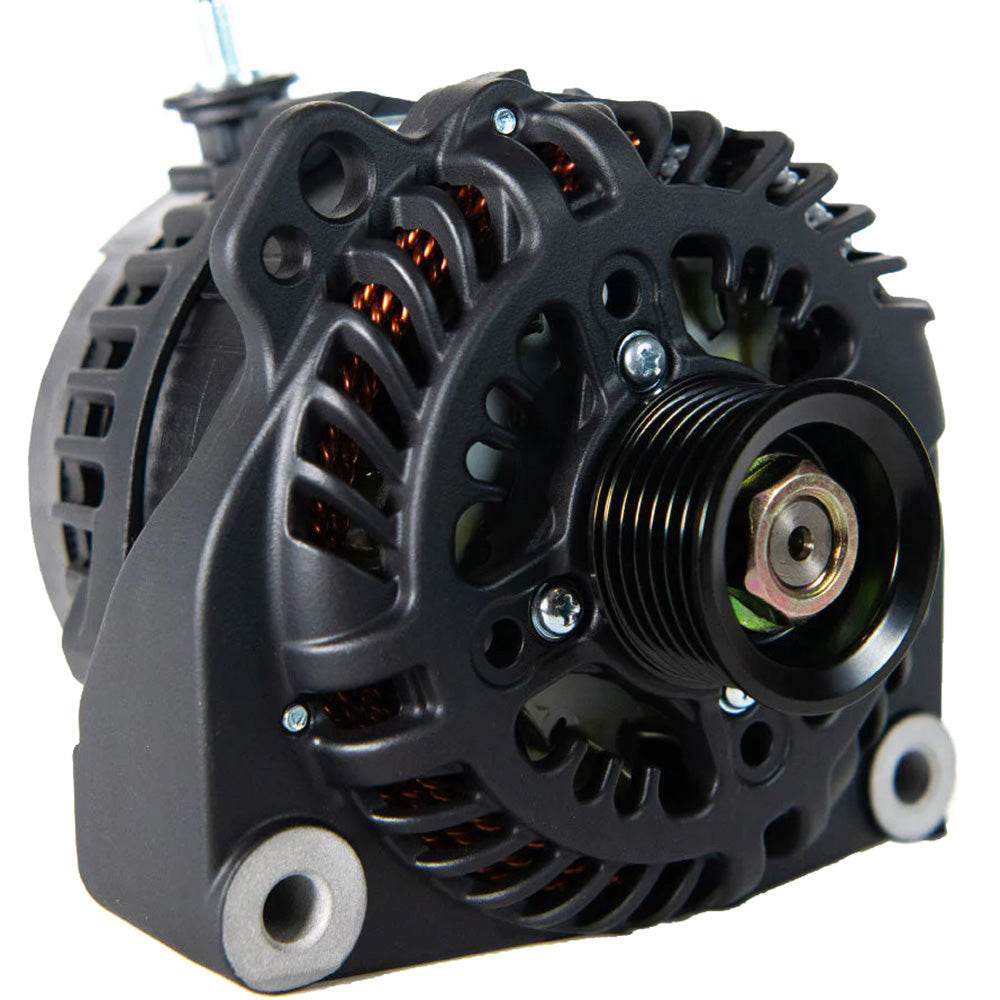

Zeus A225S Vortec Alternator with Terminal Block
The highest power output alternator in its size/class.
Features:
- Engineered for High Energy Production.
- Suitable for Marine, RV, Military, and Commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM Components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods.
- For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.
- SAE J1171 Certified.
- Proudly made in the U.S.A.
Technical Specifications:
- Voltage - 12v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 130mm
- Frame Size - Small
- Weight - 12lbs/6.7kg
- Regulation - External Only
- Output Voltage - 14.1v (default)
- Finish - (Black) Cerakote or E-coating
- Cut-In RPM - 1,061 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) - 254 Amps
- Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
- Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
Mounting Application:
- Replaces Mando type alternators using Vortec/ GM pad mounting feet (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines.) (GM Blocks)
