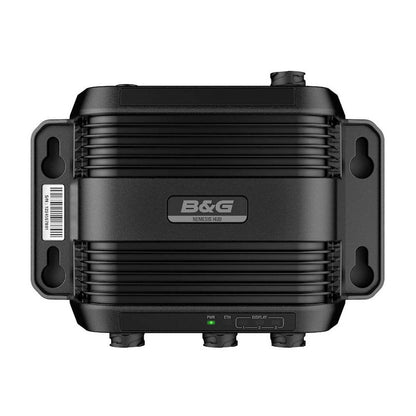

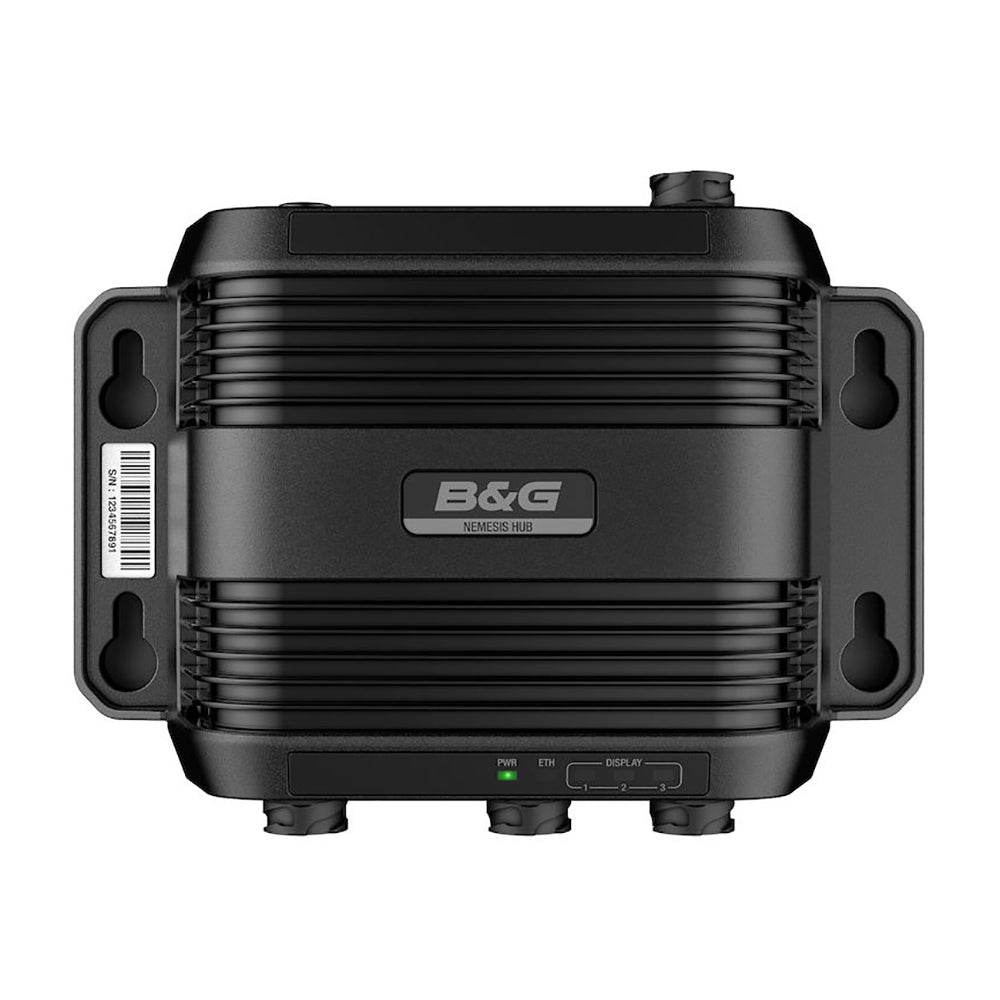

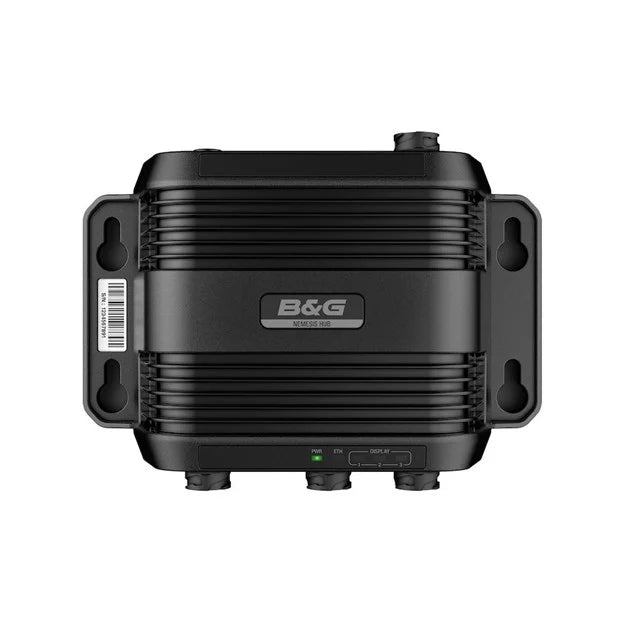

B&G Nemesis Hub Sailing Display Network Expansion Module

Nemesis Hub (000-15683-001)

Expand Your Nemesis Display Network

Unlock the full potential of your sailing instrumentation by linking multiple displays with the B&G Nemesis Hub (00015683001). Designed specifically for the Nemesis 9 and Nemesis 12 displays, this compact hub lets you concentrate your cabling and intelligently distribute both power and data across your system. Whether at the mast, helm, or cockpit, you can maintain a clean and efficient network topology without compromising performance.

Key Features & Capabilities

• Enables you to connect up to 3 Nemesis displays through a single Power/Ethernet run, simplifying installation and cable management
• Distributes both power (12/24 V DC) and Ethernet data to each connected display—no additional power lines required
• Additional Nemesis Hubs can be daisy-chained for systems requiring more than three displays
• Compatible with Ethernet-based instrument networks and supports NMEA2000 integration via the Nemesis displays themselves
• Designed for harsh marine environments: IPX6 / IPX7 waterproof rating, working temperature range from –20 °C to +60 °C, storage range –15 °C to +55 °C
• Low power draw—only ~2 W base power consumption, with additional power passed through to connected displays (up to ~60 W aggregate)
• Lightweight and compact: roughly 240 g (0.44 lbs), making it ideal for installation in tight spaces near the mast, behind panels, or under consoles

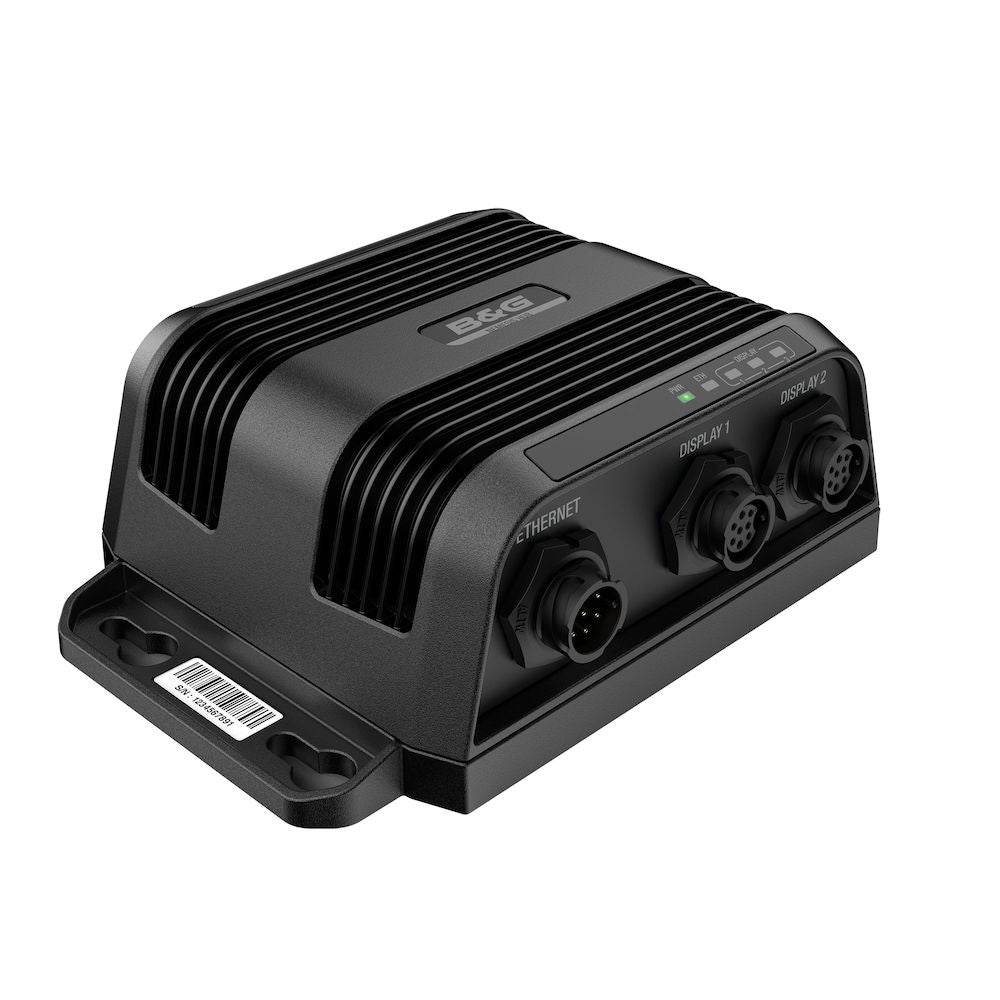

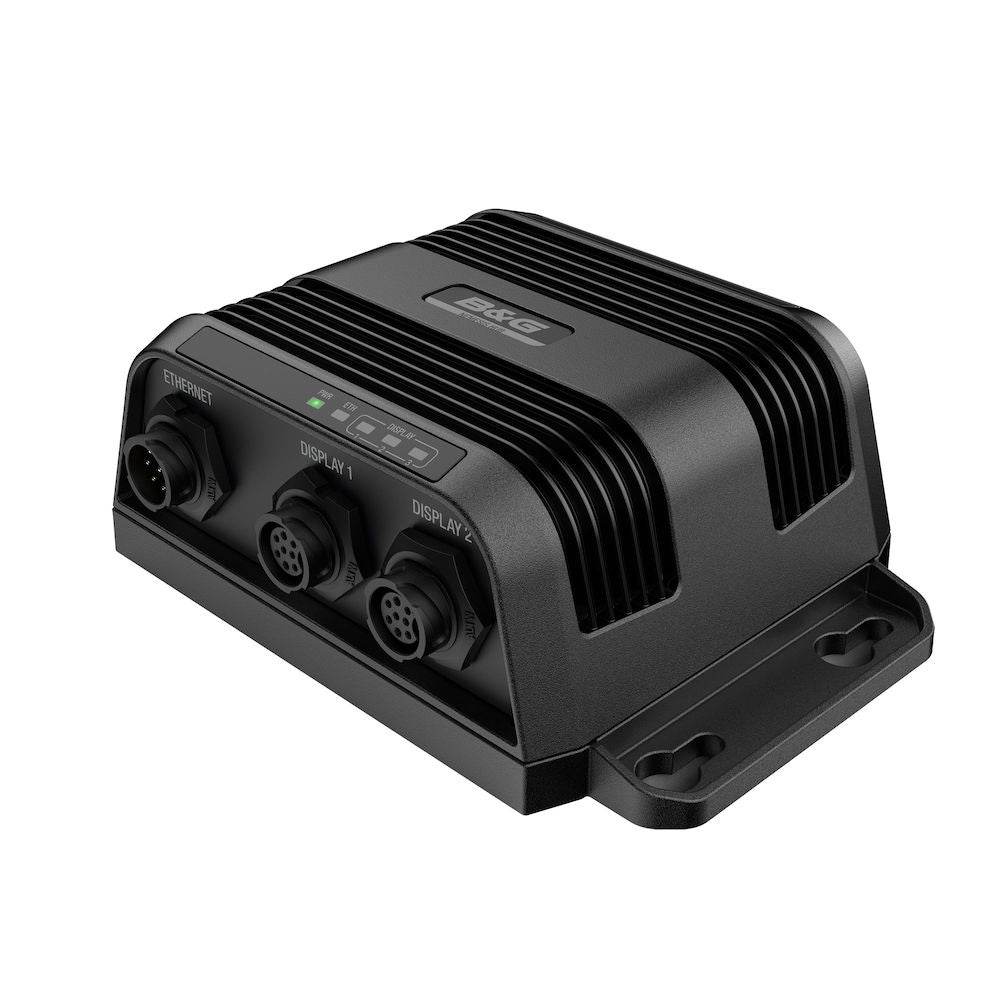

• Offers single 8-pin connector for hub input (Power + Ethernet) and three 8-pin outputs to each Nemesis display

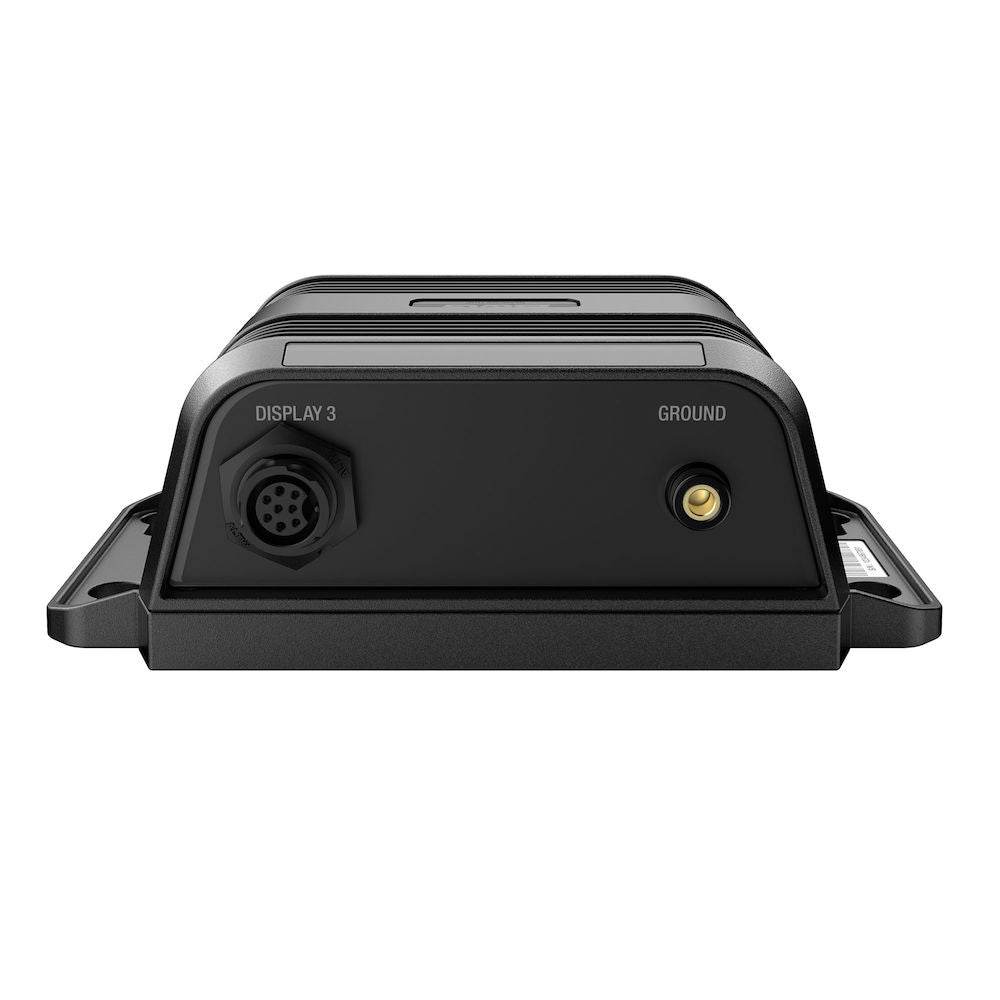

• Grounding point included (M4) to ensure safe and reliable electrical installation

Why Choose the Nemesis Hub 000-15683-001?

By centralizing your cabling infrastructure, the Nemesis Hub reduces wire clutter, lowers the number of direct runs to your instrument bus, and simplifies both upgrades and troubleshooting. It’s ideal for yachts and sailboats with multi-station displays or where the mast and helm are remote from each other. The hub ensures each Nemesis display receives reliable power and data without signal degradation, while offering the expandability needed for larger systems.

The Nemesis™ Hub allows you to combine two or more Nemesis 9 or 12 Sailing Displays, either on a mast, in the cockpit or at the helm station.
