BG V100 VHF Black Box Radio

V100 Black Box VHF Radio (000-15644-001)

Enhance your marine communications and safety with the B&G V100 Black Box VHF Radio — a powerful, modular, multi-station system designed for serious boaters. Whether cruising, racing, or voyaging offshore, this radio gives you flexibility, integration, and robust features.

The B&G V100 is a black box–style VHF radio (model 000-15644-001) that separates the radio core (NRS-1) from the user interface, allowing you to place handsets and speakers anywhere on board. This setup reduces clutter at the helm and enables expansion into a full-boat communication system. The unit is Class D DSC–approved, includes a built-in GPS receiver, and supports seamless integration via NMEA 0183 and NMEA 2000. With optional wireless handsets, external speakers, and intercom-like features, the V100 becomes more than a radio — it becomes your ship’s communication backbone

Key Features & Capabilities

• Class D DSC–approved VHF radio with dual receivers, including dedicated CH 70 listening
• Integrated GPS receiver for position polling and distress calls
• Modular system supporting up to 8 handsets (4 wired + 4 wireless) for full-boat coverage
• Expandable to 4 external speakers to hear radio channels anywhere on your vessel
• 60-second audio rewind lets you replay missed calls or chatter
• Configurable speaker volume offsets to balance audio across different stations

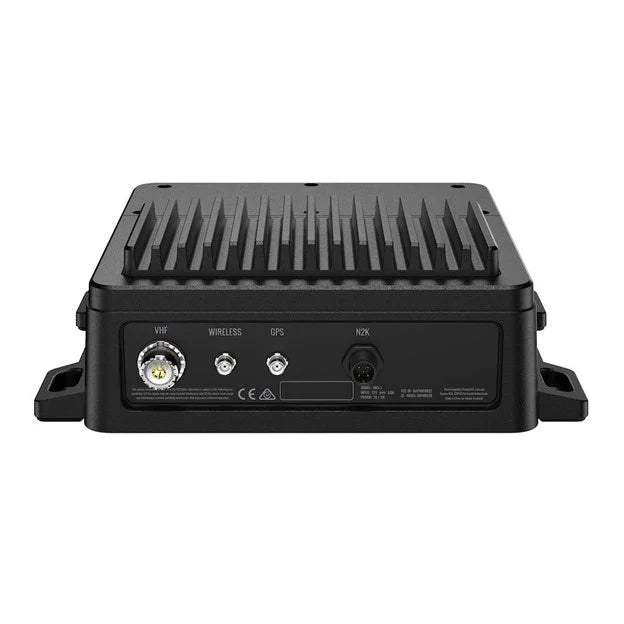

• NMEA 0183 & NMEA 2000 compatibility for integration with chartplotters, MFDs, autopilot, and other systems
• “Track Buddy” function can track up to 5 vessels via their MMSI, helping maintain situational awareness of nearby boats
• Expandable with loudhailer / horn function support via speaker line (optional)
• Named handset stations, channel favorites, dual/triple watch, and backlight grouping available

Technical Highlights & Specifications

• Power output: 25 W (high) / 1 W (low) transmitter modesOperating voltage range: approx. 10.5 V to 15.8 V DC
• Standby current draw: ~400 mA

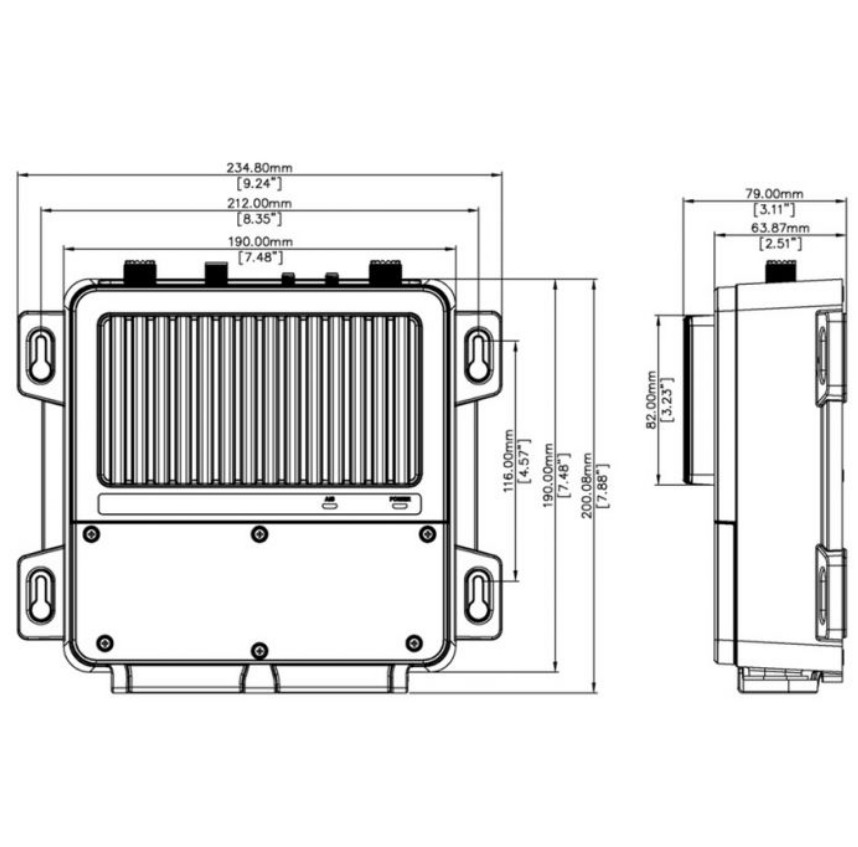

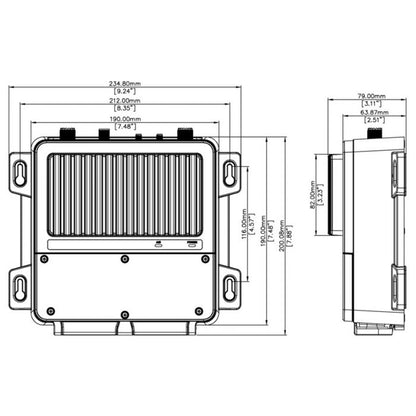

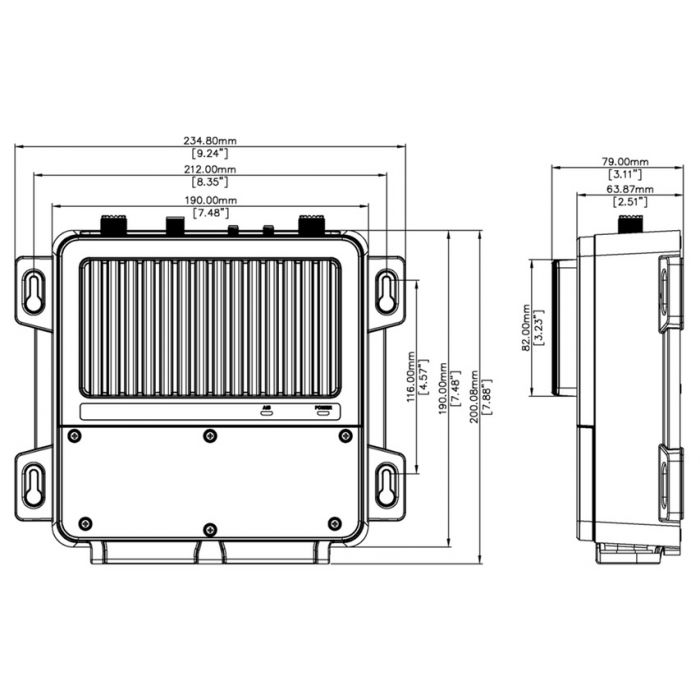

• Dimensions (black box unit): ~ 9.2 in (W) × 3.1 in (D) × 7.8 in (H)
• Operating temperature: –20 °C to +55 °C (–4 °F to 131 °F)
• Waterproof rating: IPX5 (splash / rain resistant)

Why Choose the V100 Black Box VHF?

The modular design of the V100 allows you to build a robust communications system throughout your vessel without compromising cockpit space. It excels in integration, letting your chartplotter, autopilot, or navigation suite share data via NMEA. The ability to use up to 8 handsets and multiple speakers means no dead zones aboard. With DSC, GPS, and Track Buddy features, the V100 doesn’t just let you talk — it helps keep you safe and aware on the water.

V100 Key Features:

• Class D DSC approved VHF radio
• Integrated GPS receiver
• Connect up to 4 wireless and 4 wired handsets
• Add an optional loudhailer and up to 4 external speakers
• NMEA 0183 and NMEA 2000® connectivity
• 60 second audio rewind
• Configurable external speakers with volume offsetting
• Handset backlight settings can be grouped with NMEA2000® backlight groups so MFD’s and VHF Radios can have backlight controlled together
• Track Buddy – track up to 5 “buddies” using their VHF MMSI

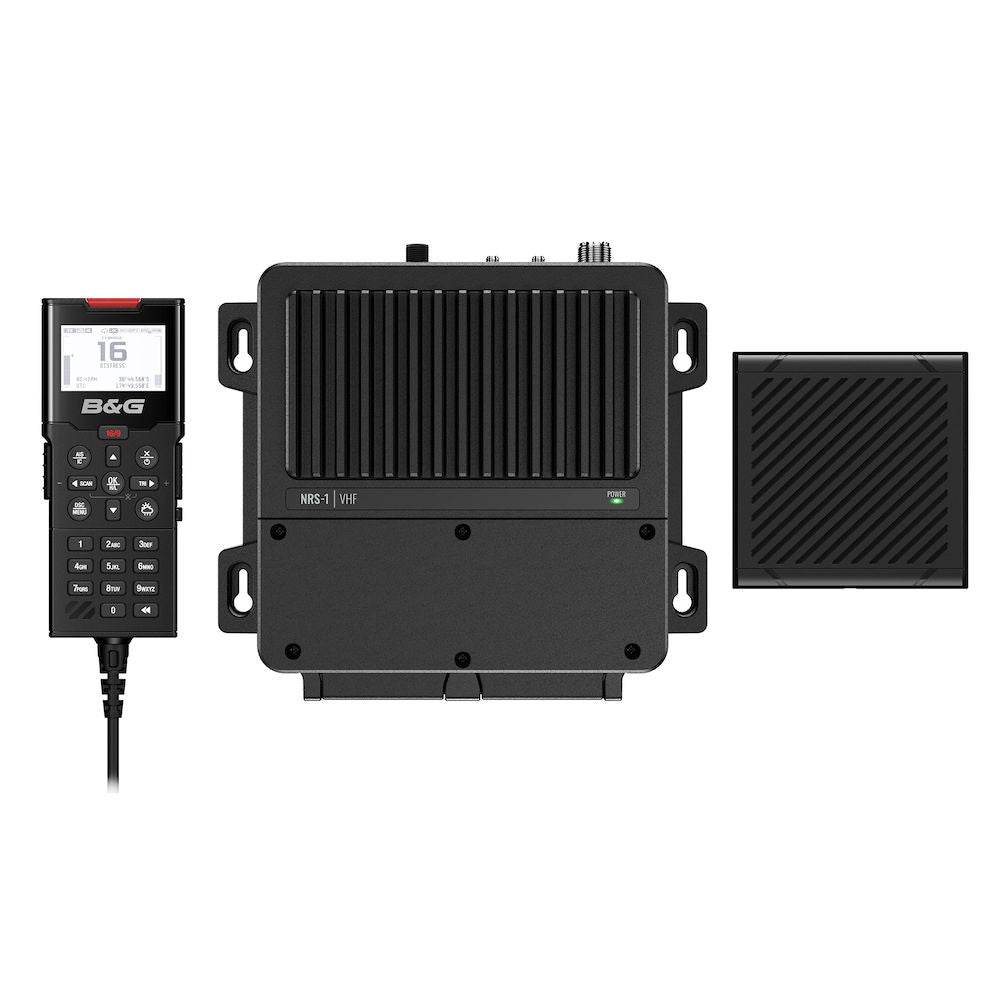

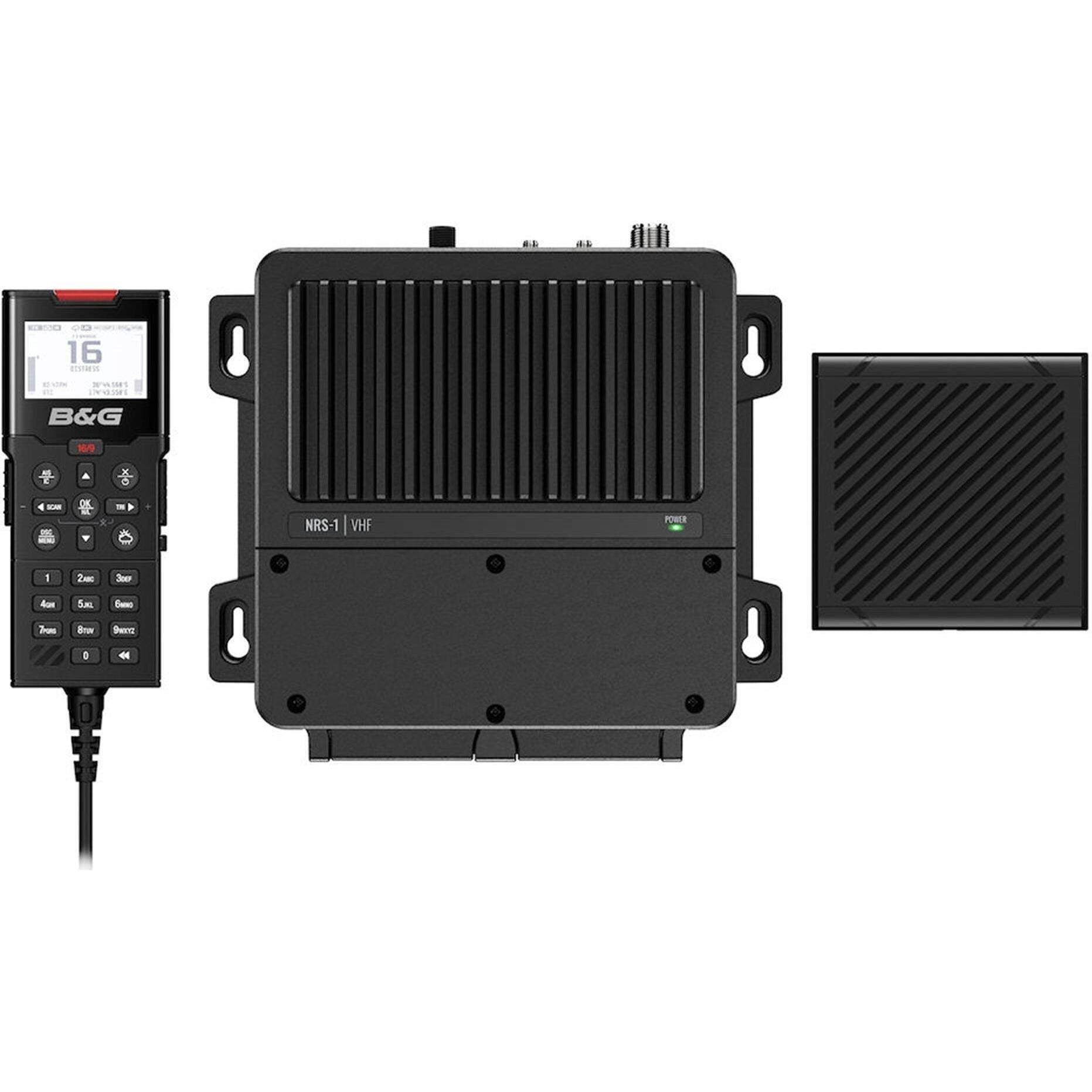

In the Box:

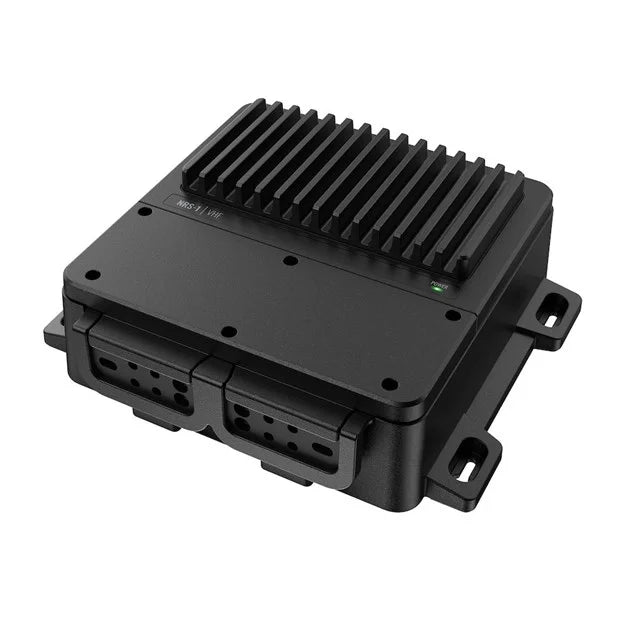

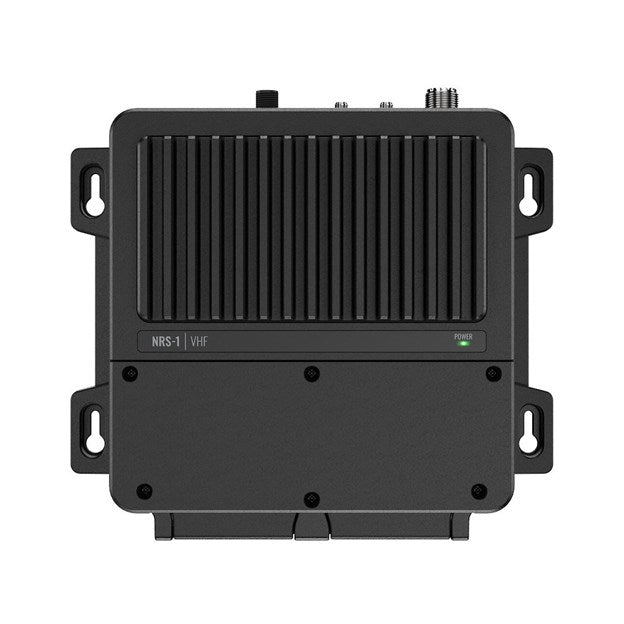

• 000-15641-001 NRS-1 Black Box

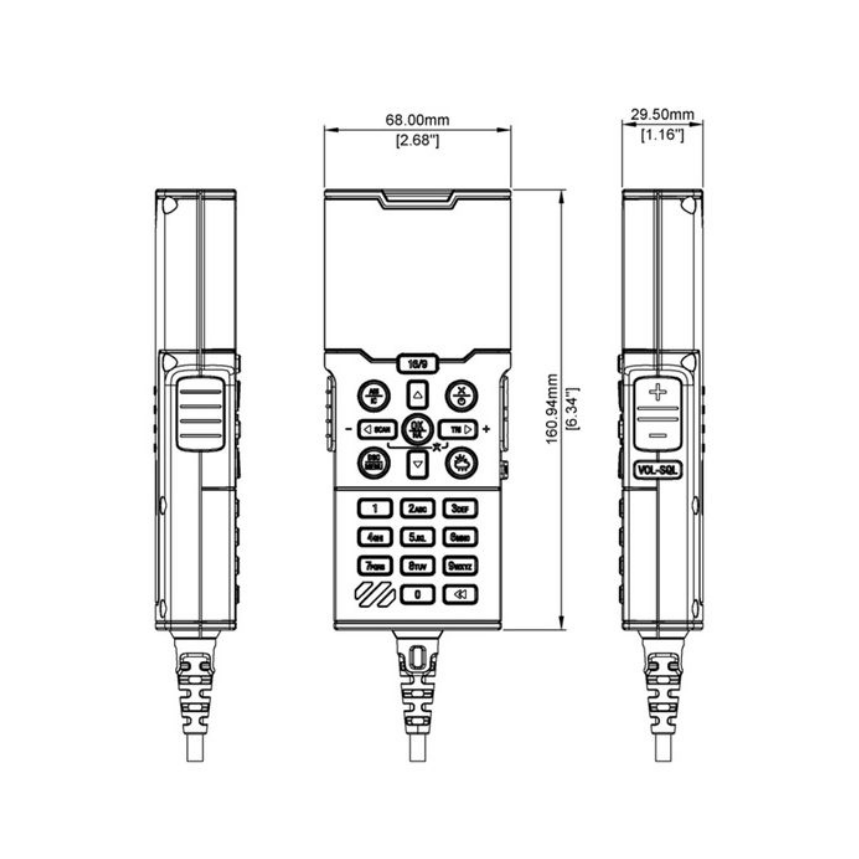

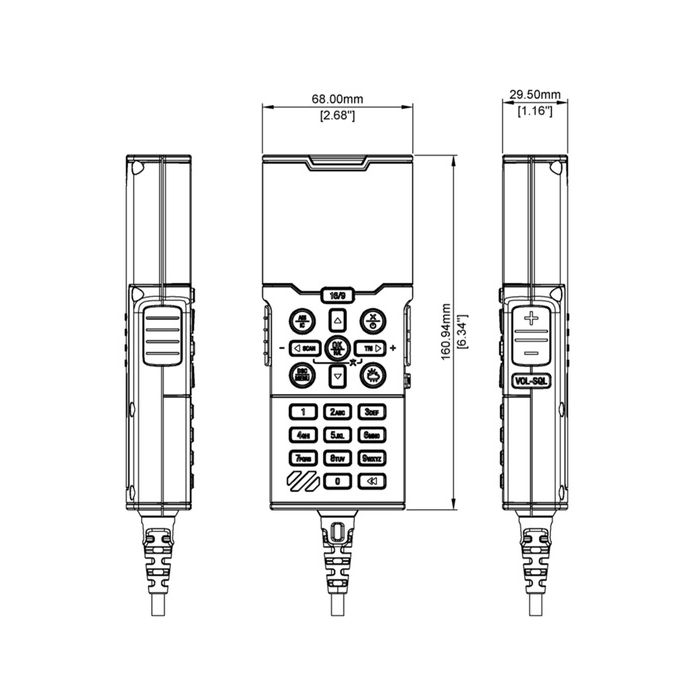

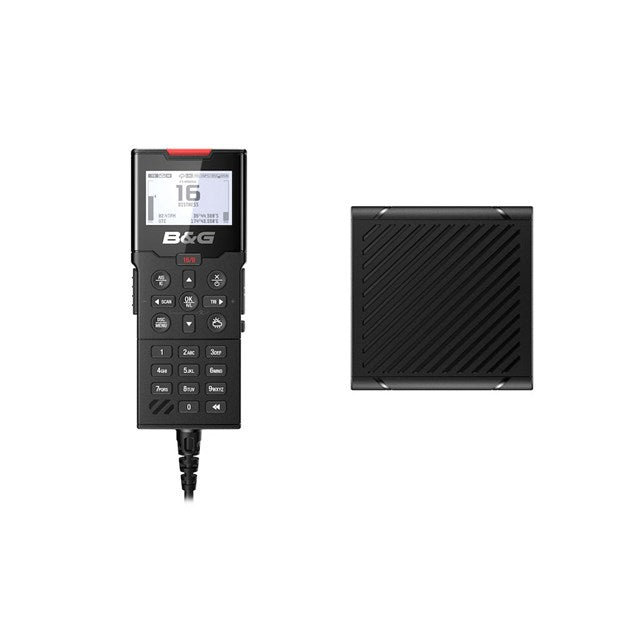

• 000-15650-001 H100 Handset

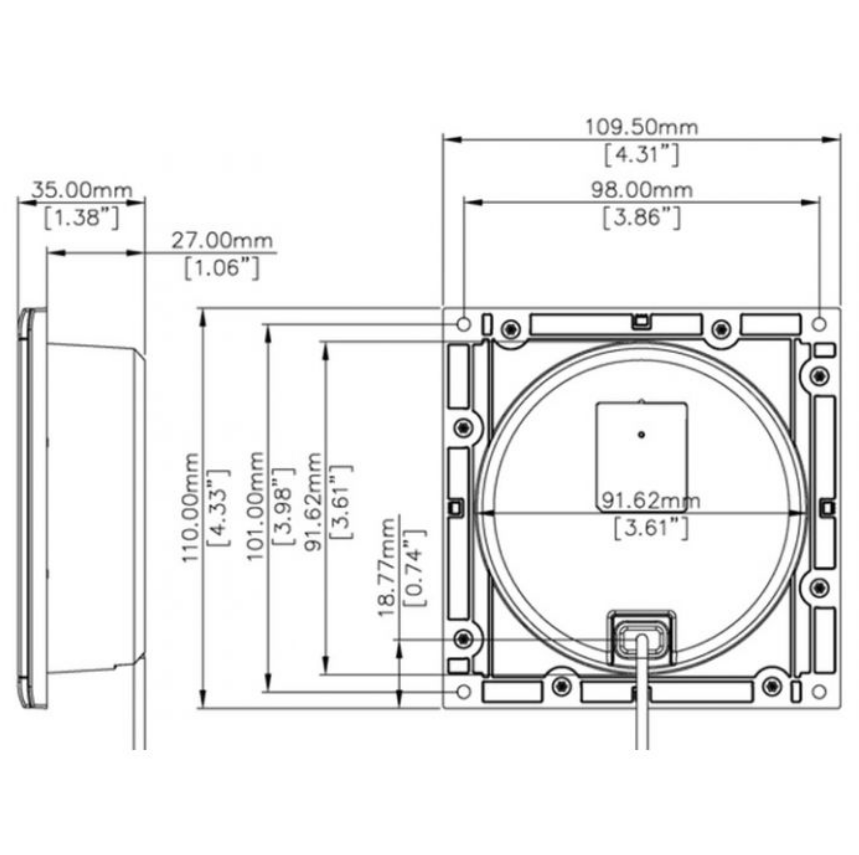

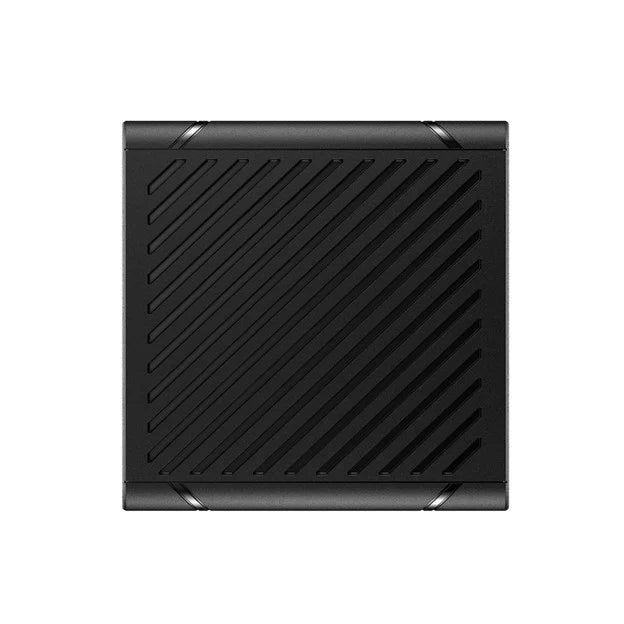

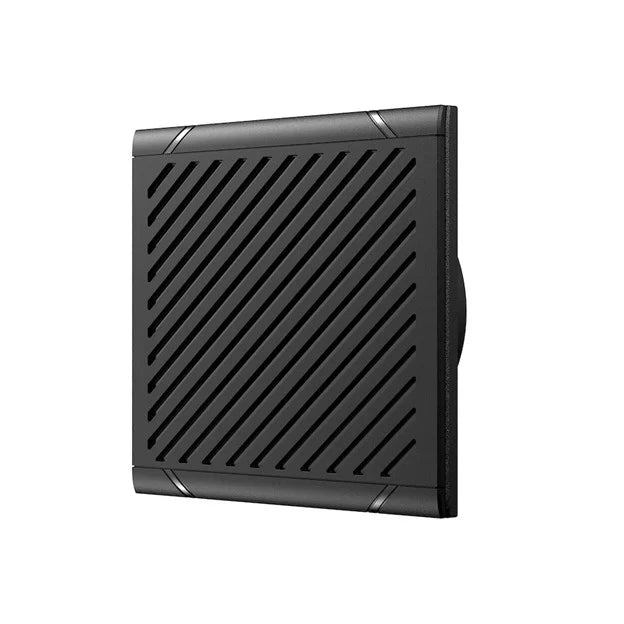

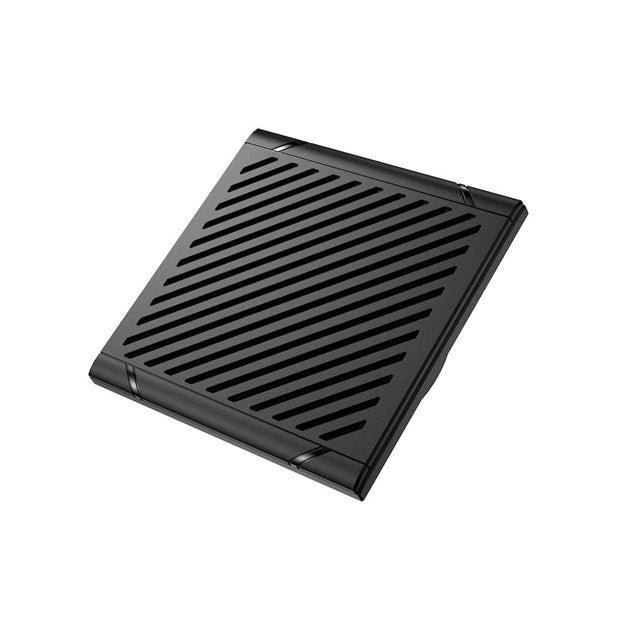

• 000-15651-001 SP100 - Speaker for Simrad and B&G Systems

Specifications:

• Remote Mic Capable: Yes
• NMEA 2000: Yes
• Listen-Back: Yes
• Intercom Capability: Yes
• Hailer: Yes
• Built-In GPS: No
• AIS: No
