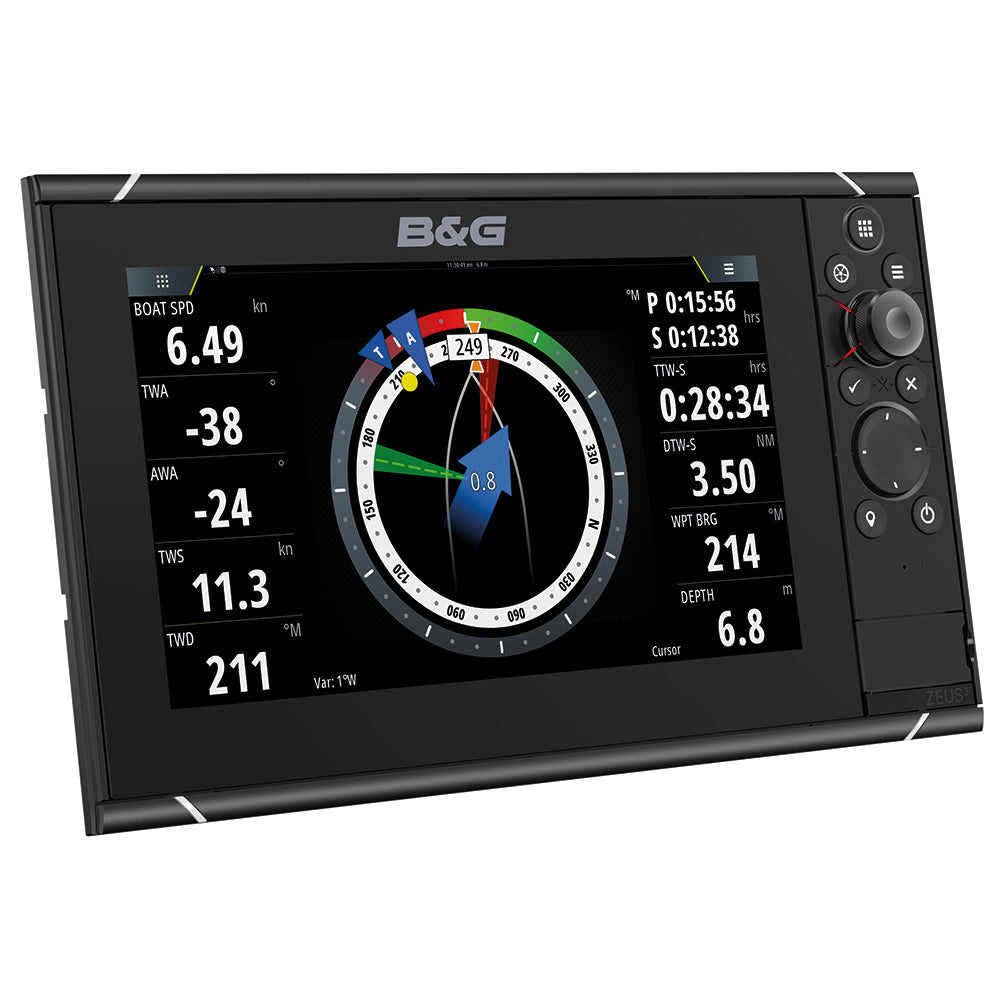

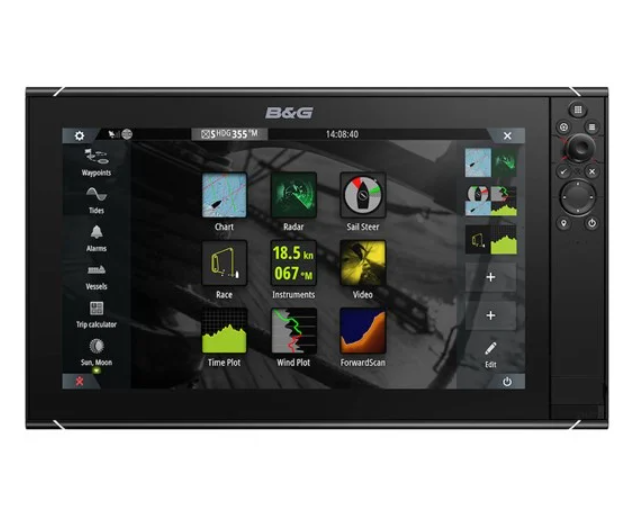

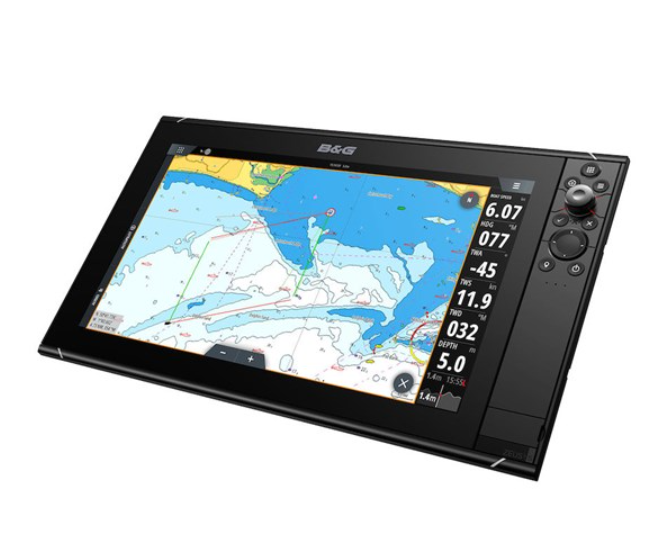

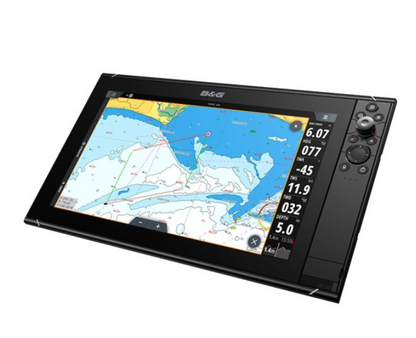

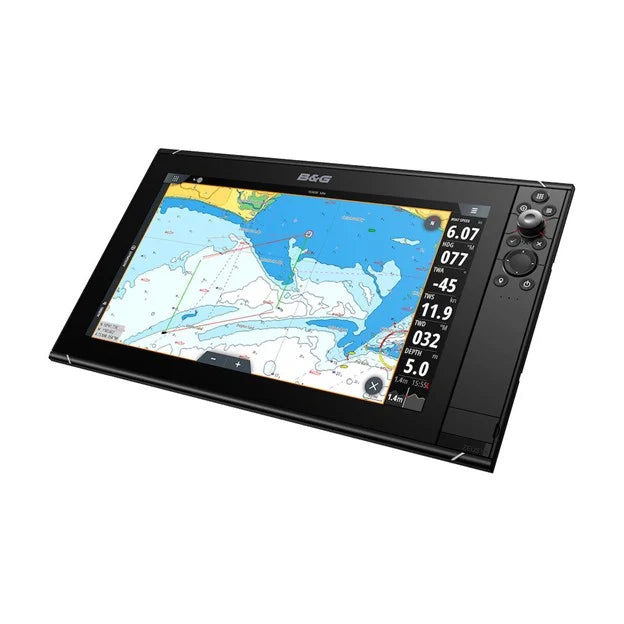

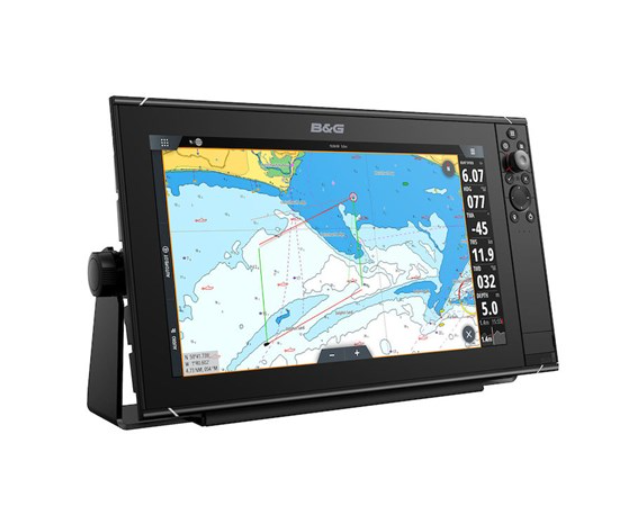

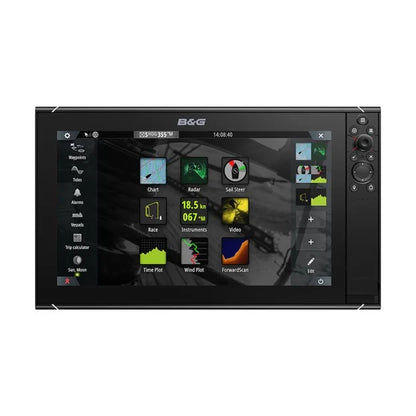

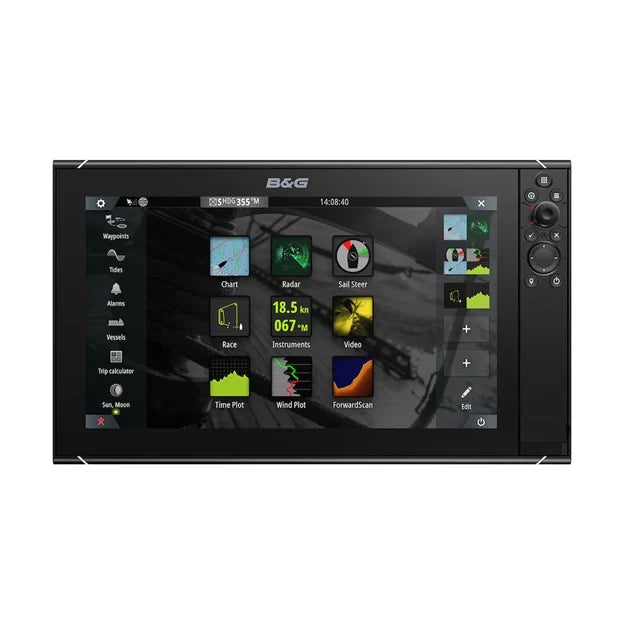

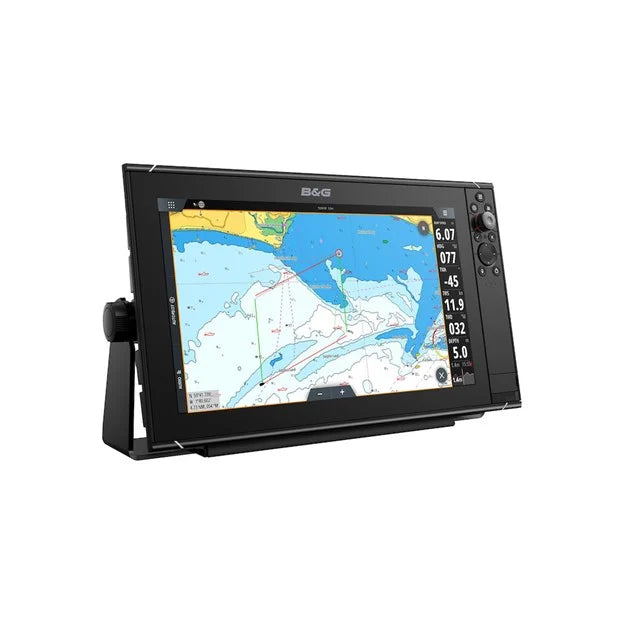

Zeus™ 3S 16 - 16 inch Multi-Function Sailing Display (000-15410-001)
B&G Zeus™ 3S 16" Multi-Function Sailing Display — Product Description
Take command of your onboard navigation and racing performance with the Zeus 3S 16" Multi-Function Sailing Display. Engineered by B&G specifically for the demands of sailors, racers, and blue-water cruisers, it delivers unmatched speed, clarity, and integration in one high-performance unit.
Key Features & Capabilities
Ultra-bright SolarMAX™ HD IPS display
- With a 16" optically bonded LCD and up to 1,200 nits of brightness, the screen maintains exceptional visibility in full sunlight — even when wearing polarized sunglasses.
Dual control interface: touchscreen + keypad/rotary dial
- Offers the flexibility of full multi-touch navigation combined with physical rotary dial and keypad input — ideal for rough seas or quick adjustments.
High-speed performance & multitasking
- Powered by the i.MX8 processor, it can simultaneously run charting, radar, ForwardScan, and autopilot control without lag — giving you real-time situational awareness.
Built-in GPS & charting support
- Features a 10 Hz, multi-constellation GNSS receiver (GPS + GLONASS) with ~3 m horizontal accuracy.
- Comes pre-loaded with Insight mapping and is compatible with leading chart formats, including C-MAP, Navionics (Gold, Platinum+), NV Digital, and more.
Advanced sailing & racing tools

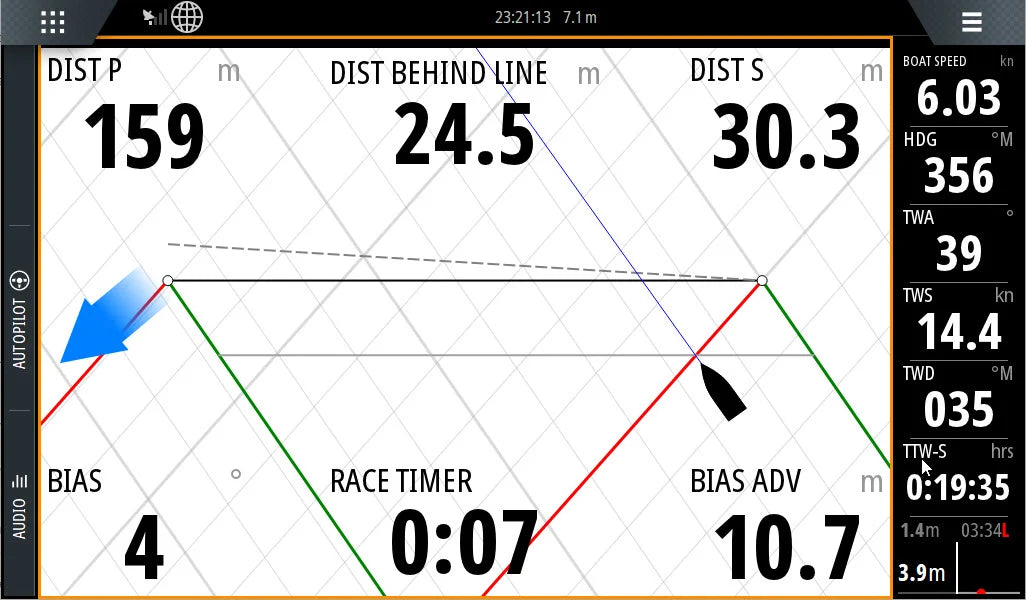

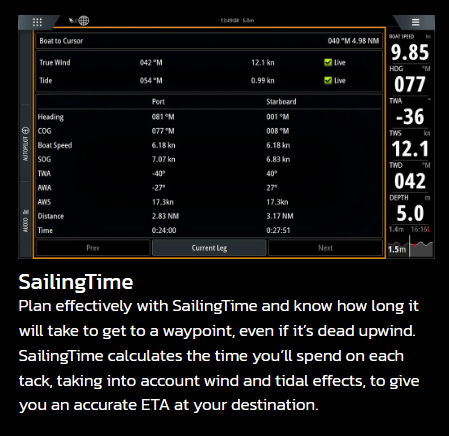

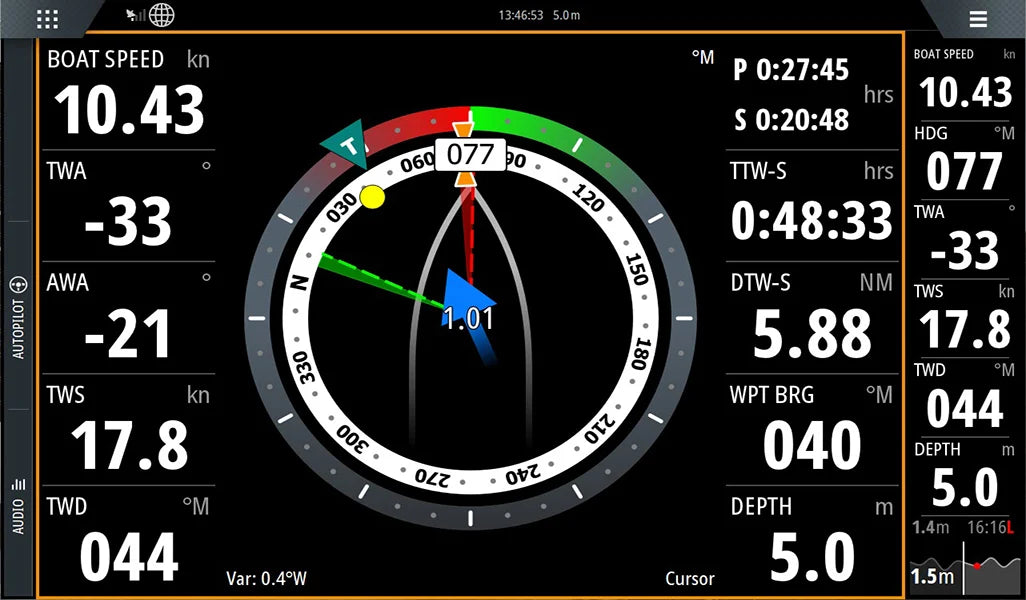

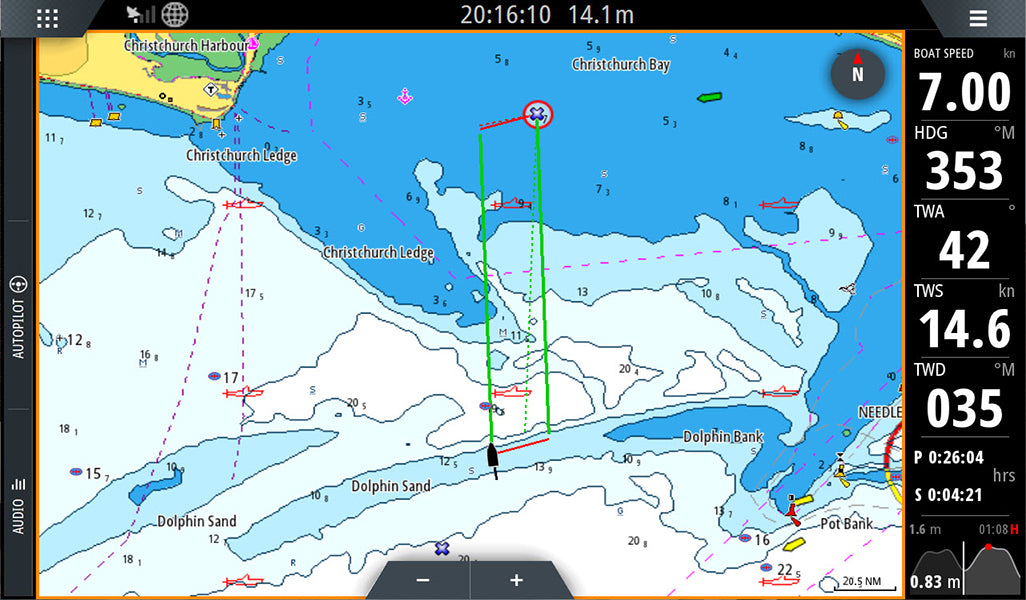

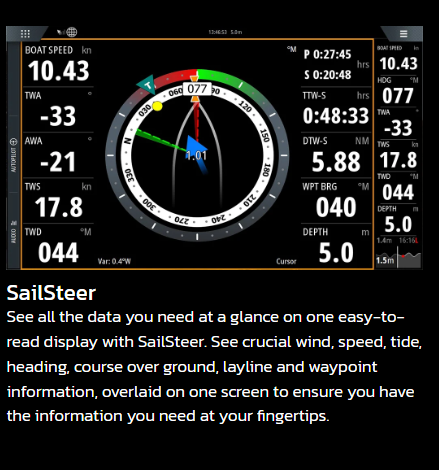

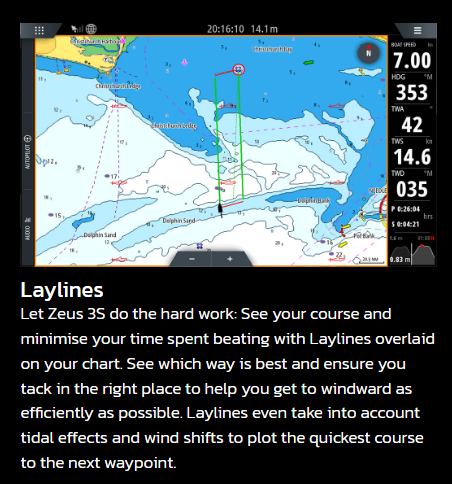

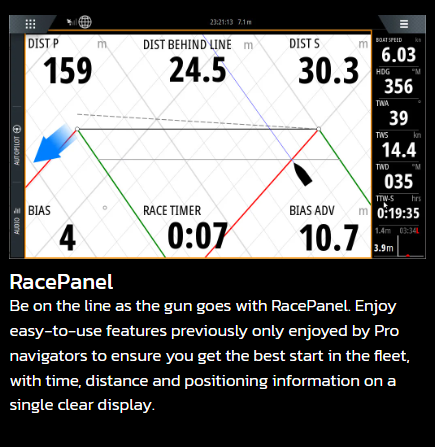

- Benefit from B&G’s proven features like SailSteer, LayLines, RacePanel, StartLine, SailingTime, and PredictWind, built into the system for seamless navigation and tactical decisions.
Expandability & network integration
- Seamlessly integrates with B&G’s performance network: HALO/Broadband Radar, Autopilot systems, ForwardScan sonar, NMEA 2000 & 0183, FLIR/IP cameras, and more.
- Internal Wi-Fi allows screen mirroring, remote control via smartphone or tablet, and over-the-air software updates.
Robust construction & marine-grade protection
- Built to survive harsh marine environments — IPX6/IPX7 water resistance, vibration and shock tolerance (100,000 cycles at 20G), and an operating temperature range from –15 °C to +55 °C.
Sonar & echo-sounding support

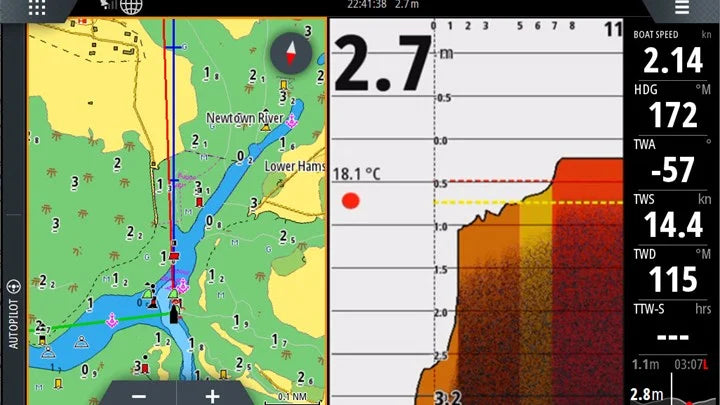

- Equipped with dual 9-pin sonar ports supporting CHIRP and HDI, as well as ForwardScan and side-scan when paired with compatible transducers.
- Capable sonar depth range: tested beyond 3,000 ft (depending on transducer).
Memory & route capabilities
- Offers 16 GB internal storage plus dual microSD slots (up to 32 GB each).
- Store up to 6,000 waypoints, 500 routes (max 100 points each), and 50 tracks with up to 12,000 total track points.
Why Sailors Choose the Zeus 3S 16
- It’s purpose-built for marine and sailing environments — from extreme brightness to rugged durability
- Racing and cruising sailors gain access to advanced analytics and tools built right in
- Modular and expandable — fits seamlessly into modern marine electronics ecosystems
- A trusted name: B&G has a long history of delivering elite sailing electronics
Experience ultimate sailing control with the B&G Zeus 3S 16" multifunction display, the premium marine chartplotter and sailing navigation system built for cruisers and racers alike. Featuring a superfast processor and ultra-bright SolarMAX™ IPS touchscreen, it delivers lightning-fast chart redraws, split-screen performance, and perfect visibility in any conditions — even through polarized sunglasses.
Key Features:
- All-weather touchscreen with rotary dial & keypad for complete control in rough seas
- Race-proven sailing tools including SailSteer™, Laylines, RacePanel, and SailingTime for precision navigation and tactical performance
- Integrated Wi-Fi & Bluetooth for software updates, screen mirroring, and mobile device connection
- Full network compatibility with NMEA 2000®, radar, autopilot, sonar, and ForwardScan™ transducers
- Advanced chart support for C-MAP®, Navionics®, and more with autorouting, tides, and harbor detail
- Built-in GPS receiver and high-speed processor for smooth, real-time sailing data

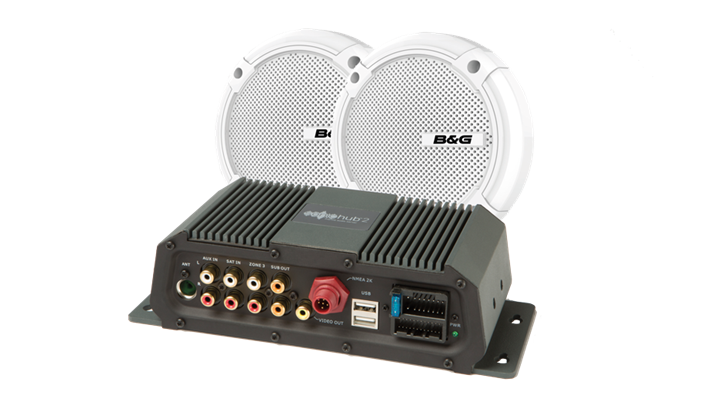

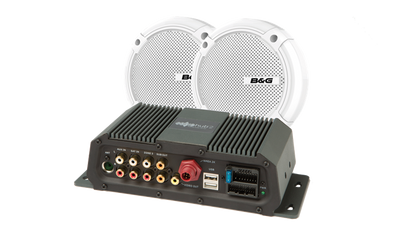

- Connect and control onboard systems, lighting, and entertainment via CZone® and SonicHub® integration
Engineered for bluewater cruising and competitive racing, the B&G Zeus 3S 16 sits at the heart of your boat — combining advanced sailing intelligence, powerful navigation, and total connectivity for safer, smarter adventures on the water.
Additional Info:
- The fastest / most responsive sailing chartplotter and navigation display yet
- Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
- Up to 6-Way information panel split on the display
- Connect with smartphones, tablets, and internet hotspots
Specifications:
| Physical | |
| Dimensions | 437 x 256 x 98 mm (17.19 x 10.08 x 3.82") with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80") |
| Weight | 4.65kg/10.25lb |
| Environmental | |
| Operating temperature range | -15°C to +55°C (5° F to 131° F) |
| Environment Shock Vibration | 100,000 cycles of 20G |
| Storage temperature range | -20°C to +60°C (4°F to 140°F) |
| Water resitance | IPX6 and 7 |
| Power | |
| Supply voltage | 10 - 31.2 V DC |
| Fuse rating | 7.5A |
| Power consumption (Max) | 40W |
| Display | |
| Display backlight color | White |
| Display resolution | 1080 x 1920 |
| Display screen brightness | 1200 nits |
| Display size and type | High Visibility SolarMax HD® IPS 7" optically bonded TFT |
| Display viewing angles | 80° top/bottom, 80° left/right |

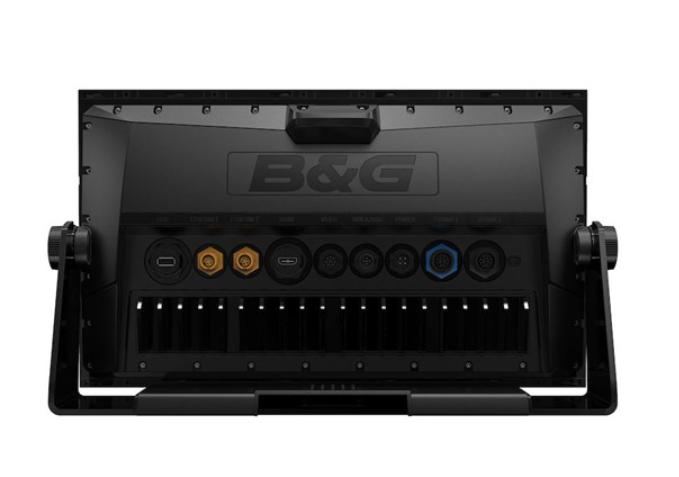

| Connectivity | |

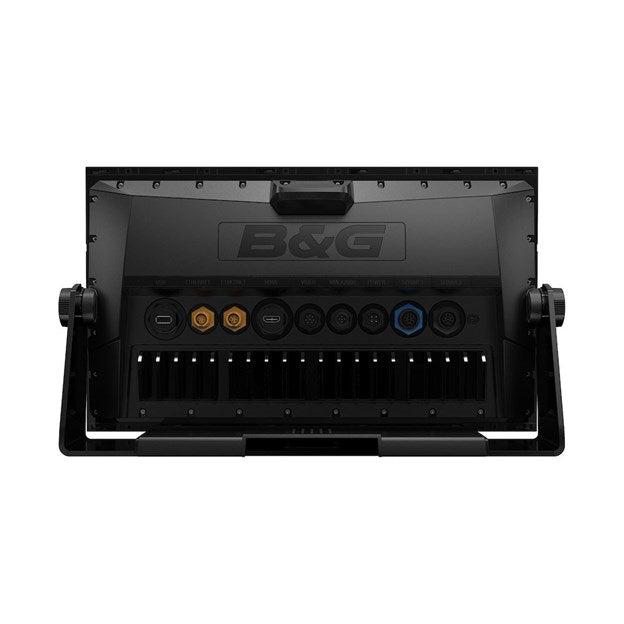

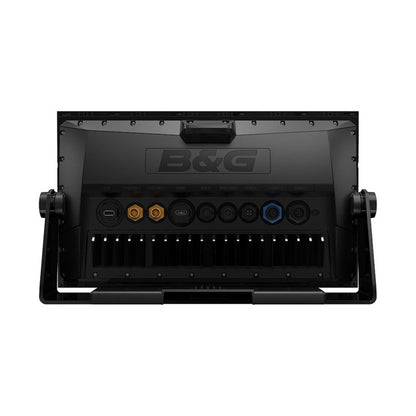

| Ethernet | 2 x 5 pin yellow connector x 1 Mbit |
| Bluetooth | Internal |
| NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 connectivity | 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use the same baud rate. Optional data cable required (P/N 000-00129-001) |
| Video connectivity | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output. |
| WiFi connectivity | Internal |
| Sonar | |
| Sonar frequencies | 40-250kHz 455-800kHz |
| Sonar max depth | 3000’+ (tested with B175L) |
| Sonar output power | 1kW RMS |
| GPS | |
| GPS | Internal |
| GPS update rate | 10 Hz |
| GPS channels | 34 Channels |
| GPS correction | WASS, EGNOS, MSAS, GLONASS |
| GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| GPS time to first fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
| Features | |
| Interface | Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers |
| Charts Incuded | Insight |
| Radar | Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar |
| Sonar | Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders" |
| Weather | SiriusXM via WM-3 (USA only), GRIB |
| AIS | Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors) |

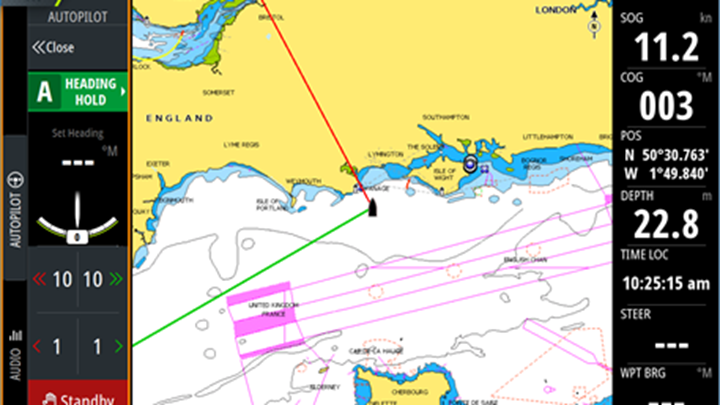

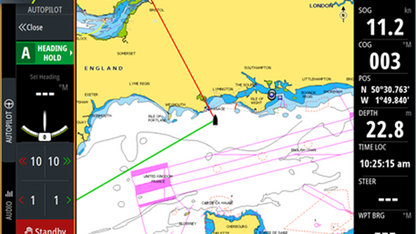

| Auto pilot integration | Full auto pilot control and commissioning |
| Autopilot steering modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Autopilot manouevres turn patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Supported Charts | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Digital switching | BEP C-Zone, Naviop |
| External storage | 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
| Internal storage | 16 GB |
| Multi-media | via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
| Waypoints, routes & tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Launguage Support | Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. |
What's in the Box:
- Zeus S 16 16-inch touchscreen display
- 4-Pin Power Cable
- Dash Mount Kit
- Edge Bezels
- Sun cover
