Product Description

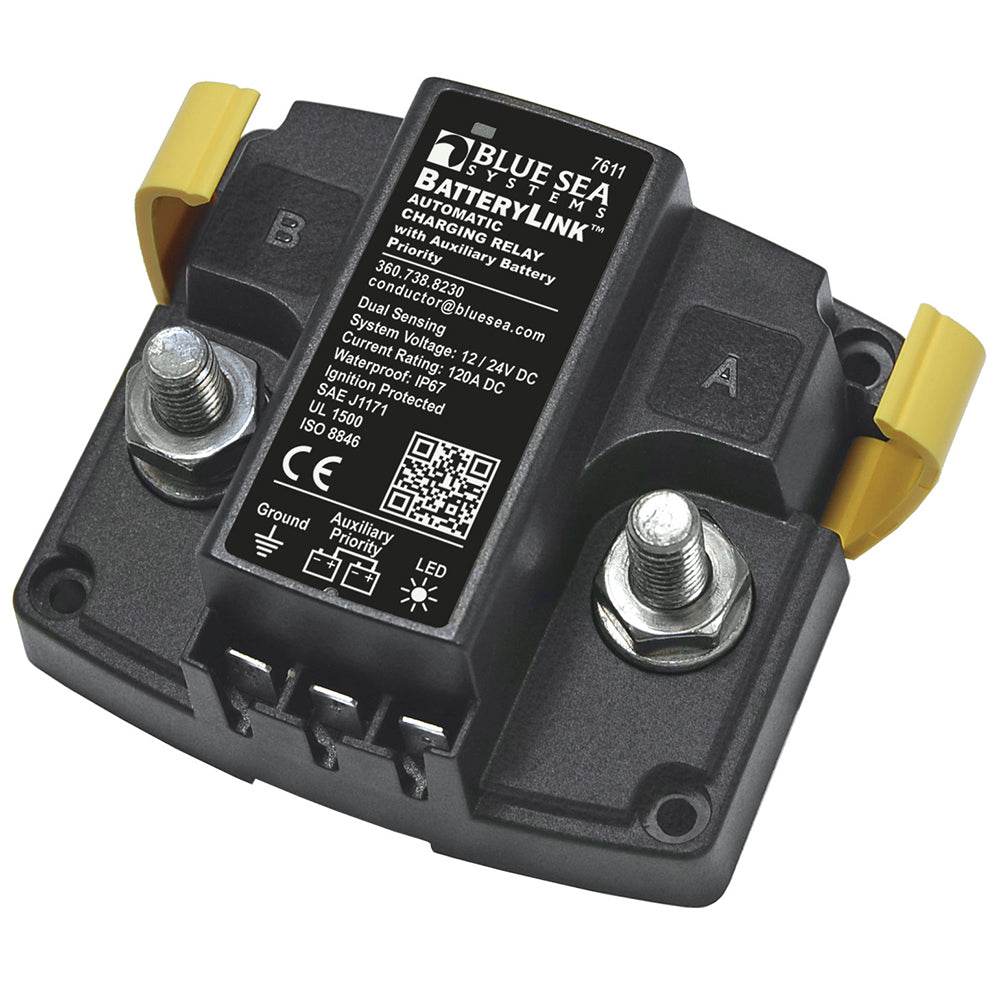

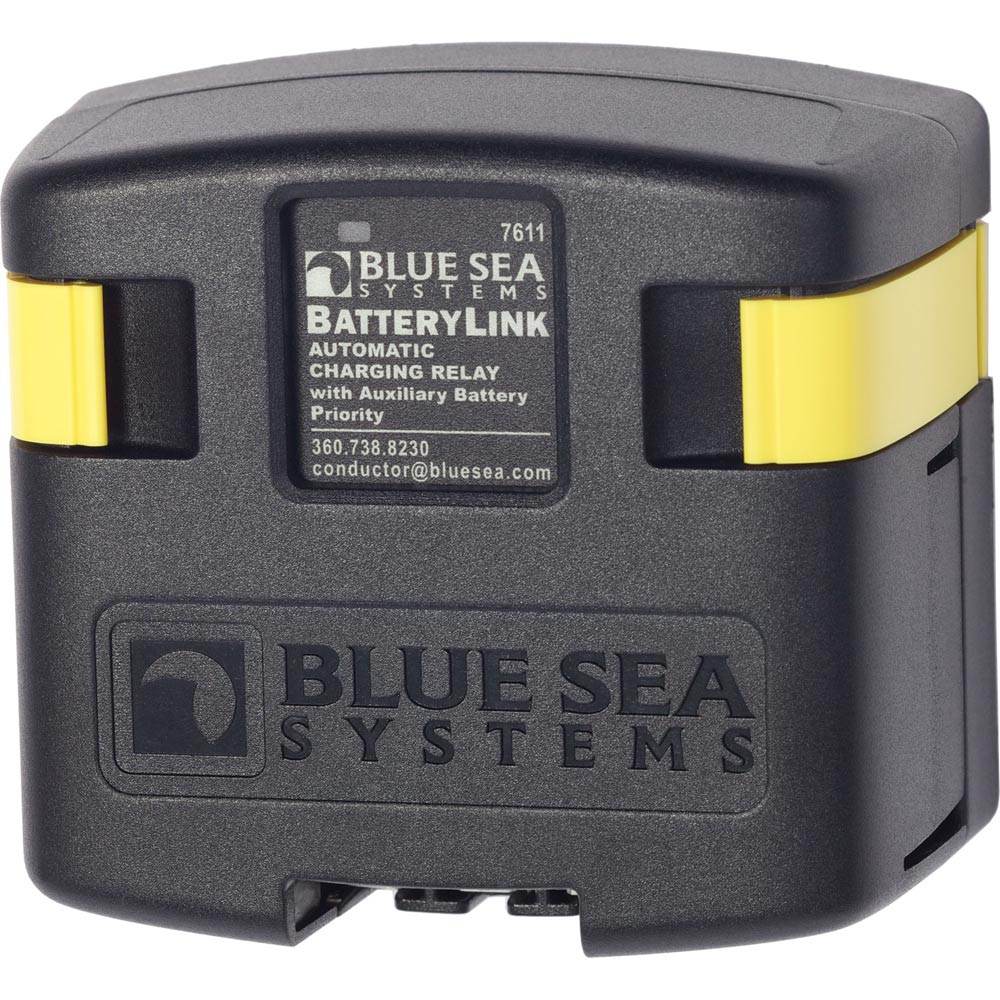

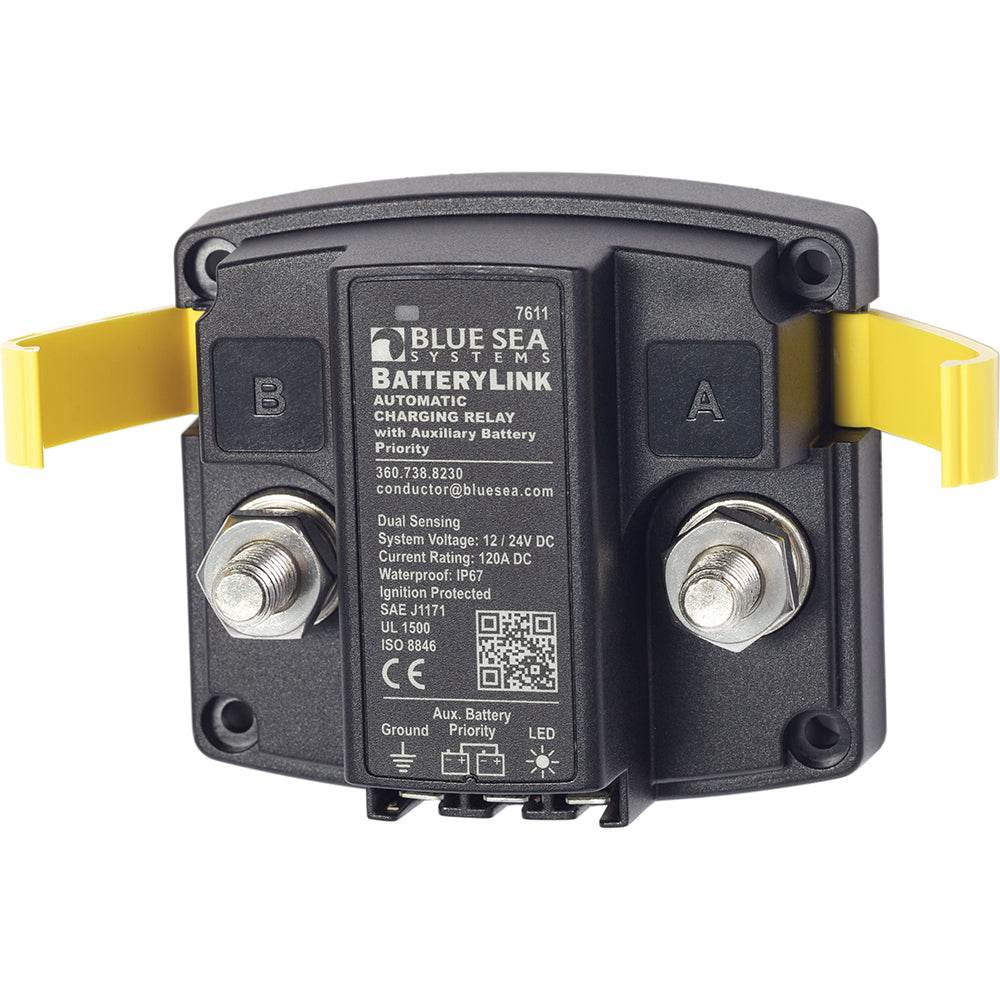

7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging
Features:
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4" x .032" male quick connect terminals for ground and optional features
Specifications:
- Intermittent Rating: 5 min.: 210 Amps
- Continuous Rating: 120 Amps
- Nominal Voltage: 12/24 Volts DC Specifications:
- Continuous Amperage: 120a
Owner's Manual (pdf)
