    Bluewater 12 Position Fuse Block ATC w/Yellow Slide [3200-3003-012]

    Bluewater 12 Position Fuse Block ATC w/Yellow Slide [3200-3003-012]

    $40.10
    $0.00 $40.10
    SALE SOLD OUT

    Shipping

    FREE

    • Standard Shipping on Orders over $99
    • 2-Day Shipping on Orders over $699

    Low Cost Options

    • $9.99 Standard Shipping on Orders under $99
    • $19.99 2-Day Shipping on orders under $699

    Special Deliveries

    • Truck Freight and Hazardous items vary and may take 5-7 business days.

    Tracking

    • Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)

    Read our Shipping Policy

    (restrictions may apply to these terms)

    Delivery Times

    Handling Times

    • Orders ship within 24 hours of purchase. (Next Day Shipping Available)

    Delivery Times

    • All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
    • Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
    • "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
    • Always check with a Team Member if you have questions about a specific delivery time.

    See our Shipping Policy for more information.

    (restrictions may apply to these terms)

    Returns and Refunds

    • Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
    • If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
    • Certain items, like installed products and special orders, cannot be returned.
    • Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.

    For more details and restrictions, please read our Refund Policy.

    (restrictions may apply to these terms)

    Check Availability

    Not sure if this item is in stock?

    • Live Chat with the Owner below.
    • Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.

    Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.

    View full details

    Product Description

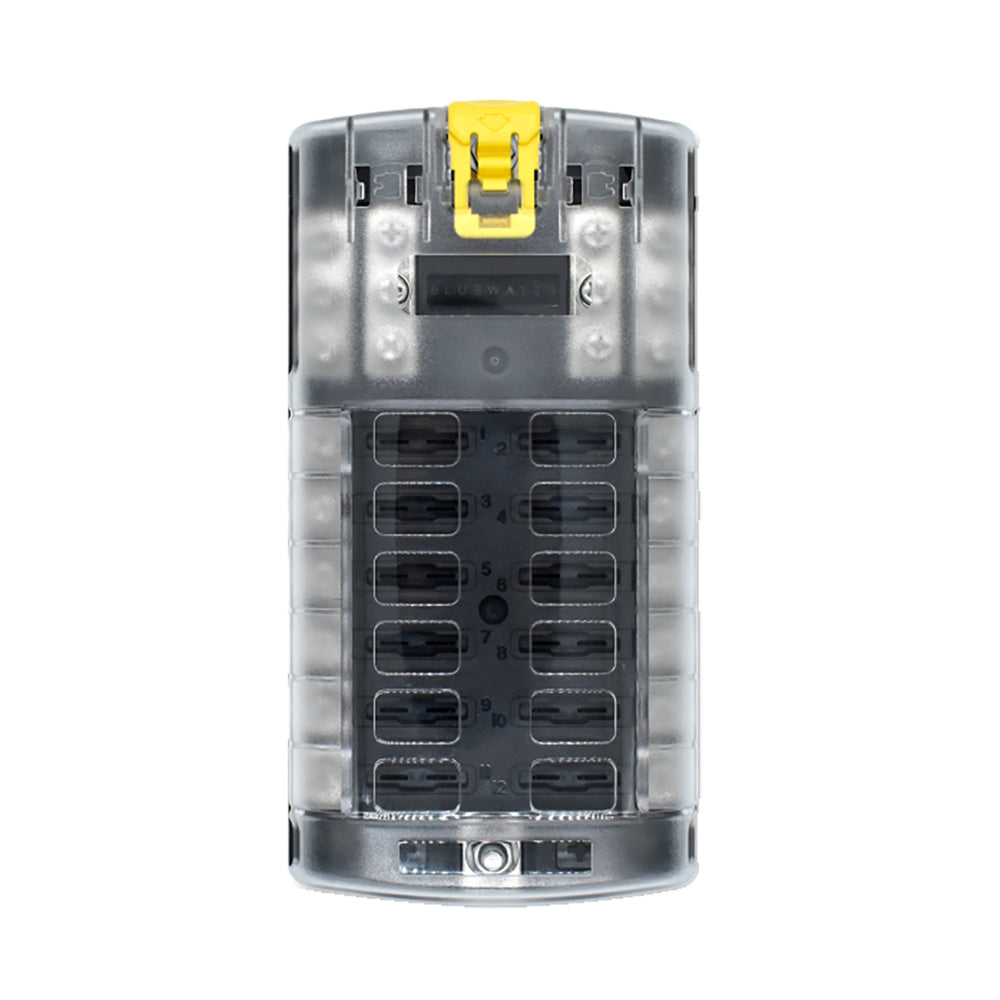

    12 Position Fuse Block ATC with Yellow Slide

    This 6 and 12-position marine fuse block offers a clean, organized solution for managing low-voltage electrical circuits in boats, RVs, and off-grid systems. Designed to centralize and protect up to 12 independent circuits, it provides dependable circuit separation for complex power layouts.

    Rated for 48V DC systems and up to 100A of input current, the block uses M5 threaded studs for the main input and M4 threaded studs for outputs, supporting up to 25A per circuit. It’s compatible with 88 Series breakers.

    Built with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body, this marine fuse block is made to withstand demanding environments. Mounting is straightforward with 0.1750” holes, spaced at 3.709” H x 2.331” W for the 6-position model and 5.285” H x 2.325” W for the 12-position version.

    Whether you’re building a new power system or upgrading an existing one, this fuse block delivers professional-grade performance and a tidy, serviceable layout.

    Specifications:

    • Max Voltage: 48V DC
    • Input Current: 100A
    • Breaker Type: 88 Series/BW 38 Series
    • Input Terminal Rating: M5 Threaded Studs (100A max)
    • Output Terminal Rating: M4 Threaded Studs (25A max)
    • Material: Stainless Steel/Nickel-plated Copper/Polycarbonate

    Installation:

    • M5 main connecting studs
    • Mounting Holes: 0.1750”
    • Distance Between Mounting Holes:
    • 6 Position: 3.709” H / 2.331” W
    • 12 Position: 5.285” H / 2.325” W

    Specifications:

    • Amperage: 200
    • Type: Fuse Blocks
