Skip to product information
1 of 5

DS18

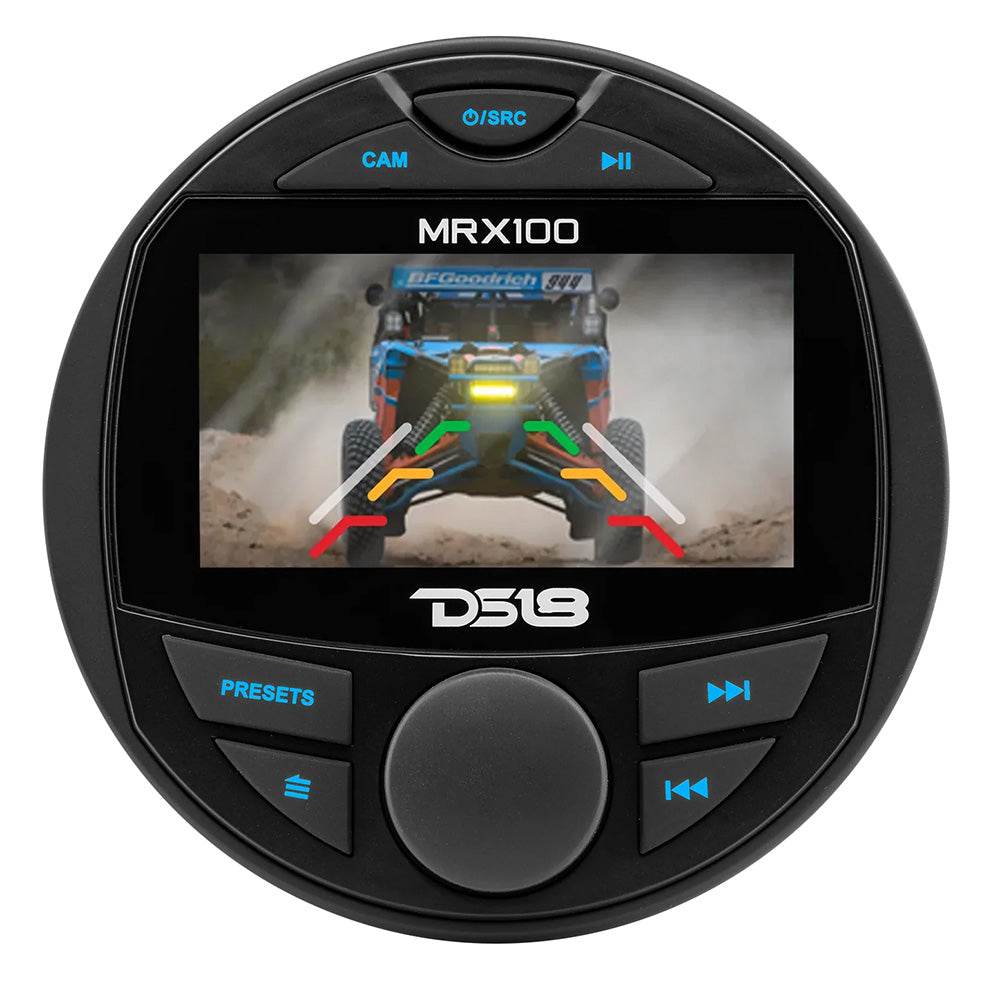

DS18 MRX100 2 Zone Marine Head Unit w/TFT LCD Screen - 4x50 Watts Max [MRX100]

DS18 MRX100 2 Zone Marine Head Unit w/TFT LCD Screen - 4x50 Watts Max [MRX100]

Regular price $389.95
Regular price $0.00 Sale price $389.95
SALE SOLD OUT
  • FREE Shipping on orders $99+
  • 30 Day Returns & Exchanges
  • Trusted & Authorized Dealer
View full details

Product Description

MRX100 2 Zone Marine Head Unit with TFT LCD Screen - 4x50 Watts Max

DS18’s MRX100 Marine Head Unit is designed to do it all and then some! The same beautiful compact design, upgraded to be even more powerful and durable to endure the toughest beating any marine, golf cart, and off-road head unit will go through.

The experts at DS18 upgraded this powerful receiver with: higher-range Bluetooth connectivity, substantial material changes for extended longevity, and lower operating voltage for power consumption efficiency.

The MRX100 also allows classic users to browse over 37 preset radio stations without needing a device to be connected to it. However, if users wish to connect a device, upgraded Bluetooth connection features and USB and AUX input make it so they can connect to any device they want to.

If there’s a rear camera attached to the vehicle, users can also utilize this product to view the rear camera directly helping them maneuver the vehicle to which they’ve attached it.

The MRX100 is guaranteed to bring crystal clear audio quality with unchecked control over how the audio sounds (via a variety of sound settings) at all volumes in your boat, off-road, golf cart, or any vehicle that will be tested by the elements frequently.

Features:

  • V5 Bluetooth pairing functions so you can play music direct from your phone or any BT source with a longer operating range.
  • Gorilla Glass Screen for added fortitude and longevity in every element
  • ID3 Tag Display that helps ensures users know exactly what they are listening to at all times
  • It comes with precise sound settings options that let you control the bass, treble, balance, fade, EQ, loudness, and Subwoofer crossover with ease.
  • There is an easy to read LCD display with RGB keys so you can use the color that's easiest to read, to set your mood of the day, or color scheme!
  • 37 Radio Presets (18 FM / 12 AM / 7 WB) for easy access.
  • The USB can transfer music along with charging your chosen device at the rate of 2.1 A.
  • The IPX6 waterproof rating will give you the confidence to use your marine head unit anywhere and everywhere.
  • Users can also utilize this product to view their vehicle's rear camera directly
  • Voltmeter and Low Voltage Alert to help maintain and optimize all equipment controlled by and connected to this unit
  • The MRX100 is made to deliver 4 x 18 watts RMS @ 4-Ohms and 4 x 25 watts RMS @ 2-Ohms
  • Enjoy all your favorite AM/FM stations with our wideband AM/FM receiver that is also selectable under source controls.

Technical Specifications:

  • Operating Voltage - 10.5 -16 Volts
  • Backlight - LED
  • Power Output RMS - 4 x 18W @ 4 ohms (14.4v) / 4 x 25W @ 2 ohms (14.4v)
  • Frequency Response - 20Hz to 20KHz
  • Output Impedance - 500 ohms
  • Remote Control - Wired 3.5mm Jack Input (Compatible with MXRC)

In the Box:

  • Main unit
  • Screws x 2PCS
  • U bracket

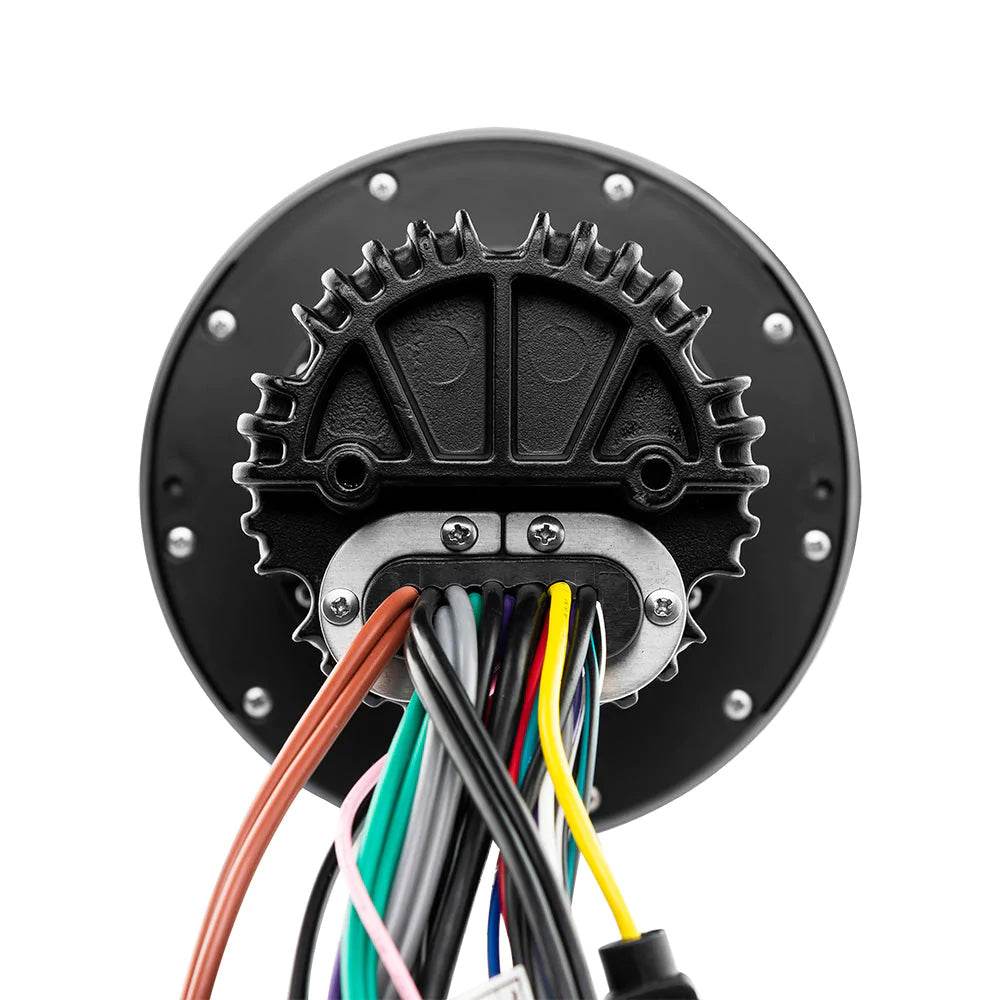

  • Power/Speaker Harness
  • Hex Head Screws x 2PCS
  • Instruction Manual

*Sold as an Individual

Specifications:

  • Auxiliary Input: Yes
  • Bluetooth: Yes
  • Color: Black
  • Cover Included: No
  • RCA Input: Yes
  • RCA Output: Yes
  • Wired Remote Capable: Yes
  • Box Dimensions: 6"H x 6"W x 8"L WT: 2.3 lbs
  • UPC: 810097260580

Owner's Manual (pdf)
