Egis Mobile Electric
Egis RT Fuse Block 12 Position w/Ground LED Indication [8026]
Egis RT Fuse Block 12 Position w/Ground LED Indication [8026]
Couldn't load pickup availability
Shipping
Shipping
FREE
- Standard Shipping on Orders over $99
- 2-Day Shipping on Orders over $699
Low Cost Options
- $9.99 Standard Shipping on Orders under $99
- $19.99 2-Day Shipping on orders under $699
Special Deliveries
- Truck Freight and Hazardous items vary and may take 5-7 business days.
Tracking
- Tracking numbers and all other information regarding your order is sent via email automatically once available. (Contact us for specific inquiries)
Read our Shipping Policy
(restrictions may apply to these terms)
Delivery Times
Delivery Times
Handling Times
- Orders ship within 24 hours of purchase. (Next Day Shipping Available)
Delivery Times
- All Orders typically take 3-5 business days to arrive. (unless noted otherwise in the Product's Description)
- Choose 2-Day Shipping at Checkout to receive a Priority Delivery Experience. (available on select orders)
- "Made-to-order" items, Truck Freight or Hazardous items may take 5-7 business days.
- Always check with a Team Member if you have questions about a specific delivery time.
See our Shipping Policy for more information.
(restrictions may apply to these terms)
Returns and Refunds
Returns and Refunds
- Suncoast honors a 30-day return policy for unused items in their original packaging with proof of purchase.
- If your item doesn't meet your expectations, please contact us to initiate a return or exchange.
- Certain items, like installed products and special orders, cannot be returned.
- Refunds are processed within 10 business days after approval, payment processing fees are non-refundable.
For more details and restrictions, please read our Refund Policy.
(restrictions may apply to these terms)
Check Availability
Check Availability
Not sure if this item is in stock?
- Live Chat with the Owner below.
- Receive a response within a few minutes regarding availability, pricing, product details or questions, etc.
Feel free to Call or Text us or Email us for any cancellation requests, questions or updates on your order or view more Contact Information.
![Suncoast Marine and Auto offers Egis RT Fuse Block 12 Position w/Ground LED Indication [8026]](http://www.suncoastmarineandauto.com/cdn/shop/files/103461XL.jpg?v=1737789345&width=1445)
![Suncoast Marine and Auto offers Egis RT Fuse Block 12 Position w/Ground LED Indication [8026]](http://www.suncoastmarineandauto.com/cdn/shop/files/103461BXL.jpg?v=1737789347&width=1445)
Product Description

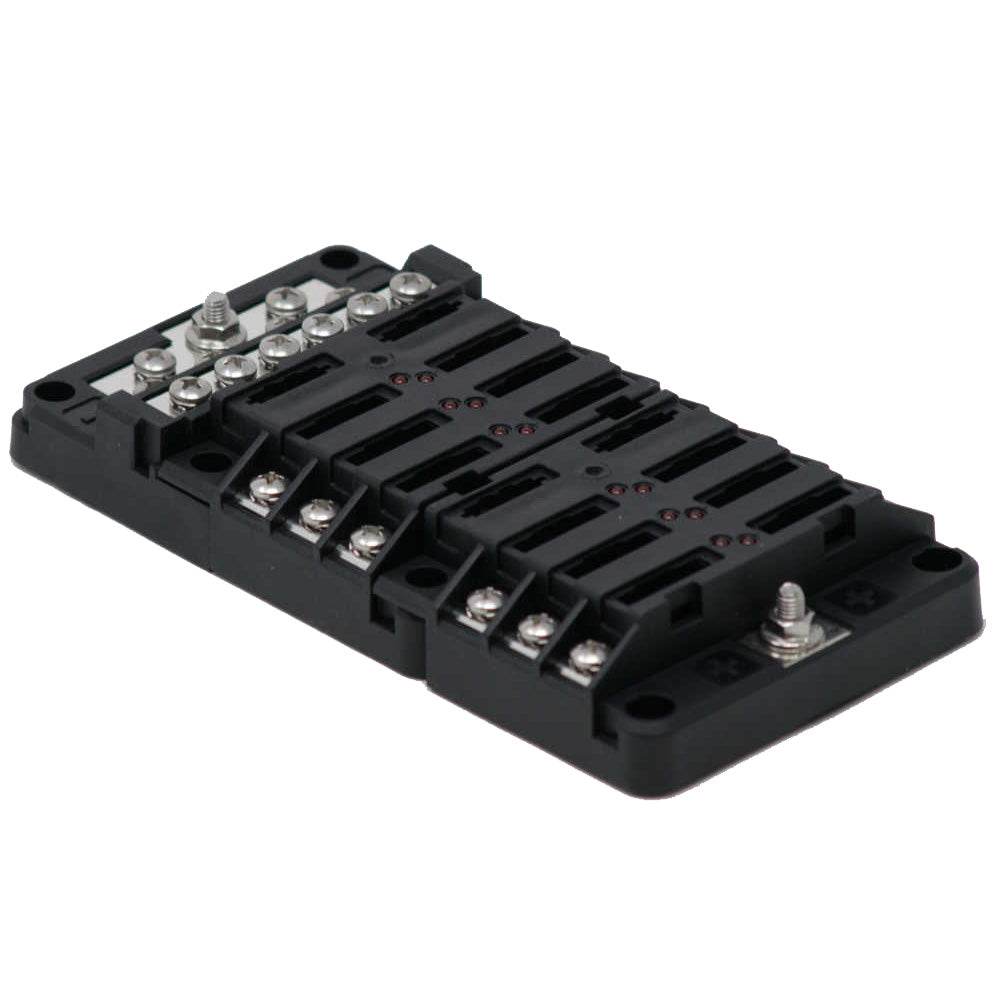

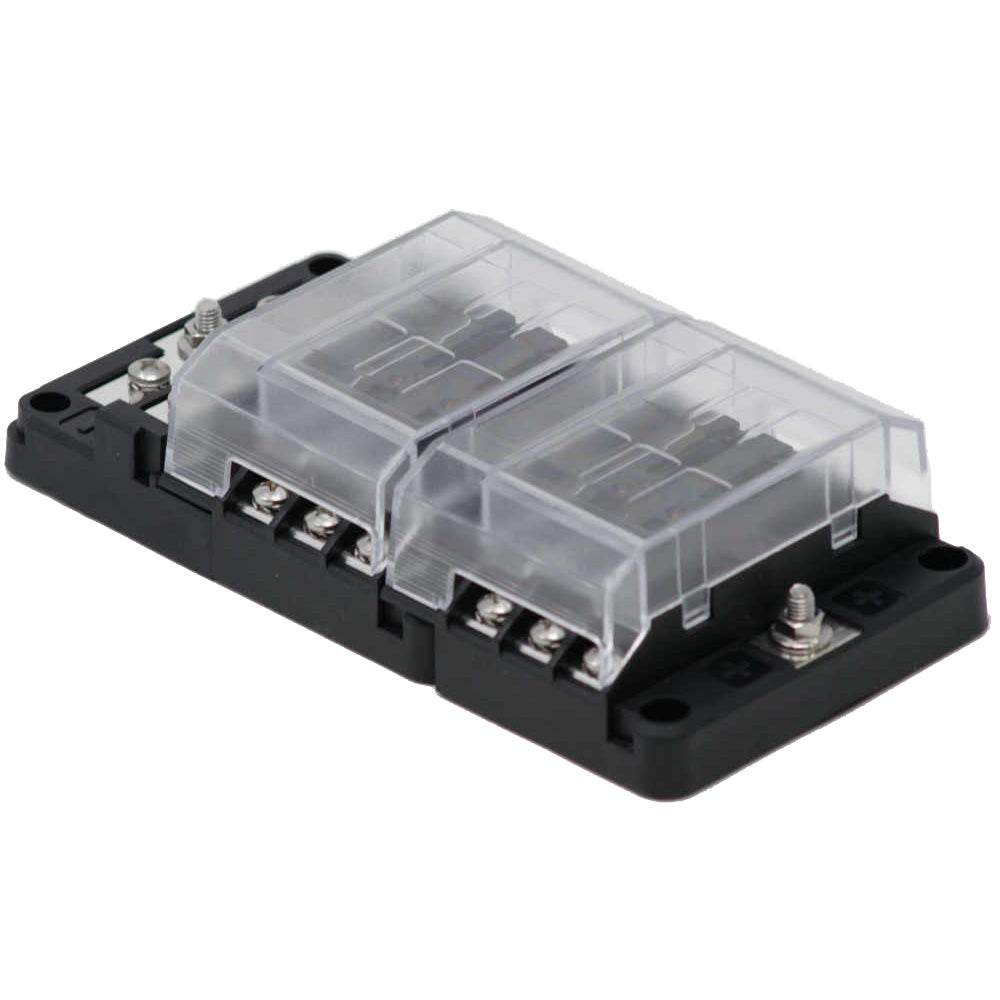

RT Fuse Block 12 Position with Ground & LED Indication
This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.
Applications:
- Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
- Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.
Features:
- Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
- Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
- Supports SAE circuit protection standards for thermal/short circuit events
Specifications:
- Maximum Current (Entire Block) Amps: 10
- Maximum Current (Per Circuit) Amps: 30
- Max Output Wire Size: #10 AWG
- Voltage Range VDC: 0-36
- Number of Fuse Positions: 12
- Compatible Fuse Types: ATO / ATC / ATF
Focal Features:
Spare Fuse Locations
Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.
Stainless Steel Self-Locking Hardware
100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.
LED Fuse Diagnostics
Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.
Cover/ Label Recesses
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Ground Block Included
Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.
Ground Block Separates
The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.
Specifications:- Amperage: 100a
- Fuse Type: ATO/ATC/ATF
- Type: Fuse Blocks
Quick Guide (pdf)
