Epoch Batteries 48V 60Ah GC2 - Golf Cart LiFePO4 Lithium Battery (48V-60Ah-GC2-Kit)
Epoch Batteries 48V 60Ah GC2 - Golf Cart LiFePO4 Lithium Battery (48V-60Ah-GC2-Kit)
Couldn't load pickup availability
Product Description
48V 60Ah GC2 - Golf Cart LiFePO4 Lithium Battery - Complete Kit
sku: 48V-60Ah-GC2-Kit
FREE Shipping
LOWEST PRICES GUARANTEED
Description:
- LiFePO4 Chemistry
- 60Ah Capacity (20-25 miles runtime for standard golf cart)
- 120A Max Continuous Discharge (200A 10S Discharge) (400A 3S Peak Discharge)
- Bluetooth Module INCLUDED
- 0 to 100% Charge in 4 hours with included 48V 15A Charger

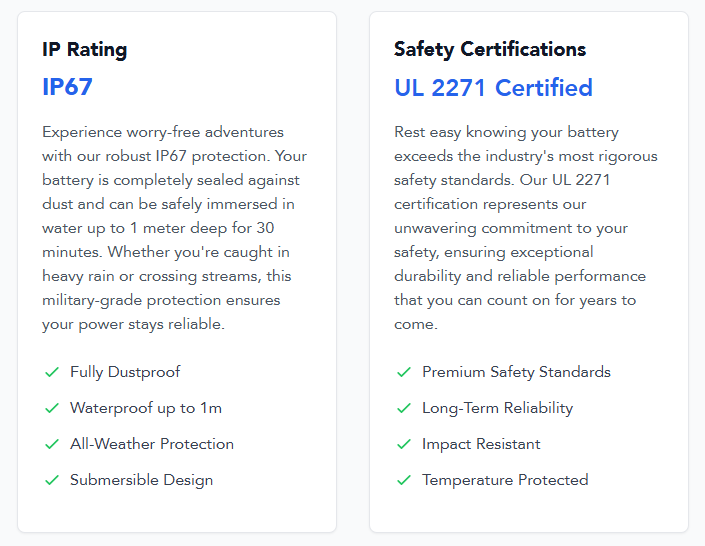

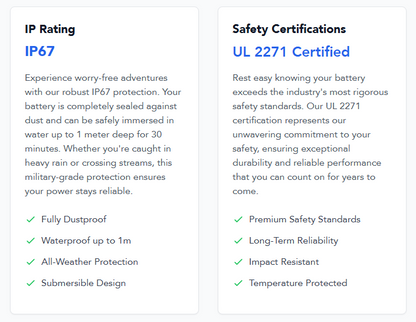

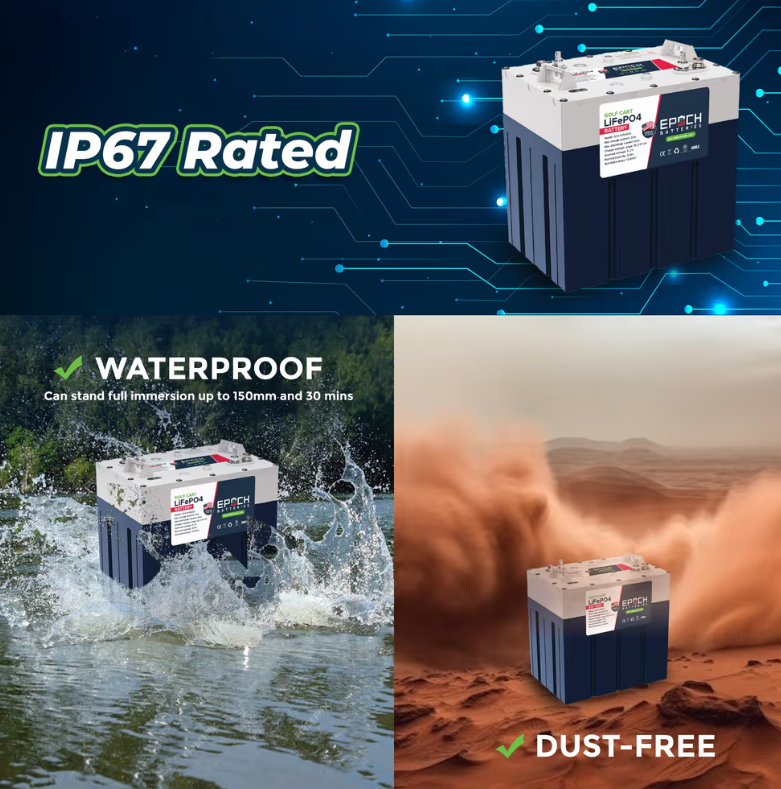

- IP67 Rated, Dust and WATERPROOF
- CAN Bus Communication allows battery modules to work in sync

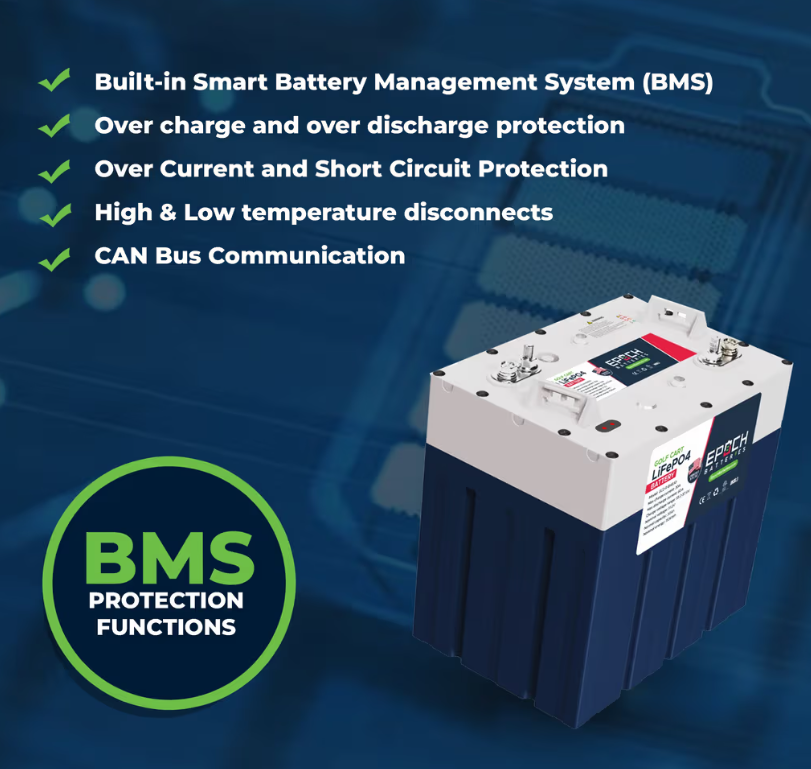

- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- Weight: 33 (LBS) (per module x2)
- 11 Year Manufacturer Warranty

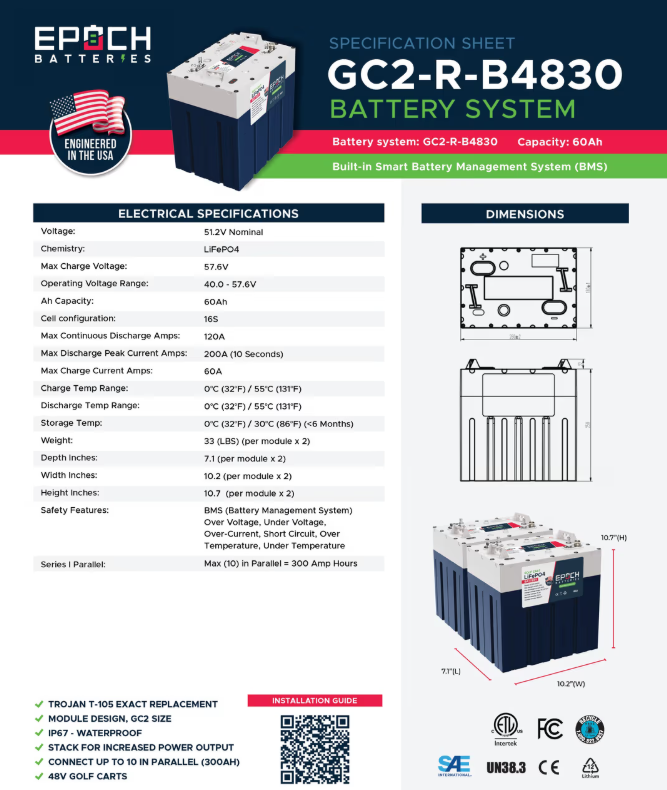

- Cell Configuration: 16S
- Chemistry: LiFePO4
- Ah Capacity: 60Ah
- Max Continuous Discharge Amps: 120A
- Max Charge Current Amps: 30A
- Max Discharge Peak Current Amps: 200A (10 Seconds) - 400A (3 Seconds)
- Series | Parallel: Max (10) in Parallel = 300 Amp Hours
- Voltage: 51.2V Nominal
- Max Charge Voltage: 57.6V
- Operating Voltage Range: 40.0 - 57.6V
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
- Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)

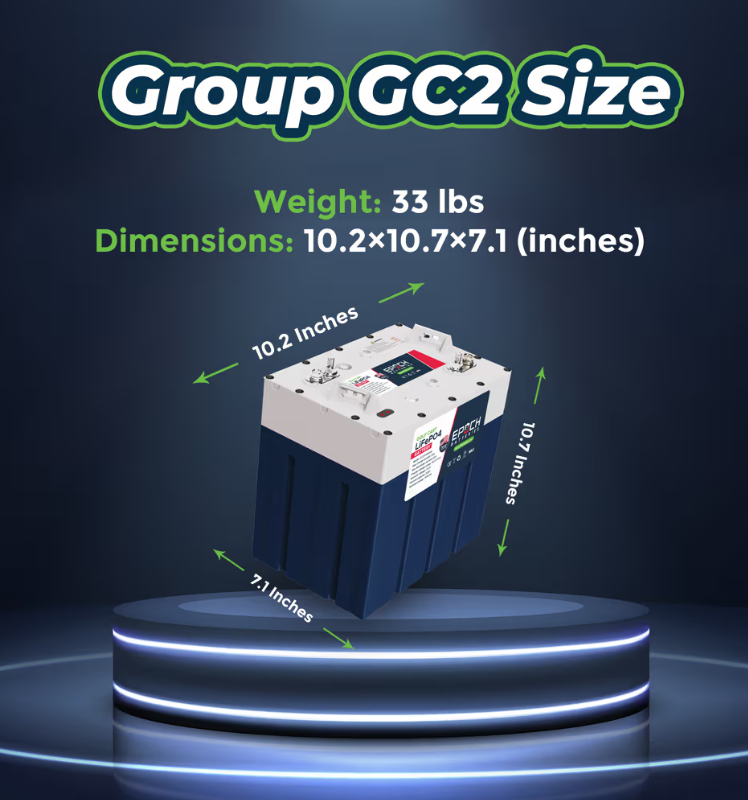

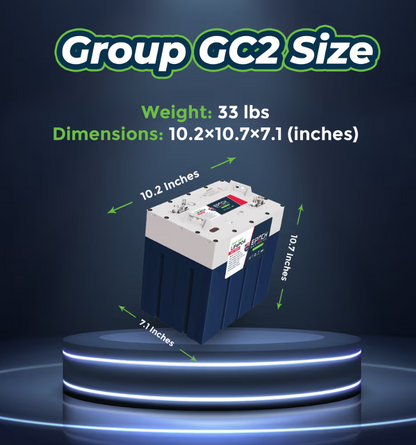

- Length: 10.25 (inches)
- Width: 7 (per module x2) (inches)
- Height: 11 (inches)
Additional Info:

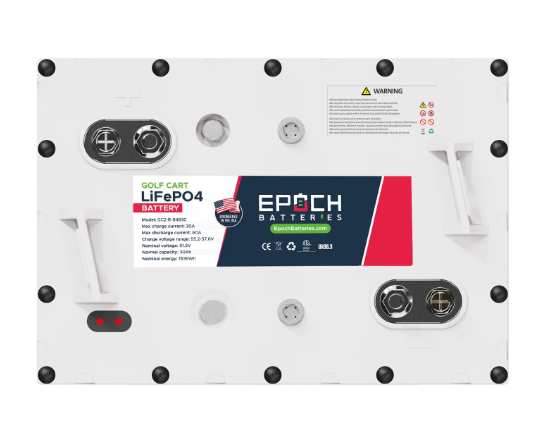

- M8 Terminals - Torque Tension Recommendation is 8-12N·M

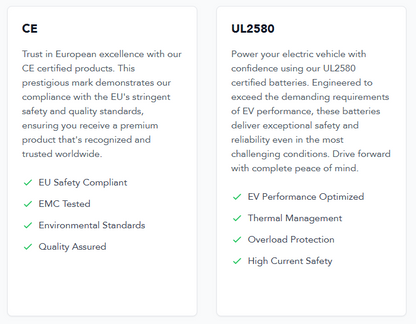

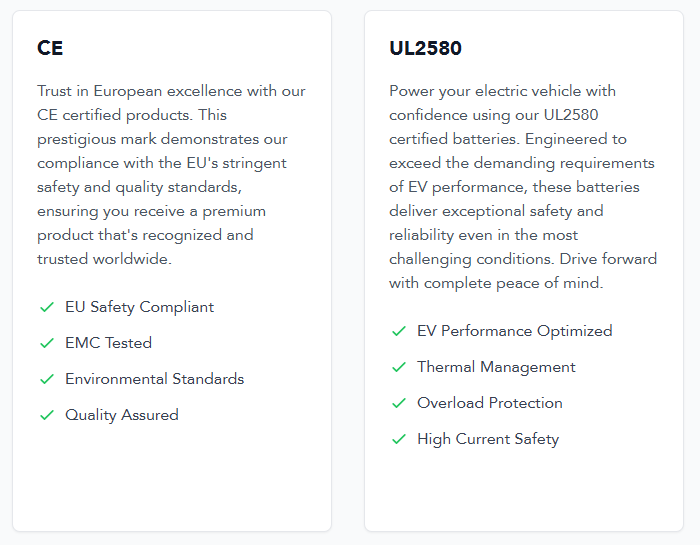

- Pack Certifications: UN38.3, CE
- Cell Certifications: UL1642, UL2580, UN38.3
Note:
- Compatible with stock golf carts
- 200A 10 seconds, 400A 3 seconds max discharge

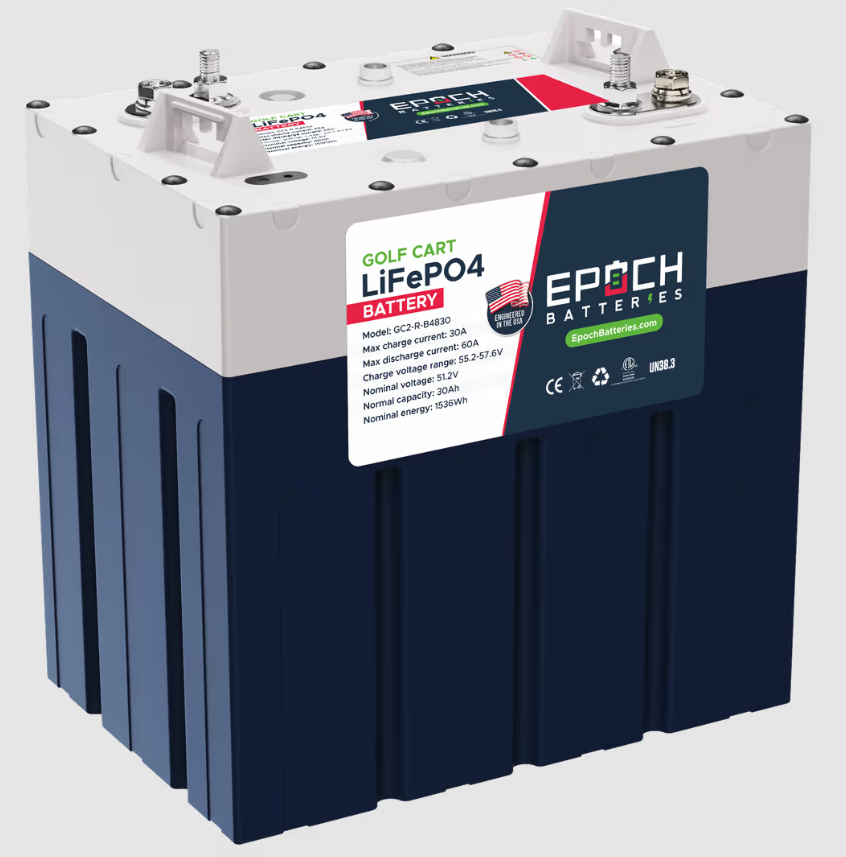

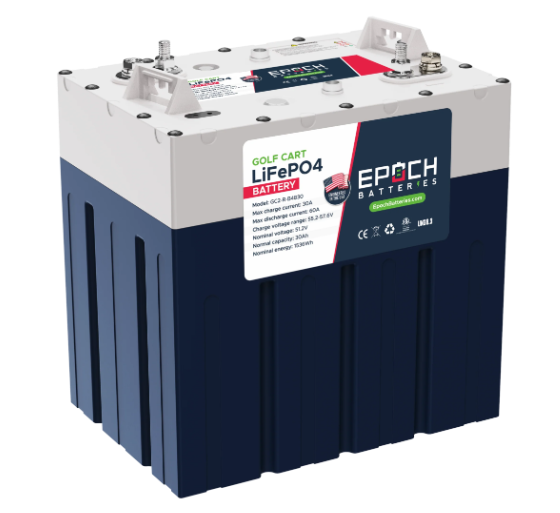

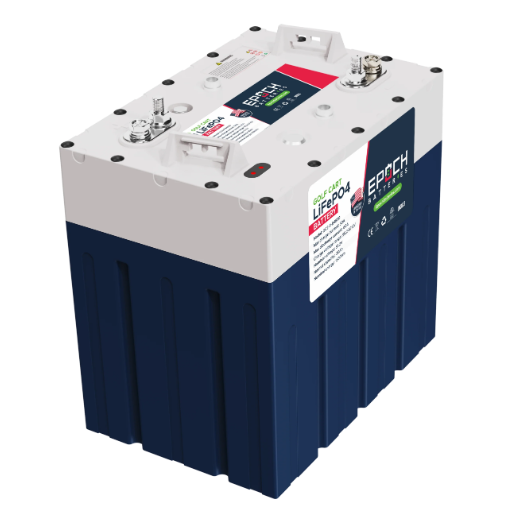

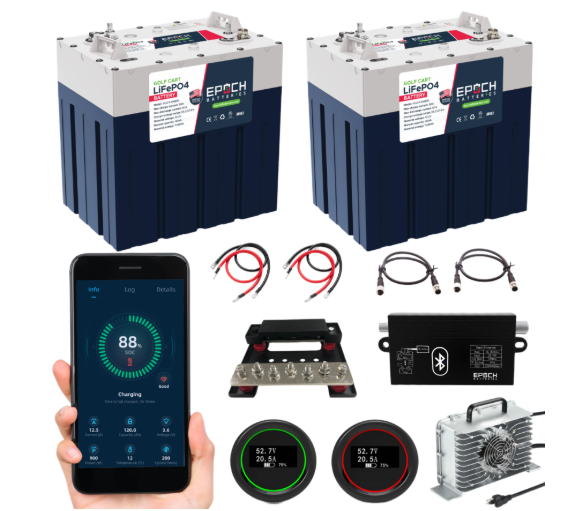

- (2) 48V 30Ah GC2 - Golf Cart LiFePO4 Lithium Battery
- (1) 48V 15A Battery Charger - Epoch Batteries
- (1) Bluetooth Module for GC2 Motive Batteries

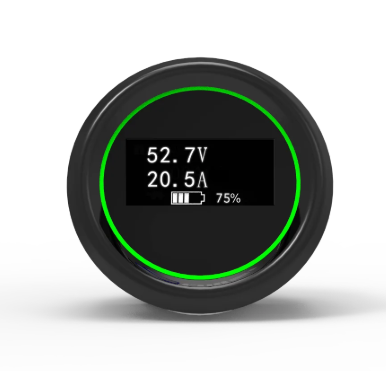

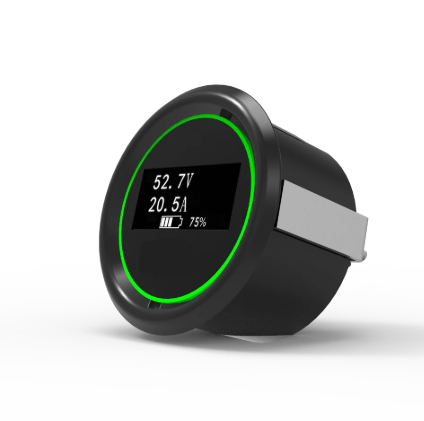

- (1) Battery Meter Fuel Gauge for GC2 Batteries
- (1) 48 to 12V Voltage Reducer
- (1) Parallel Busbar
- (1) NOCO GCP1 15A AC Port Plug
- (1) Battery Lifting Strap for GC2 Batteries
User Manual
Wiring Diagram
UL Certificate of Compliance
Material Safety Data Sheet
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
