Epoch Battery 12V 100Ah Eco Series LiFePO4 Battery (12100-ECO)
Epoch Battery 12V 100Ah Eco Series LiFePO4 Battery (12100-ECO)
Couldn't load pickup availability
Product Description

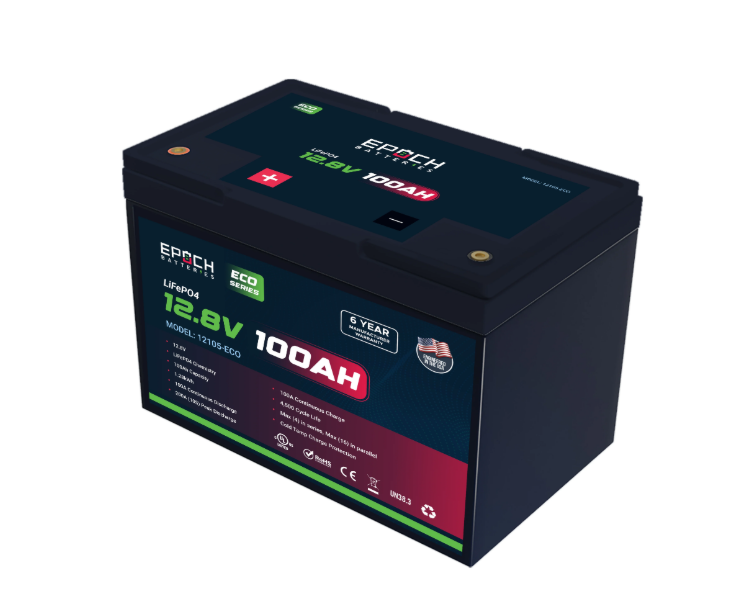

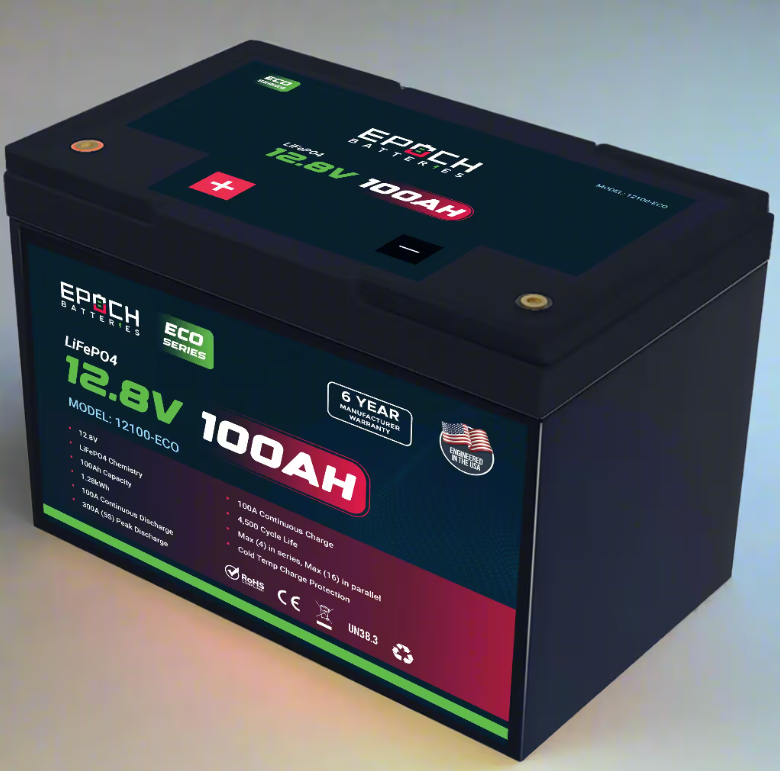

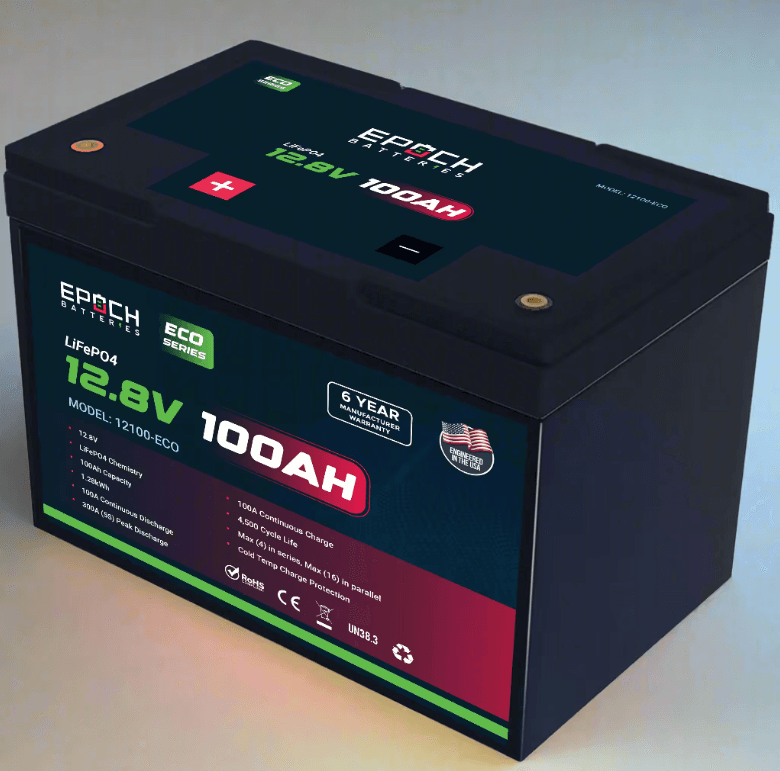

Epoch Battery 12V 100Ah Eco Series LiFePO4 Battery
SKU: 12100-ECO
FREE Shipping
LOWEST PRICES GUARANTEED
Description:
- LiFePO4 Chemistry - Deep Cycle Battery
- Group 24: L10.25" x W6.75" x H9.00"
- Low-Temperature cut-off (Charge Protection)
- Built-in Smart Battery Management System (BMS)
- Advanced BMS system with 20+ safety features built in
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (16) in Parallel up to 20.48 kWh
- 4,500+ Cycle life & Maintenance-free
- Weight: 21 lbs
- 6 Year Manufacturer Warranty
Specifics:
- Cell Configuration: 4S1P
- Chemistry: LiFePO4
- Ah Capacity: 100
- Max Continuous Discharge Amps: 100A
- Max Charge Current Amps: 100A
- Max Discharge Peak Current Amps: 300A (5 Seconds)
- Series | Parallel: Max (4) in Series, Max (16) in Parallel
- Voltage: 12.8V
- Max Charge Voltage: 14.6V
- Operating Voltage Range: 10.0 - 14.6V
- Charge Temp Range: 0°C (32°F) / 55°C (131°F)
- Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Dimensions: Length: 10.25 (inches), Width: 6.75 (inches), Height: 9 (inches)
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

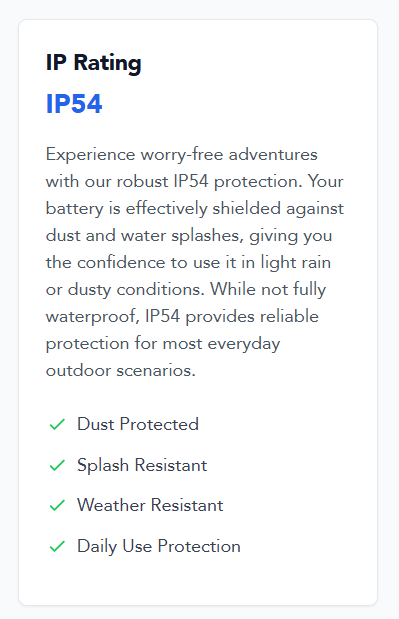

IP Rating
Experience worry-free adventures with our robust IP54 protection. Your battery is effectively shielded against dust and water splashes, giving you the confidence to use it in light rain or dusty conditions. While not fully waterproof, IP54 provides reliable protection for most everyday outdoor scenarios.
