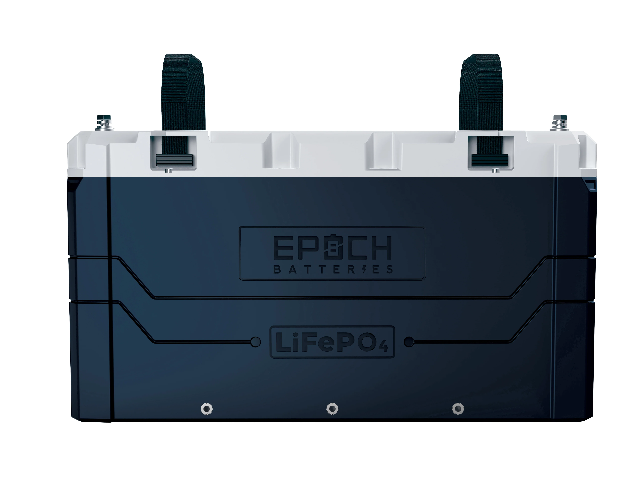

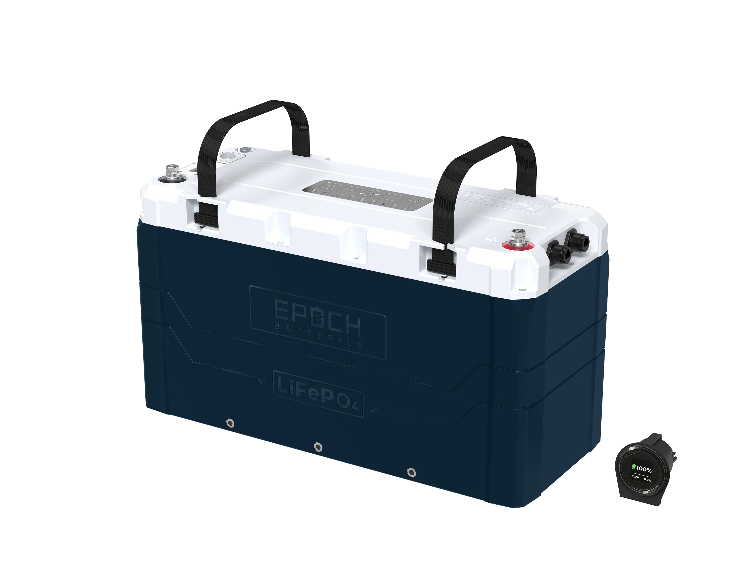

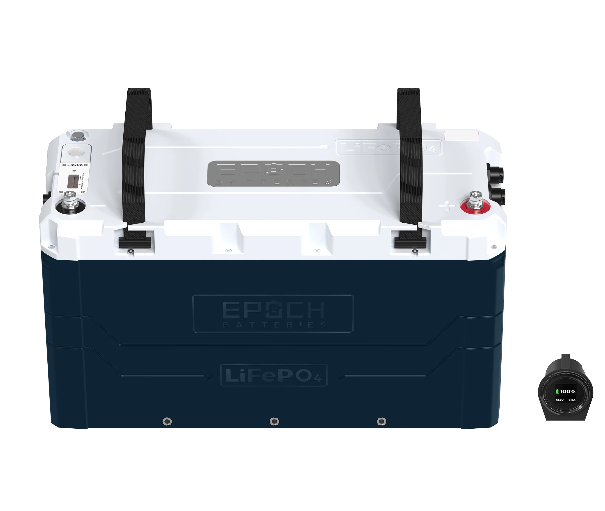

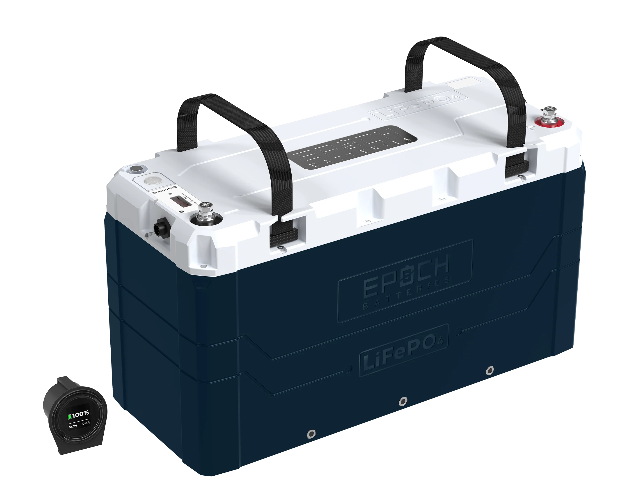

Epoch Battery 24V 230Ah V2 Elite Series (C24230A)

• Cell Configuration: 8S1P
• Chemistry: LiFePO4

• Ah Capacity: 230Ah
• Max Continuous Discharge Amps: 230A
• Max Charge Current Amps: 230A
• Max Discharge Peak Current Amps: 500A (30 Seconds) , 1300A (1 Second)
• Series | Parallel: Max (2) in Series OR Max (16) in Parallel - 2S1P or 1S16P

• Voltage: 25.6V
• Max Charge Voltage: 29.2V
• Operating Voltage Range: 20.0 - 29.2V

• Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
• Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
• Storage Temp: 0°C (32°F) / 35°C (95°F)

Dimensions: Length: 20.75 (inches), Width: 8.5 (inches), Height: 12 (inches)

Batteries employed in non-Victron systems should utilize the following settings:

• Absorption voltage of 28.4V with an absorption time of a minimum of 15 minutes per battery.
• Float voltage of 27.0V
• Equalization off
• No temperature compensation

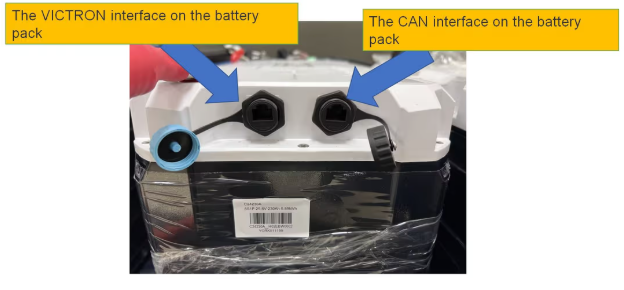

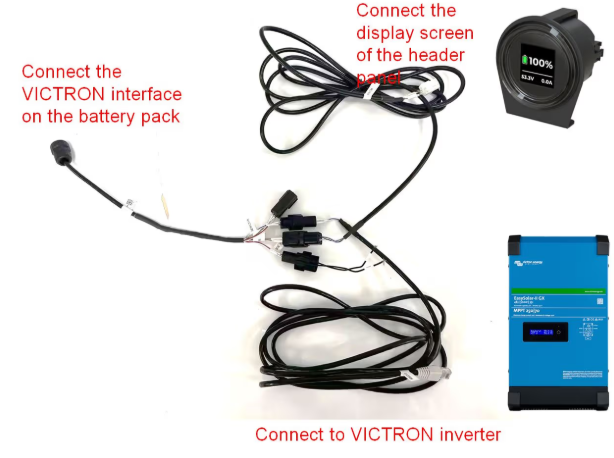

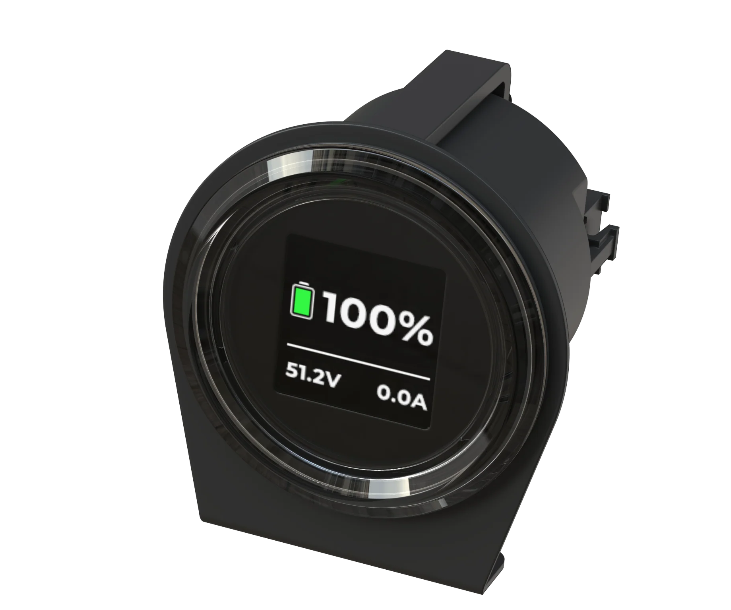

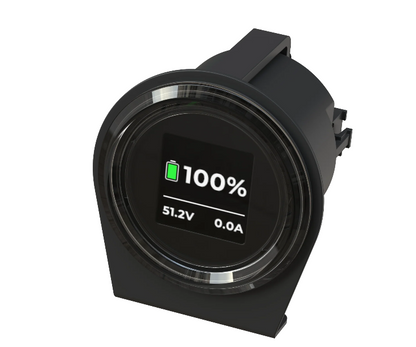

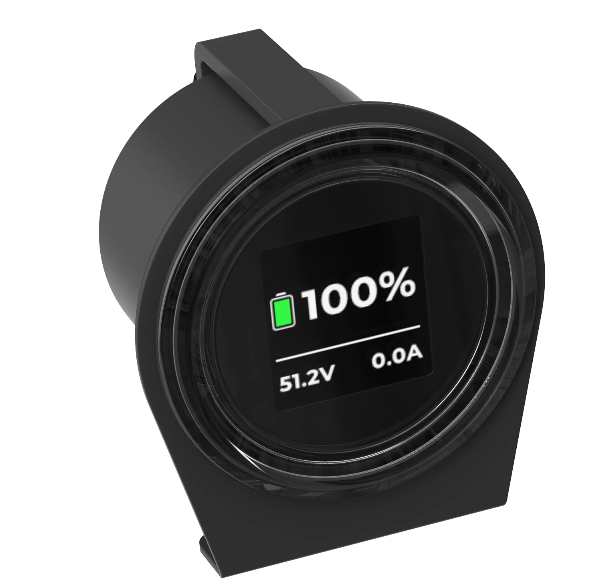

• To use the V2 Elite with Victron systems. Set up the battery comm harness and gauge as follows:
• Plug with waterproof bung plugged into master blue port.
• RJ45 cable out of master black port and into slave1 blue port.
• RJ45 cable out of slave1 black port and into slave blue port and so on to daisy chain up to 16 batteries in parallel.
• Set dips as per manual.
• Plug in grey RJ45 plug into the Cerbo or Ekrano GX BMS CAN port or if you have the new Cerbo Mk2 plug grey plug inot VE-CAN1 or VE-CAN 2 and change the VE can port speed to 500 KBPS LV.
• To confirm proper reporting, go to the GX/touch screen and confirm the Epoch battery shows up on the device list. Click on the battery line, go to Details. Check to see the number of modules online is equal to the number of batteries installed. Check that the number of AH is equal to the number of AH installed.
• In the GX device/touch screen turn on DVCC, set controlling BMS to Epoch, set battery monitor to Epoch.
• The system should say External Control on the GX touch screen Inverter tile when charging (but not while inverting). The system will automatically cycle to 28.4V with an absorption time of a minimum of roughly 15 minutes per battery followed by 27.0V float voltage.
• It is recommended to manually program the Multiplus, Quattro and all other charge source to these same parameters in case of CAN communication loss.

Over time there will be additional refinements and improvements as needed.

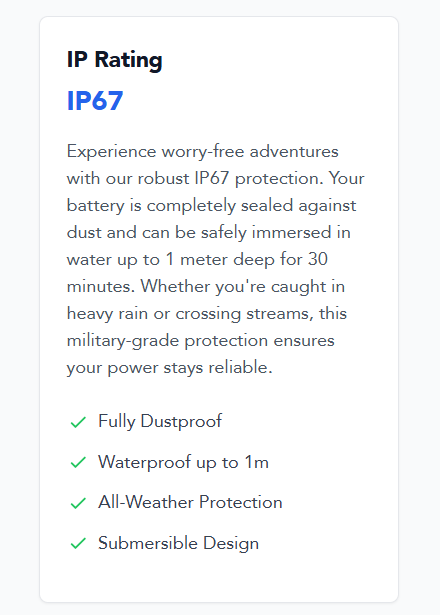

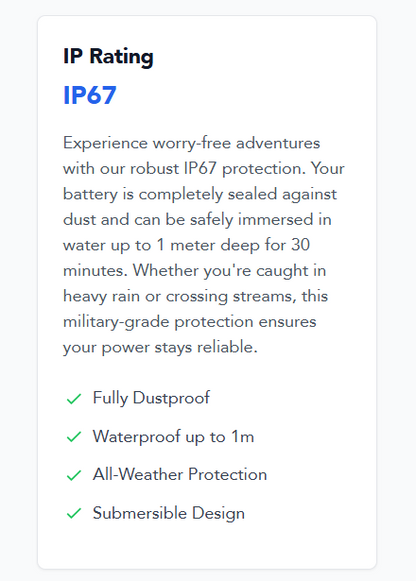

IP Rating

Experience worry-free adventures with our robust IP67 protection. Your battery is completely sealed against dust and can be safely immersed in water up to 1 meter deep for 30 minutes. Whether you're caught in heavy rain or crossing streams, this military-grade protection ensures your power stays reliable.
