Furuno TZT24X 24" TZtouchXL MFD [TZT24X]

TZT24X 24" TZtouchXL MFD

FREE Shipping

LOWEST PRICES GUARANTEED

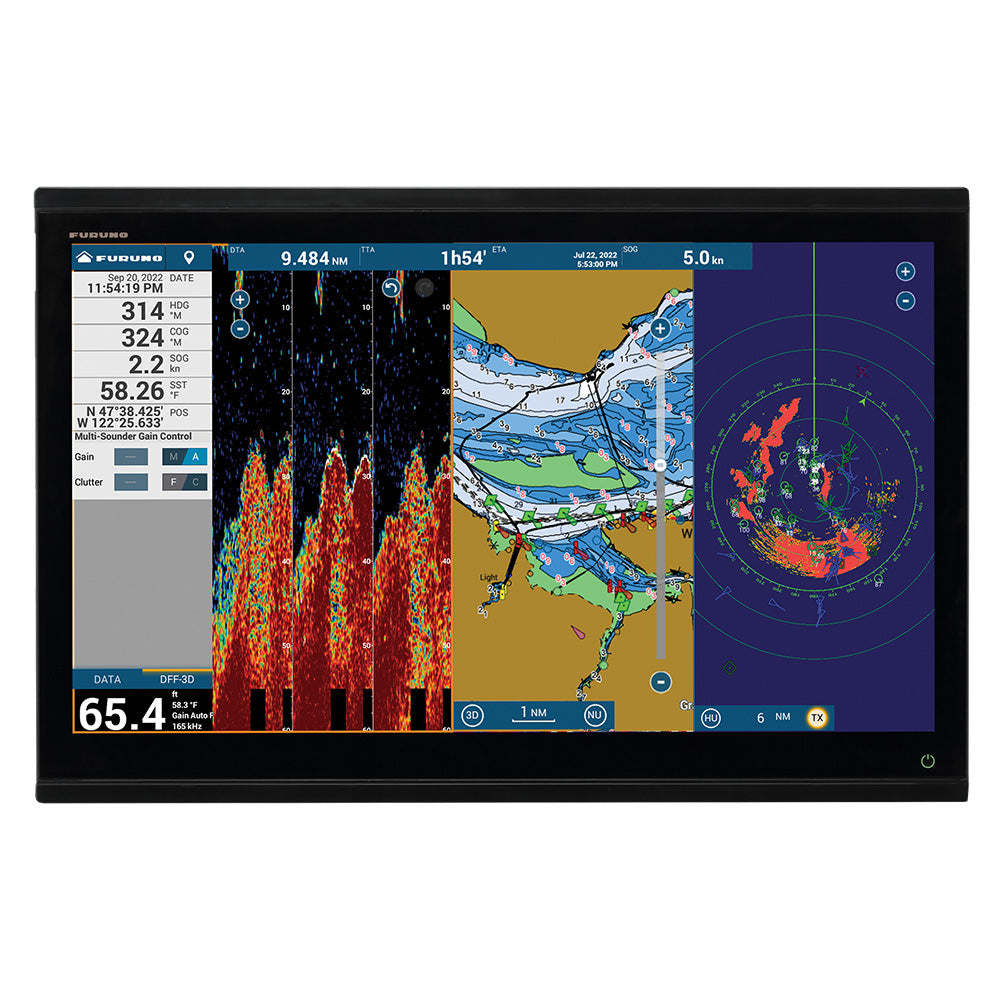

NavNet TZtouchXL is the perfect solution for boating enthusiasts who love fishing or cruising. This extra-large, wide 24" all-glass MFD has exceptional clarity from all angles that enhances the functionality and style of a helm.

The TZT24X delivers all the features that make the NavNet TZtouch3 a breeze to operate, users can split these large screens into six different windows. The edge-swipe feature makes finding what a user is looking for simple and intuitive. A single tap selects most options, so users are never more than a swipe and tap away from the most accessed features.

Features:

• TZ MAPS for highly detailed navigation and fishing charts
• Purchase and update charts directly from MFD with an internet connection
• Powerful hexacore processor for rapid response

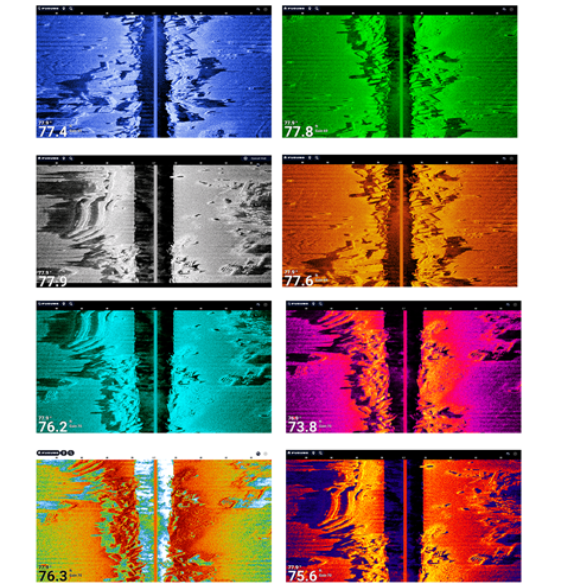

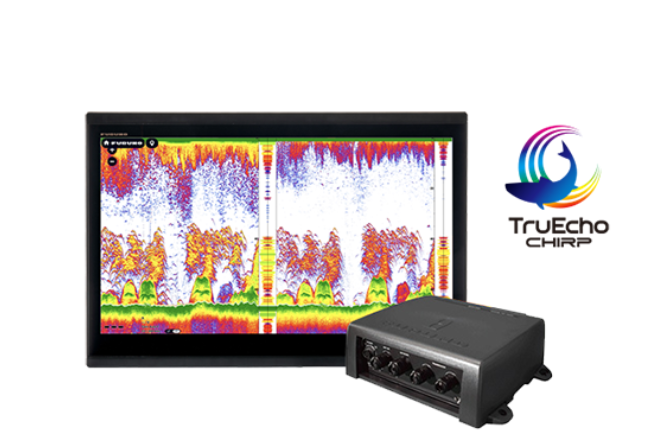

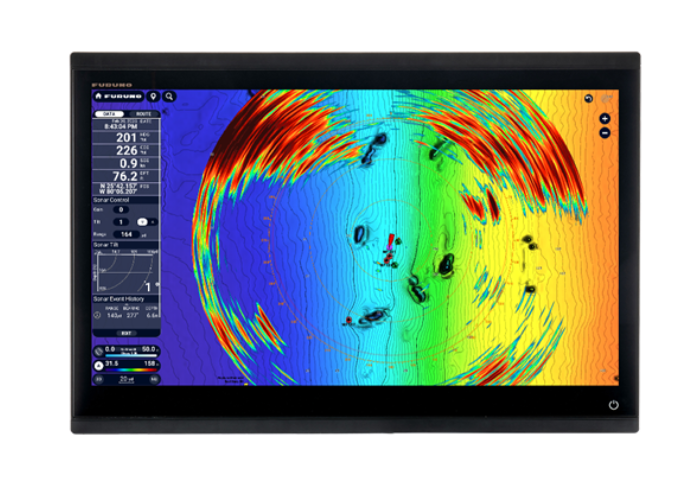

• Video converter kits stream compatible sonar video data directly to TZtouchXL MFD

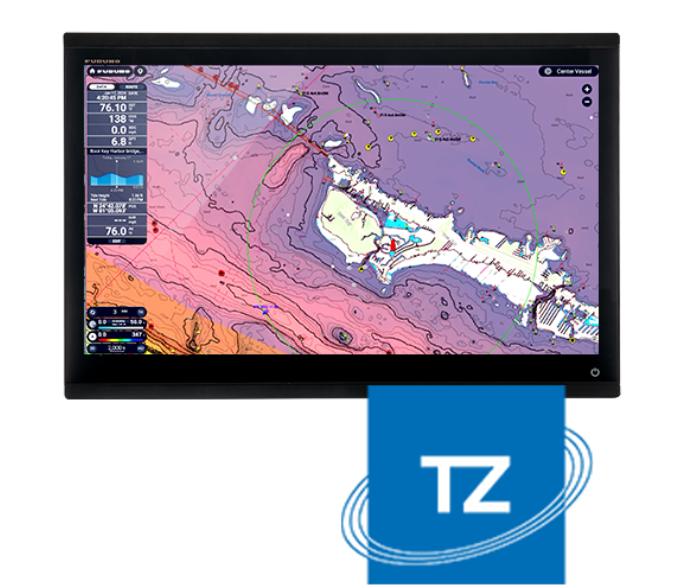

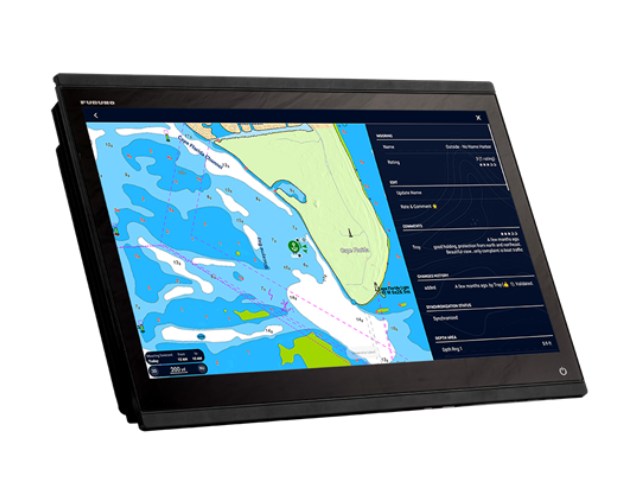

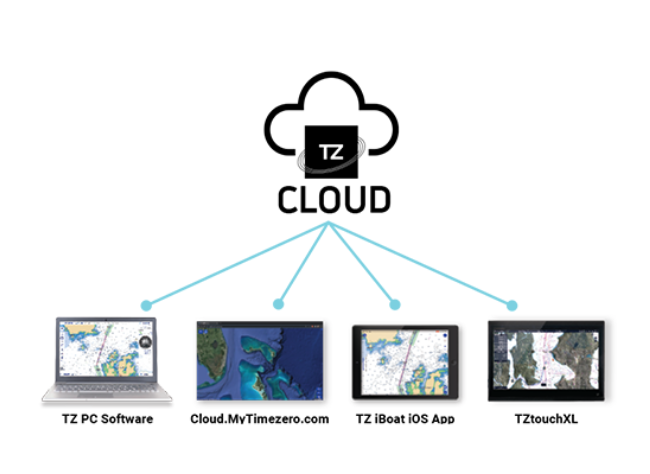

TZ MAPS: One of the most exciting TZtouchXL features is a chart offering called TZ MAPS. Not only are these some of the most detailed charts in the industry, but TZ MAPS users are in complete control of the chart content they want to download, such as raster or vector charts, satellite photos, and bathymetric data. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service. Since custom objects reside on their chart layer on the TZtouchXL MFD, they can easily be displayed or hidden as desired. Additionally, for the first time, customers can purchase and update charts directly on their TZtouchXL MFD!

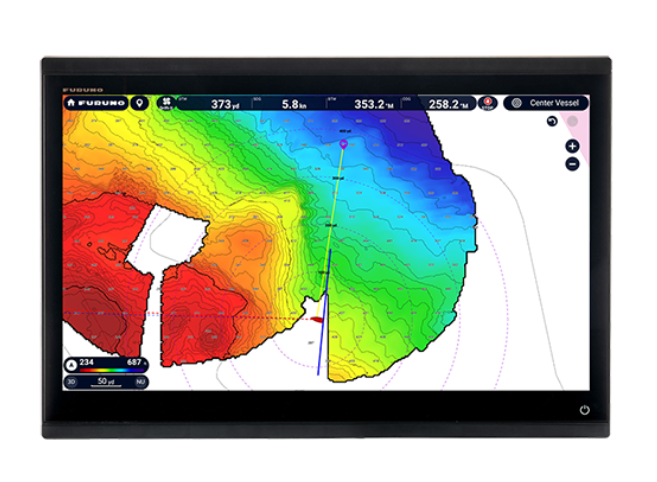

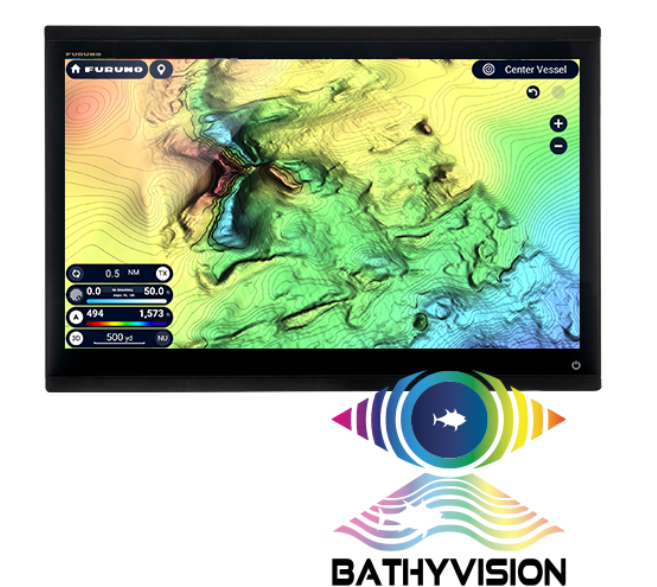

BathyVision: One of the most groundbreaking aspects of TZ MAPS is called BathyVision, providing amazingly detailed bathymetric data that can be configured to an incredible resolution of a mere 3 inches between contours! That's 3 times better than any other bathymetric chart currently on the market. BathyVision data, along with custom depth shading, can easily be overlaid on TZ MAPS navigation charts to create the ultimate "Fishing Charts"!

AI Routing: TZ MAPS unlocks the ability to utilize the powerful AI Routing function that intelligently plans out routes, taking into consideration the boat's draft and navigational obstacles. AI Routing takes traditional auto-routing to another level by automatically creating suggested routes based on varying navigational conditions.

Risk Visualizer & AI Avoidance Route: When connected to an NXT radar, two powerful safety features are unlocked: the Risk Visualizer and the AI Avoidance Route tool. Risk Visualizer provides a 360° visual representation of the potential collision risks of approaching objects around the vessel. Dynamic icons are automatically created for targets with the highest probability of collision, ensuring the captain has the necessary information to maintain safe distances when passing. The AI Avoidance Route function processes all available information provided to dynamically provide a safe route around those hazards, which can be sent to a Furuno NavPilot autopilot with a single tap.

Enhanced User Interface for Ease of Use & Customizability: In addition to offering all the great features that make NavNet super simple to operate, NavNet TZtouchXL MFDs also deliver BIG power and versatility! Users can now configure their MFD in many ways, thanks to an increased number of Page Builder configurations from four (4) to ten (10) custom combinations. Additionally, users can now custom-build a 6-way screen split of various components and sensors.

Match all those great screen layout options with enhanced Edge-Swipe feature access for the smoothest, easiest, and very best user experience Furuno has ever delivered! This is all driven by the most system memory and the highest level of processing power Furuno has ever integrated into a NavNet MFD.

Specifications

Display Unit:

• Type: Color TFT multi-touch IPS LCD
• Screen Size: 24" Wide
• Screen Resolution: FHD 1920 x 1080
• Screen Brightness: 900 cd/m2 (typical)
• Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
• Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Polish

Chart Plotter:

• Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only)
• Memory Capacity: 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route)
• Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required)

Interface:

• NMEA200: 1 Port
• Input: 065280, 126992/993/996, 127237/245/250/251/257/488/489/505, 128259/267, 129025/026/029/330/038/039/040/041/291/538/540, 129793/794/798/801/802/808/809/810, 130306/310/311/312/313/314/316/576/577/578, 130817/818/820/822/823/826/827/828/880
• Output: 126992/993/996, 127250/251/257/258, 128259/267/275, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/316
• NMEA0183: 1 Serial Output Port
• Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
• LAN: 1 Port (1000 BASE-T)
• USB: 1 Port (USB 3.0) for touch monitor and control unit: 1 Port USB touch output for HDMI device
• Video I/O: Input: 1 port (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only) Output: 1 port (HDMI 1080p)
• AUX I/O: 2 Ports (Event Switch and External Power Switch)
• SD Card Slot: 1 Slot (Micro SDXC, rear)
• Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max

Environment:

• Temperature (IEC60945)-15°C to +55° C
• Relative Humidity: 93% or less at +40° C
• Waterproofing: IP56

Power:

• 6.7-3.2A

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Screen Size: 24"
• Touchscreen: Yes
