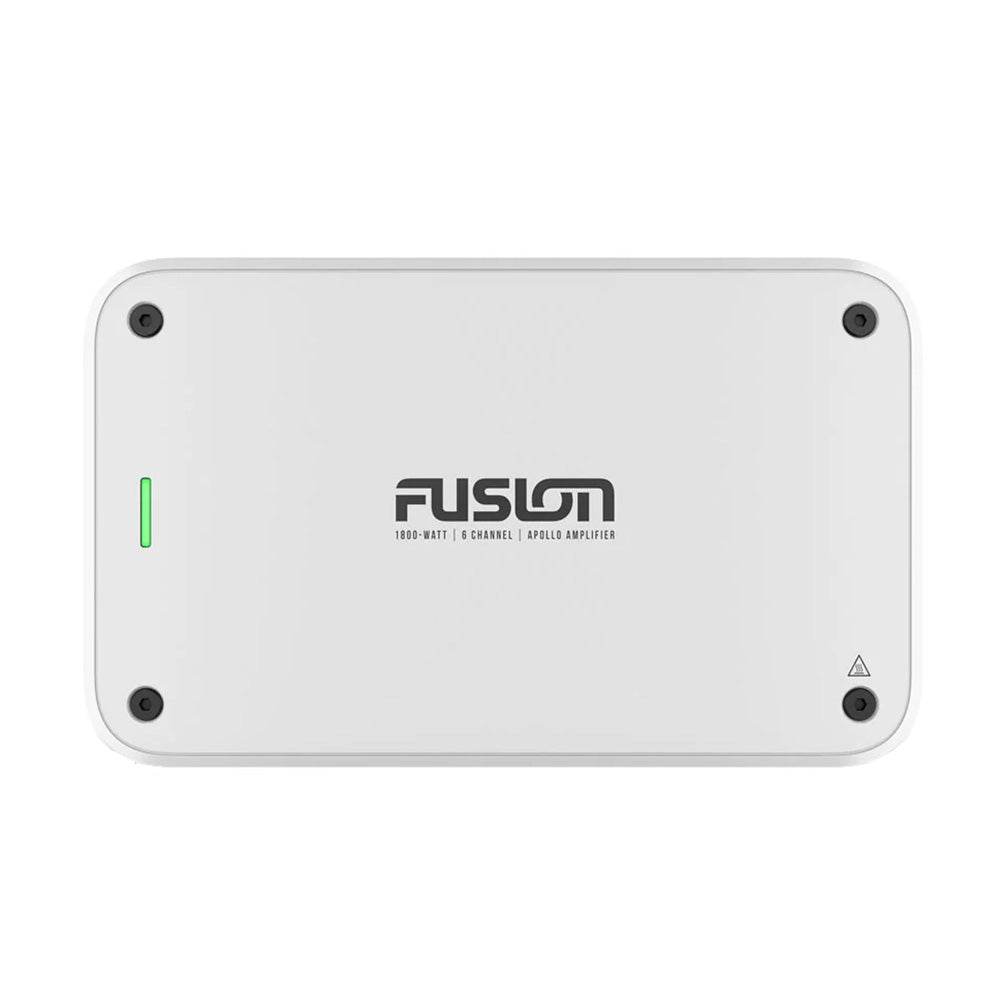

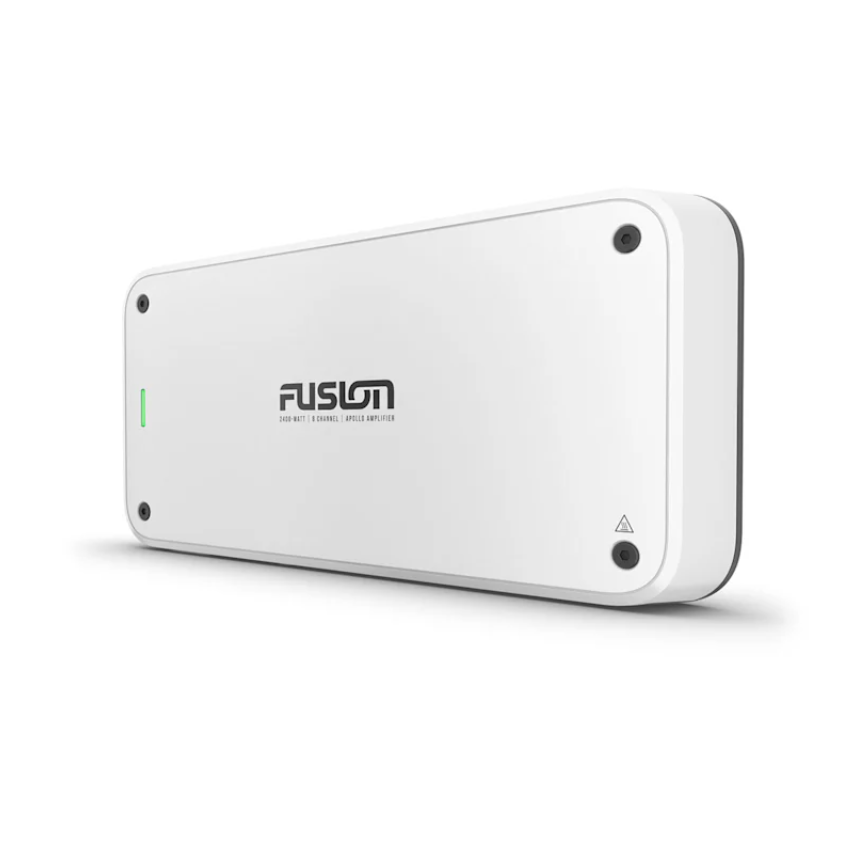

Fusion Apollo Marine Amplifiers 6 Channel Marine Amplifier (150-watt RMS per Channel)

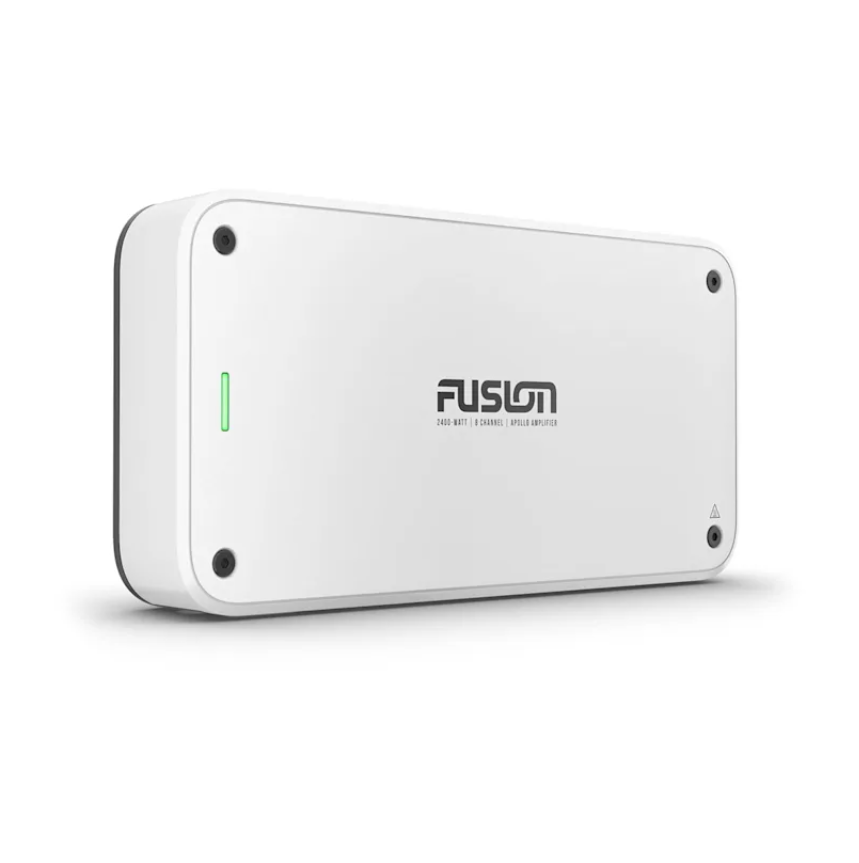

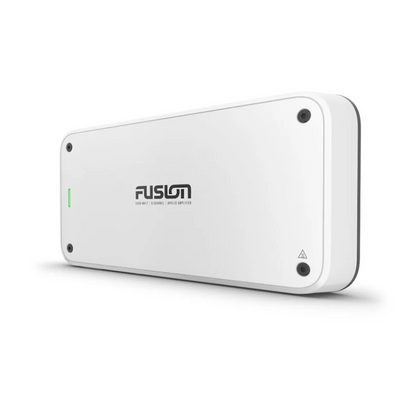

Apollo Marine 6 Channel 1800-Watt Amplifier (010-02284-65)

This 6-channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

Take your marine audio performance to the next level with the Fusion Apollo 6-Channel 1800W amplifier. Built for the harsh marine environment, this Class-D powerhouse delivers clean, efficient power and outstanding sound clarity across six channels.

✅ Key Features & Capabilities

• 150 W RMS per channel (4 Ω) — Delivers consistent, full-range output for up to six sets of speakers or a combination of four speakers plus a subwoofer.
• Peak power up to 1800 W — Ensures ample headroom for dynamic peaks and demanding audio.
• Class-D efficiency — Produces more power with less current draw, protecting your battery and electrical system.CEA-2006 compliant — Guarantees transparent, measurable performance under standardized testing conditions.
• DSP integration (EasyTune) — Simplifies tuning and optimization, especially when paired with Fusion’s DSP-enabled marine head units.
• Marine-grade construction — Sealed housing, corrosion-resistant materials, and robust build designed to resist moisture, UV exposure, and vibration.

🎯 Ideal Use & Applications

Whether you’re running a full marine audio setup or upgrading your existing system, this amplifier is ideal for:

• Powering multiple tower or cockpit speakers
• Driving a mixed system with up to six pairs of speakers, or a setup of four paired speakers plus a subwoofer
• Adding reliable headroom to avoid clipping and distortion during high-demand audio moments
• Pairing with JL Audio tower speakers, marine subwoofers, or cockpit speakers to build a premium on-water sound system

Why Choose the Fusion Apollo 6-Channel for Your Boat

This amplifier offers a perfect balance of power, efficiency, and marine durability—helping your JL Audio speakers or other marine speakers sound their best on the water. With built-in DSP support and robust marine construction, it delivers professional-grade performance for boaters and wakeboarders alike.

Features:

• Keep the music going for longer without draining your battery as quickly
• No more manual adjustments to your audio settings. The Easy Tune feature does it for you
• A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating
• Less distortion and noise, so you enjoy quality audio
• Mounting brackets are included for simple installation
• Don’t worry about potential overheating damage with our ignition protection design

Power & Efficiency: The Apollo amplifiers are designed to produce impressive power with less drain on your battery. This amp produces 150-watt RMS per channel.

Easy Tune Feature: These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, users can get the best quality sound without making manual adjustments.

Less Distortion: Some amplifiers distort audio when they add power. Fusions are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

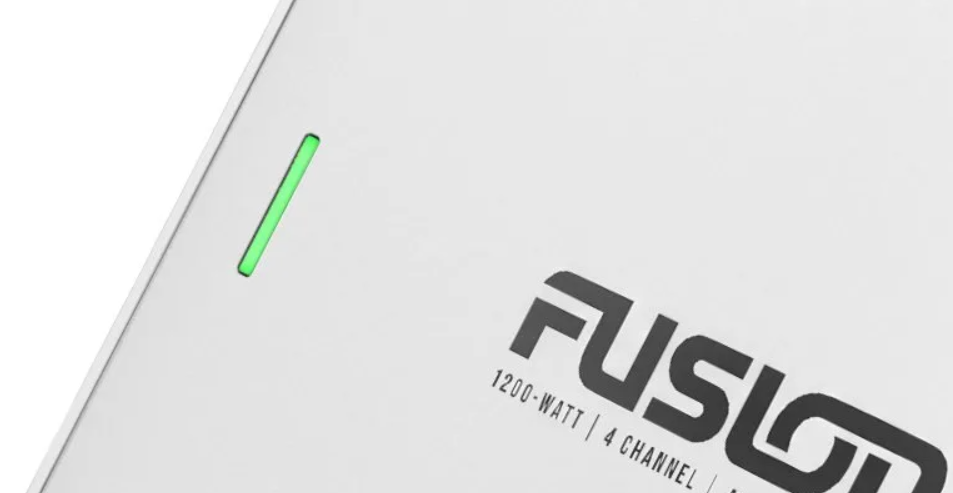

LED Indicators: Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts, as well as temperature.

Mounting Brackets: Easily install the amplifiers on board with the included mounting brackets.

Ignition Protected: The ignition-protected design helps prevent potential damage from overheating.

Conformal-Coated PCBS: The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM Stable: Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design: The amplifier is designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

In the Box:

• One Apollo 6-channel amplifier
• One mounting bracket
• One power connector

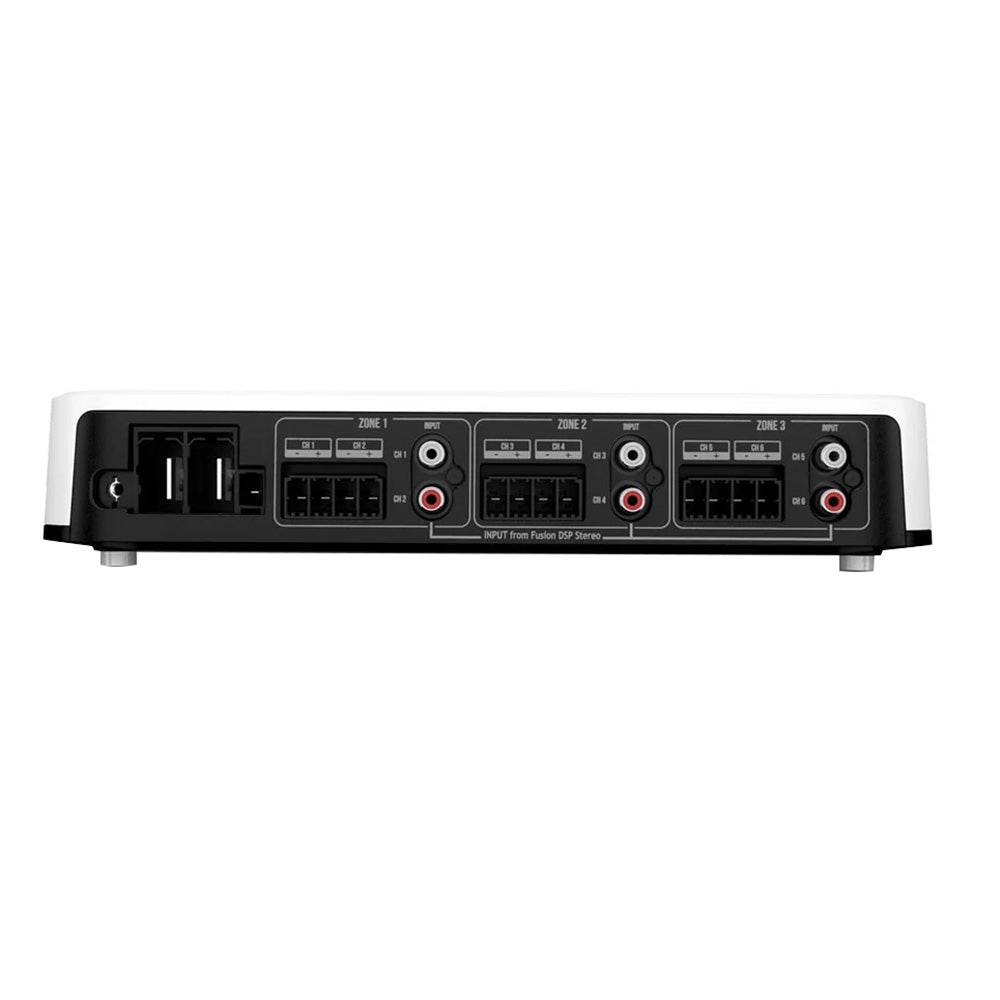

• Three speaker connectors with high-power mode adapters
• Four 8-gauge, flat-head self-tapping screws
• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
• Four screw covers
• Fuse holder
• Mounting template
• Installation instructions
• ISPI
• Warranty: 3 years

Specifications:

• Physical Dimensions without Bracket (L x W x H): 11.69" x 7.06" x 1.75" (297 x 180 x 45 mm)
• Physical Dimensions with Bracket (L x W x H): 11.69" x 7.06" x 2.13" (297 x 180 x 50 mm)
• Weight: 5.95 lb (2.7 kg)
• Water Rating: IPX2
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD
• Total Rated Power Output, 2 Ohm (Watts): 290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD
• Total Rated Power Output, 4 ohm Bridged (watts): 580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD
• Peak Power (watts): 1800 watts
• Input Sensitivity: 1.6 V RMS
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA @ 14.4 V input
• Current Draw, On, No Audio: < 1.32 A @ 14.4 V input
• Fuse Rating: 125 A electronic fuse (no replacement necessary)
• Power-Cable Fuse Model and Rating: Bussmann™ BK/AMI-030 30 A fast-acting
• Ignition Safety Protected (SAE J1171): Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, and output short circuit
• Operating temperature range: 32° to 122° F (0° to 50° C)


Detials:

• Bridgeable: Yes
• Channels - Available: 6
• Watts: 1800w
