Fusion Apollo Marine Amplifiers Monoblock Marine Amplifier (650-watt RMS)

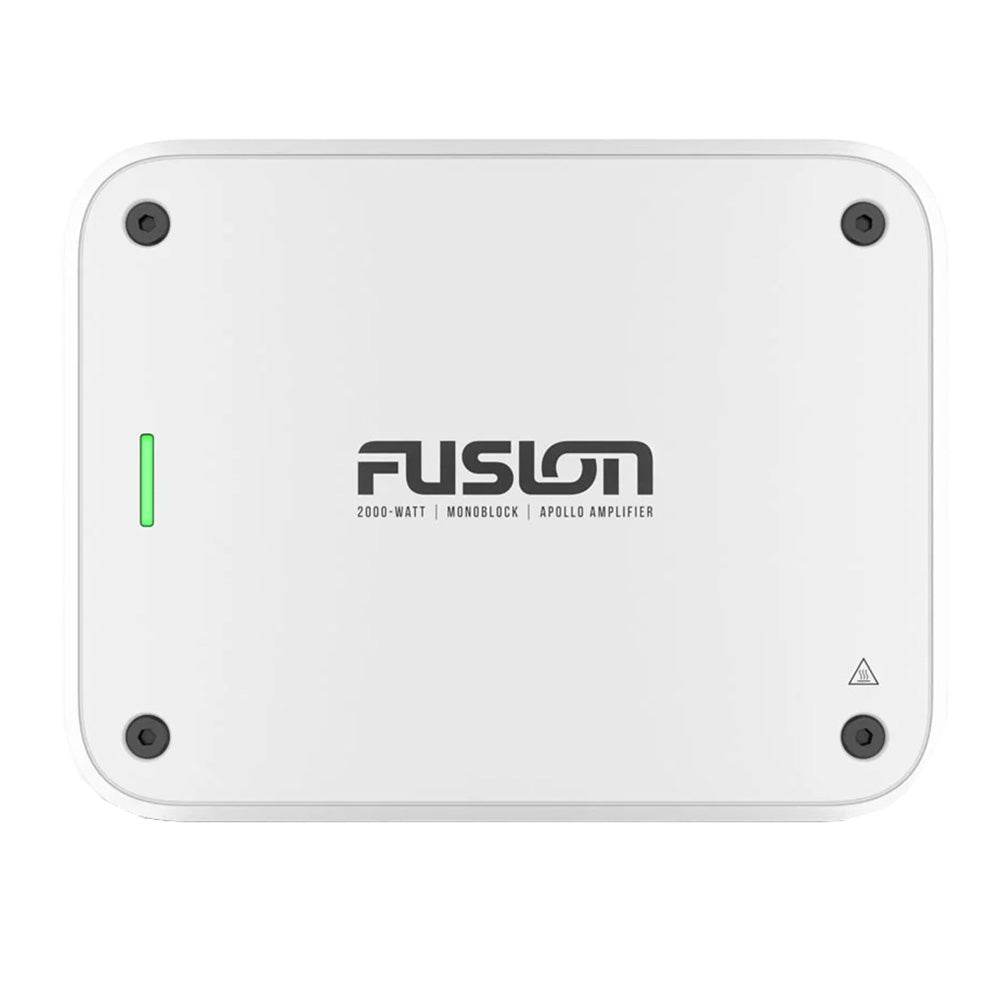

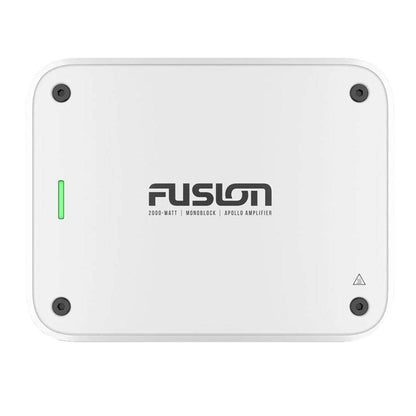

Apollo Monoblock Marine 650-Watt RMS Amplifier (010-02284-15)

Unleash deep, clean bass on the water with the Fusion Apollo™ monoblock marine amplifier delivering 650 watts RMS into 4 Ω. Engineered for marine environments, this Class-D marine amplifier combines power, efficiency, and durability—ideal for driving subwoofers in your boat audio system.

Key Features & Benefits:

• High-Power Output – 650 watts RMS ensures strong, distortion-free low frequencies in demanding marine settings
• Marine-Grade Design – Built to resist corrosion, vibration, and moisture, making it perfect for harsh saltwater conditions
• Efficient Class-D Amplification – Delivers robust performance with minimal heat and lower battery drain
• Easy Integration – Includes built-in crossover, gain controls, and remote subwoofer level control
• Compact & Rugged – Space-saving form factor and durable construction for reliable installation aboard
• Seamless with Fusion Systems – Works perfectly within the Fusion Apollo ecosystem for scalable marine audio setups

Why Choose the Fusion Apollo 650W Monoblock?
Whether you're upgrading your wakeboat audio or adding depth to your marine sound system, this marine amplifier delivers powerful, clean bass below deck or on outdoor platforms. Its marine-rated build ensures your investment holds up against sun, salt, and spray—while its compatibility with other JL Audio and Fusion components makes setup and expansion a breeze.

Add extra power to a system with this 2000-watt (650-watt RMS) monoblock amplifier that’s specifically designed to power a subwoofer. This efficient, easy-to-install monoblock amplifier works with your compatible Fusion stereo system.

Features:

• Keep the music going for longer without draining your battery as quickly
• No more manual adjustments to your audio settings. The Easy Tune feature does it for you
• A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating
• Less distortion and noise, so you enjoy quality audio
• Mounting brackets are included for simple installation
• Don’t worry about potential overheating damage with our ignition protection design

Power & Efficiency: The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS.

Easy Tune Feature: These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, users can get the best quality sound without making manual adjustments.

Less Distortion: Some amplifiers distort audio when they add power. Fusions are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

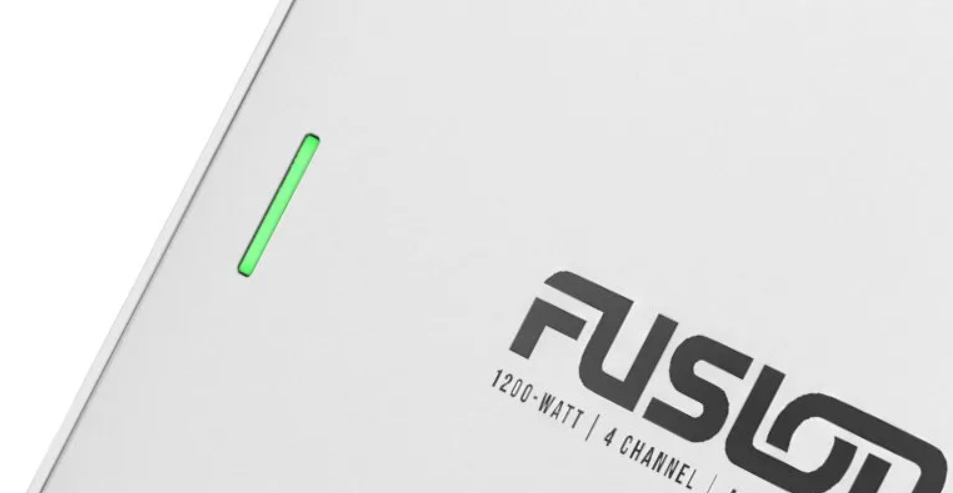

LED Indicators: Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts, as well as temperature.

Mounting Brackets: Easily install the amplifiers on board with the included mounting brackets.

Ignition Protected: The ignition-protected design helps prevent potential damage from overheating.

Conformal-Coated PCBS: The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM Stable: Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design: The amplifier is designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

In the Box:

• One Apollo monoblock amplifier
• One mounting bracket
• One power connector
• One speaker connector
• Four 8-gauge, flat-head self-tapping screws
• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
• Four screw covers
• Fuse holder
• Mounting template
• Installation instructions
• Important safety and product information (ISPI)
• Warranty: 3 years

Specifications:

• Physical Dimensions without Bracket (L x W x H): 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm)
• Physical Dimensions with Bracket (L x W x H): 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm)
• Weight: 4.85 lb (2.2 kg)
• Water Rating: IPX2
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 650 watts RMS x 1 @ 14.4 V input, 4 ohms, < 1% THD
• Total Rated Power Output, 2 Ohm (Watts): 1100 watts RMS x 1 @ 14.4 V input, 2 ohm < 1% THD
• Peak Power (watts): 2000 watts
• Input Sensitivity: 2.15 V RMS
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA @ 14.4 V input
• Current Draw, On, No Audio: < 1.15 A @ 14.4 V input
• Fuse Rating: 125 A electronic fuse (no replacement necessary)
• Power-Cable Fuse Model and Rating: Bussmann™ BK/AMI-030 30 A fast-acting
• Ignition Safety Protected (SAE J1171): Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, and output short circuit
• Operating temperature range: 32° to 122° F (0° to 50° C)


Details:

• Channels - Available: 1
• Watts: 650w
