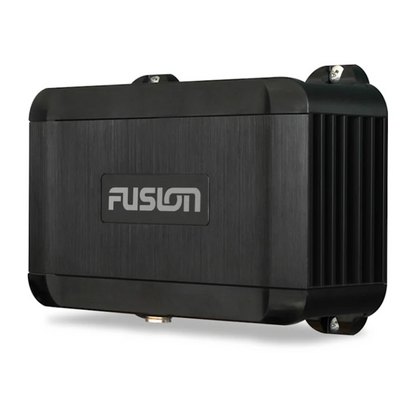

Fusion Black Box (MS-BB100)

MS-BB100 Marine Black Box AM/FM/BT - 2 Zone (010-01517-01)

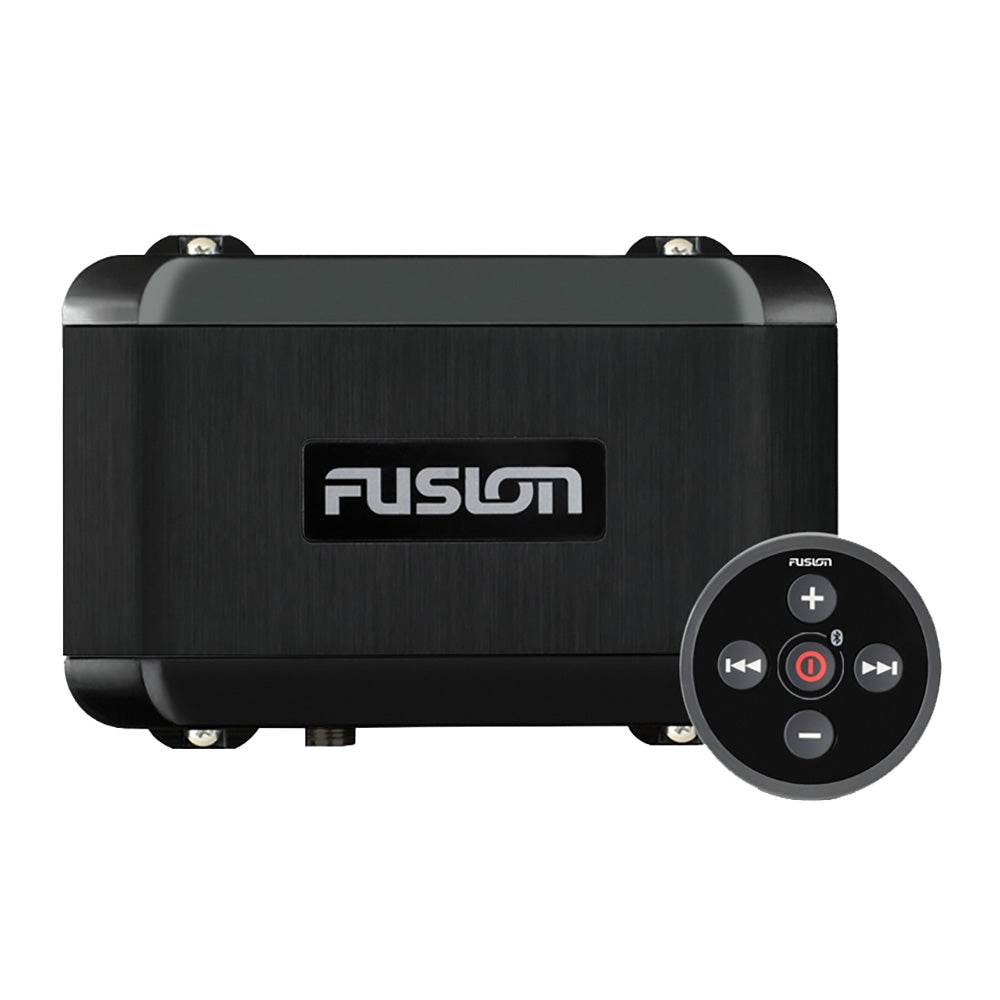

Upgrade your boat’s audio system with the compact and powerful Fusion MS-BB100 Marine Black Box (010-01517-01). Designed for marine environments, this sleek black box media receiver delivers full-featured connectivity and control across two zones — all without the clutter of a traditional head unit.

Key Features & Capabilities

• True Marine Design & Durability — Built with a True-Marine™ standard for corrosion resistance and ruggedness, the MS-BB100 is engineered to withstand the harsh marine environment.

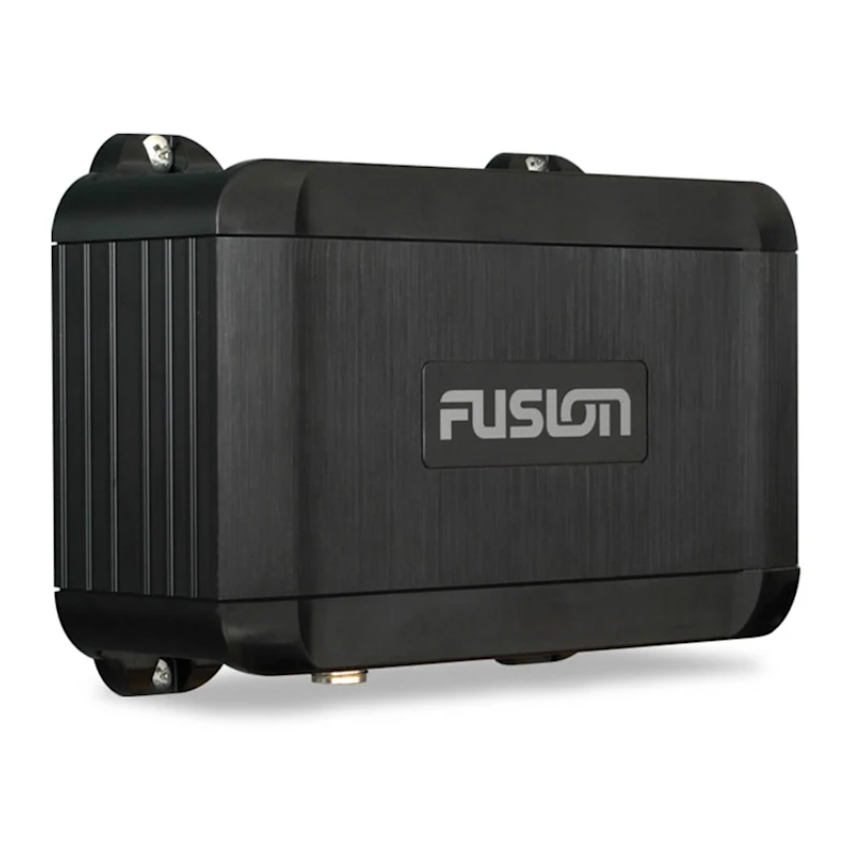

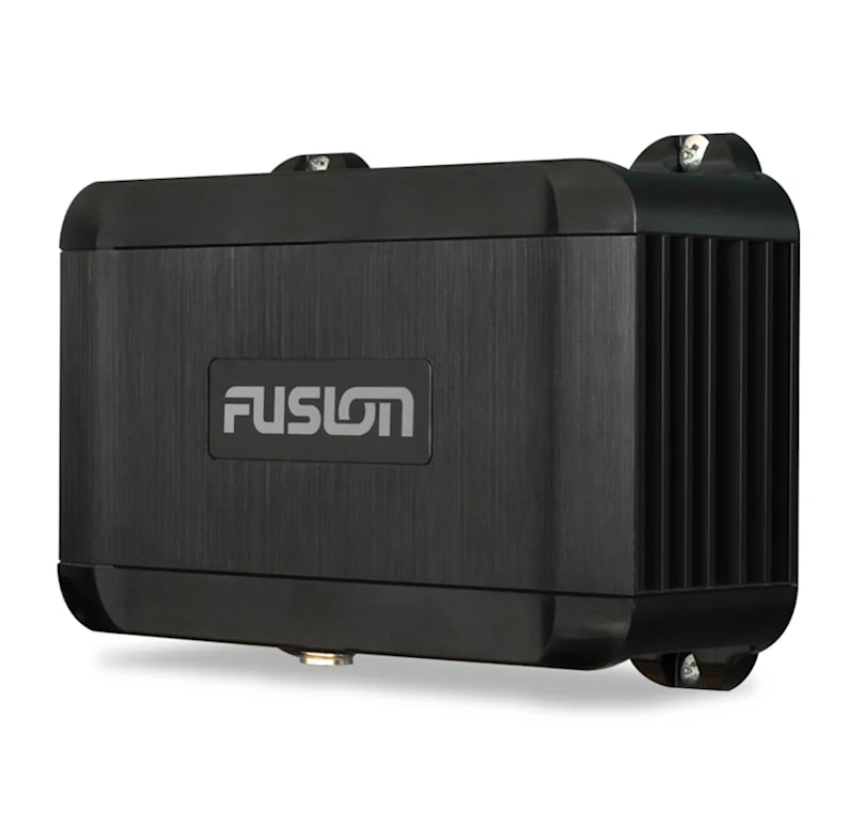

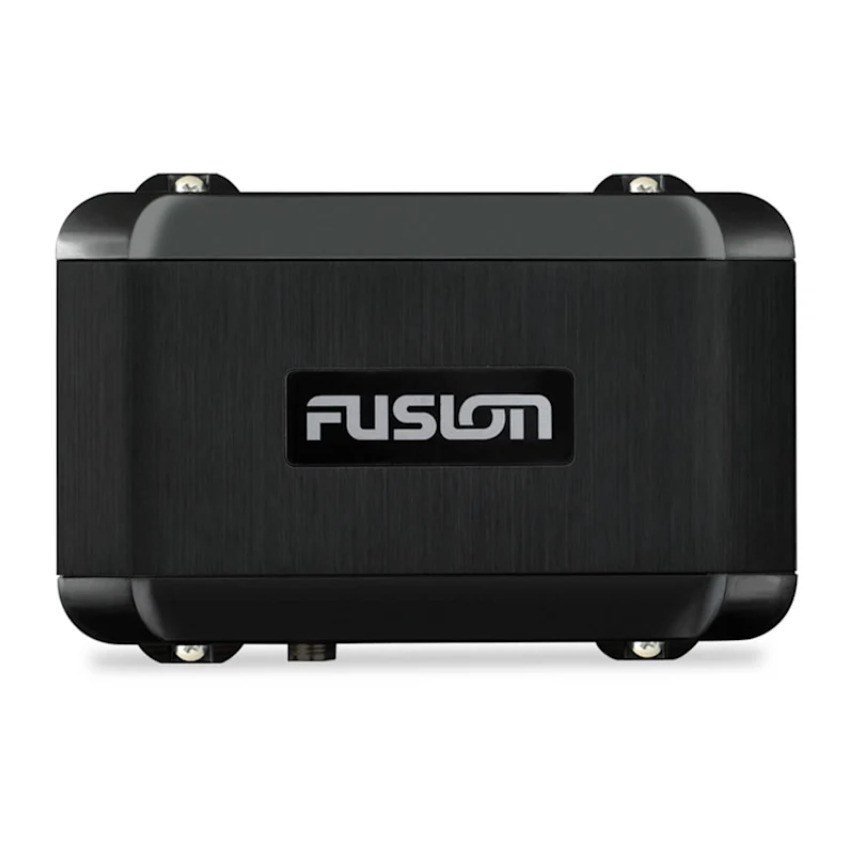

• Compact Black Box Format — Because it’s a hidden “black box” design, the receiver can be tucked away inside lockers, helm consoles, or other out-of-sight locations, saving valuable dashboard real estate.
• Two Independent Audio Zones (Multi-Zone™) — Manage and customize audio independently in two zones on your vessel. Each zone offers localized controls and naming for clarity.
• Built-In Class-AB Amplifier — Delivers clean, high-fidelity output (typically cited as 25 W RMS × 4 channels, or 200 W peak) without needing an external amplifier.
• Bluetooth Streaming & Control — Embedded Bluetooth supports wireless audio streaming (A2DP) with AVRCP playback control. The clever design places the Bluetooth receiver in the wired remote, reducing interference between your phone and the receiver.
• USB Playback & Charging — The rear USB port supports MP3 playback from flash drives (typically up to 32 GB, FAT32 format) and charges connected devices (0.5 A) when the vessel’s ignition is on.
• iOS / Android Compatibility — Supports “Made for iPod/iPhone” audio playback and basic track control via USB. Also supports Android Open Accessory (AOA) 2.0 to play music or audio apps from Android devices.
• AM / FM Tuner & AUX Input — Includes AM/FM radio with presets and manual tuning, plus an RCA AUX input for connecting external audio sources.

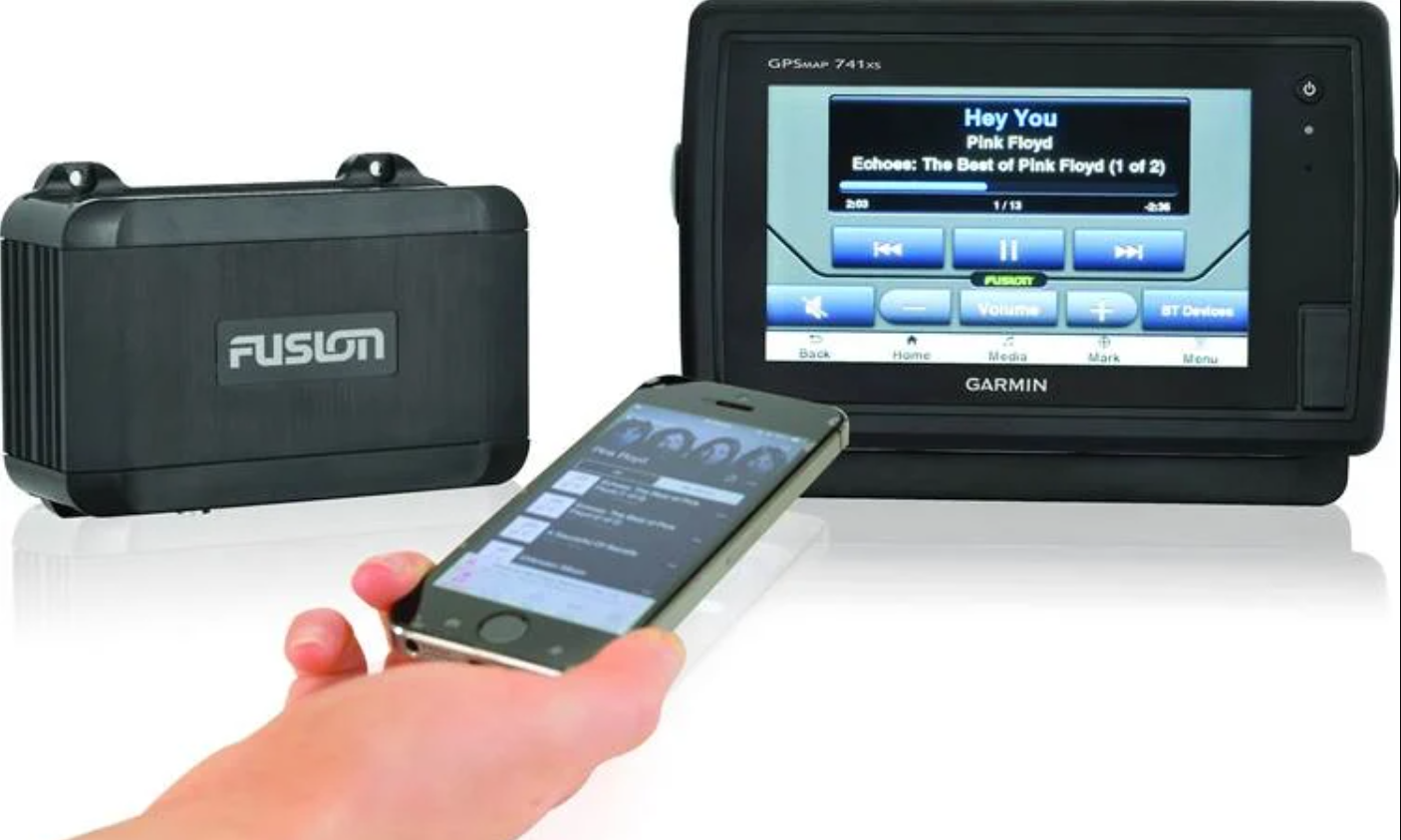

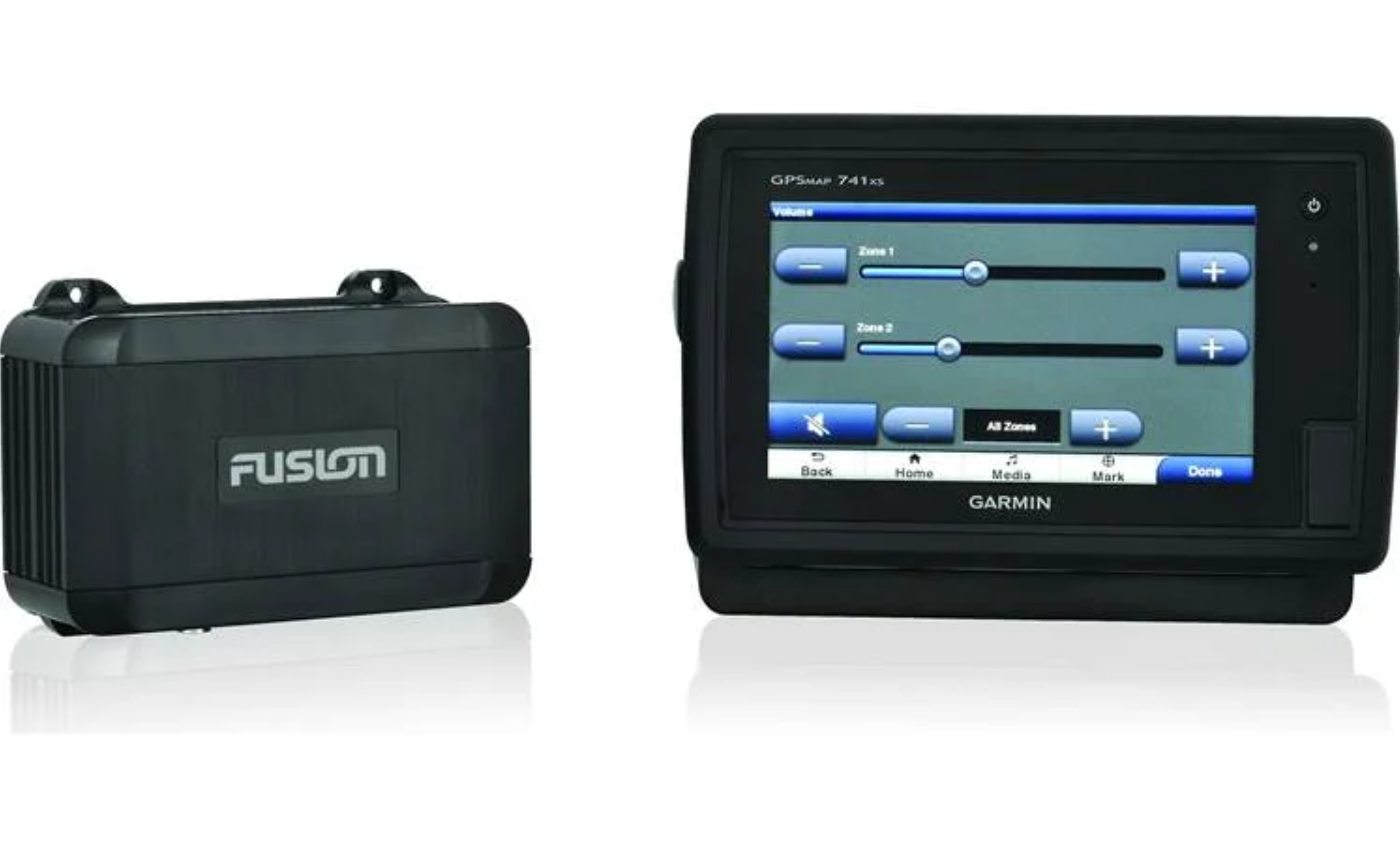

• NMEA 2000 / Fusion-Link Integration — Fully compatible with NMEA 2000 networks. Use Fusion-Link protocol to control the unit from supported multifunction displays (MFDs), marine systems, or other networked devices.

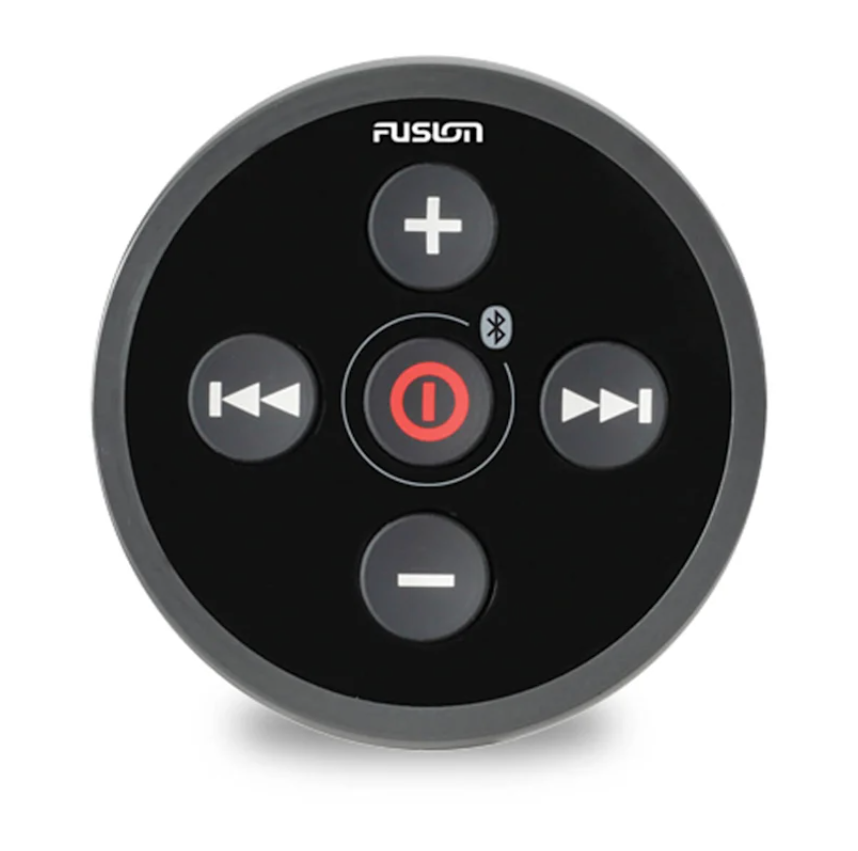

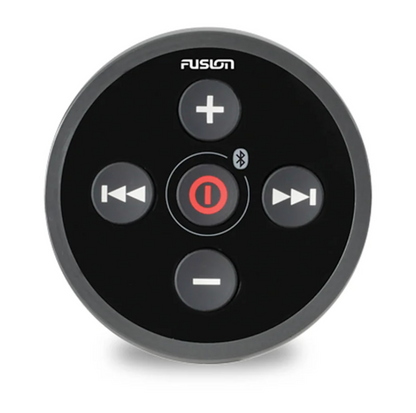

• IPX7-rated Wired Remote — Comes with a waterproof IPX7 remote control that can be flush or surface mounted for easy operation.
• Easy Installation & Remote Flexibility — Includes wiring harness, remote mounting hardware, gasket, NMEA 2000 drop cable, and auxiliary/line-out harness.

Features:

• Small footprint Black Box design with included Bluetooth embedded wired remote
• IPx7 water resistant wired remote with quick Bluetooth pairing
• Flush or flat mounting remote control installation options
• Fusion-Link NMEA 2000 Ready for connection and control from any supported Multi-Function Display
• Multi-Zone™ Technology – Two independent audio zones are available, each with advanced localized menu controls, including zone naming
• True-Marine™ Designed and Engineered – Extensively tested to perform in the harsh marine environment

Technical Specifications:

• 2 Zones
• 200 Watts peak power
• NMEA 2000 compatible
• Class AB Amplifier
• Rear USB connection
• Dimensions (W/H/D) - 6-1/8" x 2-3/8" x 3-11/16"
• Remote Dimensions (Diameter/Depth) - 2-9/16 x 3/16"

In the Box:

• Media Black Box
• Remote - Wired
• Remote Mounting Hardware/Gasket
• Remote Mounting Template
• 6' NMEA 2000 Drop Cable
• Power Wiring Harness
• Aux/Line-out Harness
• Documentation

*SiriusXM Promotion - Get 3 Free Months SiriusXM Streaming Service - LINK

*Sold as an Individual

Specifications:

• NMEA 2000: Yes
• Auxiliary Input: Yes
• Bluetooth: Yes
• Color: Black
• Cover Included: No
• Power - Output (Watts): 200
• RCA Input: Yes
• RCA Output: Yes
• SiriusXM Ready: No
• Wired Remote Capable: Yes
• Wireless Remote Capable: Yes

Owner's Manual (pdf)
Brochure (pdf)
