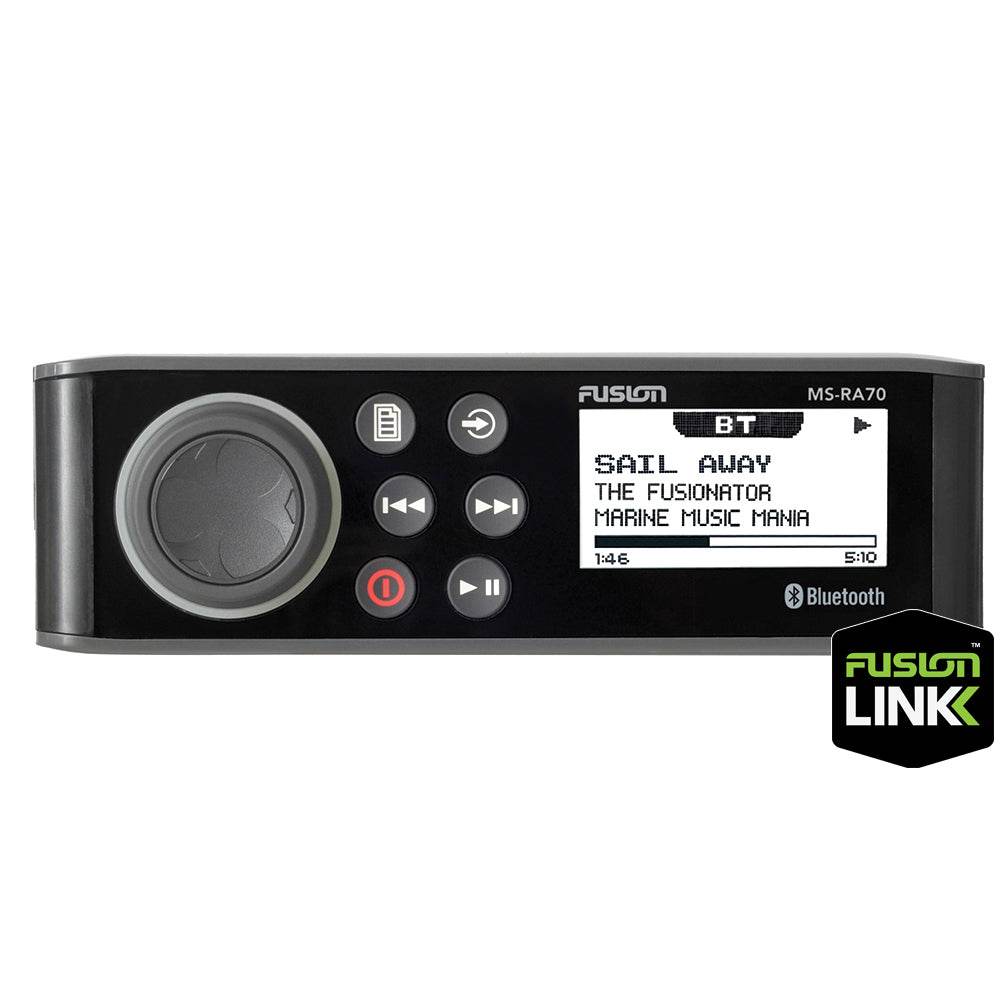

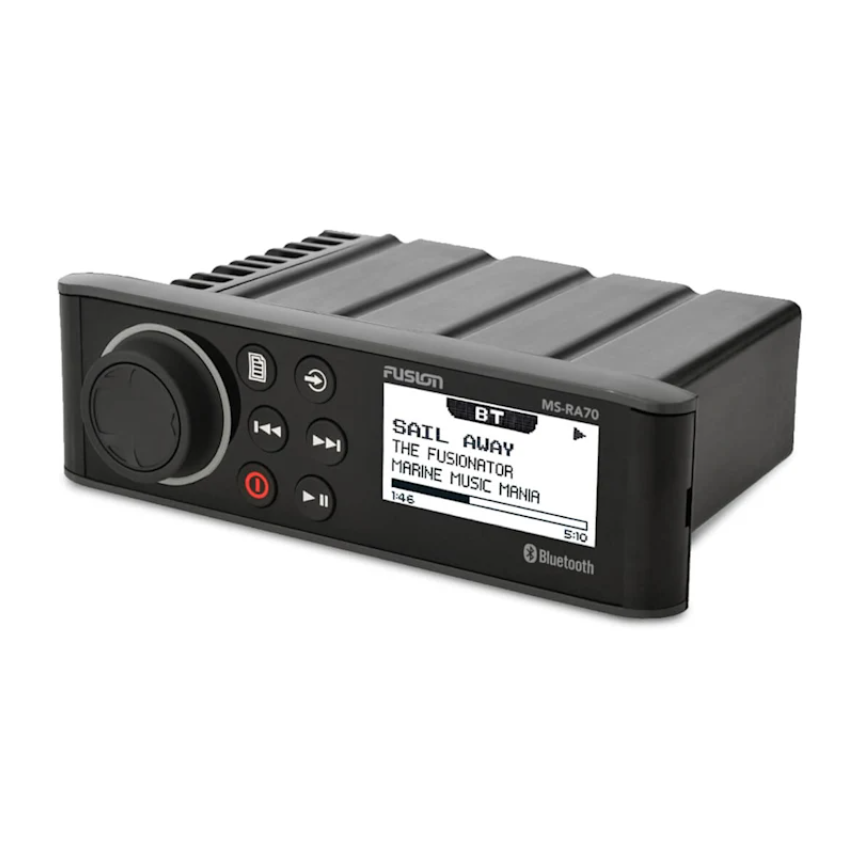

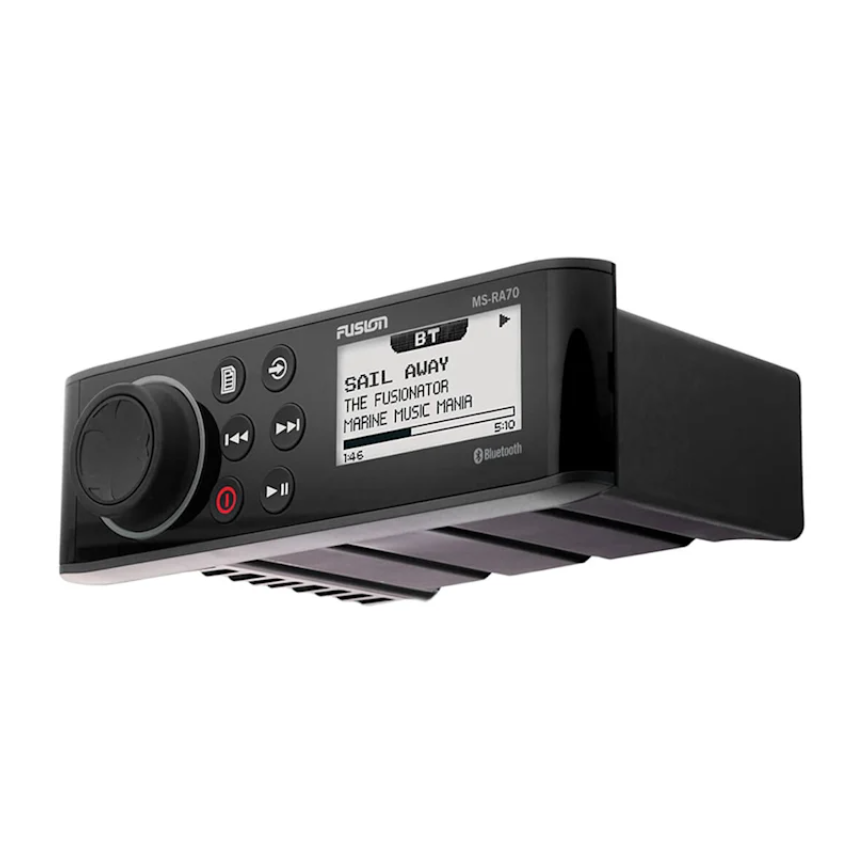

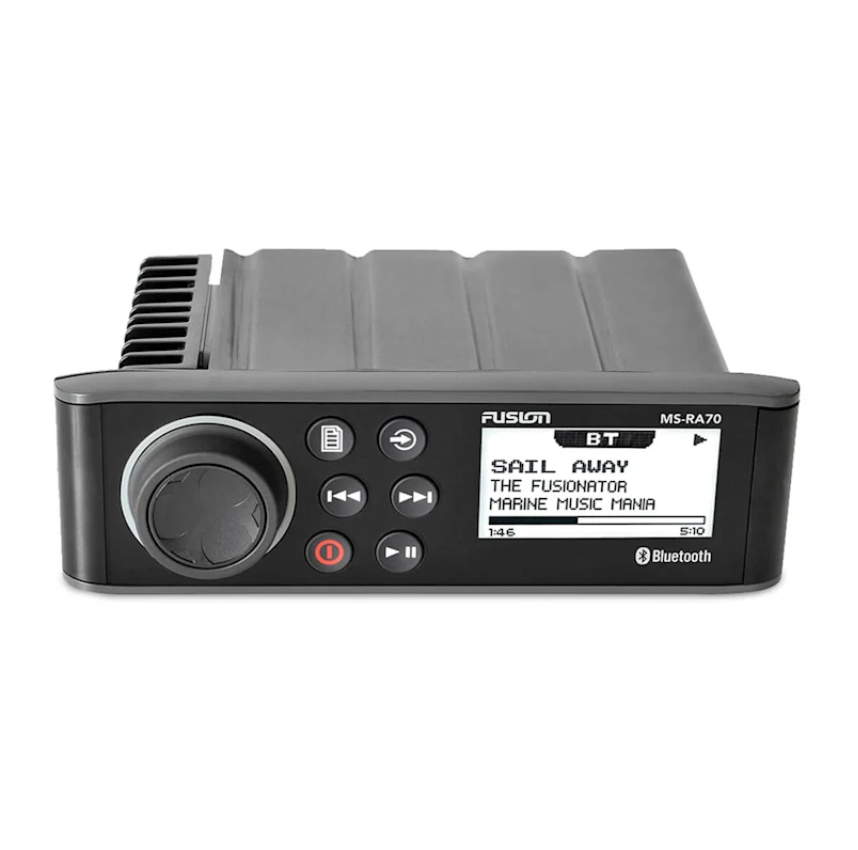

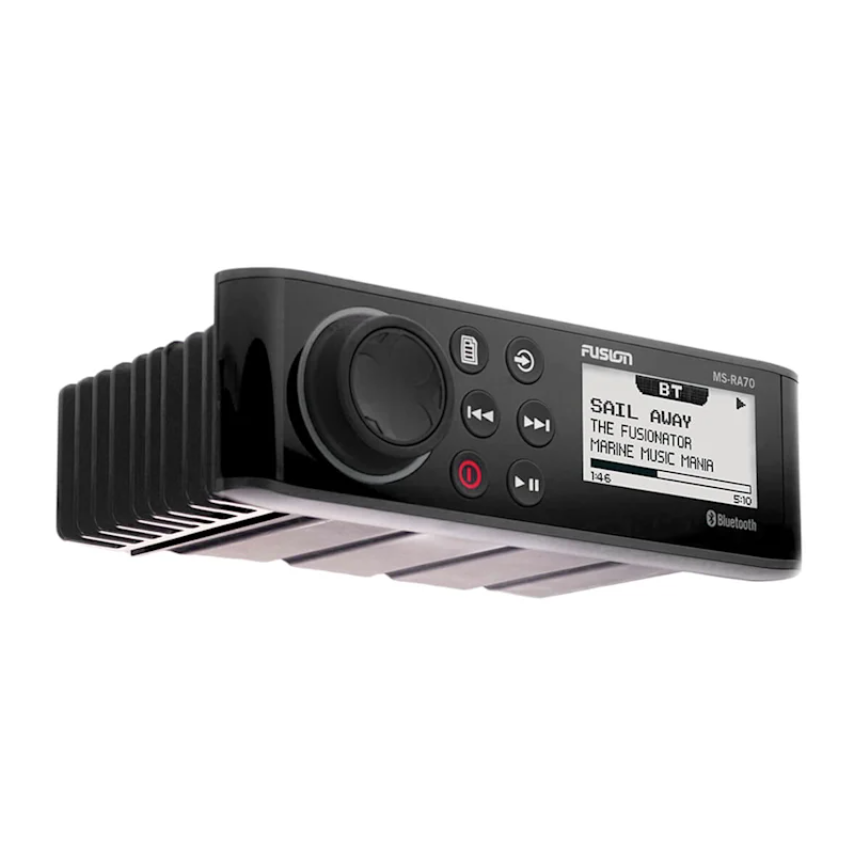

Fusion RA70 Series Marine Stereos MS-RA70 Marine Stereo with Bluetooth

MS-RA70 Stereo with AM/FM/BT - 2 Zone (010-01516-01)

Upgrade your boat or off-road rig with the Fusion MS-RA70 Marine Stereo (model 010-01516-01). This compact, feature-rich digital media receiver is engineered for marine environments and delivers flexible audio control across two independent zones. With rugged build quality, built-in Bluetooth streaming, and marine-grade durability, the MS-RA70 is ideal for boating, fishing, and outdoor audio setups.

Key Features & Capabilities

• 2-Zone Audio Control: Send music independently to two different speaker zones (e.g. cockpit and cabin), with separate volume control for each zone.
• Built-in Amplifier: Delivers up to 25 W RMS (50 W peak) per channel across 4 channels (at 4 Ω) to power your speakers directly.
  (- Some sources list 4 × 50 W peak with Class-AB amplification.)
• AM / FM Radio with RDS: Tune into local radio stations with RDS display support (song/artist info).
• Bluetooth Music Streaming & Control: Stream audio wirelessly from smartphones, tablets, or other Bluetooth devices. Use the FUSION-Link App on iOS/Android to control the stereo from the deck.
• USB & Auxiliary Inputs: Connect USB flash drives or external devices for playback of MP3, WAV, and other supported formats. Also includes auxiliary (AUX) input.
• Marine-Grade Front Panel (IPX7 Rated): The front face of the MS-RA70, when properly installed, is water-resistant to IPX7 standard — capable of withstanding immersion in water up to 1 meter for 30 minutes.
• Compact Single-DIN Design: Fits into standard single-DIN cutouts (2.36" × 7.40" × 4.87") for easy integration into marine dash panels or other enclosures.
• Expandability & Integration
  • Compatible with wired remotes (e.g. NRX series)
  • Works with FUSION-Link App for remote control and zone linking
  • Line outputs for external amplifiers in applications requiring more power.
• Multi-language Interface & Brightness Control: Select from multiple language options, and adjust display brightness to suit day / night conditions.
• Lightweight & Durable Construction: Weighs around 19.6 oz (556 g) with robust housing designed for harsh marine or outdoor environments.

Note: The MS-RA70 model (010-01516-01) does not support NMEA 2000 wired integration (that functionality is available in the MS-RA70N variant).

Why Choose the Fusion MS-RA70?

• Delivers quality marine audio for both small boats and off-road vehicles
• Offers modern connectivity (Bluetooth, USB, AUX) in a compact, rugged unit
• Two separate audio zones ensure flexible sound control in multiple areas
• Designed to resist water, vibration, and corrosion — built for life on the water

If you’re looking to elevate your onboard audio experience, the Fusion MS-RA70 (010-01516-01) is an excellent choice. Want help comparing it to alternatives or choosing matching speakers or remotes? Just let me know!

Features:

• Built-in Bluetooth connectivity is what makes this receiver truly special
• Designed and engineered specifically for the marine environment, with an IPX7 front panel (when mounted correctly)
• Bluetooth connectivity (30' Range)
• Enjoy your favorite AM/FM stations
• Connect an MP3 player to the USB port
• Perfectly paired with an optically bonded LCD for crystal clear display on the water.
• Works with iPod/iPhone, plus Android and Windows phones
• Flush or flat mounting installation options

Technical Specifications:

• 200 Watt Peak Power
• 50 Watts peak x 4 channels
• Class AB Amplifier
• Rear USB connection
• Language Interface - Dutch / English / French / German / Italian / Spanish
• Dimensions (W/H/D) - 7-7/16" x 2-3/8" x 4-7/8"
• Cutout Dimensions (W/D/H) - 6-3/8" x 2" x 3-15/16"

In the Box:

• Stereo Head Unit
• Mounting Hardware
• Mounting Template
• Power Wiring Harness
• Aux/Line-out Harness
• Documentation

*Cover not included

*Sold as an Individual

Specifications:

• Wireless Remote Capable: Yes
• Cover Included: No
• NMEA 2000: No
• Auxiliary Input: Yes
• Color: Black/Grey
• Power - Output (Watts): 200
• Wired Remote Capable: Yes
• SiriusXM Ready: No
• Bluetooth: Yes
• RCA Output: Yes
• RCA Input: No
