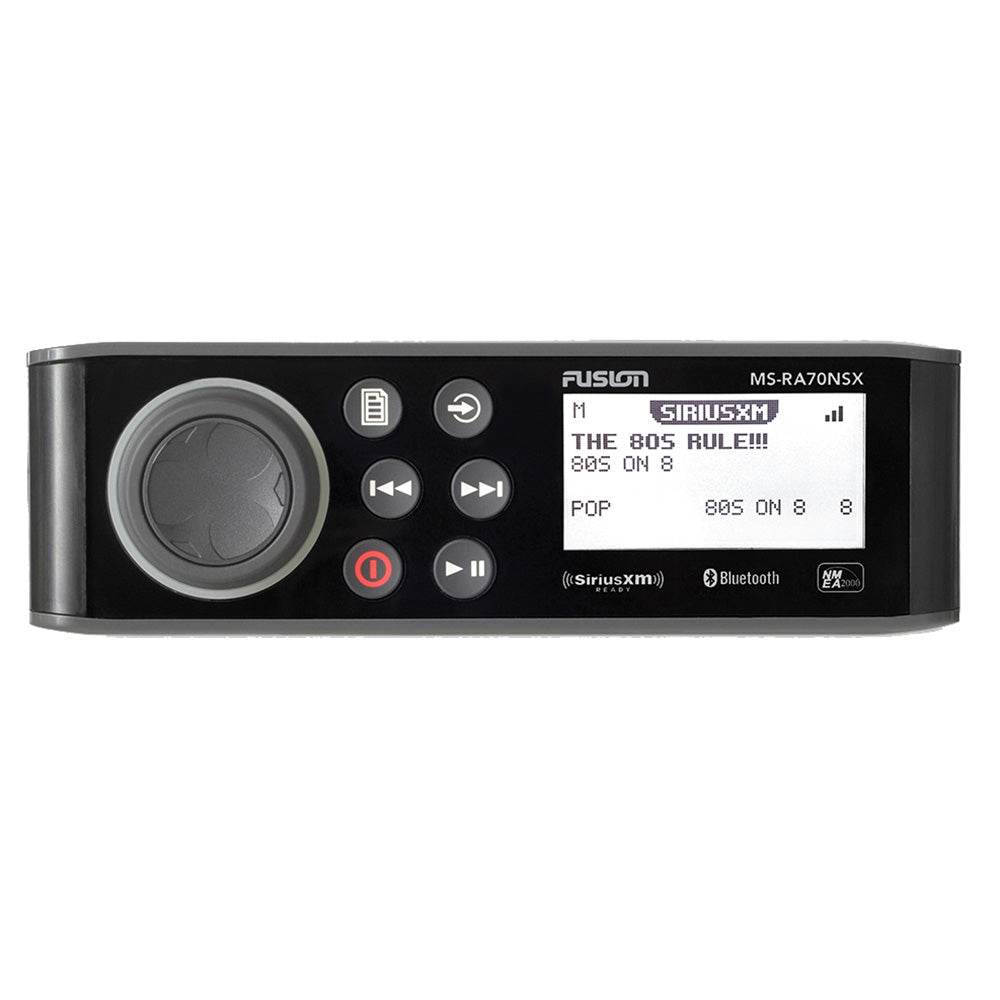

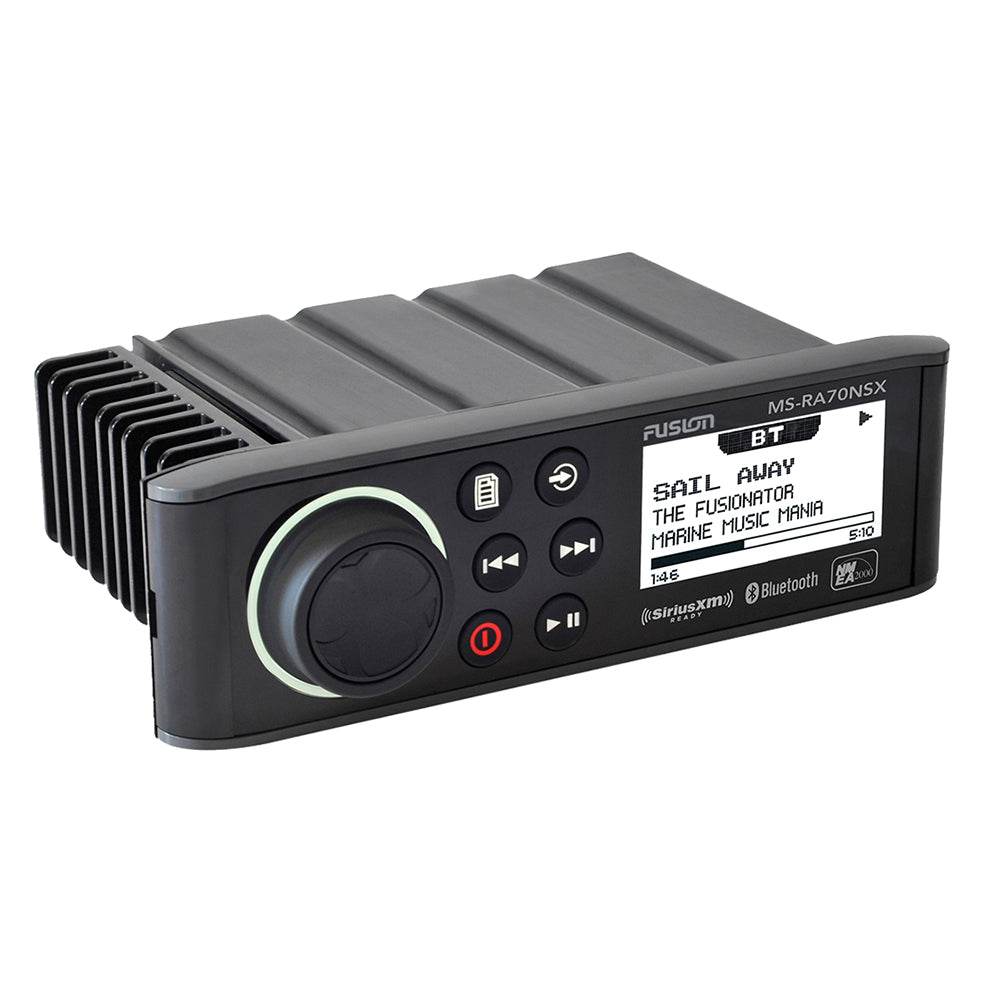

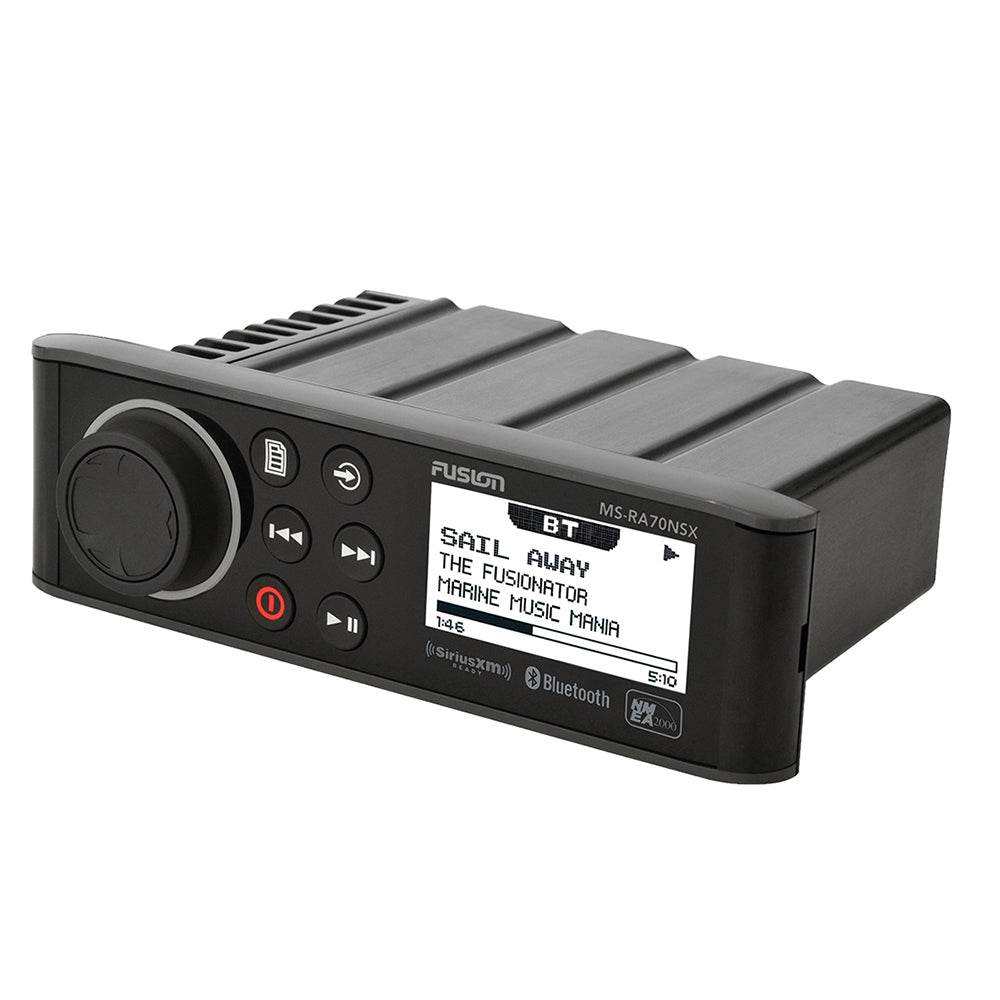

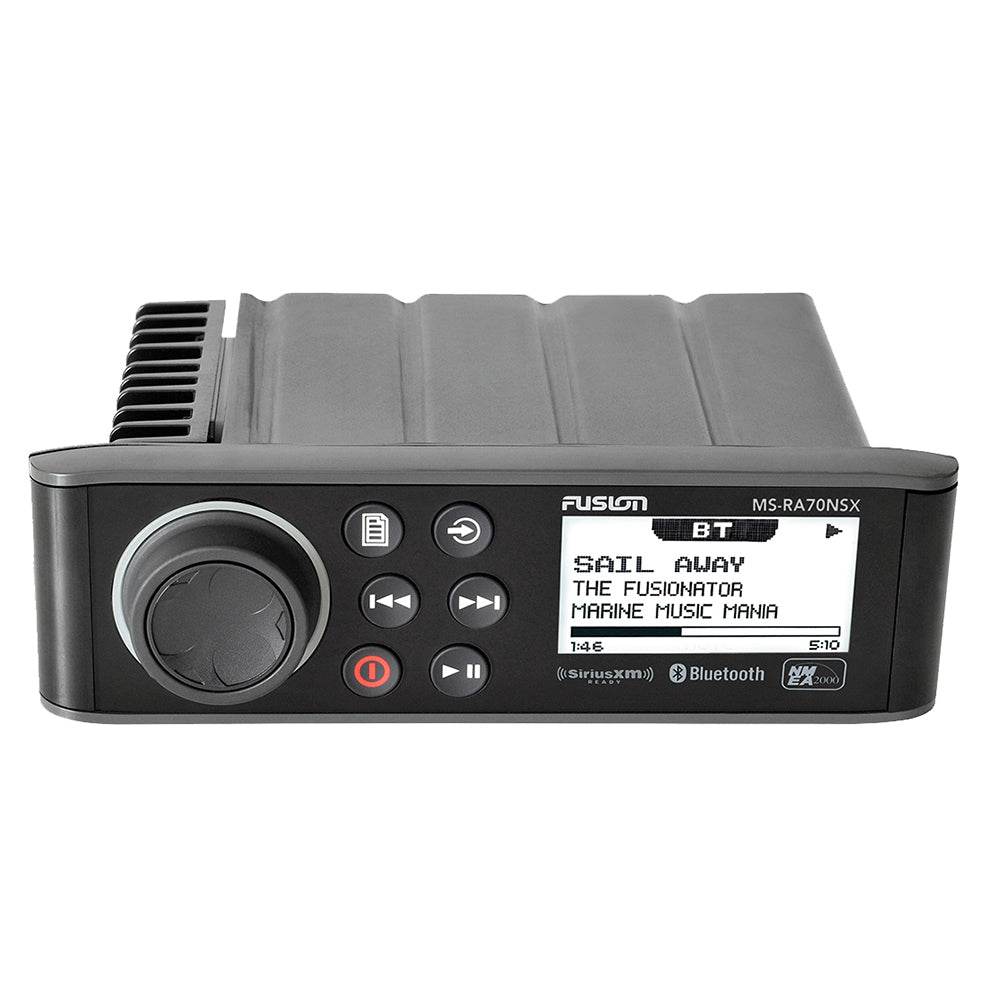

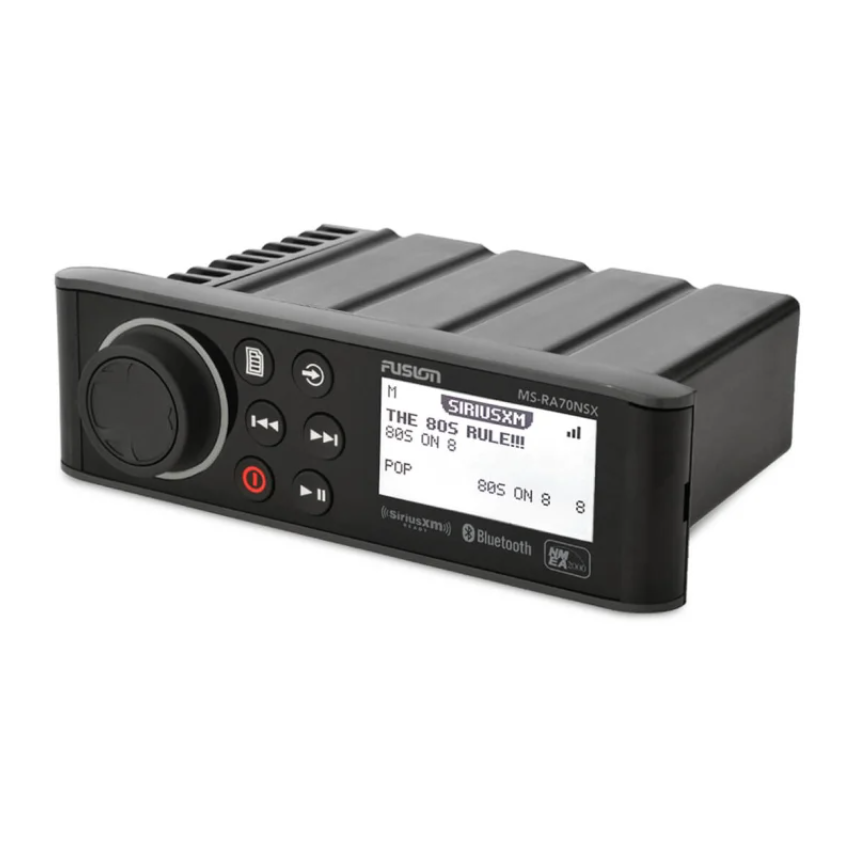

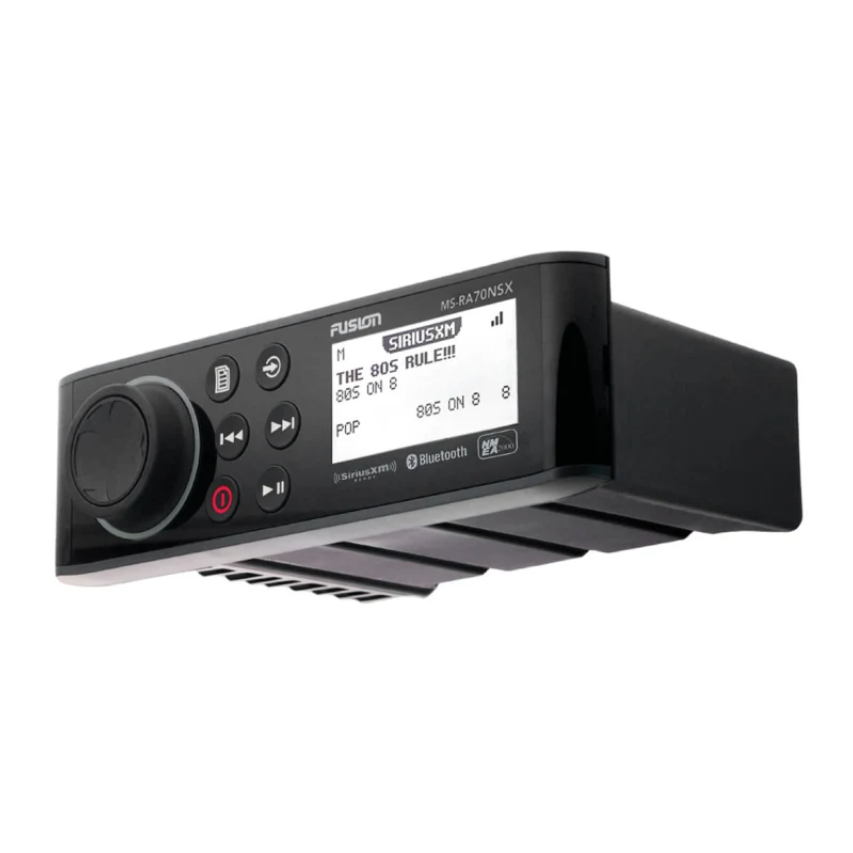

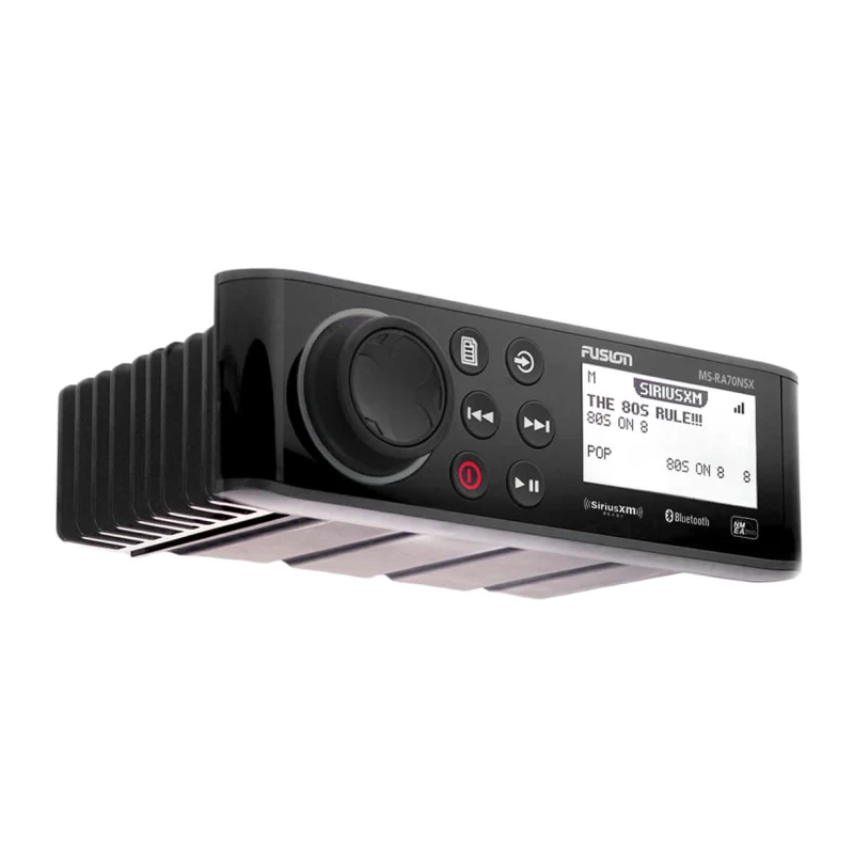

Fusion RA70 Series Marine Stereos MS-RA70NSX Marine Stereo with NMEA 2000 and SiriusXM-Ready

Fusion MS-RA70NSX Stereo – 2-Zone Marine Receiver (AM/FM/BT/SiriusXM) (010-01516-30)

Elevate your marine audio experience with the Fusion MS-RA70NSX, a rugged, IPX7-rated marine digital media receiver built for performance and versatility. Featuring two internally amplified zones, built-in Bluetooth, SiriusXM compatibility, NMEA 2000 integration, and more, this system gives you complete control of your onboard entertainment.

Key Features & Capabilities

High-Performance Amplification

• 25 W RMS (50 W peak) × 4 outputs (Class-AB) to drive dual pairs of speakers
• Delivers up to 200 W peak power for dynamic sound across both zones
• 4-ohm compatible, delivering clear, balanced marine audio output.

Dual Zone (2-Zone) Output

• Create two separate “zones” (e.g. cockpit + cabin or bow + stern) with independent volume control & source assignment
• Ideal for multitasking—listen to your playlist in one zone and radio in another

AM/FM with RDS & SiriusXM Ready

• Built-in AM/FM tuner with RDS (Radio Data System) support where available
• SiriusXM ready—just add the optional SiriusXM tuner and antenna to unlock satellite radio capabilities

Bluetooth Wireless Streaming

• Stream audio seamlessly from smartphones, tablets, or other Bluetooth-enabled devices
• Bluetooth also supports device control (play, pause, skip) from the front panel interface
• Nameable Bluetooth profiles so multiple users can save their own settings

NMEA 2000 / Fusion-Link Integration

• Supports Fusion-Link over NMEA 2000 for command/control via compatible chartplotters, multifunction displays, or NRX wired remotes
• Allows you to integrate with your boat’s existing network and control music from your helm display

Marine-Ready Construction

• Front panel is IPX7 waterproof rated (submersion up to 1 m for 30 minutes) and rear section rated at IPX3
• Rugged, weather-resistant design intended for harsh marine environments
• Operating temperature range: 0 °C to 50 °C (32 °F to 122 °F)

User Interface & Controls

• 128 × 64 optically bonded monochrome LCD display for excellent readability even in sunlight
• Multilingual user interface (English, French, German, Spanish, Dutch, Italian)
• Easy navigation menu, quick volume/zone toggles, and intuitive button layout

Connectivity & Expandability

• Rear USB port for connecting flash drives or charging compatible devices
• Preamp outputs for adding external amplifiers or subwoofers later
• Wired remote compatibility with NRX series controllers for expanded control

Features:

• AM/FM Tuner with RDS
• SiriusXM Compatible (receiver and antennae not included)
• NMEA 2000 Compatible and integrated
• Bluetooth connectivity (30' Range)
• LCD display with brightness adjustment
• Works with iPod/iPhone, plus Android and Windows phones
• Sealed against the elements for use in the marine environment
• Flush or flat mounting installation options

Technical Specifications:

• 200 Watt Peak Power
• 50 Watts peak x 4 channels
• Class AB Amplifier
• Rear USB connection
• Language Interface - Dutch / English / French / German / Italian / Spanish
• Dimensions (W/H/D) - 7-7/16" x 2-3/8" x 4-7/8"
• Cutout Dimensions (W/D/H) - 6-3/8" x 2" x 3-15/16"

In the Box:

• Stereo Head Unit
• Mounting Hardware
• Mounting Template
• 6' NMEA 2000 drop cable
• Power Wiring Harness
• Aux/Line-out Harness
• Documentation

∗SiriusXM Promotion - Purchase a SiriusXM Receiver (sold separately) and get a Rebate for 3 Free Months of SiriusXM Service with a Subscription

*Cover not included

*Sold as an Individual

Specifications:

• NMEA 2000: Yes
• Auxiliary Input: Yes
• Bluetooth: Yes
• Color: Black/Grey
• Cover Included: No
• Power - Output (Watts): 200
• RCA Input: No
• RCA Output: Yes
• SiriusXM Ready: Yes
• Wired Remote Capable: Yes
• Wireless Remote Capable: Yes

Quick Guide (pdf)
Owner's Manual (pdf)
