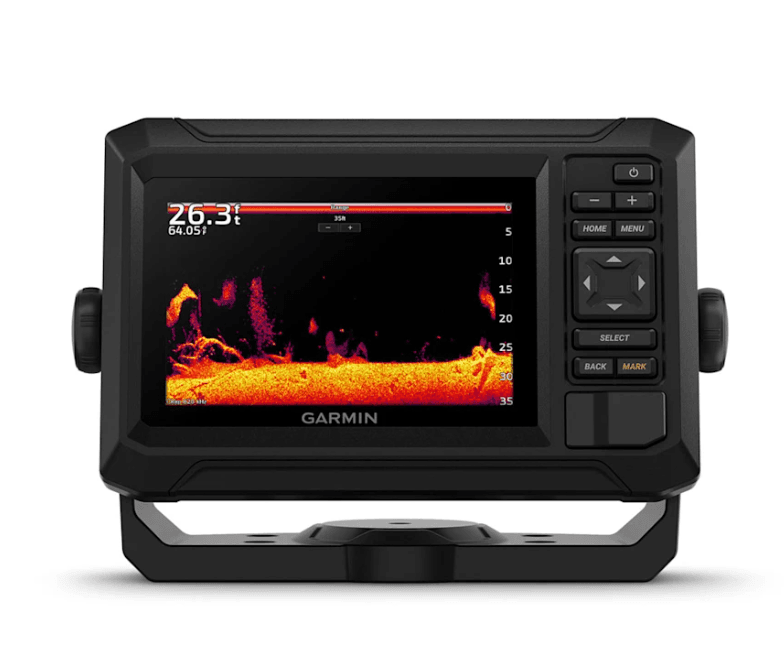

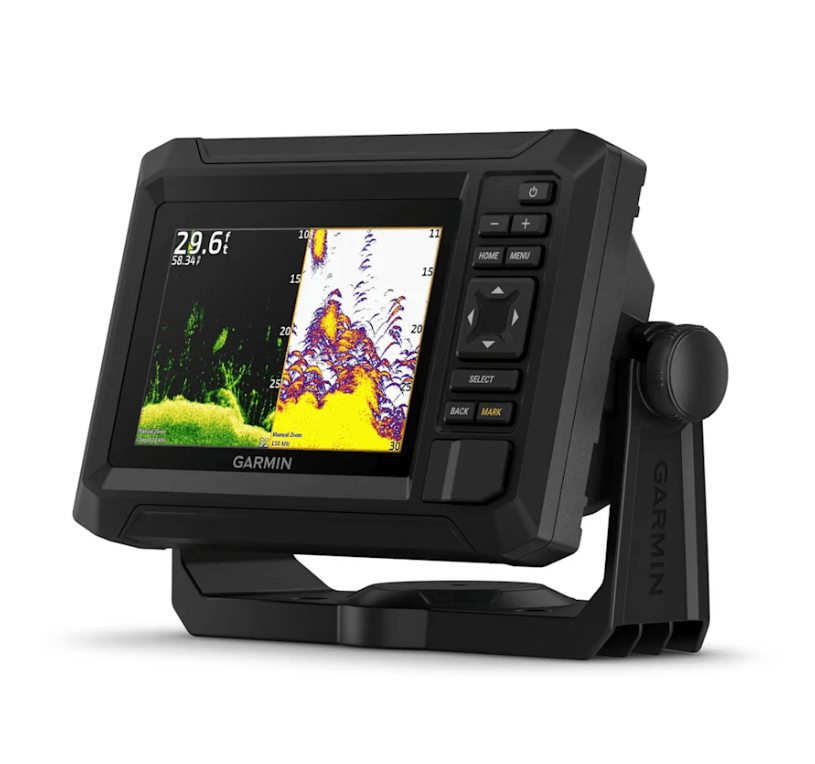

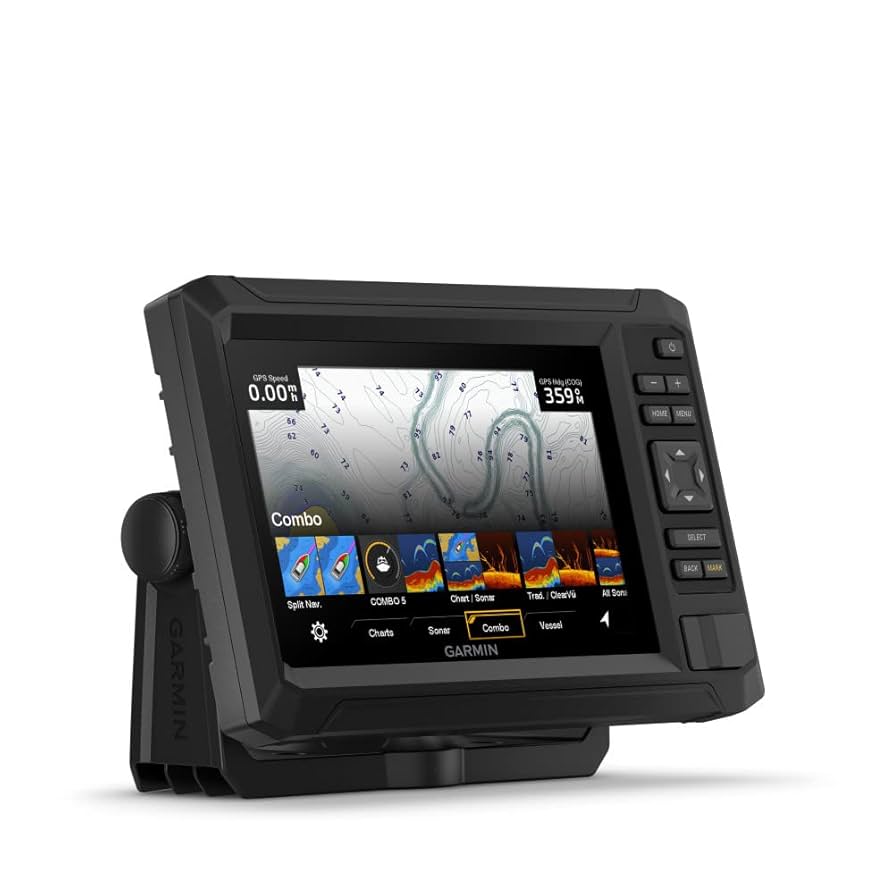

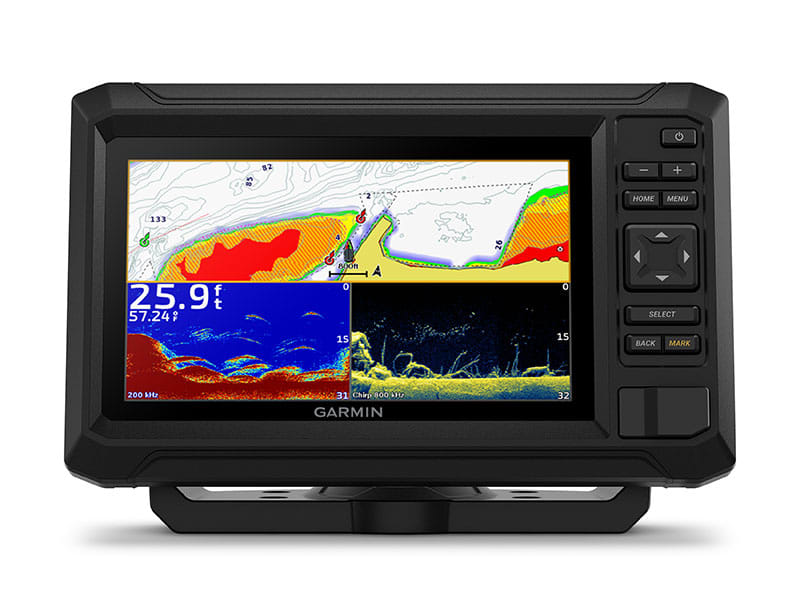

Garmin ECHOMAP UHD2 53CV Chartplotter/Fishfinder Combo (US Inland Maps) (GT20-TM)

ECHOMAP™ UHD2 53CV Chartplotter/Fishfinder Combo with US Inland Maps & GT20-TM

(010-02590-51)

WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?

Fish like a seasoned local — even if you’re heading out for the first time — with the ECHOMAP UHD2 53CV. This powerful chartplotter + fishfinder combo brings pro-level sonar, mapping, and connectivity into a rugged 5″ unit. Below is a SEO-rich, feature-packed product description:

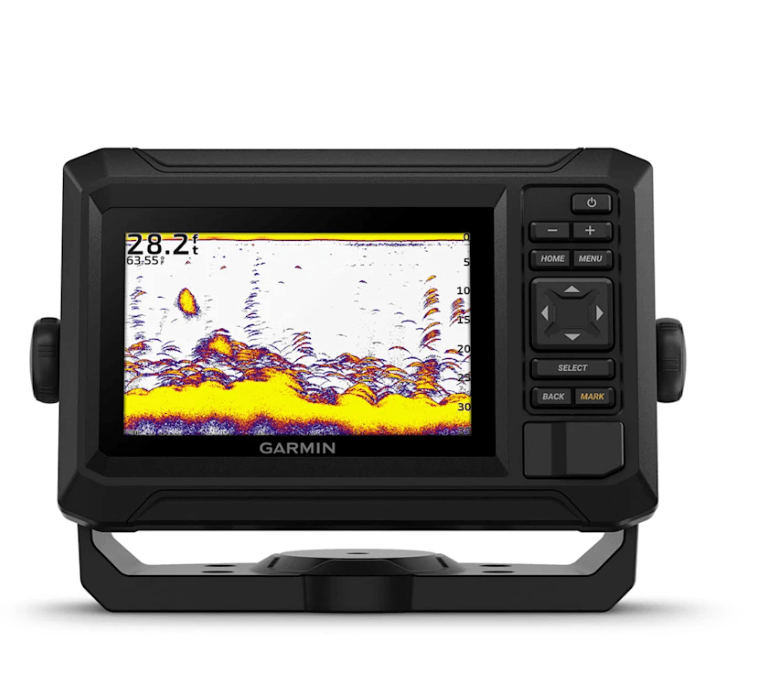

• Bright 5″ WVGA keyed display (800 × 480) delivers a crisp, sunlight-readable interface that stays clear whether you’re in full sun or shade

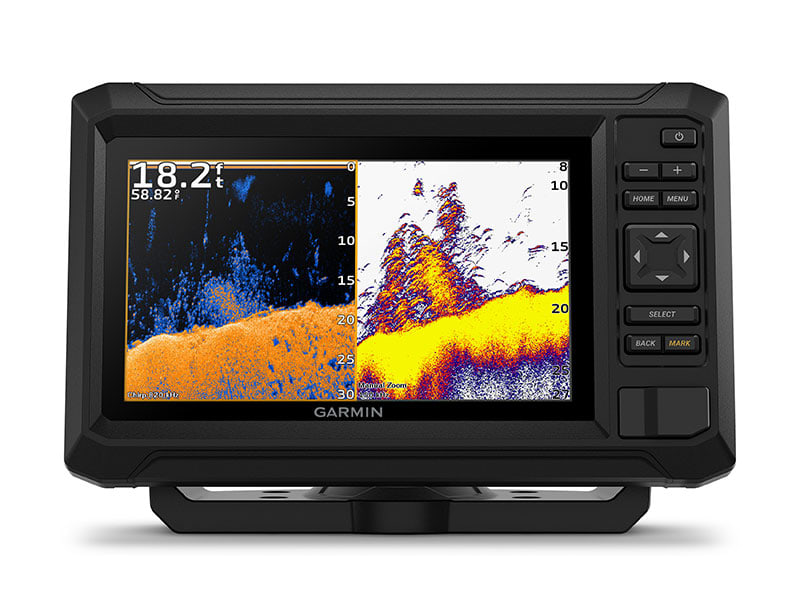

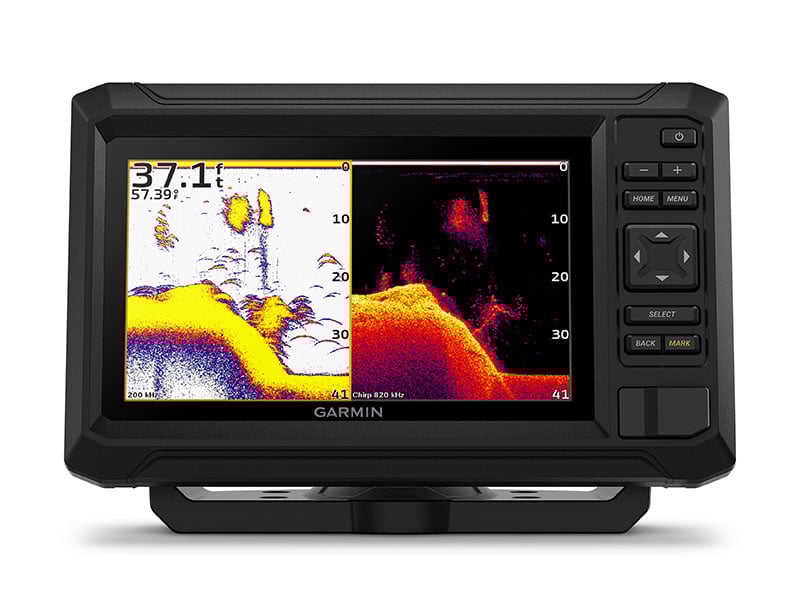

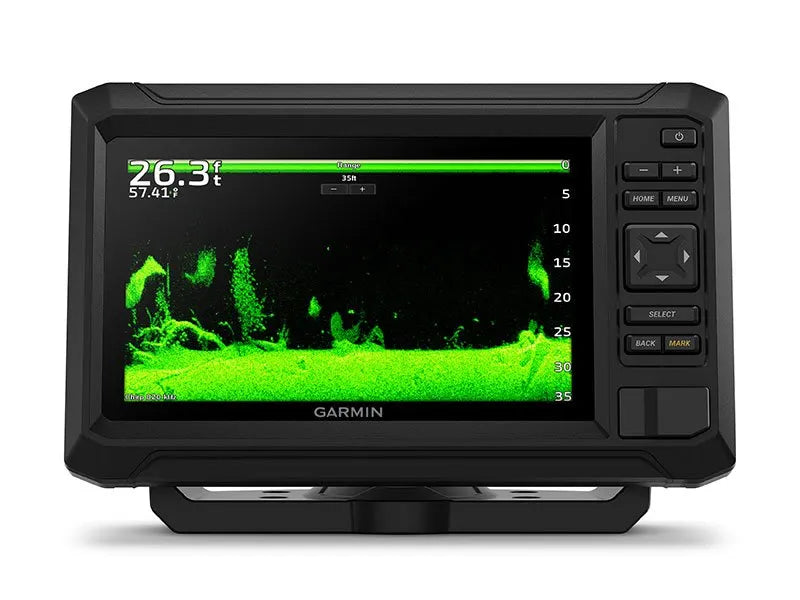

• Dual sonar modes: CHIRP traditional (50/77/83/200 kHz sweep) and ClearVü™ scanning (260/455/800 kHz) let you see both wide coverage and high-definition structure detail
• Strong 500 W RMS transmit power (both CHIRP and ClearVü) provides deep penetration (up to ~701 m / 2,300 ft in ideal conditions)

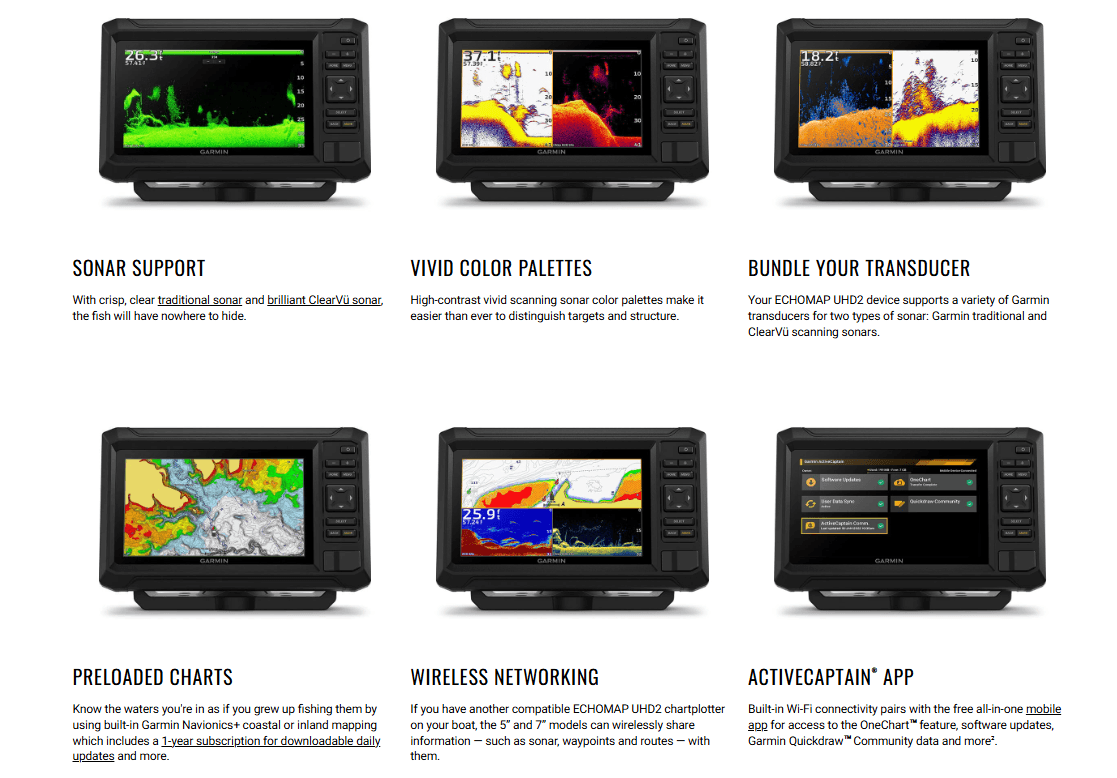

• High-contrast color palettes for vivid sonar—automatically or manually switch color schemes to highlight fish, structure, thermoclines, or bottom contours

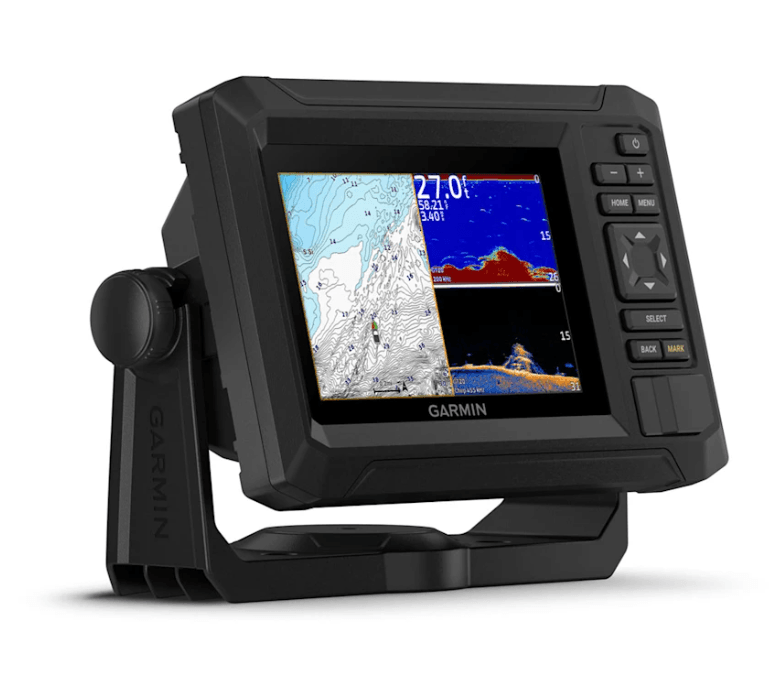

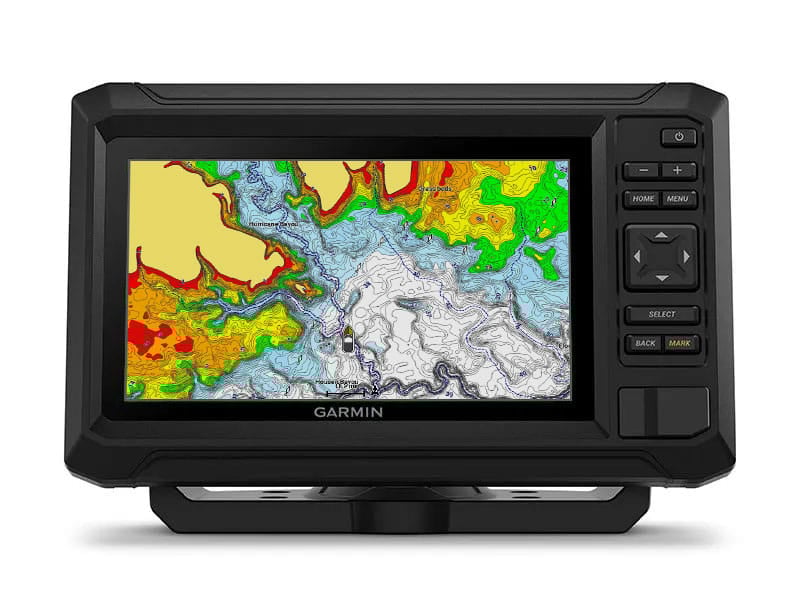

• Preloaded with U.S. LakeVü g3 inland maps (17,000+ lakes) that incorporate Navionics® content for a richer charting experience
• Quickdraw™ Contours is built in, letting you create your own 1-ft contour maps on the fly while you fish — save and share with fellow anglers
• Wi-Fi® wireless networking lets two compatible ECHOMAP UHD2 units share sonar, waypoints, and routes in real time — ideal for multi-station setups

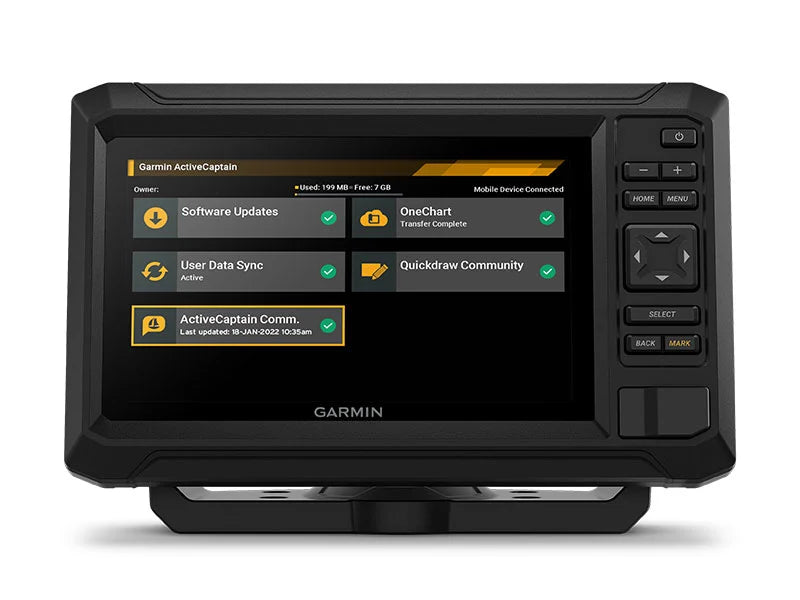

• ActiveCaptain® app integration (via built-in Wi-Fi) enables OneChart™, downloadable updates, Garmin Quickdraw Community access, and push alerts for software upgrades etc.
• Internal 5 Hz GPS/GLONASS position updates the boat’s location and heading 5 times per second to keep tracks smooth and waypoints accurate
• Expandable via microSD card (max 32 GB) for extra cartography and data storage
• Robust, marine-ready build: built from polycarbonate plastic and rated for IPX7 (can resist immersion up to 1 m / 30 min)
• Operating temperature range from –15 °C to +55 °C (5 °F to 131 °F) ensures performance in a wide range of conditions

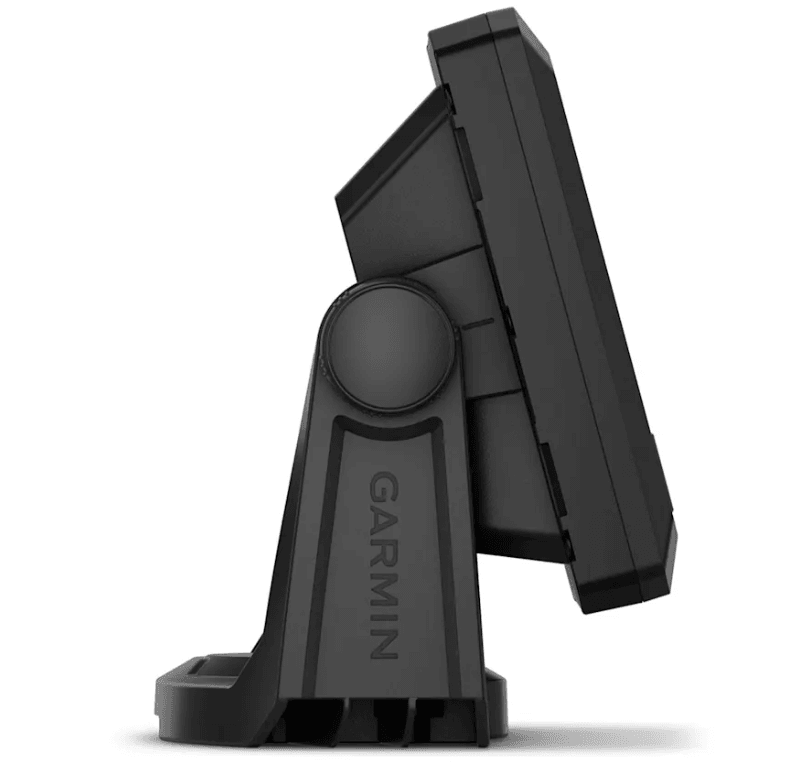

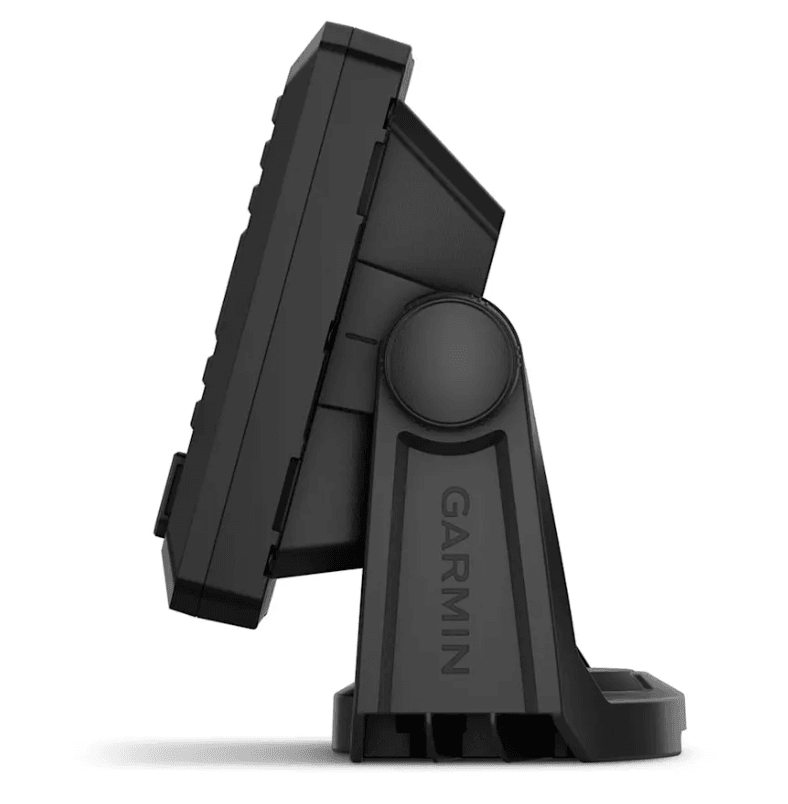

• Compact dimensions (188 × 122 × 61.5 mm) and light weight (~0.5 kg / 1.1 lb) make mounting easy; supports both tilt (bail) and flush mounting

In the Box:

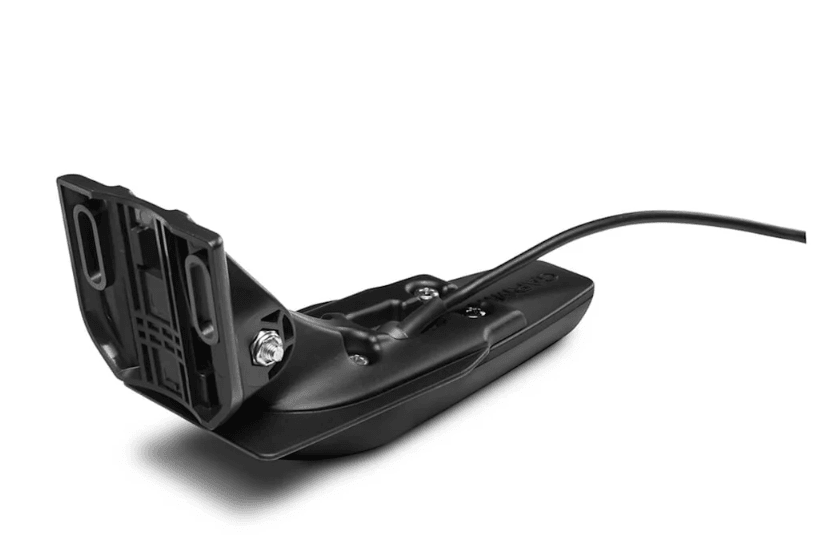

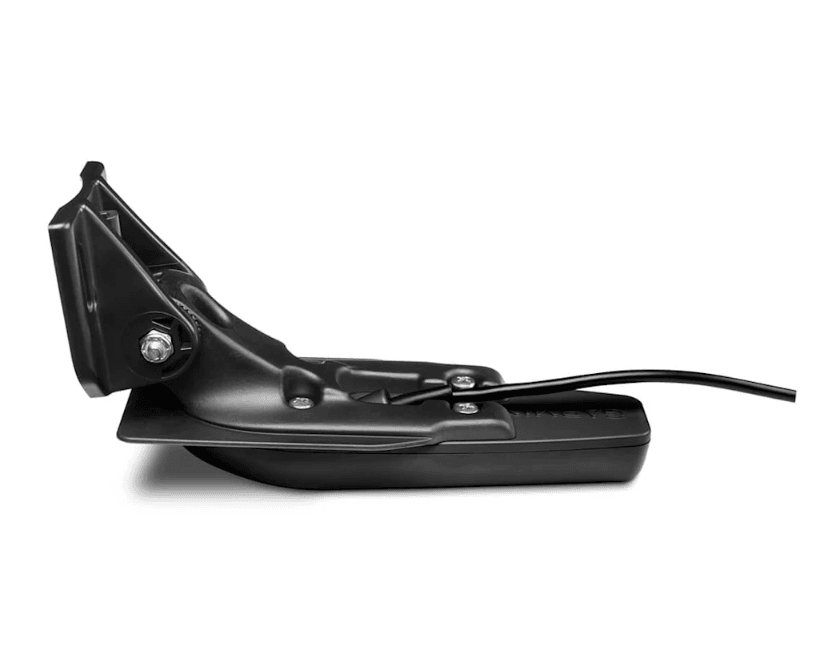

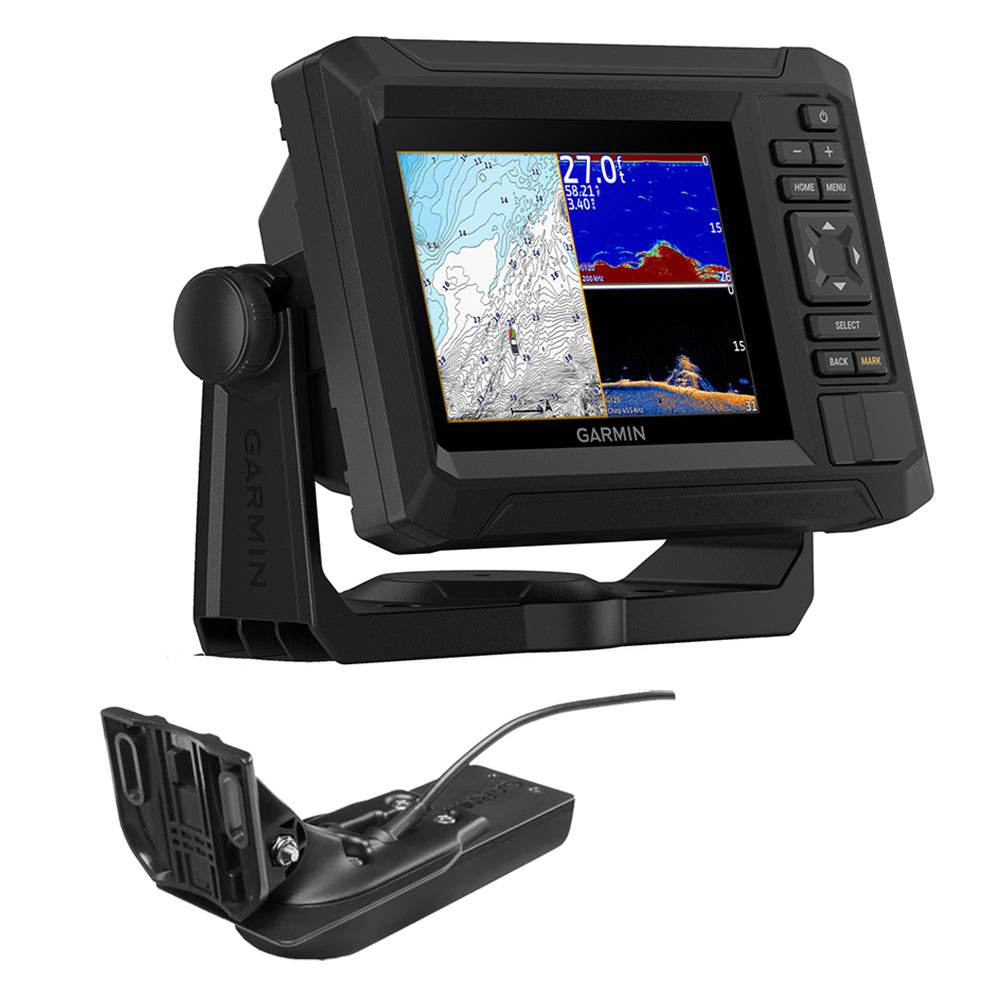

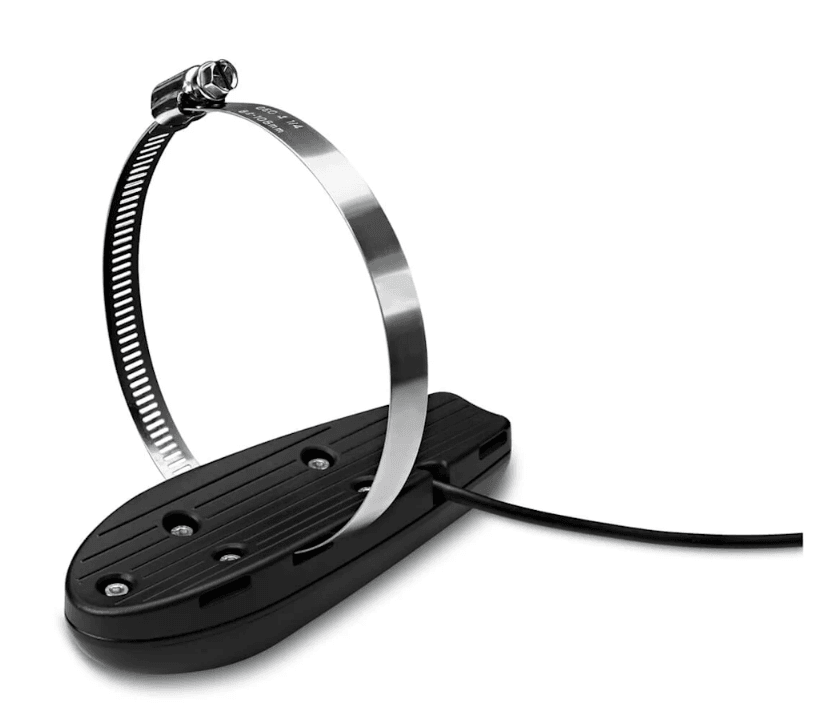

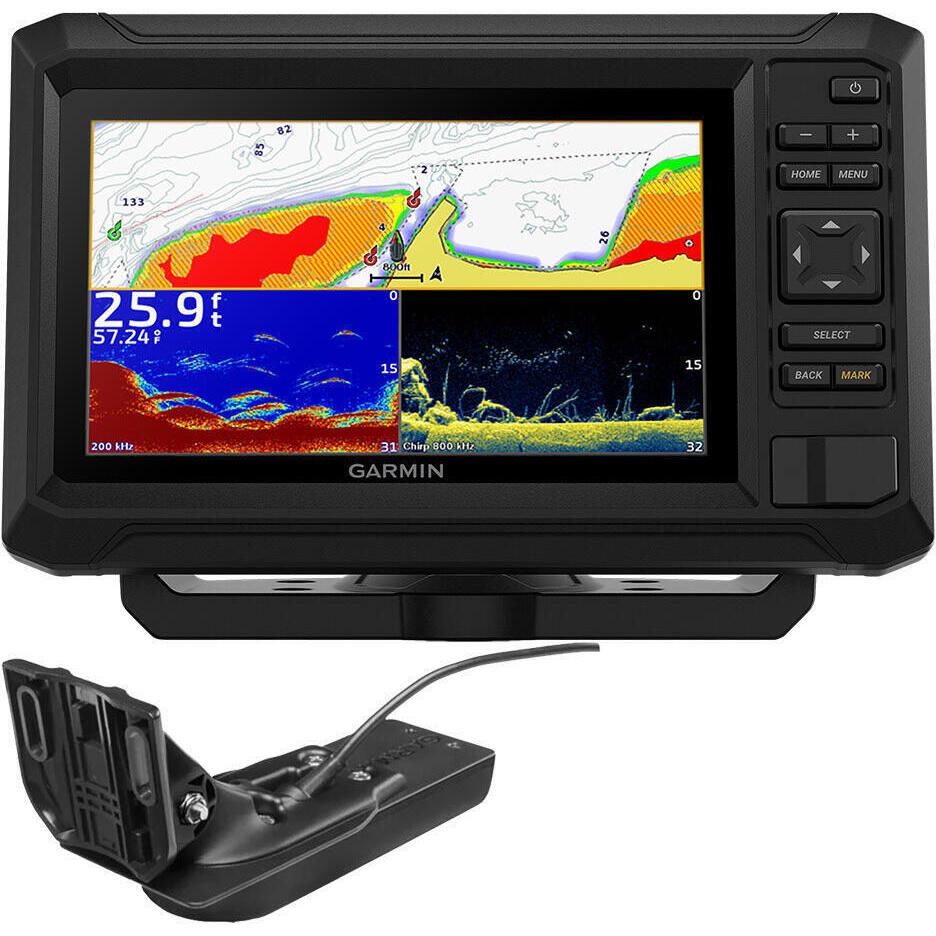

ECHOMAP UHD2 53CV unit, GT20-TM transducer, power/data cable, tilt mount, flush-mount hardware & gasket, mounting hardware, documentation.

Connections & Compatibility:

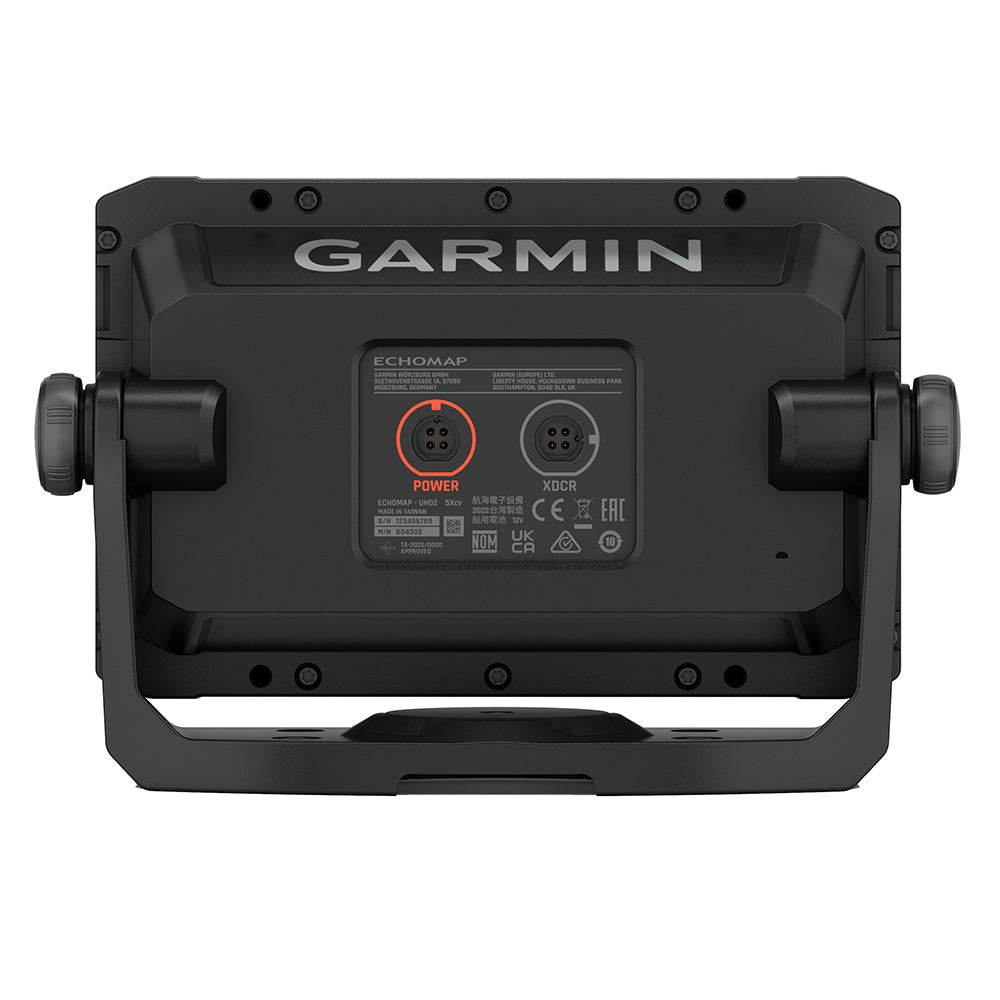

• 4-pin transducer port (supports traditional + ClearVü)
• Wireless (2.4 GHz) network bridging
• Compatible with Garmin transducers and expansions
• Supports route, waypoint, boundary setup, 50 tracks / 100 routes / 5,000 waypoints
• NMEA 0183 / NMEA 2000 support (depending on wiring & network) (some sellers list this)

Why This Is the Smart Choice:
This isn’t just a fishfinder—it’s a full marine navigation and sonar hub. Whether you’re scanning deep structure with ClearVü or tracking fish arches with CHIRP, combining mapping and sonar in one compact unit is a game-changer for anglers.

Its Wi-Fi & ActiveCaptain connectivity future-proofs it, and Quickdraw mapping empowers you to turn your sonar data into shareable, custom maps. For serious freshwater anglers, tournament kayak fishing, or small-boat use, the UHD2 53CV is a precision tool.
